Digital Audio Player DAP ES9038Pro Bluetooth 5.0 WiFi 32bit 768kHz DSD512 MQA

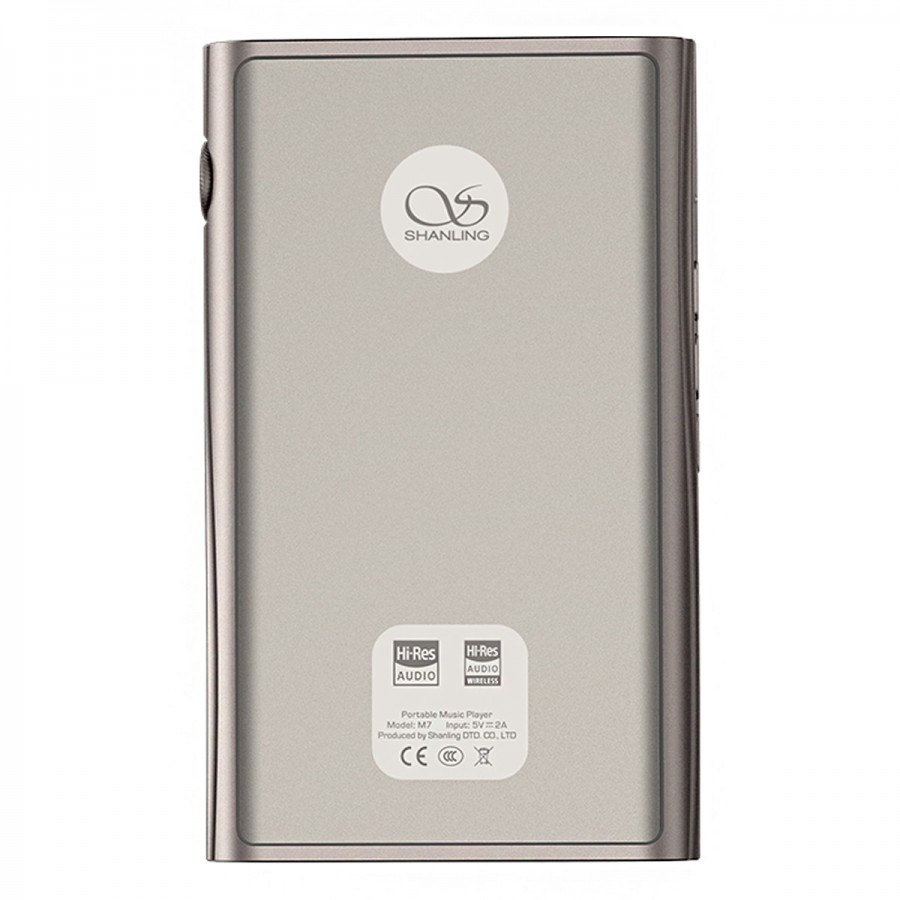

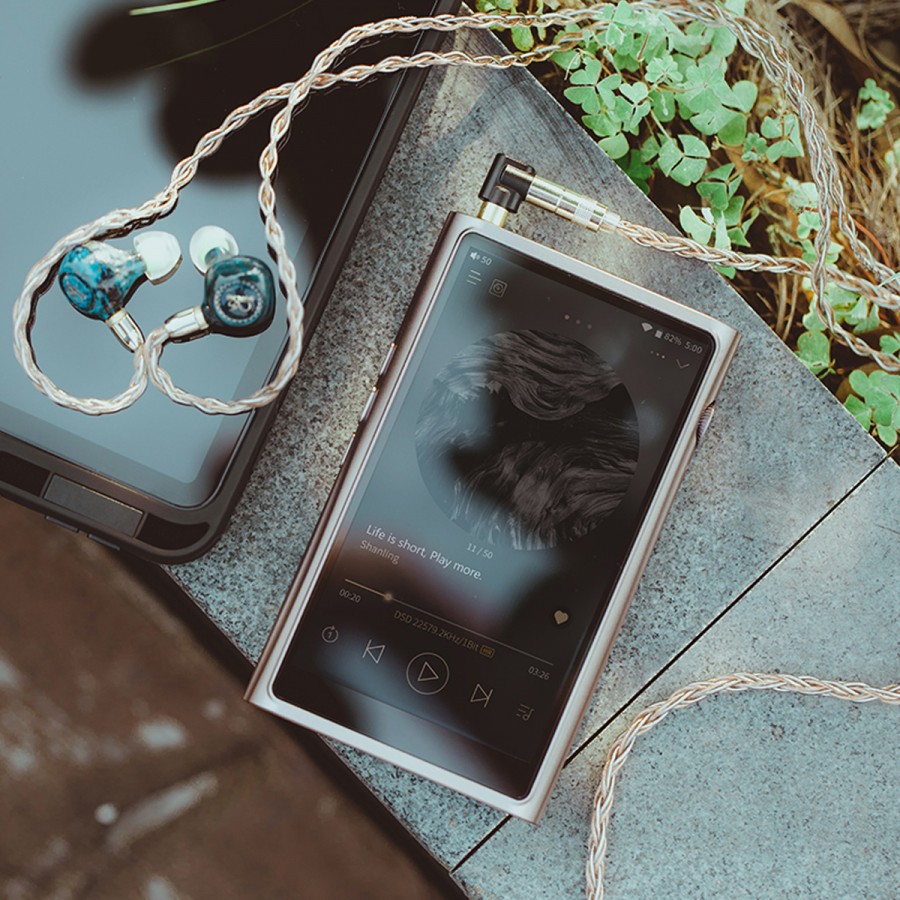

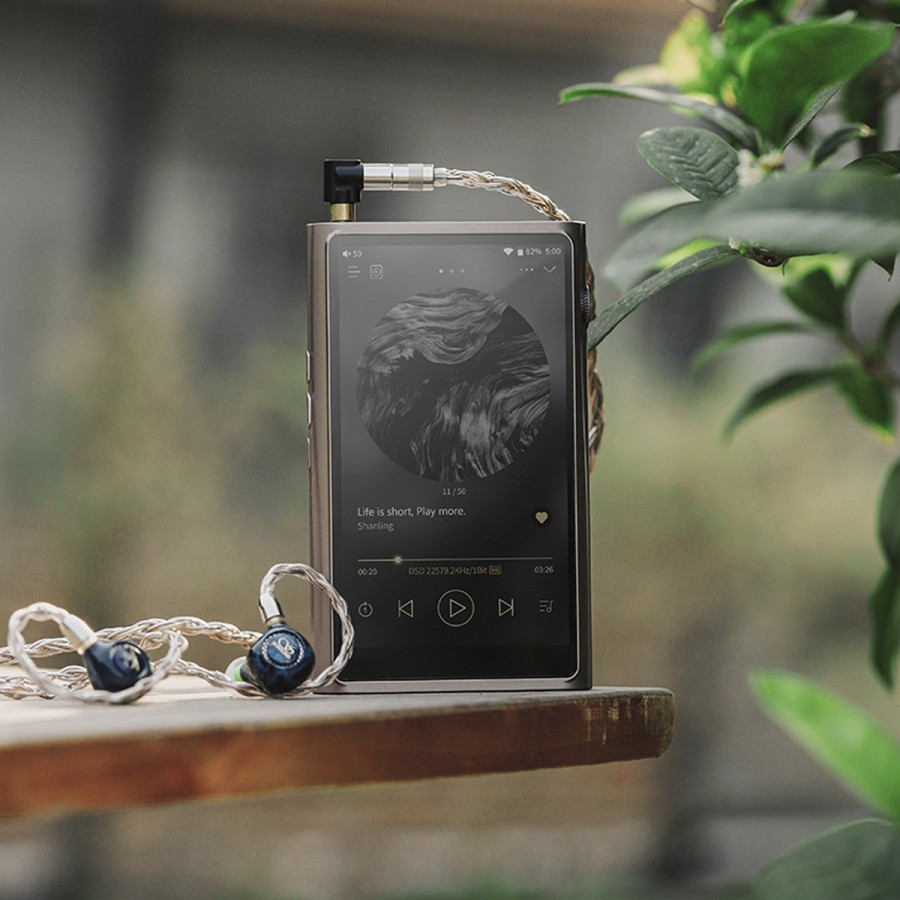

With the M7, Shanling offers a very high-end digital music player with an exceptional design that combines incredible sound performance with great versatility and a luxurious look. The chassis, carved from a single block of aluminum, features an ES9038Pro DAC and a Qualcomm 665 Octa-Core processor. The device runs on a customized version of Android 10 and is controlled in a perfectly intuitive and ergonomic way thanks to the sublime 5" Full HD touchscreen that adorns the M7.

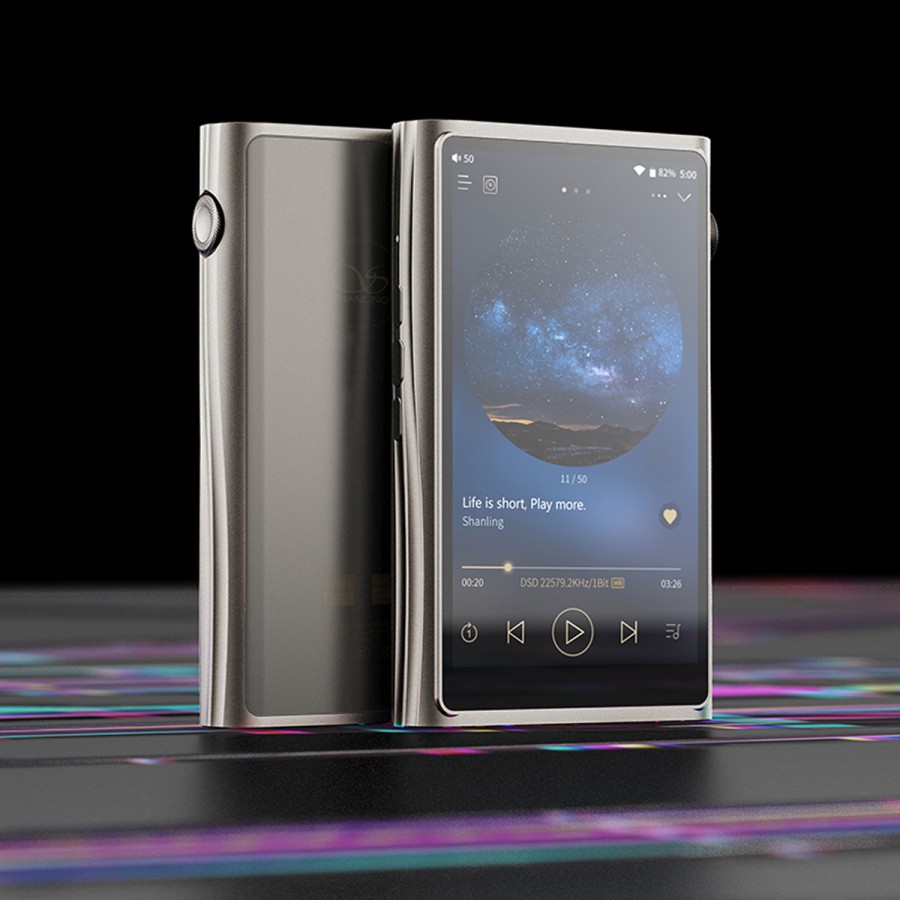

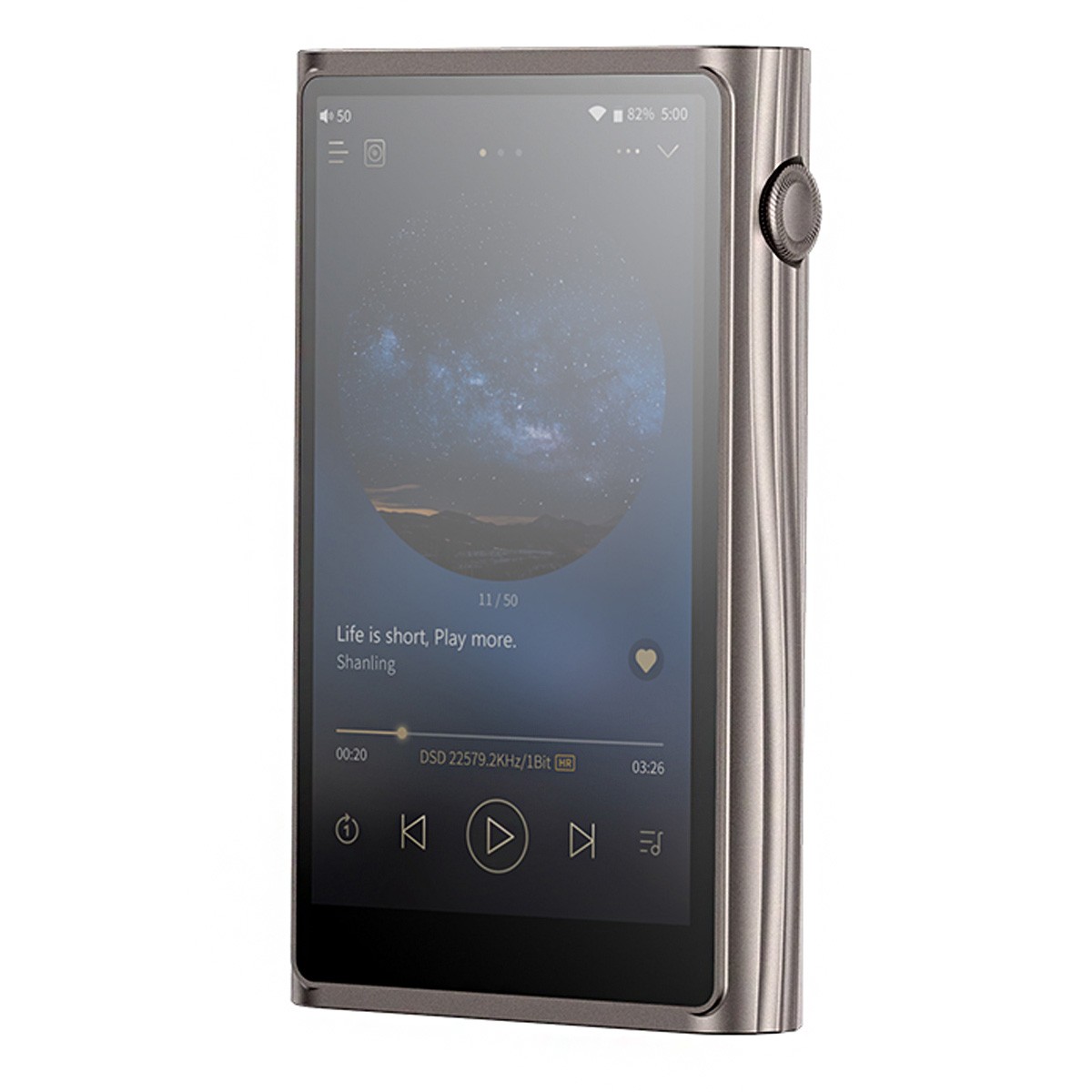

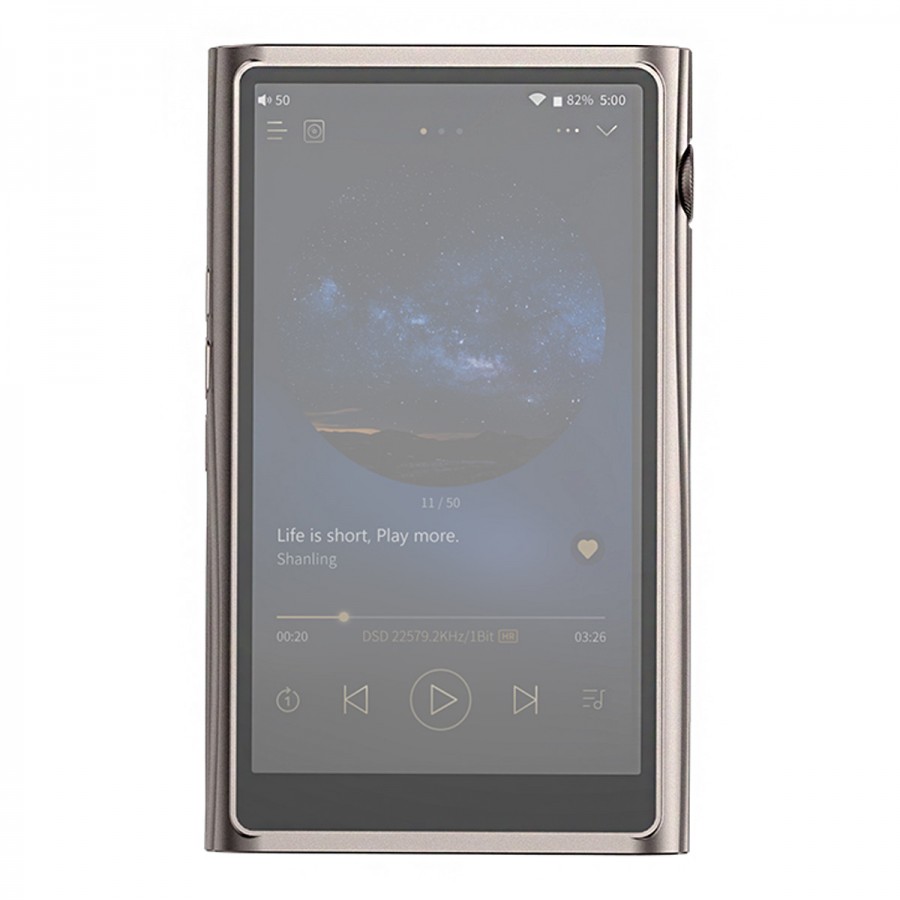

The M7 features a beautiful Sharp Full HD (1920*1080px) LCD touchscreen, making it easy to enjoy your music through a simple and intuitive interface.
The audio circuit of the M7 is based on an ESS ES9038Pro digital to analog conversion chip. In addition to offering an incredibly accurate and rich sound reproduction, this DAC allows to enjoy high resolution audio streams, up to 32bit 768kHz in PCM and up to DSD512, but also MQA (Master Quality Authenticated).
The four-channel amplifier stage of the M7 is designed in a completely symmetrical way, around an OP+BUF architecture. This design allows for superior sound quality with extremely low noise levels.
This amplifier stage is combined with an I/V conversion section using a pair of ADI ADA4896-2 amplifiers and MUSES8920 dual channel J-FETs ensuring very low noise and distortion. High precision film resistors with a tolerance of only 0.01% and Panasonic tantalum-polymer capacitors are also used.
The M7's audio circuitry also uses Shanling's CPAF (Constant Phase in All Frequencies) technology to solve the delay problems caused by low-pass filtering. In addition, two KDS oscillators and a third-generation FPGA enable a drastic reduction in jitter.
With three different gain settings, the M7 can deliver a significant power, up to 400mW under 32Ω unbalanced and 900mW under 32Ω balanced. It will thus be able to accompany both very sensitive IEMs and high impedance headphones.
Powered by an eight-core Qualcomm Snapdragon 665 processor and an Adreno 610 GPU, the M7 has more than enough processing power for all modern applications. In addition, this duo ensures low power consumption for a consistent battery life.
Simply connect any Bluetooth headset or speaker to the L7, while enjoying excellent wireless sound quality with support for high-definition codecs such as aptX HD, LHDC or LDAC.
Equipped with a Qualcomm WCN3980 chip, the M7 supports 2.4G/5G WiFi as well as MIMO technology, ensuring a stable and fast connection. In addition, the DAP supports DLNA and AirPlay streaming protocols and can be synced to the Eddict app for remote control.
Specifications | |
---|---|
Product type | Digital audio player (DAP) |
Inputs | Bluetooth 5.0 WiFi 2.4G/5G 1x Micro SD Slot |
Outputs | Bluetooth 5.0 1x Balanced Jack 4.4mm 1x Single-ended Jack 3.5mm |
DAC Chip | ESS ES9038Pro |
Touchscreen | 5" Full HD 1920*1080px |
RAM | 5Go LPDDR4X |
ROM (Storage memory) | 128Go UFS 2.1 |
OS | Open Android 10 |
Battery | 7000mAh QC3.0 support (quick charge) |
Supported file formats | ISO, DSF, DFF, DST ISO, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, M3U, M3U8 |
Supported sampling rates | PCM up to 32bit 768kHz, DSD up to DSD512, MQA |
Gain setting | 3 levels |
Supported Bluetooth codecs | As a transmitter: SBC, aptX, aptX HD, LHDC, LDAC As a receiver: SBC, LDAC |
Supported network protocols | SyncLink DLNA AirPlay OTA Updates |
Battery life | Single-ended : up to 10h Balanced : up to 8.5h |
Measurements | ||
---|---|---|
Parameter | Single-ended output | Balanced output |
Output power | Low gain: 0.73V @ 32Ω (17mW) Medium gain: 1.88V @ 32Ω (110mW) High gain: 3.61V @ 32Ω (406mW) | Low gain: 1.46V @ 32Ω (66mW) Medium gain: 3.35V @ 32Ω (350mW) High gain: 5.43V @ 32Ω (920mW) |
Frequency repsonse | 20Hz - 40kHz (0.1dB) | 20Hz - 40kHz (0.1dB) |
THD+N | 0.0007% | 0.0007% |
Channel separation | 75dB @ 32Ω | 115dB @ 32Ω |
Dynamic range | 126dB | 128dB |
SNR | 126dB | 128dB |
Noise | > 116dB (< 1.6uV) (low gain) | > 113dB (< 2.2uV) |
Output impedance | < 1Ω | < 1Ω |
General | |
---|---|
Dimensions | 128 x 78 x 20mm |
Weight | 312g |
Package | Shanling M7 1x USB-A to USB-C cable Protective screen |
Input | Micro SD |
Input | Bluetooth |
Input | WiFi |
Output | Jack 3.5mm |
Output | Bluetooth |
Output | Jack 4.4mm |
DAC / ADC Chip | ES9038PRO |
Max sampling rate | DSD512 |
Max sampling rate | MQA |
Max sampling rate | 768kHz |
Color | Gray |
