MATRIX RIP USB - Headphone / DAC Amplifier 24bit / 96khz USB / Coaxial

MATRIX RIP USB - Headphone Amplifier 24bit / 96khz USB / Coaxial

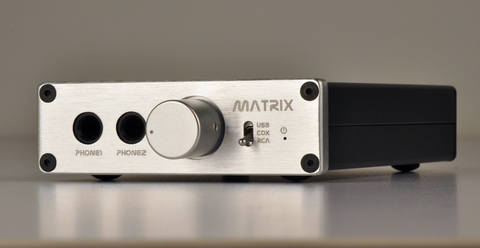

Matrix offers a new, well-finished headphone amplifier with two headphone outputs, but also a fixed volume line output for use in DAC.

Developed around aop specific "Ultra Low noise" it offers a natural sound and textured ideal for listening Hi-Fi.

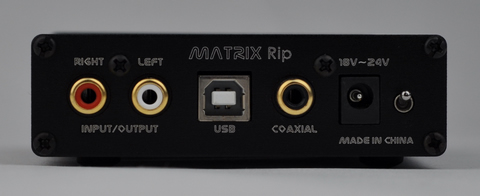

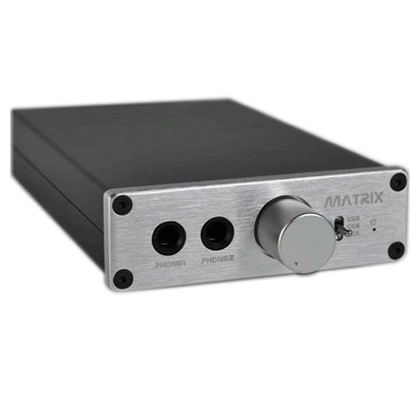

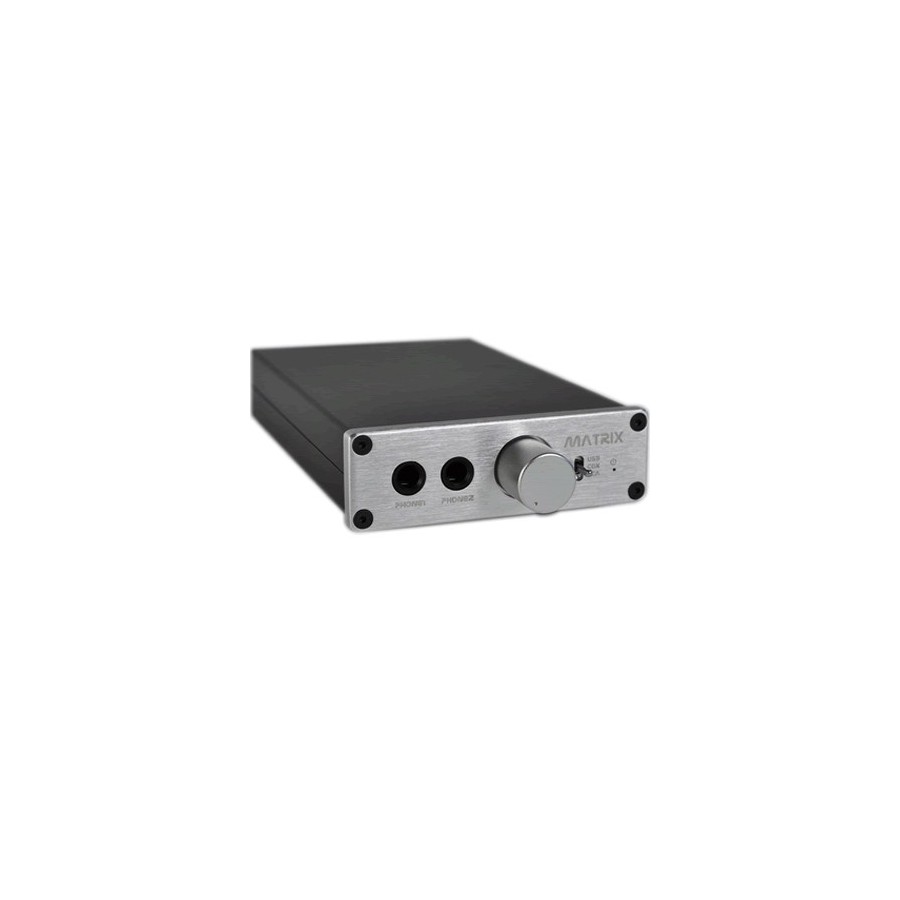

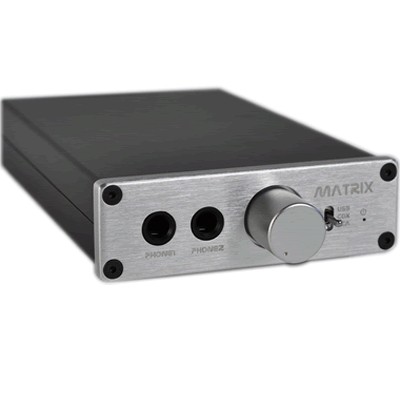

The headphone outputs can be used simultaneously with the stereo RCA output, three inputs are available and can be selected using a front panel switch (RCA, USB, Coax)

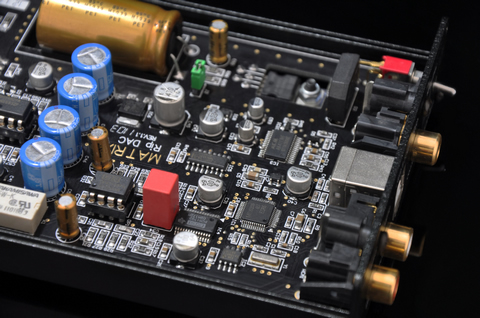

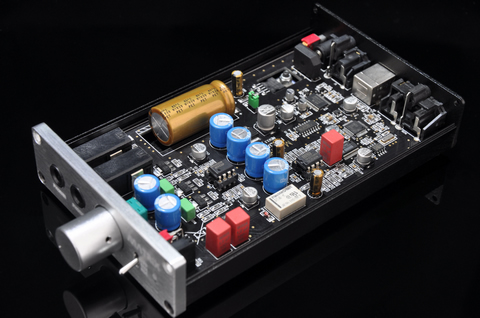

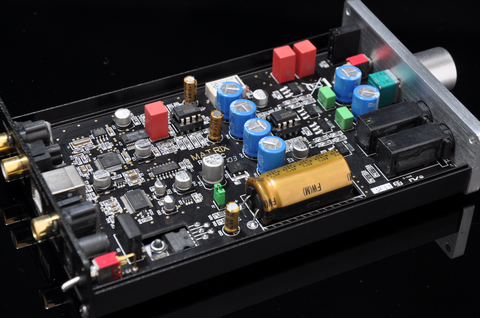

Its new USB interface based on a TI chip TAS1020B and a PCM1793 allows native management of streams up to 24bits / 96Khz.

Characteristics :

• Input USB: Sampling rate: 44.1 kHz ~ 96 kHz 24-bit (windows7, Vista, XP, 2000, the X-Mac OS)

• Coaxial input: Sampling rate: 32kHz to 96kHz 24Bit

• Analog output:
  Output Level: 2 Vrms
  Frequency response: 20Hz ~ 20kHz
  Report: 104dB
  Distortion: <0.002% (1kHz)

• Headphone Amplifier:
  Analog inputs RCA: 20Hz ~ 20 kHz 47 k ohms
  Maximum Output Current: 200mA
  Bandwidth gain:> 500 kHz
  Signal to Noise Ratio: 95dB

• Electrical Specifications :
  Power supply: 18V ~ 24V (AC / DC)
  Consommation: <10W
  </ Li>
• Other specifications: <br>Operating Temperature Range: 0 ~ +40 ° C
  Dimensions: 180 × 97 × 33mm (length x width x height)


  </ P>



  </ P>



  </ P>



  </ P>



  </ P>



  </ P>

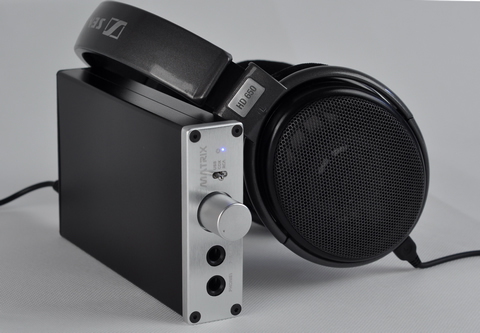

  Illustration helmet not delivered </ P>
