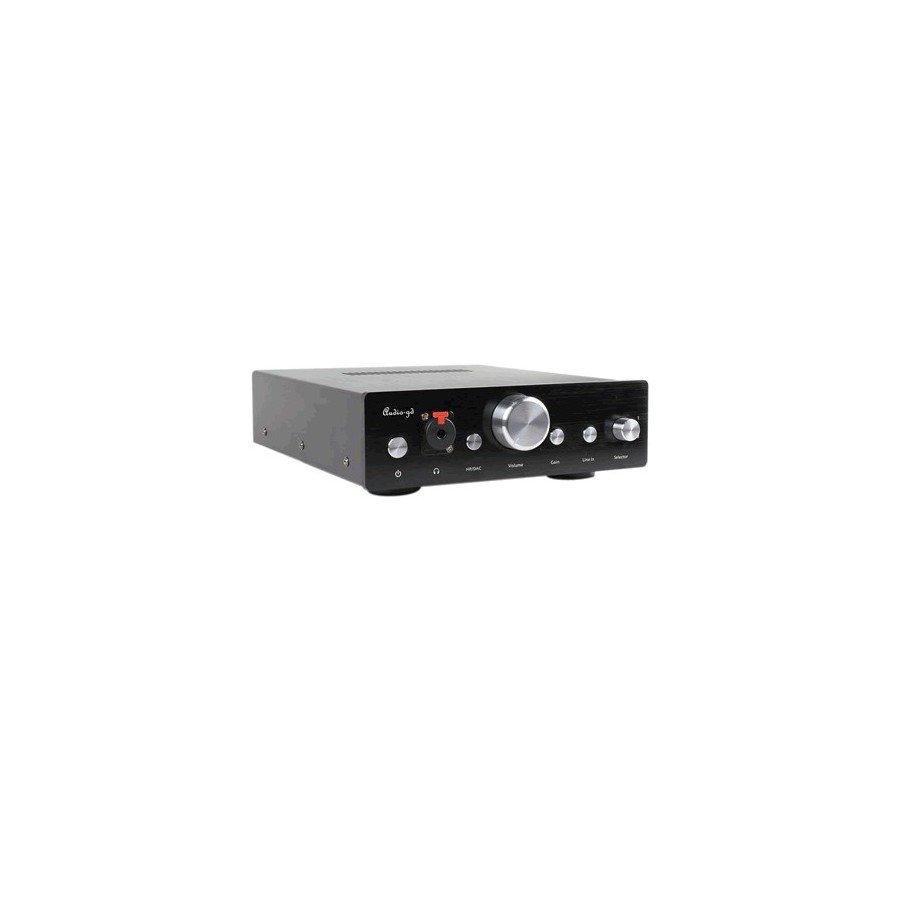

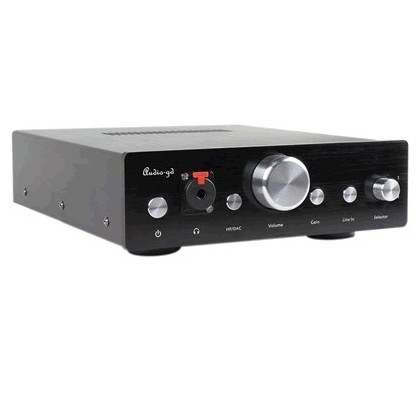

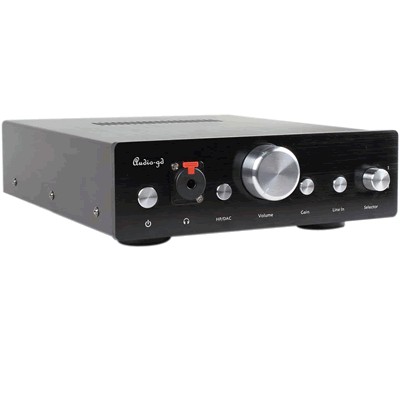

Audio-GD Compass 2 2014 DAC / Headphone Amplifier / Preamp ES9018 DSD

Audio-GD Compass 2 DAC/Ampli casque/Preamp 32bit/192KHz ES9018
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 8408
New product

440,84 €tax excl.

Including 0,83 € for green tax
This product is no longer in stock
Produit garantie 2 ans

More info

This reissue of Compass comes back in a version featuring the new USB interface of the brand (USB32) and two converter ES9018.

This very versatile device (DAC, Headphone Amplifier and Preamplifier), has many inputs (USB, Coax, Toslink and Line in) to be comfortable in all configurations.

The brand's engineers have designed this device to ensure its scalability (it is possible to change at will the USB interface, the converter or discrete Aop).

Its Ultra Modern DAC allows you to manage 32-bit 192KHz sources directly via USB and SPDIF inputs.

The 100% discreet design of this amplifier is backed by a high power power supply.

the 24k Gold Plated RCA and the Nover (UK) capacitors have been specially manufactured on Audio-Gd specifications.

Features:/ Strong>

  • USB interface: USB 32 (VIA VT 1731)
  • SPDIF Receiver: WM8805
  • DAC: ES9018
  • DSD (64 and 128) / DXD
Signal / noise ratio


115dB

Output Level

Headphone output: 11V RMS
Variable output: 5V Max
Fixed output: 2.5V RMS

Output Power (Headphones)

3600mW / 25 ohm (150mW class A)
2000mW / 50 ohm (300mW class A)
1100mW / 100 ohm (600mW class A)
400mW / 300 ohm (Full class A)
200mW / 600 ohm (Full class A)

Gain

12DB at H gain
0 DB at L gain

Output impedance

2 ohm / Headphone output
10 ohm / DAC output

Sensitivity ofTree


0.5 Vp-p (75 Ohms, Coaxial)
19 dBm (Optical)
USB1.1 / 2.0 (High Speed ​​/ Full Speed)

Frequency Response

20Hz - 20KHz (-0.2DB, DAC + amp)
3Hz - 350KHz (Amp parts)
3Hz - 200KHz (Line In)

USB Compatibility Windows: 44.1kHz to 192kHz music files
OSX: 44.1kHz to 384KHz music files
Linux: 44.1kHz to 192kHz music files
Supported sampling rates

USB model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Coaxial model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Optical model: 44.1kHz, 48kHz, 88.2kHz, 96kHz (176.4KHz and 192KHz available if the source support)

DSD 64/128

DXD

Consumption
220-240V AC 50/60 Hz 20W
Weight5KG
AccessoriesAC power cord X1
USB cable X1
Optical cable X1



https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_2.jpg

https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_3.jpg

https://www.audiophonics.fr/images2/6985/6985_AUDIOGD_COMPASS2_1.jpg

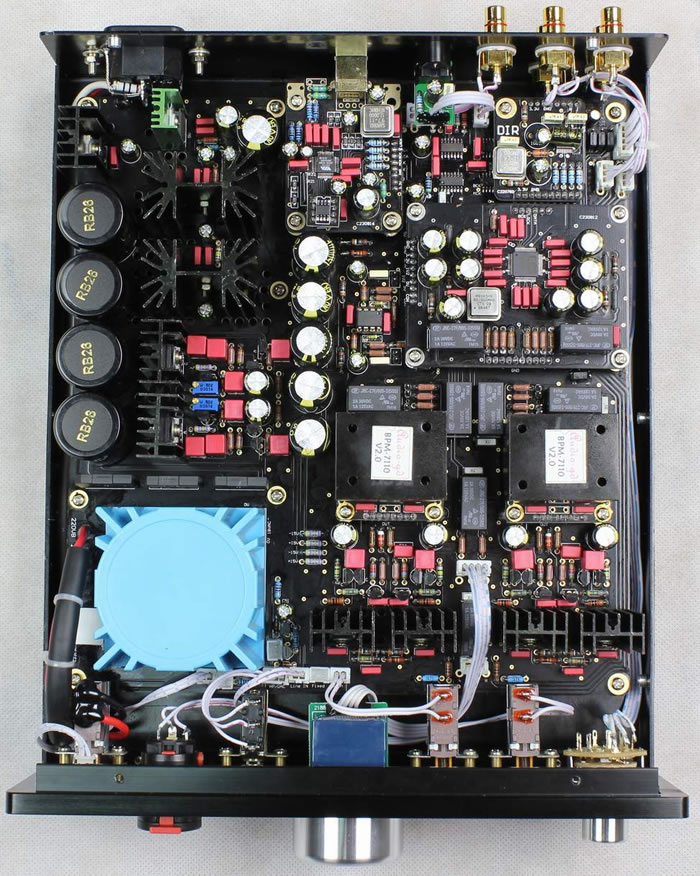

https://www.audiophonics.fr/images2/8408/8408_audiogd_compass2_ES9018_1.jpg


Data sheet
InputUSB
Components / ChipES9018
