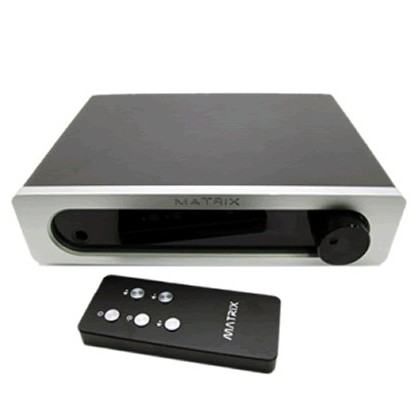

MATRIX Mini-i AD1955 V2 USB DAC SPDIF - XLR - RCA - Headphones

MATRIX AD1955 Mini-i DAC (Version 2011)

DAC with USB inputs - BNC (SPDIF) - Toslink - AES / EBU
RCA - XLR Variable Outputs - Headphone Amplifier + Remote Control Aluminum

This unit is a Digital - Analog Preamplifier XLR and Headphone Amplifier.

Despite its average size it is equipped with all existing digital inputs, two types of analog outputs, a headphone amplifier.
It even has an SPDIF output to convert the signal to the digital inputs.
This may be useful, for example, for a DTS or AC3 signal arriving in optics and needing to be decoded externally by a DTS decoder.

The XLR and RCA outputs are variable through the volume knob which is an endless potentiometer. (-90dB to -0dB)
The sound level is recorded when turned off, so this unit can really be used as a digital preamp and placed at the top of your Hi-Fi system.
The inputs are selected by pressing the same button.

The decoder scheme is symmetrical, it uses two converters based on the AD1955 Analog Device already used on very high-end devices.
Thee receiver is an AK4113 with low Jitter and chip amplification headphone TPA6120.

Features:/ Span>

• Diagram100% symmetrical
• Decoding chips 2x AD1955
• Up to 24Bit / 192kHz
• Receiving chip AK4113 low jitter
• Integrated headphone amplifier, up to 300ohm
• Outputs XLR and RCA audiophile quality variables
• Allows to be used as preamp or simple DAC (without volume control)
• Comes with Infrared Control Remote Control (Volume Control, Mute, Power On / Off and Source Selection)

Digital Inputs:

• Toslink optics from 44.1 to 192kHz
• Coaxial: 75ohm RCA or BNC (supplied adapter) from 44.1 to 192kHz
• AES / EBU: XLR symmetrical 5v from 44.1 to 192kHz
• USB: 44.1 or 48kHz USB-B connector (PC only)

Digital Outputs:

• SPDIF Coaxial
• 44 to 192kHz according to input
• Allows even redirecting an AC3 or DTS stream

Analog Outputs:

• RCA: 0 ~ 2V variable volume
• XLR: 0 ~ 4V variable volume
• Frequency response: 20Hz - 20kHz
• Signal to noise ratio: 105dB
• Dynamic range: 108dB
• Distortion: 0.0002% @ 1kHz

Others:

• Weight: 1.2kg
• Dimensions: 205x155x48mm
• Power Consumption: 15W
• Supplied with: Power cable, B adapterNC -> RCA3
• Comes with Infrared Control Remote Control (Volume Control, Mute, Power On / Off and Source Selection)

</ P>

</ P>

Internal view:

</ P>

Digital inputs:

Pair of AD1955 converters:
