MiniDSP C-DSP 8x12 V2 Audio Processor USB 28/56bit 8 to 12 channels

MiniDSP C-DSP 8x12 Audio Processor USB 28/56bit 8 to 12 channels

No customer reviews yet, login to write a review.

By buying this product you get 67 loyalty points


Yes, notify me when available !
Reference : 12206
New product

679,00 €tax incl.

565,83 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

MiniDSP C-DSP 8x12 V2

Audio Processor USB 28 / 56bit 8 to 12 channels

Mini DSP C-DSP 8x12

the new generation of processor

The MiniDSP C-DSP 8x12 is the next-generation processor for high-end Car Audio. The powerful 400MHz SHARC processor provides high-resolution audio at sampling frequencies up to 192kHz.

With a multitude of inputs and outputs in a sturdy compact 100% aluminum case, the C-DSP 8x12 is perfectly suited for simple stereo systems, surround sound systems with Subwoofer integration, but especially for advanced multichannel active systems.

Advanced settings and simplicity blend

The USB interface that does not require any driver is used to configure the audio processing power of the MiniDSP: EQ parameters on each input and output, adjustable compression and offset on all outputs, filters up to 48dB / octave, and advanced matrix mixer .

QFour full audio processing configurations are stored in flash memory, which are accessible to you instantaneouslyvia the supplied remote control, can be controlled by RJ45 cable or by infrared.

Suitable for car audio world

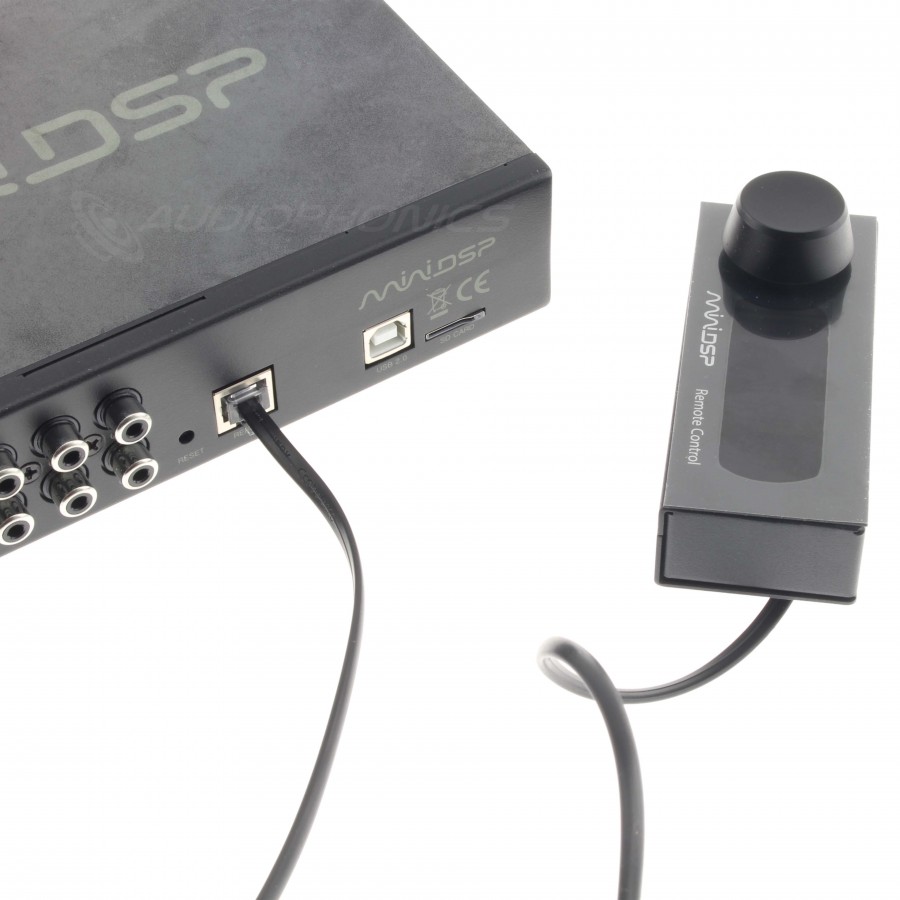

The car's dedicated hardware features include: an integrated power supply, an I / O for remote triggering, a wired remote control for the instrument panel or console mount, and a card slot micro SD for offline configuration and program updates.


Specifications

Connections: Inputs
Analog3x RCA Stereo
digital1x Coaxial SPDIF / 1x Optical Toslink

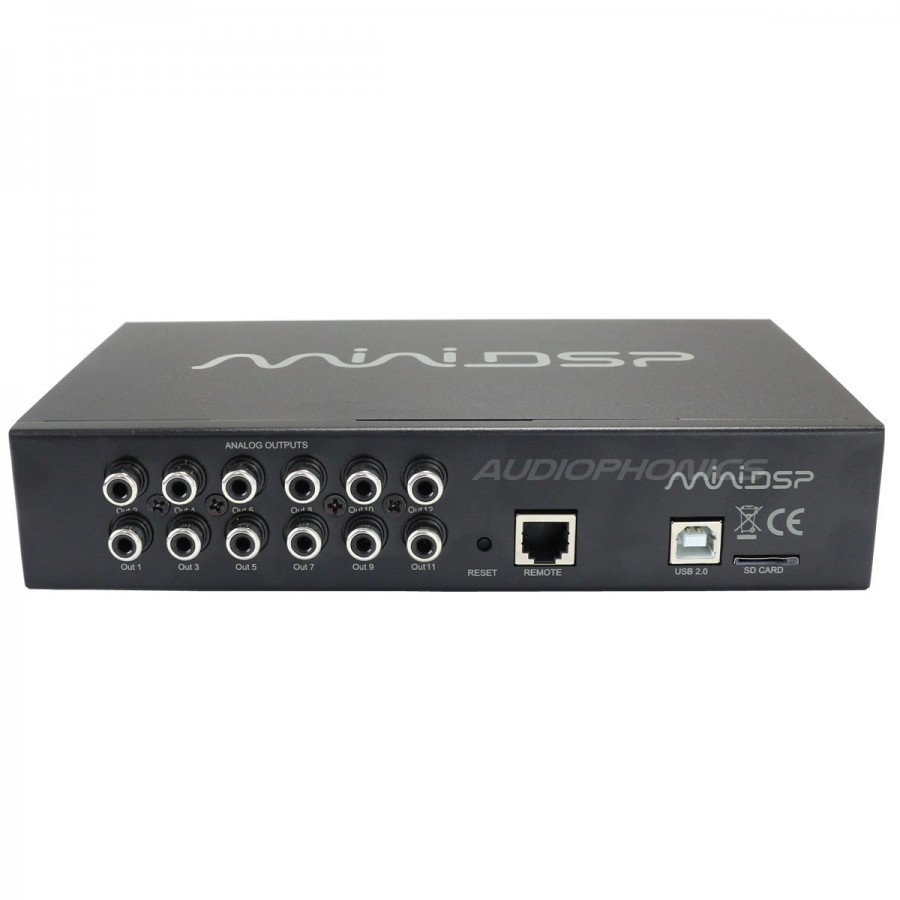

Connectors: Outputs
Analog6x RCA Stereo
DSPADSP21489
Sampling rate32bits 192kHz
Configuration8 inputs, 12 outputs
Input impedanceHigh level 68Ω / Low level 10kΩ
Output impedance560Ω
Calibration softwareC-DSP 8x12 plug-in
Filtering technologyIIR / FIR depending on the plug-in
Miscellaneous
Dimensions205 x 122 x 41mm
Weight820g
ColorBlack
Housing material100% Aluminum
Accessories1x RJ45 Ethernet cable 5m, 2x rack fastenersProfessional with Fasteners, Wired or Infrared Remote Control

Data sheet
InputRCA
InputOptical
InputSPDIF
OutputRCA
Max sampling rate192kHz
ColorBlack
