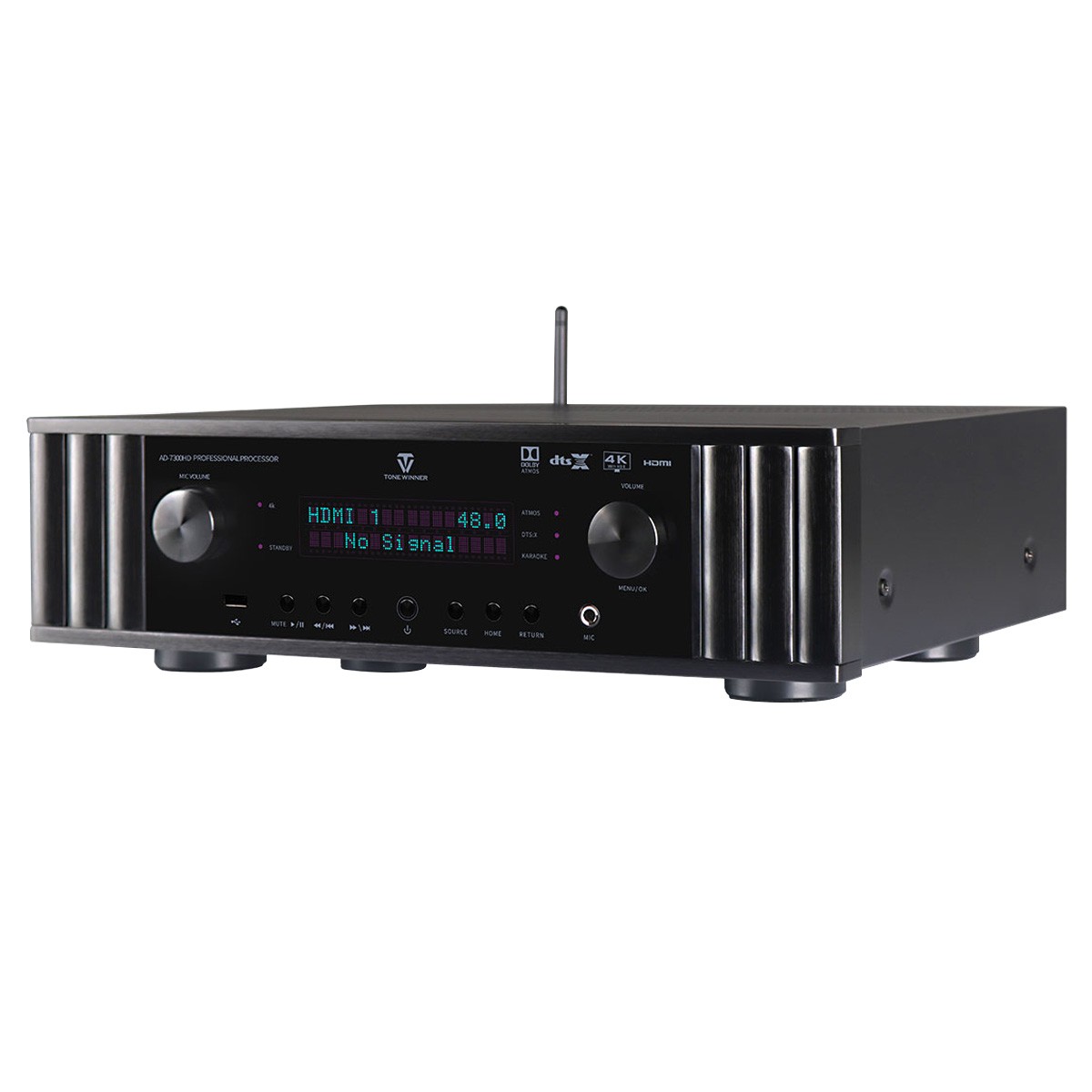

TONEWINNER AT-7300HD AV Processor / Home-Theater Preamplifier Dolby Atmos 13 Channels 7.2.4

TONEWINNER AT-7300HD AV Processor / Home-Theater Preamplifier Dolby Atmos 13 Channels 7.2.4
The Tonewinner AT-7300HD is a 13-channel audio/video processor and preamplifier, ideal for home theater integration in configurations up to 7.2.4. It supports all current audio formats such as Dolby Atmos, Dolby True HD, DTS:X and DTS Master. Similarly, the AT-7300HD accepts video streams up to 4K UHD 60Hz and is compatible with HDR, HDR10 and Dolby Vision technologies.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 129 loyalty points


Reference : 17366
New product

1 290,00 €tax incl.

1 075,00 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 23-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Tonewinner AD-7300HD

AV Processor / Home-Theater Preamplifier Dolby Atmos 13 Channels 7.2.4

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4

The Tonewinner AT-7300HD is a 13-channel audio/video processor and preamplifier, ideal for home theater integration in configurations up to 7.2.4. It supports all current audio formats such as Dolby Atmos, Dolby True HD, DTS:X and DTS Master. Similarly, the AT-7300HD accepts video streams up to 4K UHD 60Hz and is compatible with HDR, HDR10 and Dolby Vision technologies. It allows you to enjoy the latest and greatest formats available for the most immersive audio and visual experience possible.

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4 Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4

A breathtaking image

The Tonewinner AT-7300HD supports all current video technologies and formats. With 18Gbps of bandwidth and HDCP 2.2 compliant HDMI 2.1 connectivity, it easily decodes 4K UHD 60Hz video streams. It also supports HLG, HDR10 and Dolby Vision technologies, bringing an incredible level of brightness and contrast for an exceptional image quality.

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4
Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4

Automatic audio calibration

With the ETM-2 measurement microphone (sold separately), the AD-7300HD is able to automatically calibrate and correct your audio system. The microphone captures sound information from your speakers and applies automatic equalization to each channel, depending on your listening position.

To go further in the equalization...

In addition to the automatic calibration, it is possible to adjust the equalization manually. Indeed, the Tonewinner AD-7300HD provides an 11-band parametric equalizer for the left, right and center channels and a 5-band equalizer for the surround, top and bass channels. This equalization can be done directly from the graphic interface of the device.

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4
Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4

One memory for each group of inputs

Each group of inputs has an equalizer and independent effects. These different parameters are stored by the device and automatically selected according to the selected input.

Multiple configurations

The Tonewinner AD-7300HD, in order to adapt to different environments, can be used in several configurations: 2.0, 2.1, 5.1, 5.1.2, 5.1.4, 7.1, 7.1.2, 7.1.4 ... So, whatever the room in which it is used, the AD-7300HD will fit to allow you to enjoy your audio and video content.

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4
Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4

Storage of volume levels

For each channel, the AD-7300HD allows you to apply a volume level setting and limitations that can be saved and applied as soon as the unit is turned on.

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4

Bluetooth

In addition to a particularly extensive connectivity, the AD-7300HD includes a Bluetooth receiver. This one allows a wireless audio broadcast, from a smartphone or a tablet for example. The control of the playback is then done directly from your mobile device for a simple, fast and convenient use.

Tonewinner AD-7300HD Processeur Audio-Vidéo / Préamplificateur Home-Cinéma Dolby Atmos 13 Canaux 7.2.4
1Line RCA outputs
2RCA inputs
3RCA inputs (karaoke)
4Calibration microphone input
5Coaxial inputs
6Optical inputs
7Wireless microphone receiver connectors
8HDMI outputs
9Micro SD slot
10Bluetooth antenna
11Jack 3.5mm IR input
12Trigger output
13Mini USB input (USB Audio)
14RS232 interface
15XLR inputs (karaoke)
16HDMI inputs
17XLR outputs
18Power input

Technical characteristics

Specifications
Product typeAudio / Video processor
Home theater amplifier
Channels7.2.4 (13 channels)
InputsBluetooth
6* HDMI 2.0
3* Stereo RCA
3* Stereo RCA (karaoke)
2* Coaxial
2* Optical Toslink
1* Micro SD slot
1* Mini USB (USB Audio)
1* USB-A (USB Host)
2* Microphone inputs (karaoke)
OutputsBluetooth
2* HDMI 2.0 (including 1 eARC)
RCA
XLR
Other connectors1* RS232
1* 5V Trigger output
Connectors for measuring microphone
Supported audio formatsDolby Atmos
Dolby True HD
Dolby Digital Plus
Dolby Digital
Dolby Mat
DTS/X
DTS Master
DTS Hi-Res
DTS ES
DTS NEO6
Supported video formats / resolutions4K UHD 60Hz
3D
Dolby Vision
HDR10 / HDR10+
HLG
HDCP version2.2
eARC supportOn one output
CEC support
Automatic EQ calibration
Input impedance20kΩ
Output impedance100Ω
Gain≥ 13dB
THD≤ 0.02% (A-Weighted, 1kHz)
SNR≥ 98dB (A-Weighted)
Frequency response10Hz-50kHz (+1/-3dB)
Channels separation≥ 80dB
Crosstalk> 80dB
General
Supply voltage100-240VAC 50/60Hz
Dimensions (W*D*H)440*330*130mm
Weight5.5kg
ColorBlack
Package1* Tonewinner AD-7300HD
1* Remote control
1* Power cable
1* HDMI cable 1.5m

Data sheet
InputUSB
InputSPDIF
InputBluetooth
InputHDMI
InputRCA
InputOptical
InputMicro SD
OutputRCA
OutputHDMI
OutputXLR
OutputBluetooth
Max sampling rateNC
ColorBlack
