AUDIKOM BS1 Vibration Exciter Speaker

New
The Audikom BS1 is a bone conduction speaker designed to transmit the audio signal through direct mechanical vibration, thereby moving away from the air displacement radiation principle of traditional speakers. This approach allows rigid surfaces, wood, metal, walls or furniture to be turned into diaphragm-based sound sources, the reproduction then depending on the physical characteristics of the support, which determines the sound dispersion and tonal balance achieved.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Yes, notify me when available !
Reference : 22298
New product

10,90 €tax incl.

9,08 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

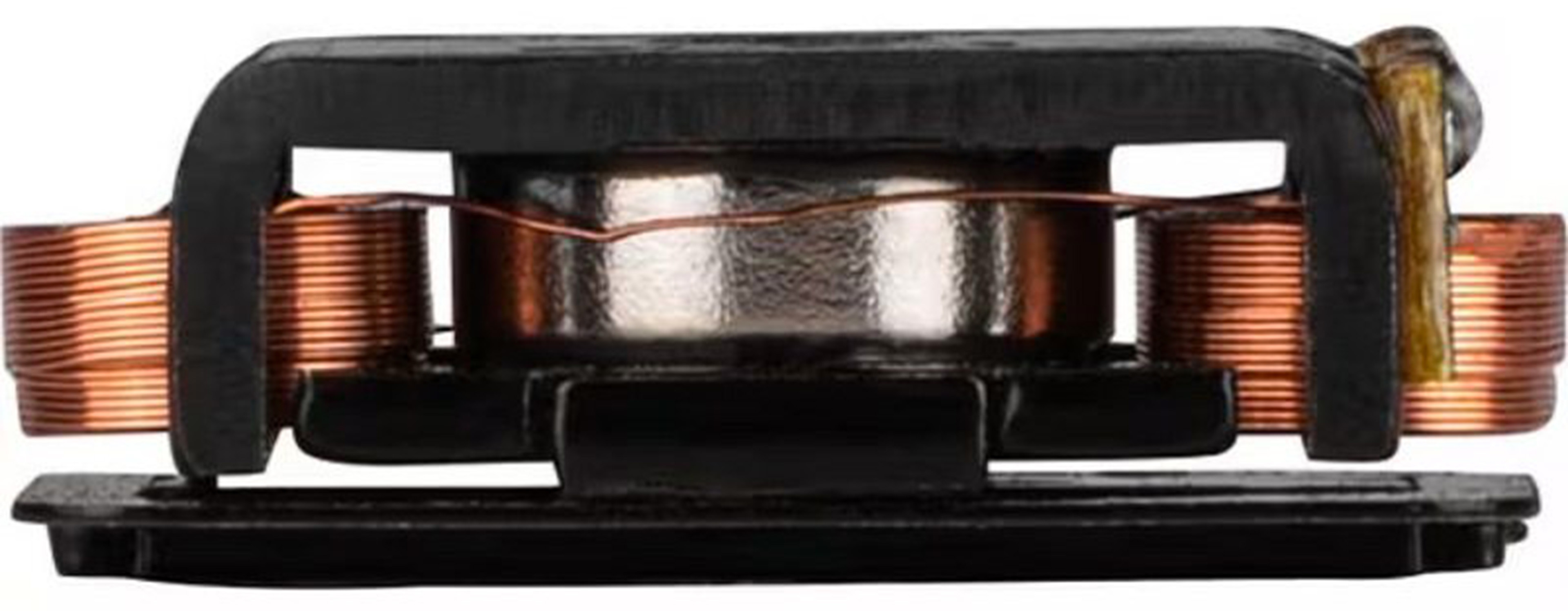

AUDIKOM BS1 Exciter Speaker 3W 4 Ohm 300Hz-19kHz

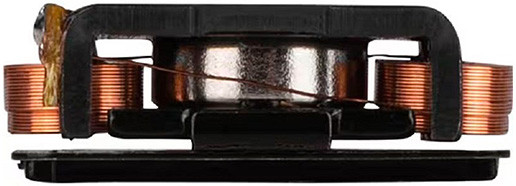

AUDIKOM BS1: Front view

The Audikom BS1 is a bone conduction speaker designed to transmit the audio signal through direct mechanical vibration, thereby moving away from the air displacement radiation principle of traditional speakers. This approach allows rigid surfaces, wood, metal, walls or furniture to be turned into diaphragm-based sound sources, the reproduction then depending on the physical characteristics of the support, which determines the sound dispersion and tonal balance achieved.

Intended for specific uses where listening must not isolate you from your surroundings, it enables sound transmission through the bones of the skull when in direct contact, ensuring clear perception while leaving the ear canal free. This versatility extends to use as a surface exciter, where it vibrates various materials to generate a localized sound field, while maintaining a variable behavior depending on the chosen support, making it an adaptable element for portable devices, discreet installations or experimental systems with limited space.

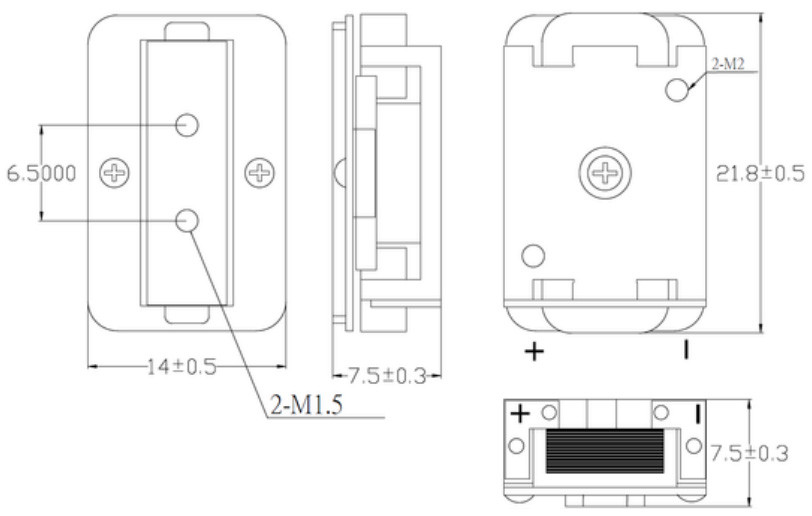

AUDIKOM BS1: Dimensions

Technical specifications

Specifications
Product typeVibration exciter speaker
Impedance4Ω ±15%
Frequency response300Hz-19kHz
PowerRMS: 3W
MAX : 5W
Thiele-Small parameters
Resonance frequency (Fs)2100Hz
Voice coil inductance (LE)0.56mH
DC resistance (Re)3.99Ω
General
Weight0.57g
PackageSold individually

Data sheet
Speaker Power (W RMS)3.0
Speaker TypeExciter
Impedance (Ω)4
Loudspeaker diameter (mm)N/A
Diaphragm typeN/A
Efficiency / Sensitivity (dB)N/A
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)300
Highest frequency (Hz)19000
