DOUK AUDIO BS-2 Speaker Driver Exciter Bass Shaker

New
The Douk Audio BS-2 is a bass shaker designed to transmit low frequencies efficiently through direct contact, relying on a 4Ω impedance and a continuous power handling of 30W (50W peak). Its resonant frequency of 57 to 63Hz positions its operation across impacts and bass effects, enabling energy variations to be reproduced with clear tactile definition.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Yes, notify me when available !
Reference : 22161
New product

32,90 €tax incl.

27,42 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

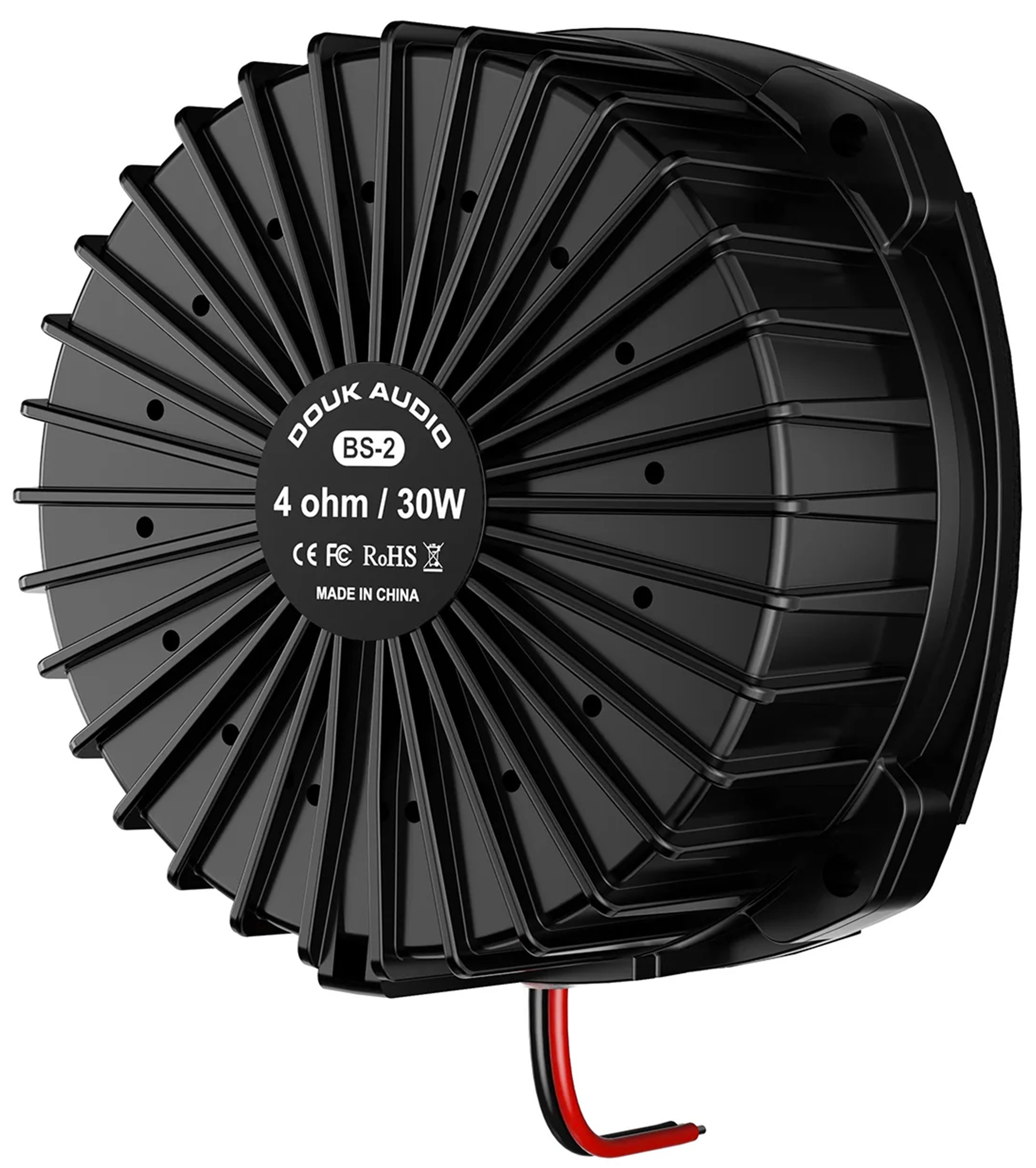

Douk Audio BS-2 Speaker Driver Exciter Bass Shaker 30W 4 Ohm

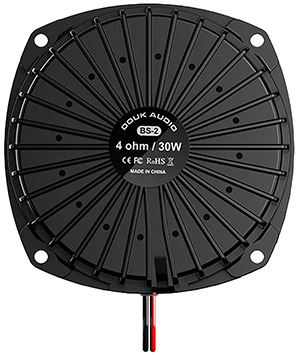

DOUK AUDIO BS-2 : Front view


The Douk Audio BS-2 is a bass shaker designed to transmit low frequencies efficiently through direct contact, relying on a 4Ω impedance and a continuous power handling of 30W (50W peak). Its resonant frequency of 57 to 63Hz positions its operation across impacts and bass effects, enabling energy variations to be reproduced with clear tactile definition.

Intended for integration into seats, sofas or dedicated structures, it uses an aluminium chassis promoting thermal dissipation while maintaining mechanical stability under sustained use. This approach allows it to integrate into home theatre or gaming setups as targeted bass reinforcement, while retaining a compact footprint and controlled long-term operation.

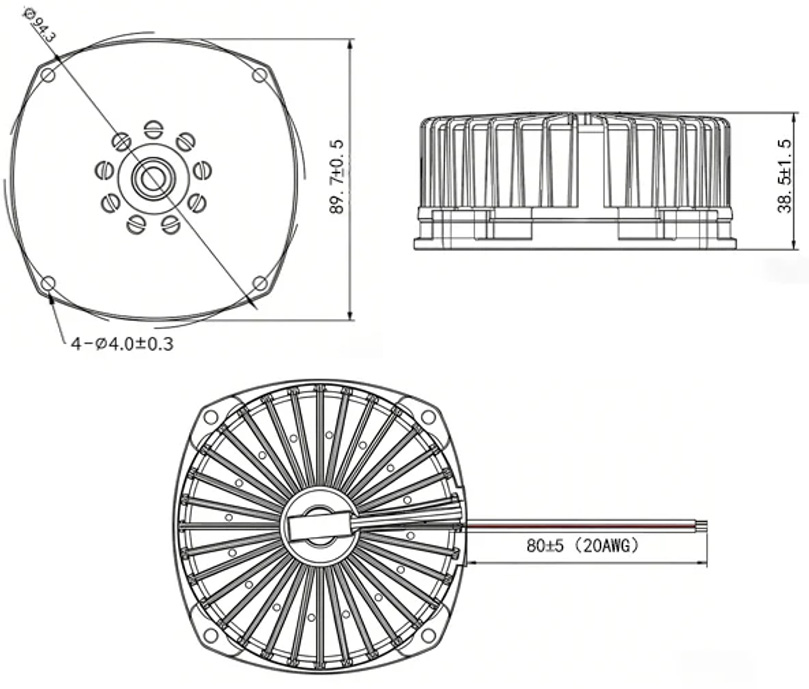

DOUK AUDIO BS-2 : Dimensions and AWG

Technical characteristics

Specifications
Product typeBass shaker (Exciter)
Nominal impedance4Ω ±15%
Resonant frequency57–63Hz
Power handlingRMS: 30W
Max: 50W
Sound pressure level (SPL)62dB ±3dB
Terminal materialAluminium
Operating temperature-20℃ ~ +70℃
Storage temperature-30℃ ~ +70℃
General
Dimensions86 × 89.7 × 38.5mm
Weight532g
ColorBlack
PackageSold individually

Data sheet
Speaker Power (W RMS)30
Speaker TypeExciter
Impedance (Ω)4
Loudspeaker diameter (mm)89.7
Diaphragm typeN/A
Efficiency / Sensitivity (dB)N/A
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A
