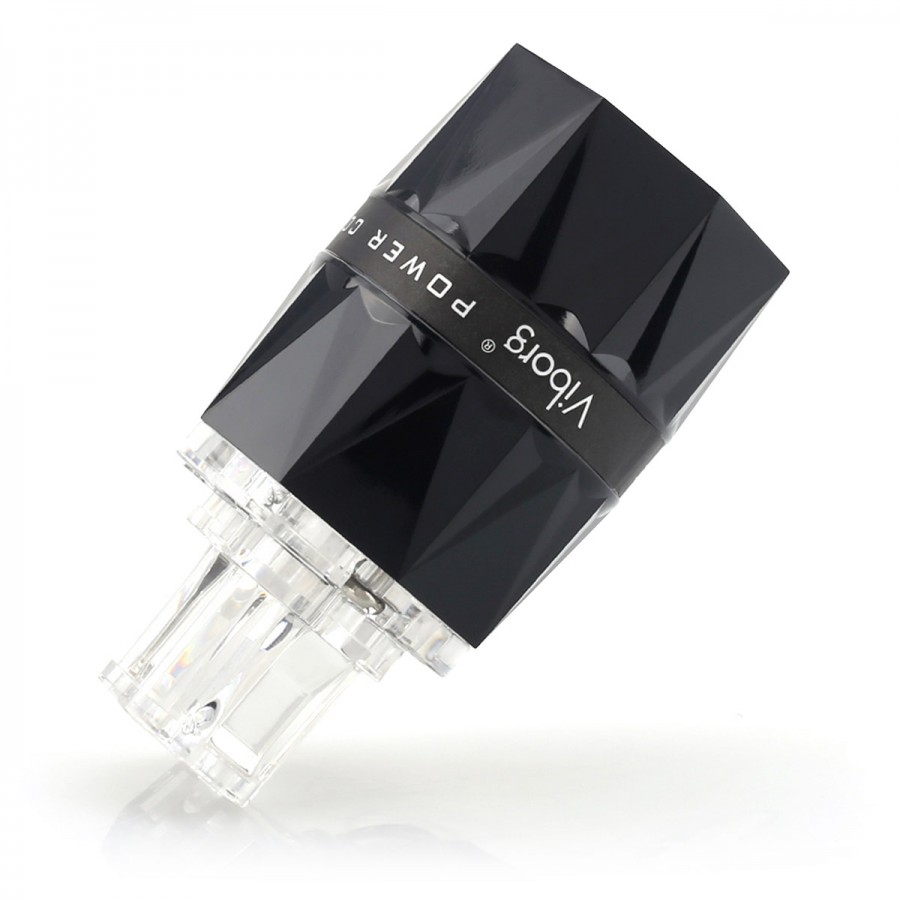

VIBORG VF503S Connector IEC C15 Silver Plated Pure Copper Ø19mm

VIBORG VF503S Connector IEC C15 Silver Plated Pure Copper Ø19mm New
This IEC C15 Viborg VF503S high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Silver. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805. The assembly is extremely simple with a screw system, so no soldering is required. The connector accepts cables with a diameter from Ø6mm to Ø19mm and conductors with a maximum diameter of Ø8mm.

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Yes, notify me when available !
Reference : 14578
New product

16,58 €tax excl.

Including 0,04 € for green tax

- +

Available on order

Produit garantie 2 ans

Accessories for this product


More info

Viborg VF503S

Connector IEC C15 Silver Plated Pure Copper Ø19mm

Viborg VF503S Connecteur IEC C15 Cuivre Pur Plaqué Argent Ø19mm

This IEC C15 Viborg VF503S high-end connector uses high quality materials to provide the best possible electrical conductivity. Thus, the contacts are made of pure Copper and benefit from a double plating of OFC Copper and Silver. The body is made of a particularly resistant polycarbonate, Bayer Makrolon 2805. The assembly is extremely simple with a screw system, so no soldering is required. The connector accepts cables with a diameter from Ø6mm to Ø19mm and conductors with a maximum diameter of Ø8mm.

Technical characteristics

Specifications
Product typeIEC Connector
Connector typeIEC C15
Cable external diameterØ6mm - Ø19mm
Max. conductor diameterØ8mm
Contacts materialPure Copper
Contacts platingOFC Copper
Silver
Body materialBayer Makrolon 2805
Connection typeTo screw
Dimensions55 x 40mm
Total length77mm
Voltage / Current250V / 10A
125V / 15A

Data sheet
ColorBlack
MaterialCopper
PlatingSilver
