CYP CPRO-SE2DD Converter HDMI UHD DTS Dolby Digital to SPDIF RCA

CYP CPRO-SE2DD

No customer reviews yet, login to write a review.

By buying this product you get 19 loyalty points


Reference : 11932
New product

190,83 €tax excl.

Including 0,01 € for green tax

- +

Shipping date: 28-10-2020.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

CYP CPRO-SE2DD

Converter HDMI UHD DTS Dolby Digital to SPDIF RCA

CYP CPRO-SE2DD Convertisseur HDMI UHD DTS Dolby Digital vers SPDIF RCA

The CYP CPRO-SE2DD is an HDMI audio converter that supports Dolby Digital and DTS 2.0+ technologies. It allows the audio signal from an HDMI source to be decoded, resampled if necessary, and then redirected to a digital Coaxial or Optical or analog RCA Stereo output. In addition, the device also allows the use of an additional audio output such as an AV receiver or active speakers.

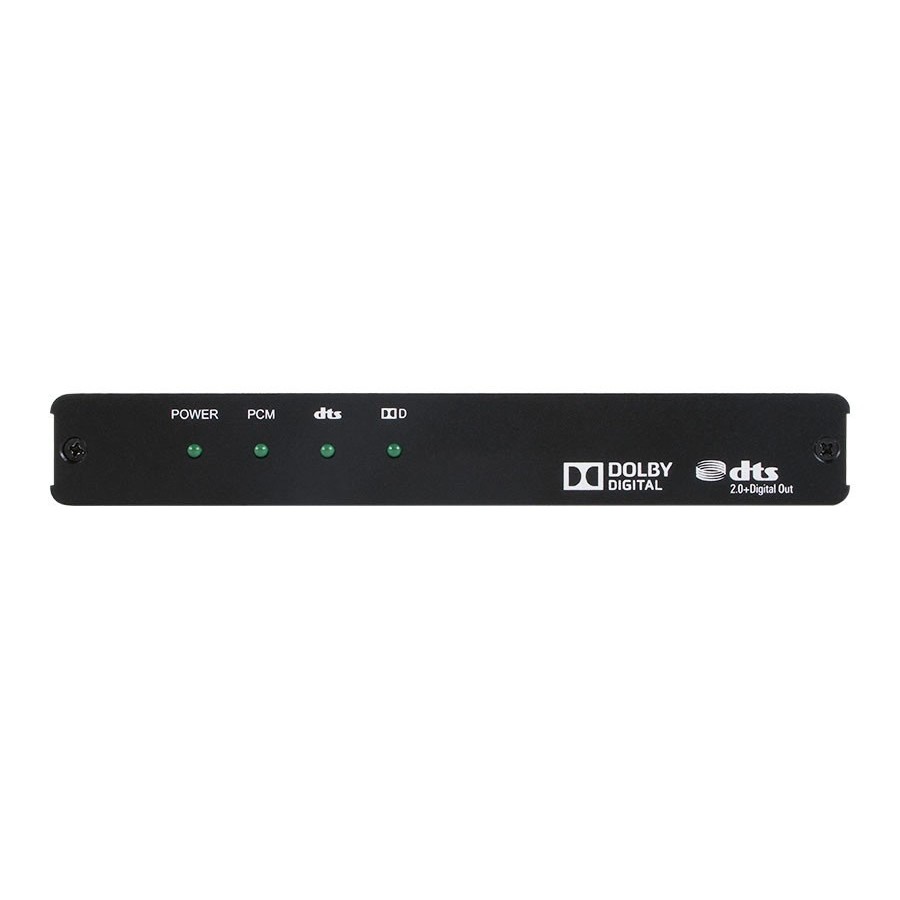

Front panel

CYP CPRO-SE2DD Face avant
1LED Power ON/OFF
2LED PCM
3LED DTS
4LED Dolby

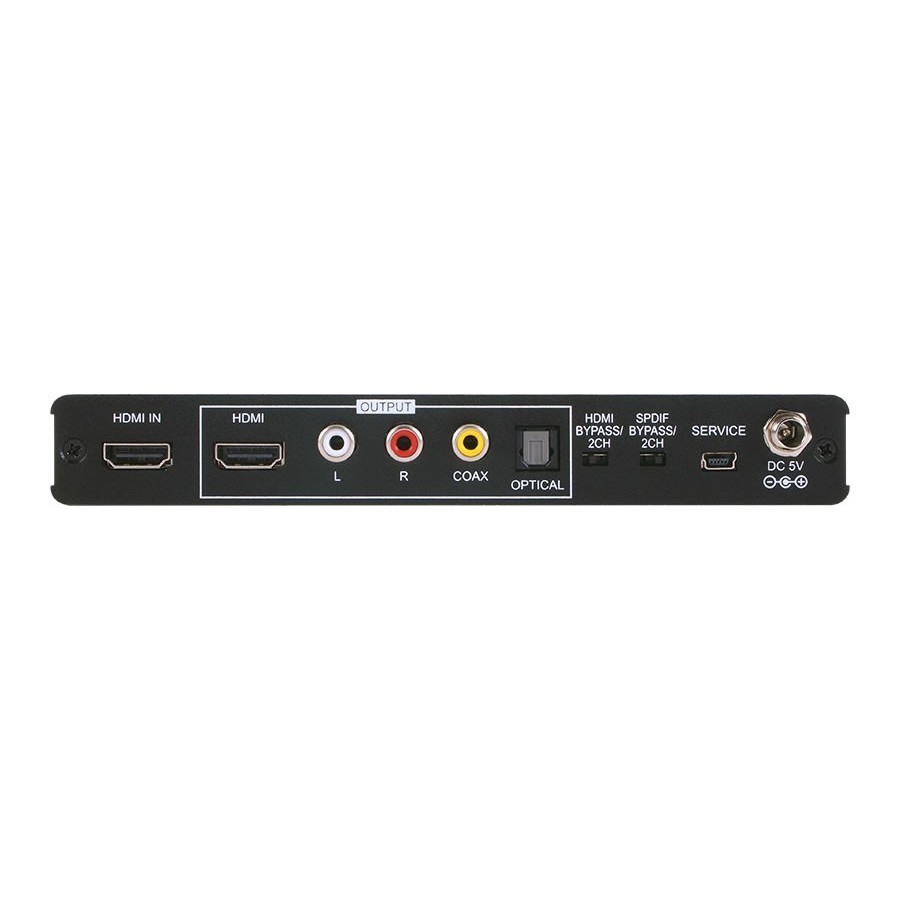

Rear panel

CYP CPRO-SE2DD Face arrière
1Entrée HDMI
2Sortie HDMI
3Sortie RCA
4Sortie Coaxial
5Sortie Optique
6Bypass HDMI / 2 Canaux
7Bypass SPDIF / 2 Canaux
8Port service (pour le constructeur uniquement)
9Alimentation 5V DC

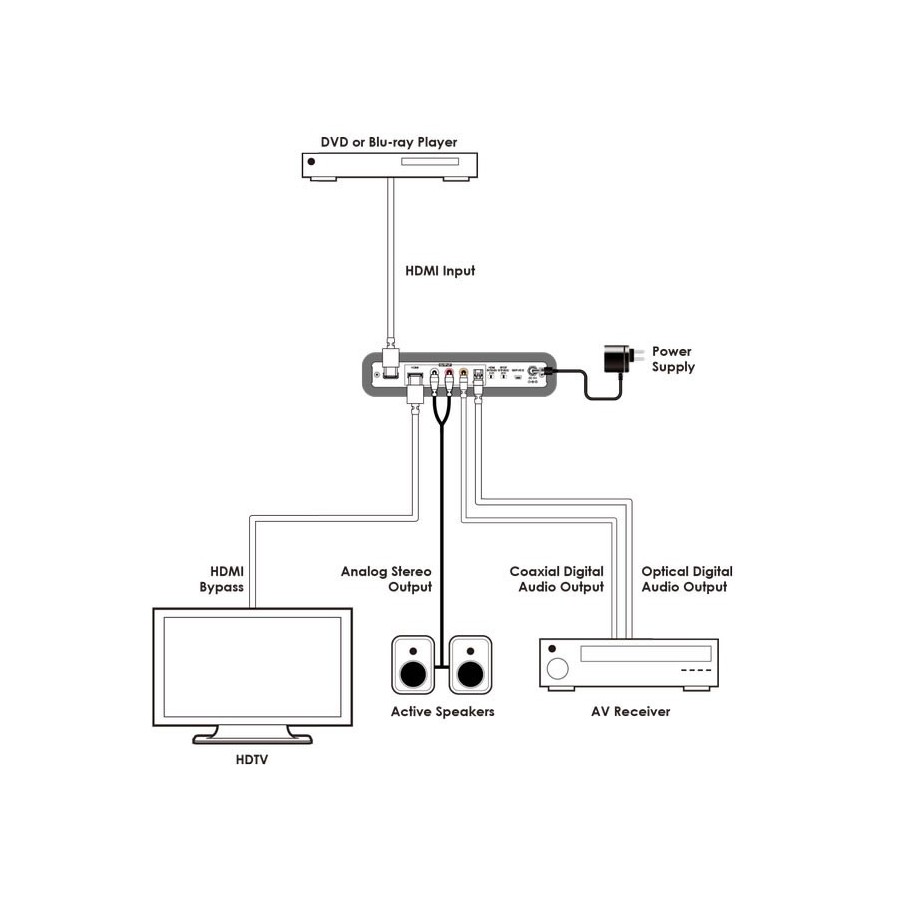

Connection diagram


Technical characteristics

Specifications
Video bandwidth300MHz / 9Gbps
Inputs1x HDMI
1x USB (Only for the manufacturer)
Outputs1x HDMI
1x Coaxial
1x Optical
1x Stereo RCA
Max HDMI cable lengthInput : 10m @ 1080p, 5m @ UHD
Output : 10m @ 1080, 5m @ UHD
Power supply5V 2.6A DC
Measurements
InputOutputOutput levelTHD+N (A-Weight)Frequency responseSNRCrosstalk
HDMI 0dBFS
HDMI0dBFS< 0.00001%+/-1dBFS> 140dB< -160dB
Optical0dBFS< 0.00001%+/-1dBFS> 140dB< -160dB
Coaxial0dBFS< 0.00001%+/-1dBFS> 140dB< -160dB
RCA2Vrms +/-0.1< 0.006%+/-1dB> 100dB< -110dB
General
Dimensions180 x 110.75 x 25mm
Housing materialMetal
Weight368g
ColorBlack
Consumption2.5W
Operating temperature0°C - 40°C

Formats audio


Data sheet
InputHDMI
OutputRCA
OutputHDMI
OutputOptical Toslink
OutputCoaxial SPDIF
Max sampling rate96kHz
ColorBlack
Channel2 channels (Stereo)
