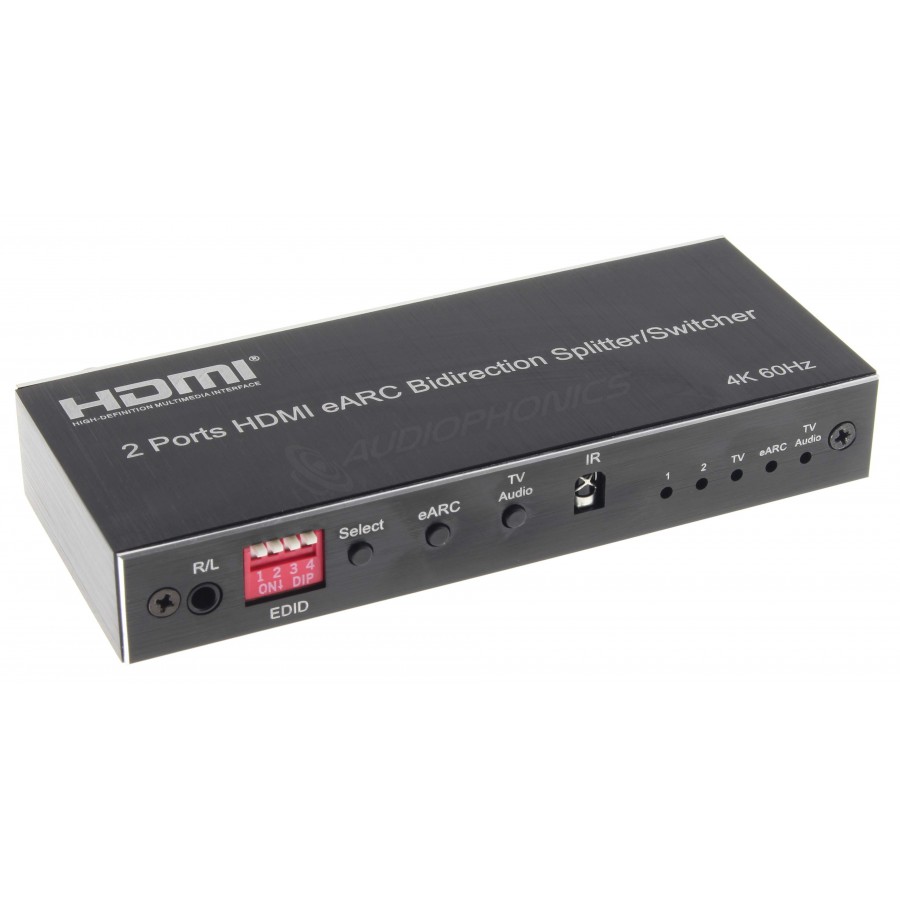

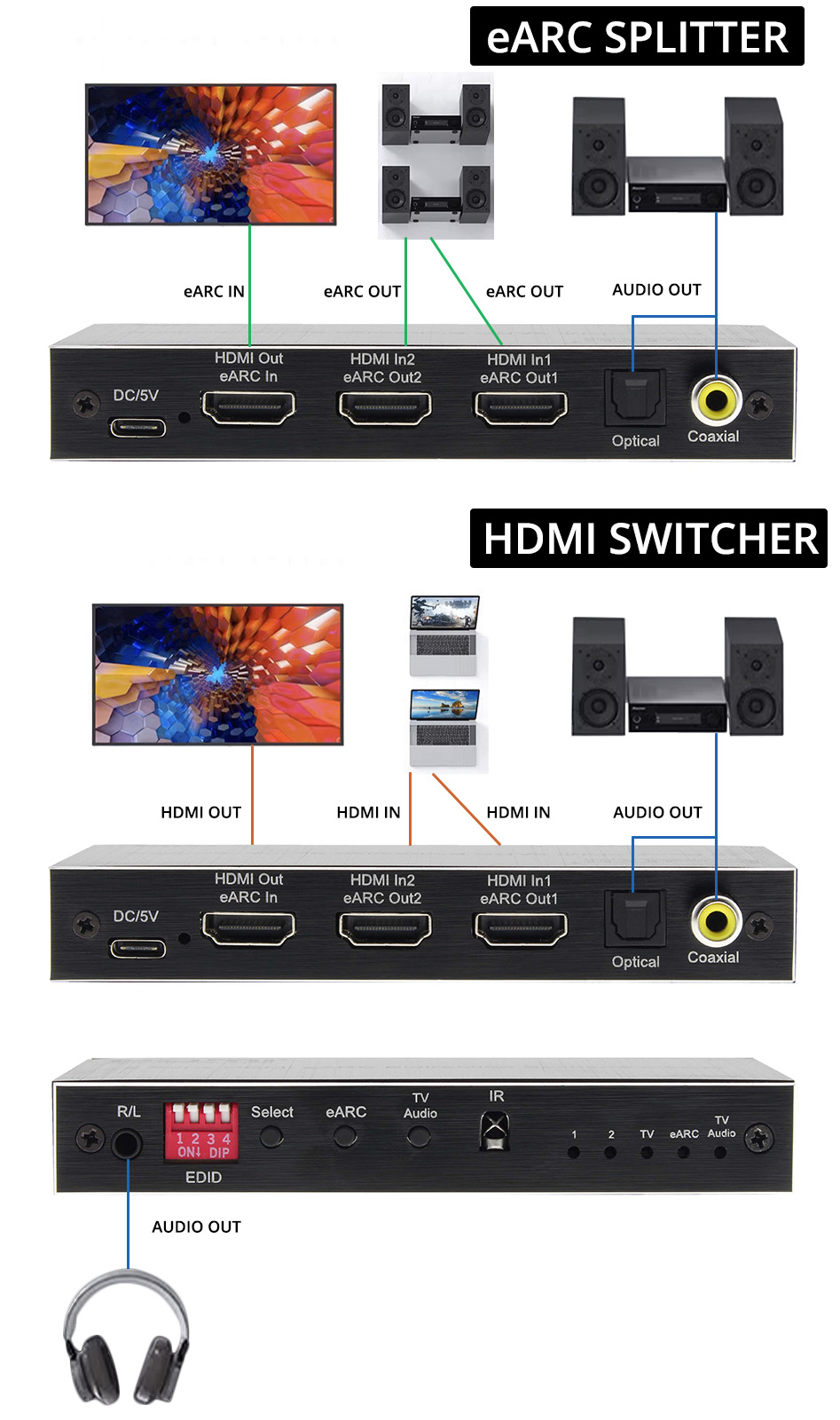

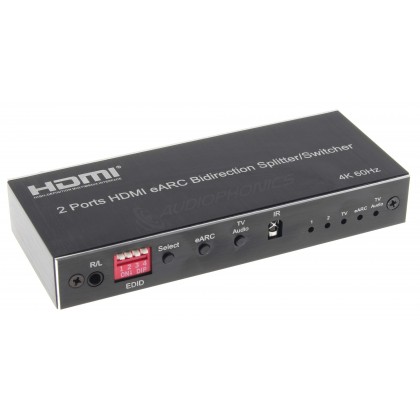

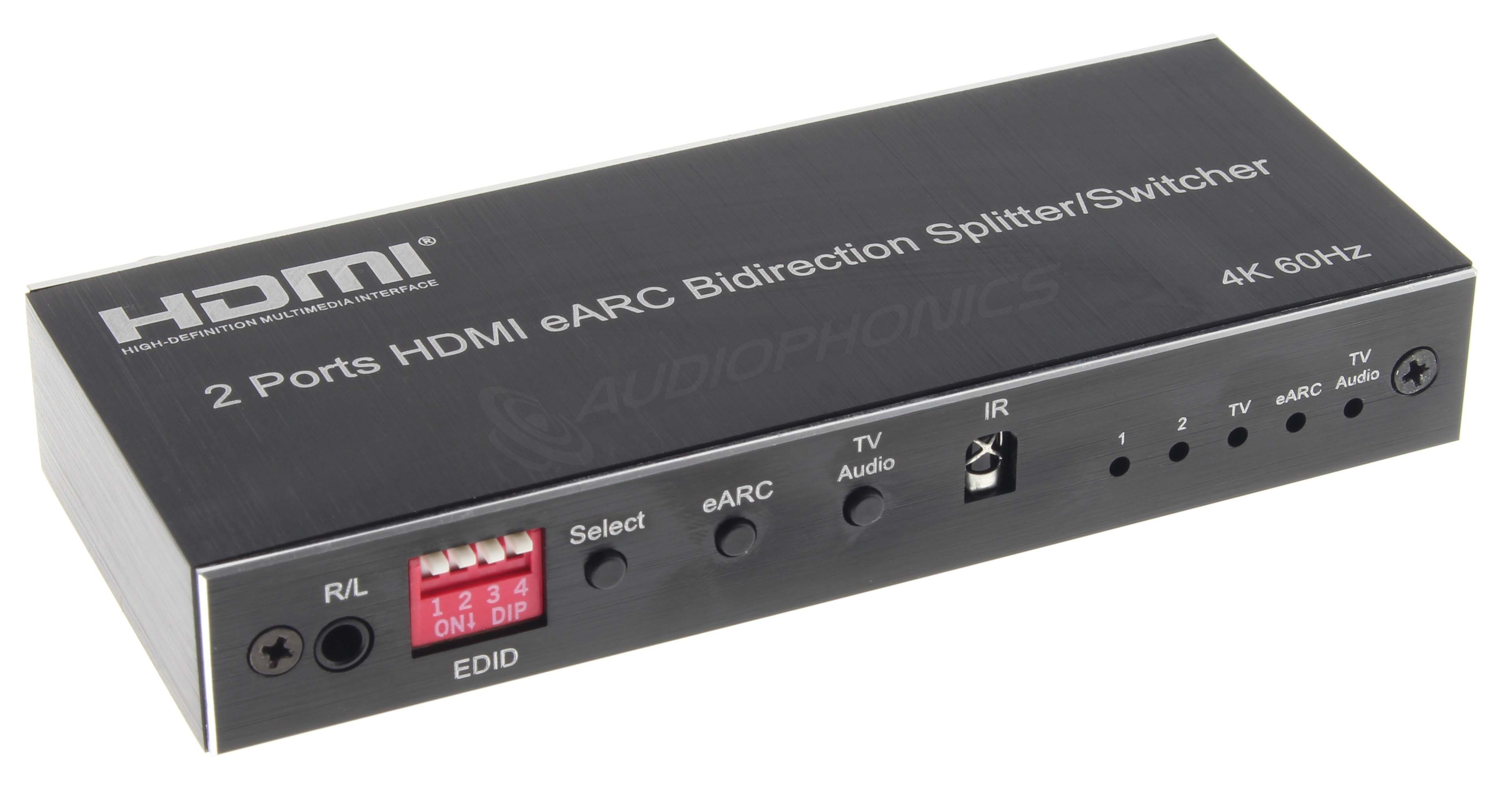

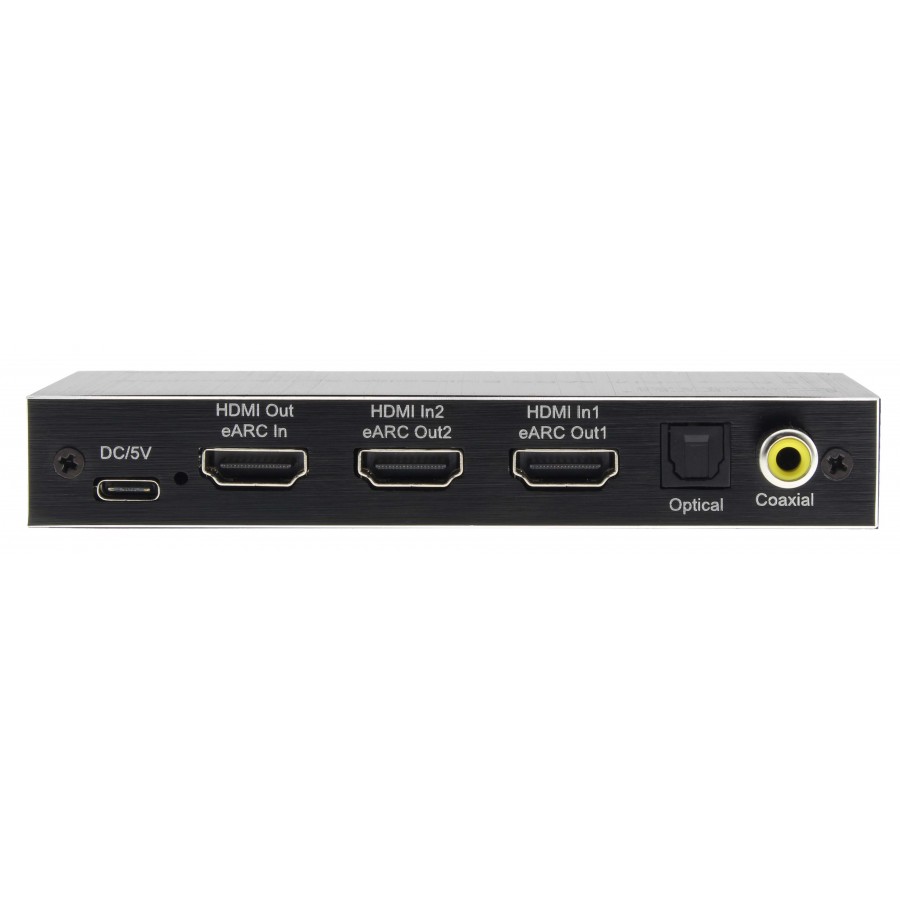

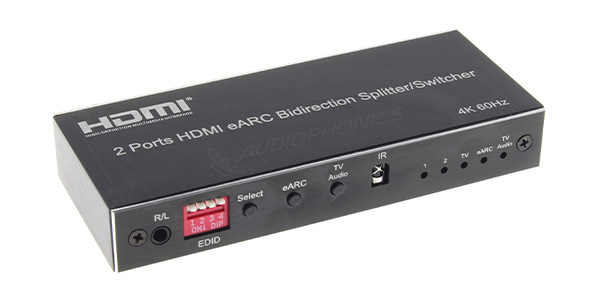

This HDMI switcher / eARC splitter features numerous inputs and outputs to suit all kinds of configurations. It supports a wide range of sources, including consoles, computers, TVs, projectors and more. It can connect up to two HDMI sources to a single screen or projector, and works bidirectionally with e-ARC technology up to 7.1 channels. There's also a 3.5mm headphone output, a Toslink optical output and a coaxial SPDIF output for connection to a Hi-Fi system, plus various control buttons. These include an EDID DIP switch for manual configuration of the selector's EDID (Extended Display Identification Data). This allows you to force a specific operating mode in the event of display or sound problems.

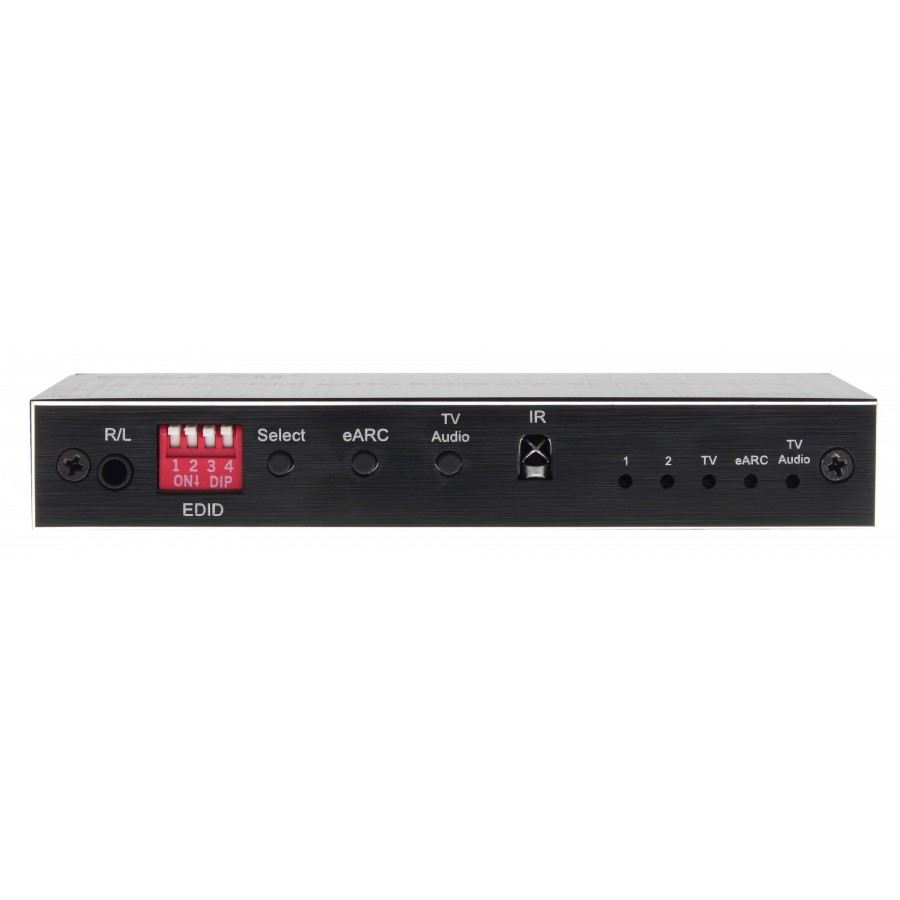

The DIP SWITCH at the top corresponds to position 0, while the DIP SWITCH at the bottom to position 1. The 4ᵉ DIP SWITCH selects the device's operating mode, 0 for switcher and 1 for splitter.
DIP SWITCH EDID settings | |||
---|---|---|---|
1 | 2 | 3 | Functions |
0 | 0 | 0 | Copy EDID from HDMI output |
0 | 0 | 1 | Upgrade mode |
0 | 1 | 0 | 4K/60Hz 5.1 channels |
1 | 0 | 0 | 4K/60Hz 7.1 channels |
1 | 1 | 0 | 1080P/60Hz 2 channels |

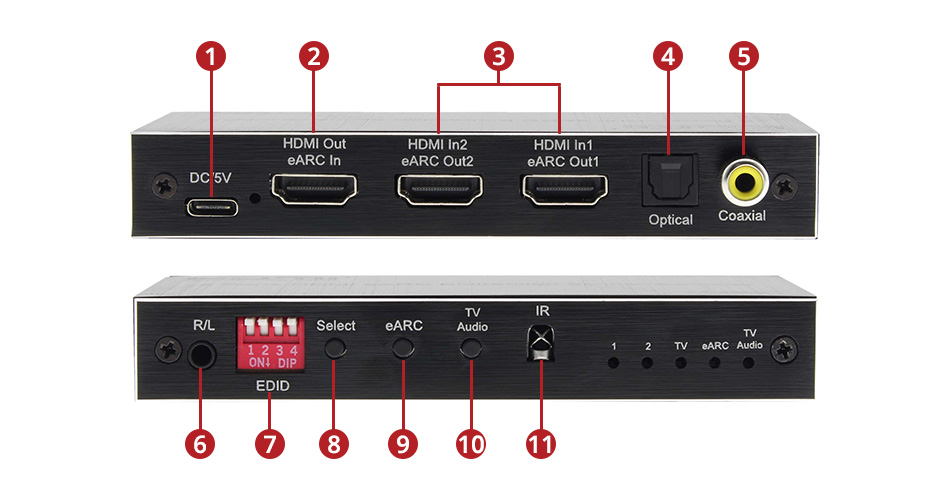

1 | 5V DC power supply via USB-C |
2 | 1x HDMI OUT/eARC IN |
3 | 2x HDMI IN/eARC OUT |
4 | Toslink optical output |
5 | SPDIF coaxial output |
6 | 3.5mm headphones output |
7 | DIP SWITCH EDID |
8 | Select |
9 | eARC |
10 | TV Audio |
11 | IR receiver |
Technical characteristics
Specifications | |
---|---|
Product type | HDMI 2x1 switcher / eARC 1x2 splitter |
HDMI resolution | 4K/60Hz |
Inputs | 3x HDMI ports (HDMI 2x1 / eARC 1x2) |
Sorties | 3x HDMI ports (HDMI 2x1 / eARC 1x2) 3.5mm headphones output Toslink optical output SPDIF coaxial output |
General | |
---|---|
Weight | 118g |
Dimensions | 122 x 56 x 19mm |

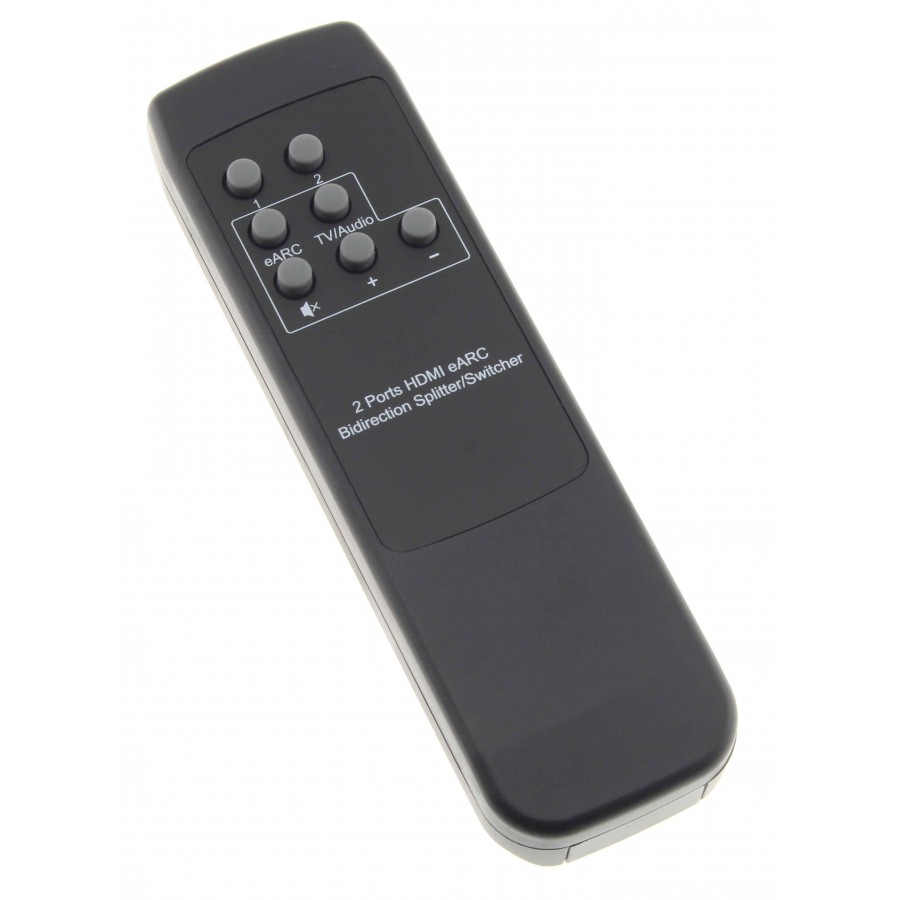

Package | 1x HDMI Selector 2x1 / Splitter eARC 1x2 1x IR remote control |
Input | HDMI |
Input | HDMI eARC |
Output | HDMI |
Output | Optical Toslink |
Output | Coaxial SPDIF |
Output | HDMI eARC |
Output | Jack 3.5mm |
Max sampling rate | NC |
Color | Black |
Interface chip | NC |
