ddHiFi M198C USB-C to CIEM 0.78mm Earphones Cable OCC Copper CS43198 DAC 1.2m
The ddHiFi M198C is a USB-C to 0.78mm CIEM cable which, in addition to offering signal transmission via an OCC 5N copper conductor, includes a Cirrus Logic CS43198 chip for digital-to-analogue conversion up to PCM 32bit 384kHz and DSD256.

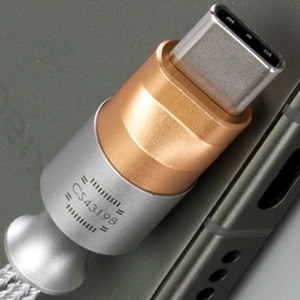

ddHiFi M198C: CS43198 DAC
The M198C cable is equipped with a Cirrus Logic CS43198 chip supporting file conversion up to PCM 32bit 384kHz and native DSD256, allowing you to enjoy lossless tracks without compromise.
ddHiFi M198C: OCC copper cable

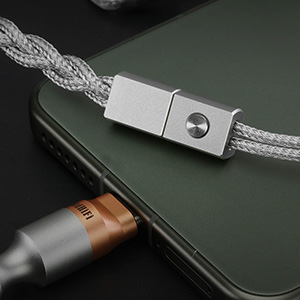

To ensure optimal data transmission, ddHiFi's M198C cable uses a conductor made of OCC N5 copper strands, offering optimal conductivity. In addition, this cable uses aluminium connectors, combining a sleek and classy aesthetic with unbeatable durability. Finally, this cable also includes a microphone nestled in the heart of the splitter, allowing you to make calls with ease.
ddHiFi M198C: LED

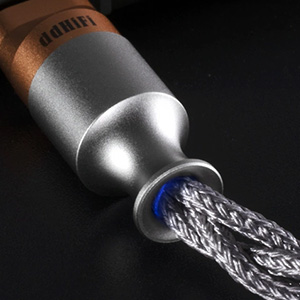

For greater clarity, the USB-C connector features a discreet LED whose colour changes depending on the DAC chip's operation. A blue light indicates standby mode, a green light indicates PCM decoding, and a red light indicates DSD decoding.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Headphone cable with DAC |
| Connectors | 1x USB-C 2x CIEM 0.78mm |
| Length | 1.2m |
| Conductive material | OCC Copper |
| DAC Chip | CS43198 |
| Supported sampling rates | PCM up to 32bit 384kHz Native DSD up to DSD256 |
| Dynamic range | ≥ 125dB |
| Total harmonic distortion more noise (THD+N) | < 0.0003% @ 32Ω |
| Signal-to-noise ratio (SNR) | ≥ 125dB |
| Output power | 2x80mW @ 32Ω 2x38mW @ 16Ω |
| General | |
|---|---|
| Color | Silver |
| Package | Sold by unit |
| Length (m) | 1.2 |
| Shielding | No |
| Section (mm²) | N/A |
| Connector | USB-C |
| Connector | CIEM 0.78mm |
| Conductors material (Cable) | Copper |
| Conductors Plating (Cable) | None |
