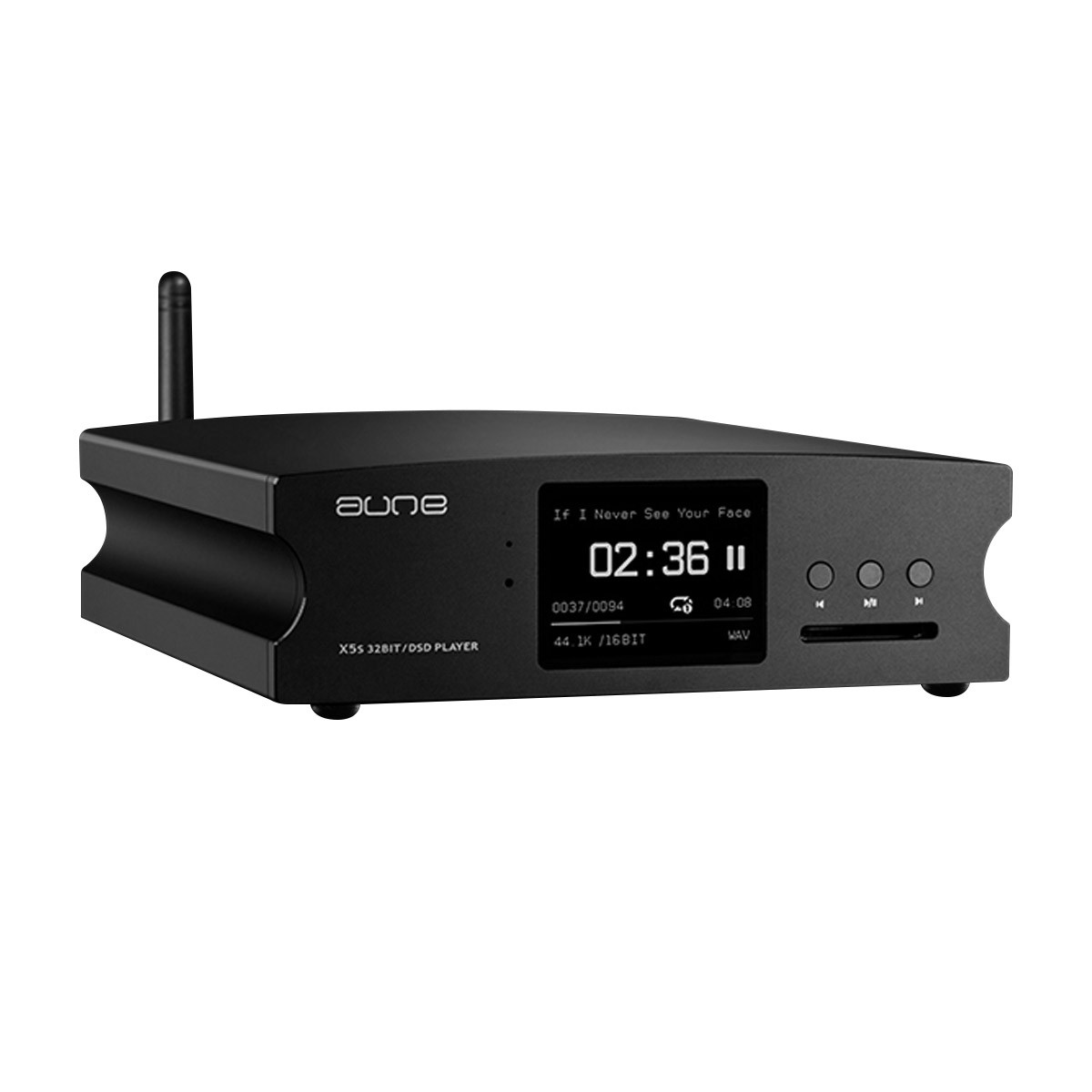

AUNE X5S 8TH ANNIVERSARY High Definition Audio File Reader ES9038Q2M Bluetooth 5.0 FPGA 32bit 768kHz DSD512 Black

AUNE X5S 8TH ANNIVERSARY High Definition Audio File Reader 32bit 768kHz DSD512 CPLD Black
The X5s 8Th Anniversary Edition is the fourth generation of Aune X5 digital file player. It embeds a Freescale 600M processor. It is also capable of handling high resolution streams up to 32bit 768kHz PCM and DSD512. It also adds support for an external clock. The reading of files is done via SD card thanks to a slot positioned in front and thus easily accessible. It is also possible to connect a USB storage device such as a hard disk.

No customer reviews yet, login to write a review.

By buying this product you get 34 loyalty points


Reference : 15529
New product

349,00 €tax incl.

290,83 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Aune X5s 8TH Anniversary

High Definition Audio File Reader ES9038Q2M Bluetooth 5.0 FPGA 32bit 768kHz DSD512 Black

Aune X5s 8TH Anniversary Lecteur de Fichiers Audio Haute Définition Bluetooth 5.0 FPGA 32bit 768kHz DSD512

The X5s 8Th Anniversary Edition is the fourth generation of Aune X5 digital file player. It embeds a Freescale 600M processor. It is also capable of handling high resolution streams up to 32bit 768kHz PCM and DSD512. It also adds support for an external clock.

The reading of files is done via SD card thanks to a slot positioned in front and thus easily accessible. It is also possible to connect a USB storage device such as a hard disk.

The digital/analog conversion stage, particularly powerful, is based on an excellent ESS ES9038Q2M DAC chip, a model that has proven itself in many HiFi devices. This one ensures a precise, rich and dynamic restitution.

Bluetooth 5.0

The X5s 8Th Anniversary also features a Bluetooth 5.0 CSR8675 receiver chip, supporting the high-resolution aptX HD transmission codec. The player can therefore be easily connected to a smartphone in order to stream music remotely.

It can also be used as a Bluetooth transmitter. When files are played from an SD card or USB storage device, the audio streams can be transmitted directly to Bluetooth headphones or speakers.

Aune X5s 8TH Anniversary Lecteur de Fichiers Audio Haute Définition Bluetooth 5.0 FPGA 32bit 768kHz DSD512

Compatible with an external clock

Aune's file reader integrates an ultra-low jitter PLL and FPGA but also allows the connection of an external clock to achieve an even lower jitter level.

Aune X5s 8TH Anniversary Lecteur de Fichiers Audio Haute Définition Bluetooth 5.0 FPGA 32bit 768kHz DSD512

7 Filters

In order to adapt to your listening preferences and your audio system, the X5s 8Th Anniversary offers 7 filters for its line output.

Asynchronous FPGA

The architecture of the X5s 8Th Anniversary includes an ARM processor that decodes the audio files and then transmits the signal to the FPGA, combined with an ultra-low jitter clock to regenerate the digital signals. This structure allows to offer a particularly detailed and rich sound.

Aune X5s 8TH Anniversary Lecteur de Fichiers Audio Haute Définition Bluetooth 5.0 FPGA 32bit 768kHz DSD512

Isolated digital outputs

The digital outputs of the Aune X5s 8TH Anniversary use a professional grade, fully isolated digital transformer to deliver extremely pure, interference-free digital signals.

Aune X5s 8TH Anniversary Lecteur de Fichiers Audio Haute Définition Bluetooth 5.0 FPGA 32bit 768kHz DSD512

Technical characteristics

Specifications
Product typeFile reader

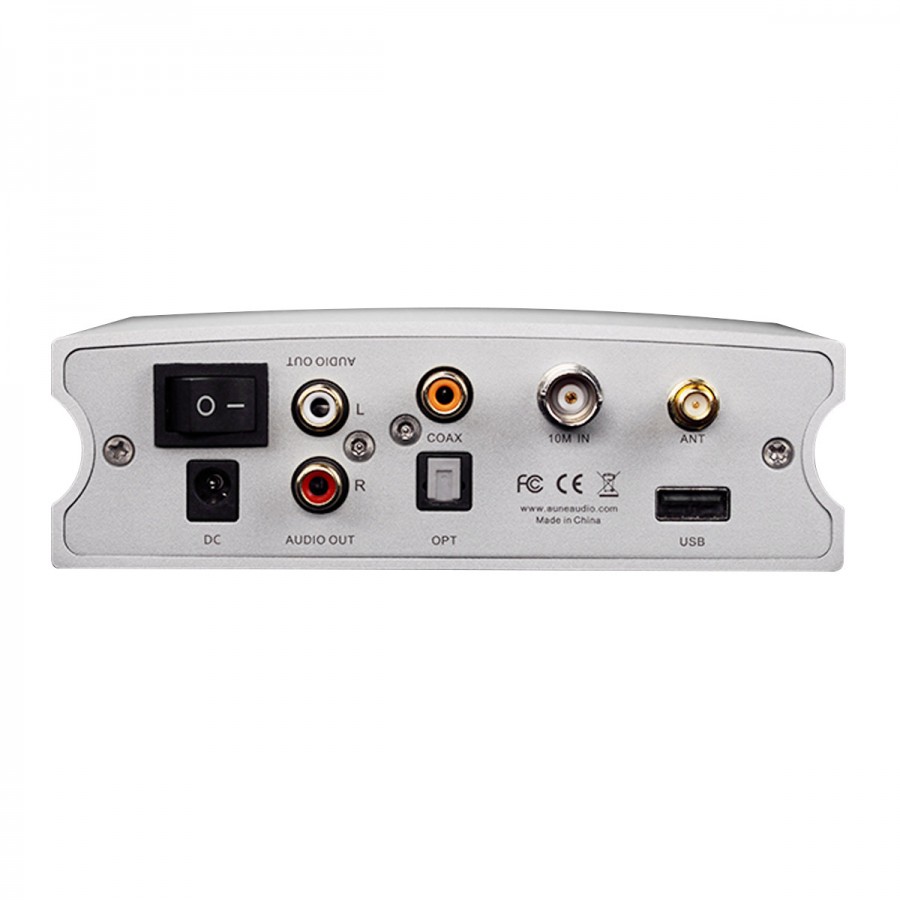

Inputs1x SD Card slot
1x USB-A (Host)
Bluetooth 5.0
Outputs1x Coaxial
1x Optical Toslink
1x AES
1x Stereo RCA
Bluetooth 5.0
DAC ChipESS ES9038Q2M
THD+N (Digital outputs)-98.25dB @ 16bit/44.1kHz, 1kHz/0dB
-137.8dB @ 24bit/96kHz, 1kHz/0dB
-141dB @ 24bit/192kHz, 1kHz/0dB
Jitter237.6ps
Output level (RCA)2Vrms
Frequency response (RCA)20Hz-20kHz ±0.5dB
Noise (RCA)5.4µV
THD+N (RCA)-101dB
Supported file formatsWAV : 16/24/32bit - 44.1/48/88.2/96/176.4/192/384kHz
FLAC : 16/24/32bit - 44.1/48/88.2/96/176.4/192/384kHz
DSD : DSF/DFF DSD64-256 / SACD-ISO
APE : 16bit / 44.1kHz
ALAC
AAC
MP3
General
Housing materialAluminum
Dimensions145 x 171 x 45mm
ColorBlack
Package1x Aune X5s 8Th Anniversary
1x Power supply
1x Remote control
