FOSI AUDIO PSU20 Linear Power Supply
By buying this product you get 23 loyalty points
![[GRADE B] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)

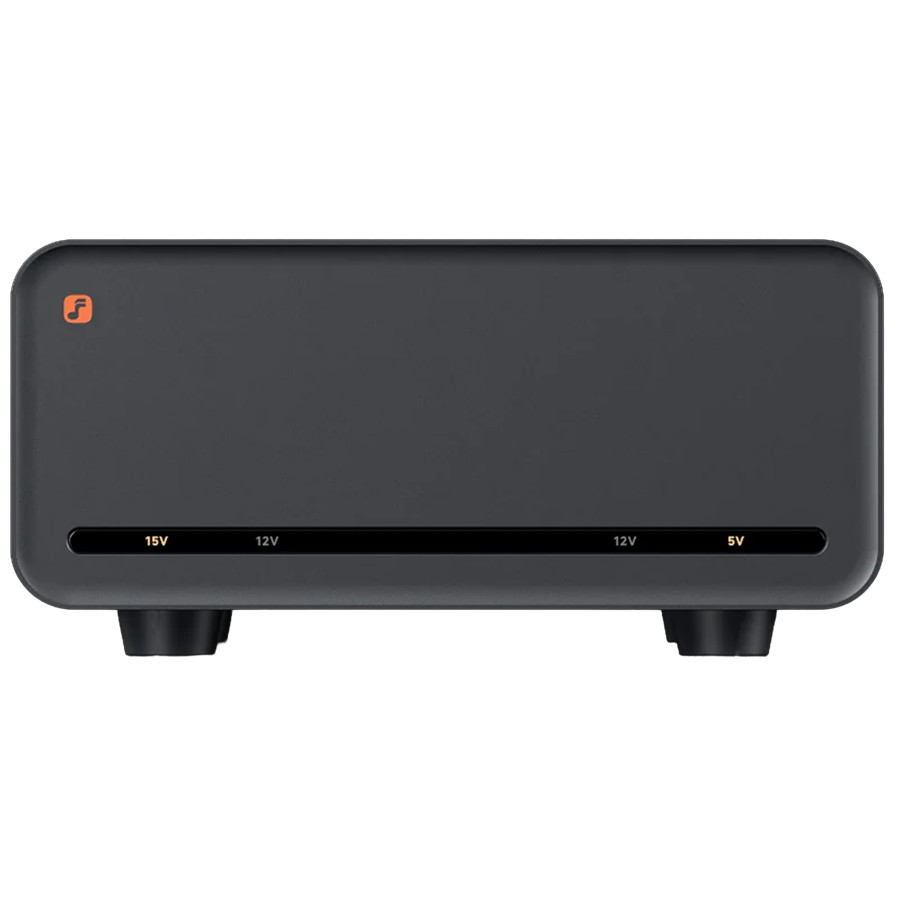

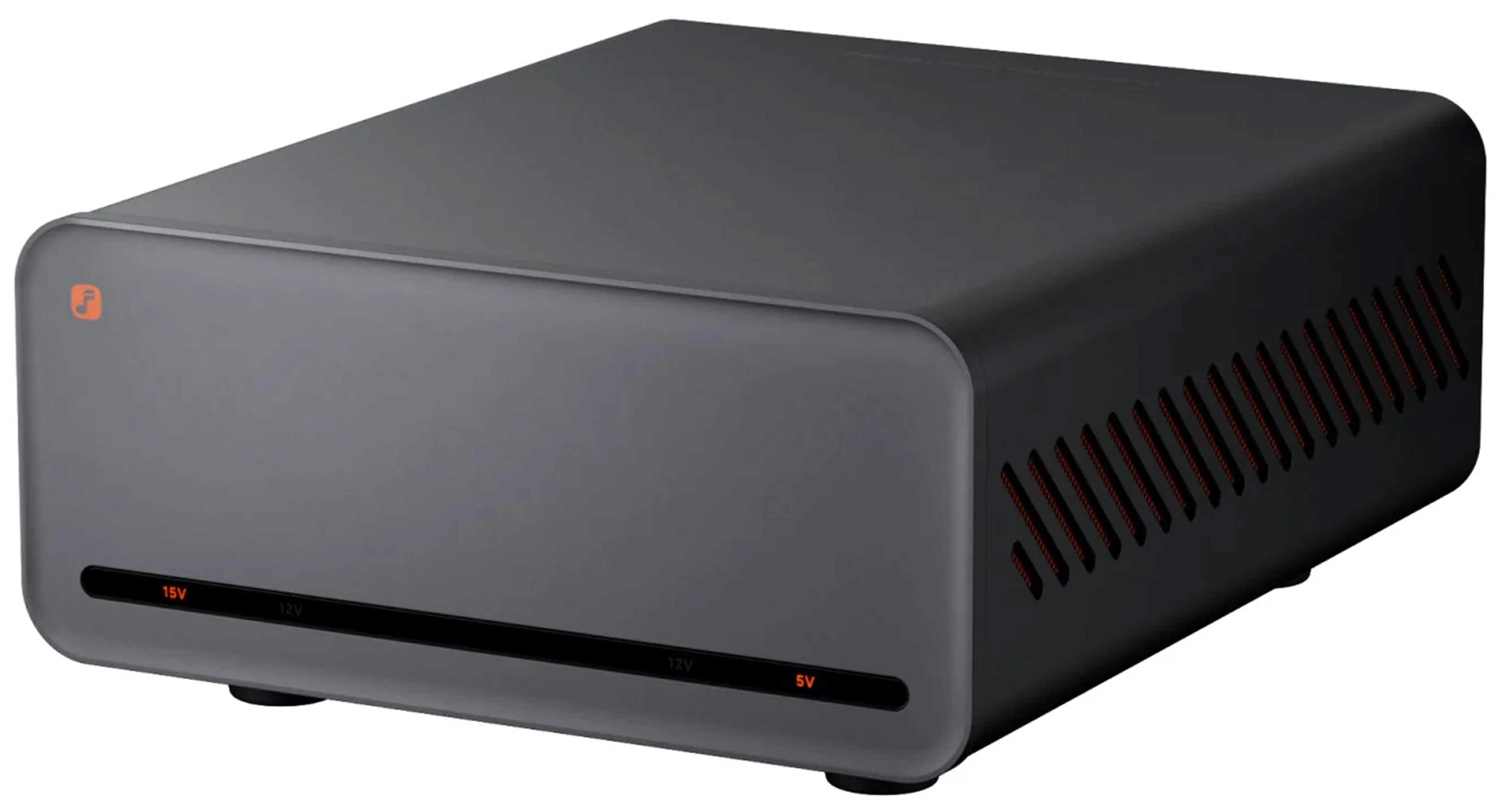

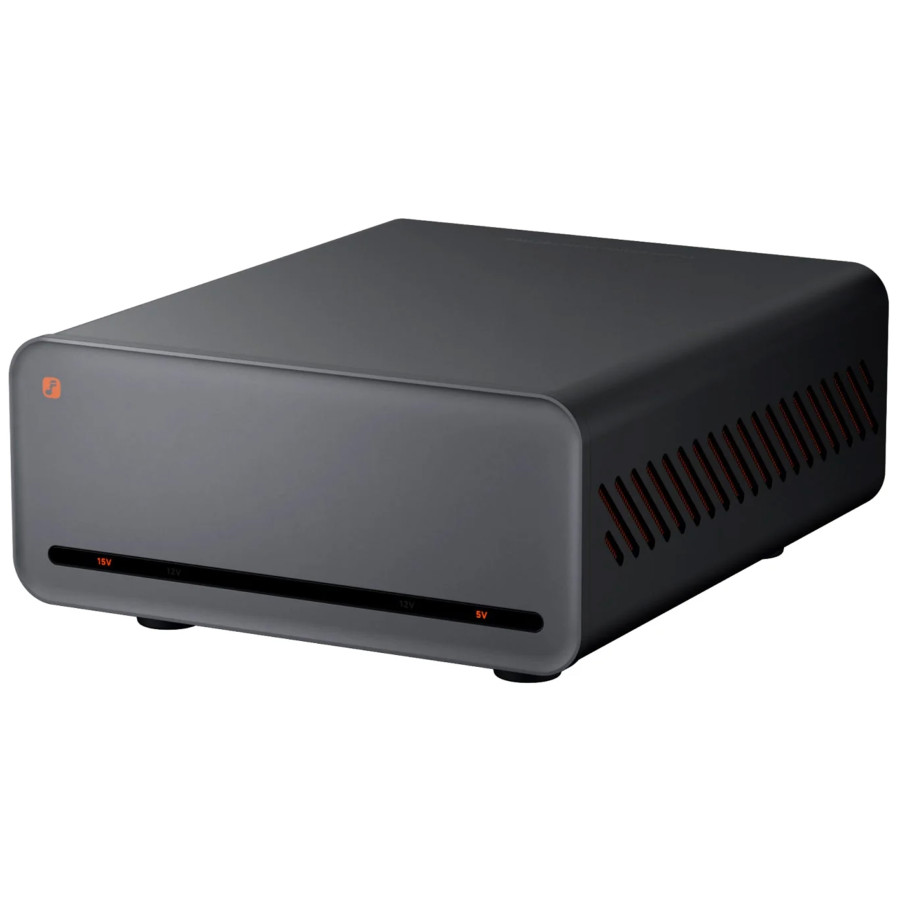

FOSI AUDIO PSU20 Linear Power Supply DC Jack / USB 5V 12V 15V
The Fosi Audio PSU20 is a linear power supply designed to provide a stable electrical source to Hi-Fi and sensitive electronic devices. Its 80W toroidal transformer feeds a 40W regulation stage, while its three isolated outputs allow several devices to be powered simultaneously with a ripple level limited to 0.1mV.
Intended for audio setups requiring a clean and properly filtered power supply, it combines two DC jack outputs at 12/15 V with a USB-A 5 V output. Its built-in protections and active cooling, triggered from 55 °C, help maintain stable operation while keeping the noise level down to 30 dB.
Fosi Audio PSU20: 40W linear power supply

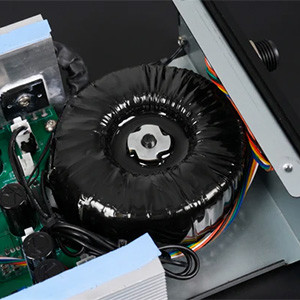

The Fosi Audio PSU20 is a 40 W linear power supply based on an 80W toroidal transformer. This architecture provides a regulated voltage while limiting the interference generated by the power supply, in order to suit audio devices requiring a stable electrical source.

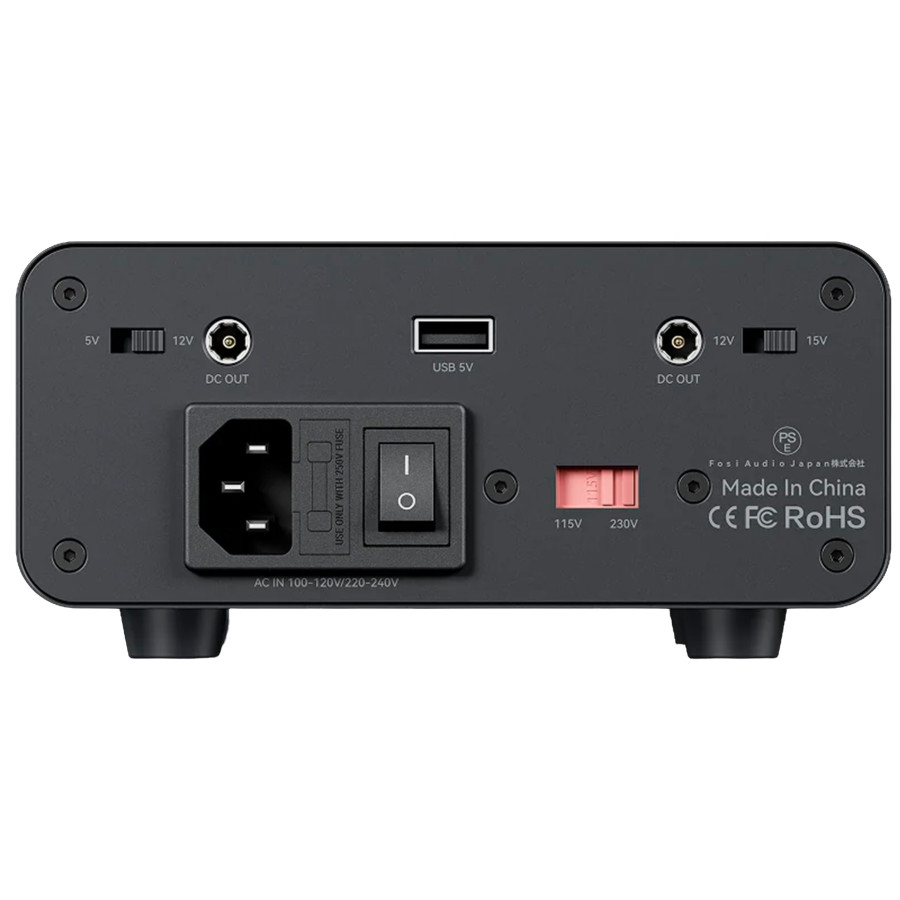

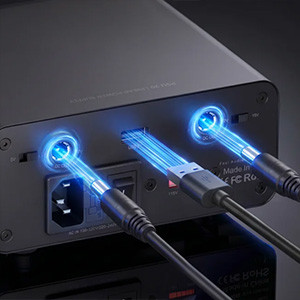

Fosi Audio PSU20: Isolated outputs
The PSU20 features three fully isolated outputs: two DC jack outputs at 12/15 V and a USB-A 5 V output. This electrical separation allows several devices to be powered simultaneously while limiting interactions between the various circuits, particularly in setups combining a digital source, DAC and amplifier.
Fosi Audio PSU20: Regulation and noise level

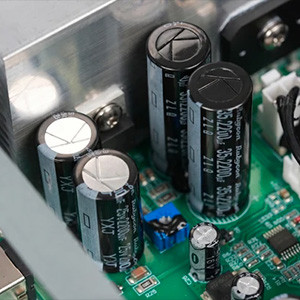

The power stage uses Nippon Chemi-Con capacitors as well as three LM1085IT regulators and one ST78M05 regulator from Texas Instruments. This combination achieves a ripple of 0.1mV, in order to reduce the parasitic components likely to affect sensitive audio circuits.
Fosi Audio PSU20: Protection and cooling
The PSU20 monitors its operating conditions to protect itself against overheating, overvoltage and overload. When the temperature reaches 55 °C, a fan starts up to dissipate the heat; its noise level limited to 30dB preserves the discretion of the power supply within a Hi-Fi setup.
Technical specifications
| Specifications | |
|---|---|
| Product type | Linear power supply |
| Outputs | 2x DC Jack 5.5/2.5 1x USB-A |
| Output voltage / current | DC Jack 1: 12V / 15V (Rated Power: 20W) DC Jack 2: 12V / 5V (Rated Power: 15W) USB-C: 5V / 1A (Rated Power: 5W) |
| Ripple noise | 0.1mV |
| General | |
|---|---|
| Supply voltage | 100–120V AC 220–240V AC |
| Color | Black |
| Package | 1x Fosi Audio PSU20 2x DC Jack cable 1x Power cable |
| Input | IEC C14 |
| Output | USB |
| Output | Jack DC 5.5/2.5mm |
| Color | Black |
| Output voltage (V) | 5.0 |
| Output voltage (V) | 15.0 |
| Output voltage (V) | 12.0 |
| Output current (A) | 1.0 |
| Input voltage (V) | 230.0 |
| Input voltage (V) | 110.0 |
| Power Supply | Linear |
