FIIO FD5 In-Ear Monitors IEM Dynamic Transducers DLC Diaphragm Ø12mm 32 Ohm 10Hz-40kHz 109dB

FIIO FD5 In-Ear Monitors IEM Dynamic Transducers DLC Diaphragm Ø12mm 32 Ohm 10Hz-40kHz 109dB

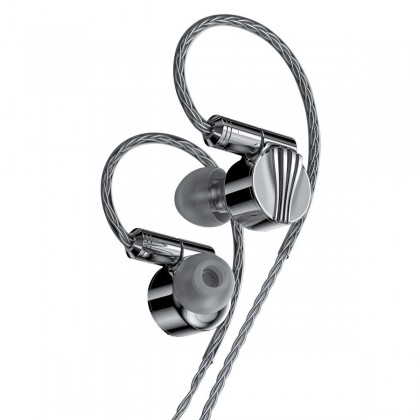

FiiO offers with the FD5 semi-open in-ear earphones, taking advantage of the Hi-Res certification and offering a musical sound reproduction and a great precision, combined with an excellent wearing comfort. They are equipped with 12mm dynamic transducers with DLC (Diamond Like Carbon) membrane covered with beryllium for a deep and precise bass.

No customer reviews yet, login to write a review.

By buying this product you get 29 loyalty points


Reference : 16352
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

FiiO FD5

In-Ear Monitors IEM Dynamic Transducers DLC Diaphragm Ø12mm 32 Ohm 10Hz-40kHz 109dB

FiiO FD5 Écouteurs Intra-Auriculaires IEM Haut-Parleurs Dynamiques Membranes DLC Ø12mm 32 Ohm 10Hz-40kHz 109dB

FiiO offers with the FD5 semi-open in-ear earphones, taking advantage of the Hi-Res certification and offering a musical sound reproduction and a great precision, combined with an excellent wearing comfort. They are equipped with 12mm dynamic transducers with DLC (Diamond Like Carbon) membrane covered with beryllium for a deep and precise bass.

Stainless steel earphones and silver-plated copper cable

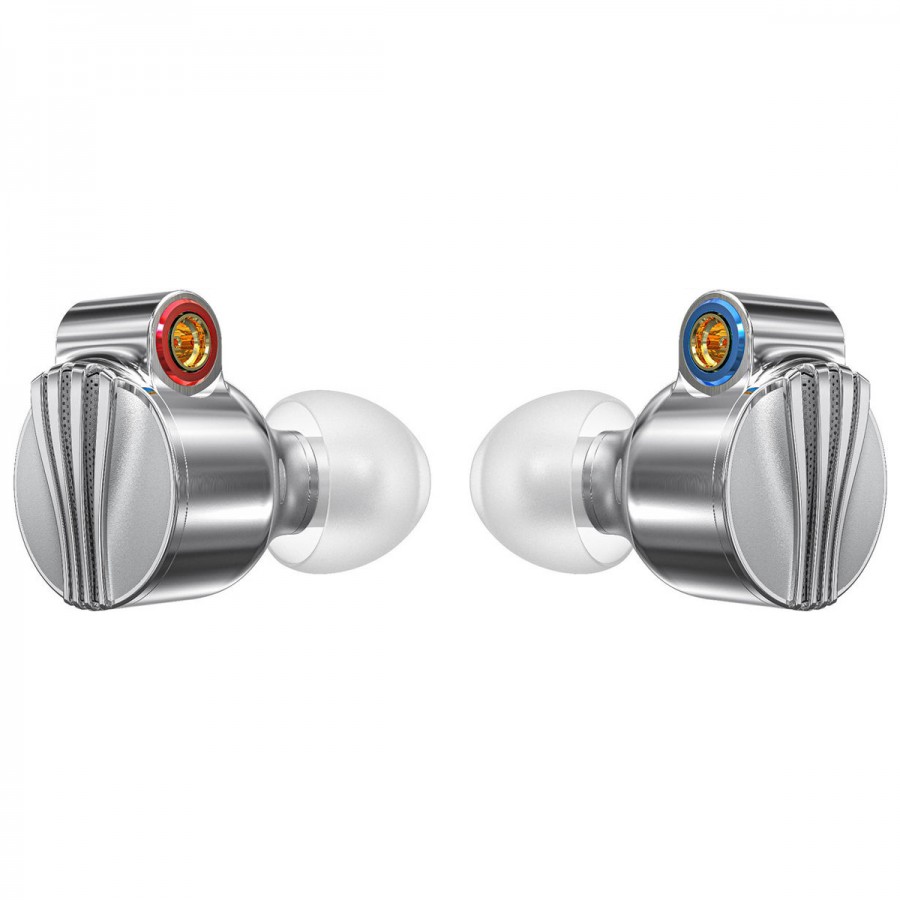

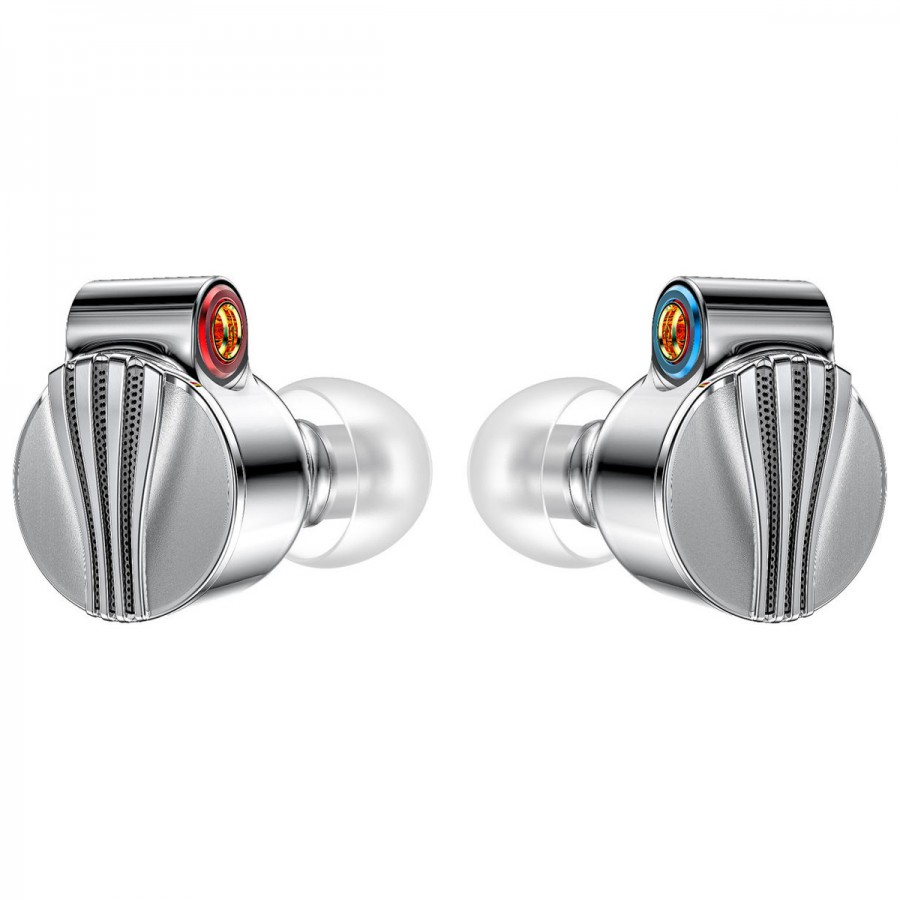

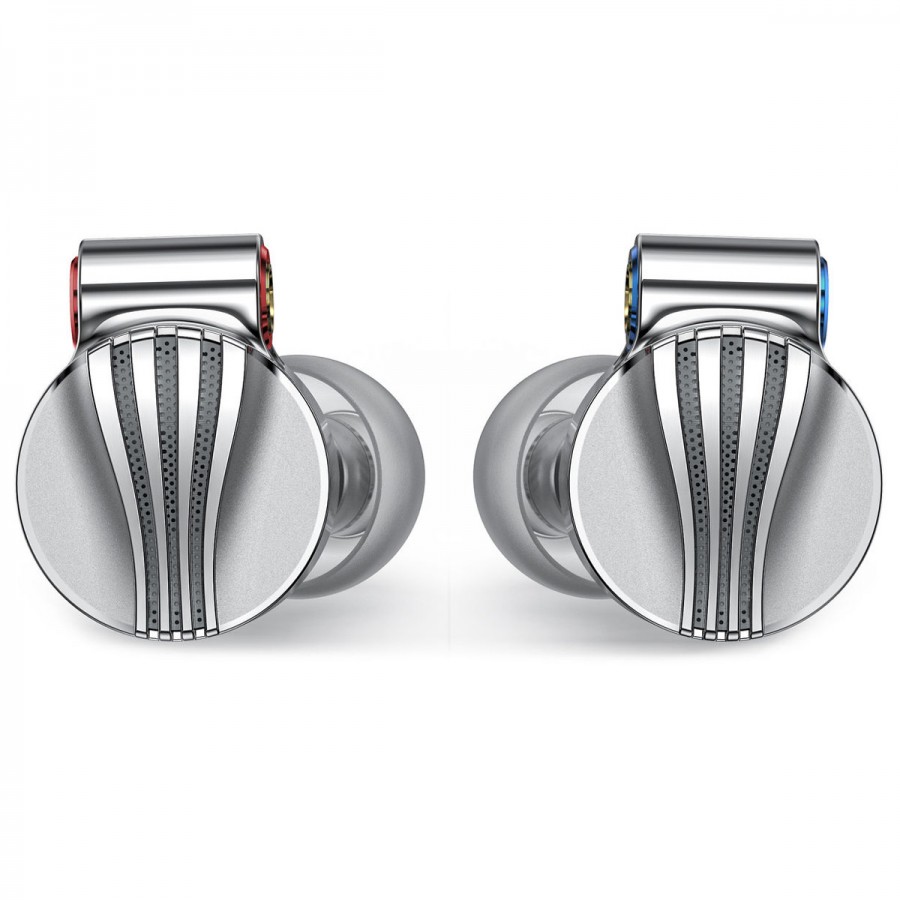

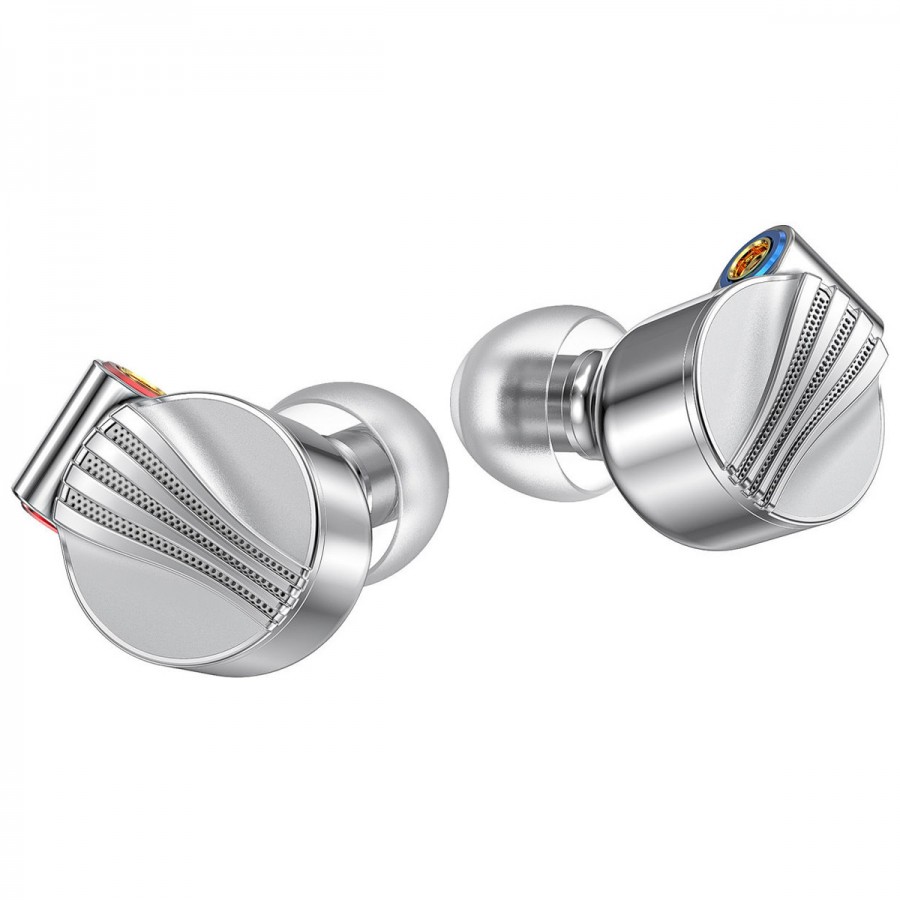

Robust and elegant, the FD5 body is made of stainless steel. The use of this material also allows a reduction of the harmonic distortion inside the earphones. The back of each ear is dressed in a beautiful chrome finish, completing the modern aesthetic of this model.

The cylindrical shape of the FD5 is also part of the acoustic optimization of these headphones, effectively reducing internal resonances to maintain the overall detail of the audio message.

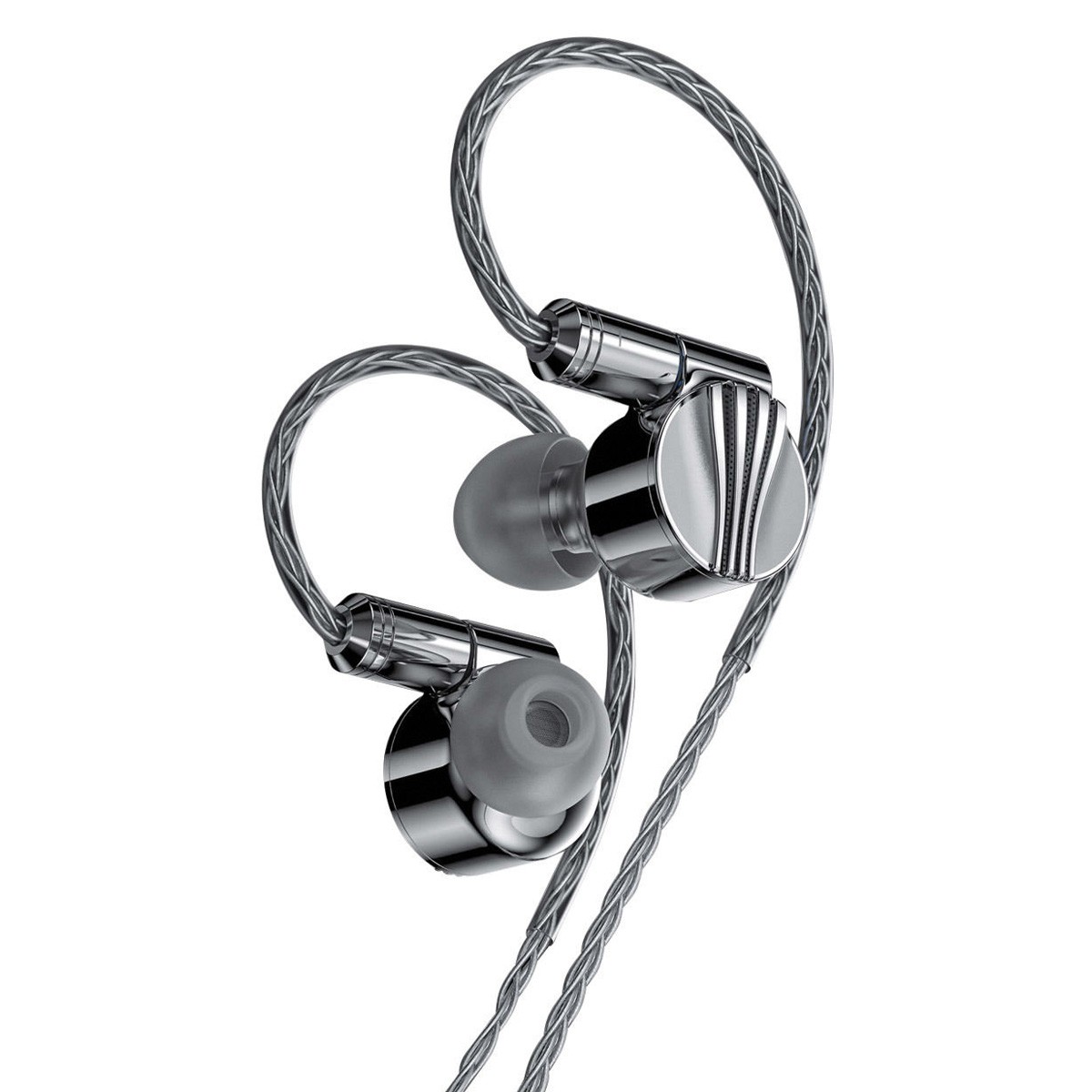

The detachable cable is composed of 8 conductors of 19 wires each. These are made of silver-plated monocrystalline copper, ensuring excellent conductivity and fidelity of your music and harmonics. This cable has MMCX connectors on the headphone side. At the other end, it features an interchangeable mini-jack connector, with 2.5mm, 3.5mm and 4.4mm connectors provided.

FiiO FD5 Écouteurs Intra-Auriculaires IEM Haut-Parleurs Dynamiques Membranes DLC Ø12mm 32 Ohm 10Hz-40kHz 109dB

Dynamic transducers with beryllium membrane

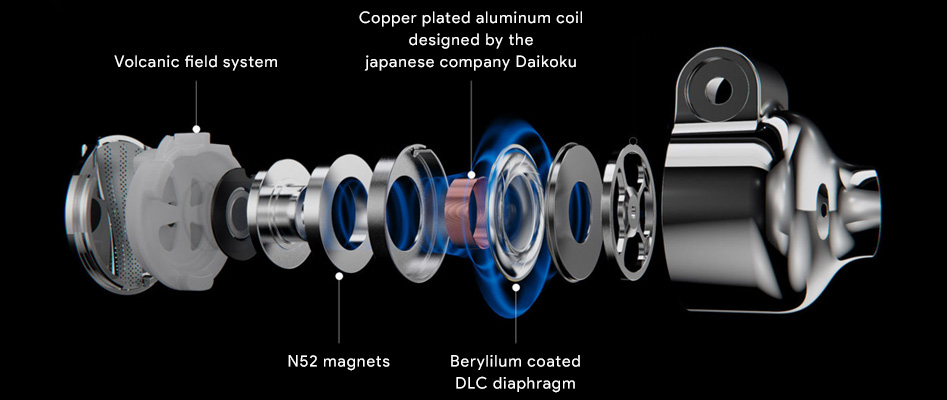

Each FiiO FD5 earphone incorporates a 15mm diameter beryllium-plated DLC (Diamond Like Carbon) dynamic driver. This design was specifically selected for its lightness, its thinness as well as for its great rigidity. This design provides deep bass, rich midrange and high frequency extension. The FD5 is able to provide an optimal response to signal fluctuations to reduce distortion and promote precision. In addition, the N52 bi-directional magnetic technology developed by the brand allows to improve the acoustic pressure of the bass for deeper and more impactful bass by developing a magnetic field of an intensity close to 1.5 Tesla.

FiiO FD5 Écouteurs Intra-Auriculaires IEM Haut-Parleurs Dynamiques Membranes DLC Ø12mm 32 Ohm 10Hz-40kHz 109dB

Semi-open design & Acoustic Prism

The FD5 have a semi-open design, using a technology named "Volcanic Field" by FiiO. This one allows to evacuate the stagnant sound waves behind the transducer in order to reduce the distortion, to improve the diffusion of the bass and to favor a great listening comfort.

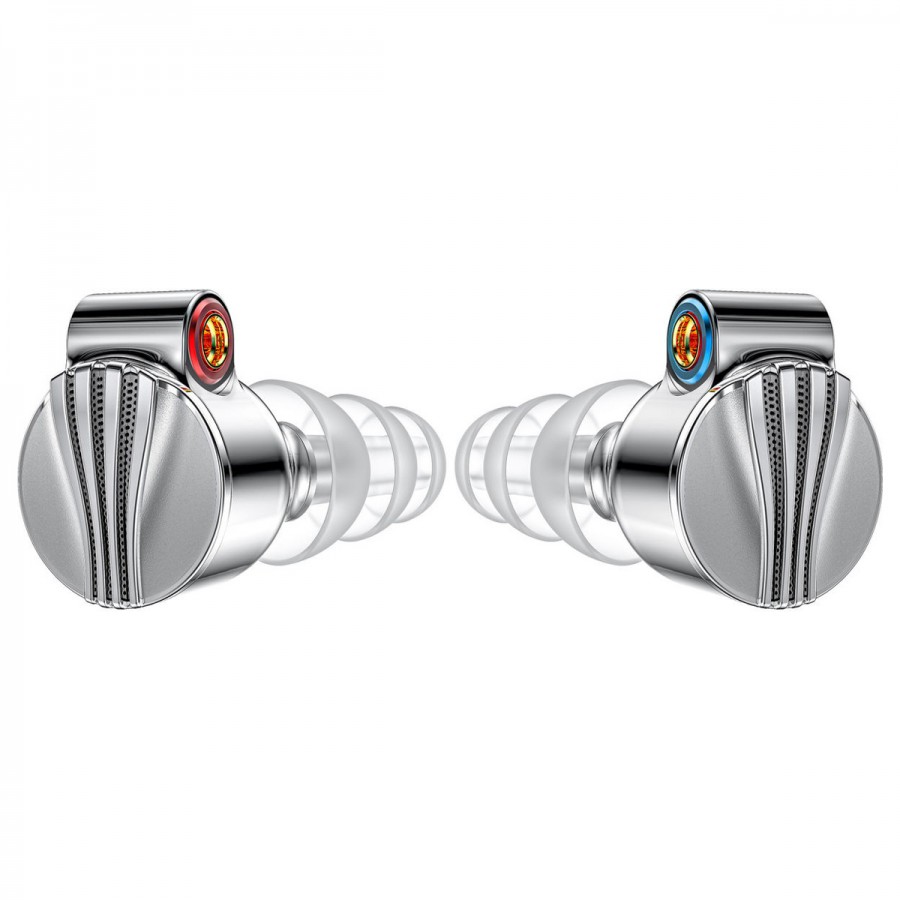

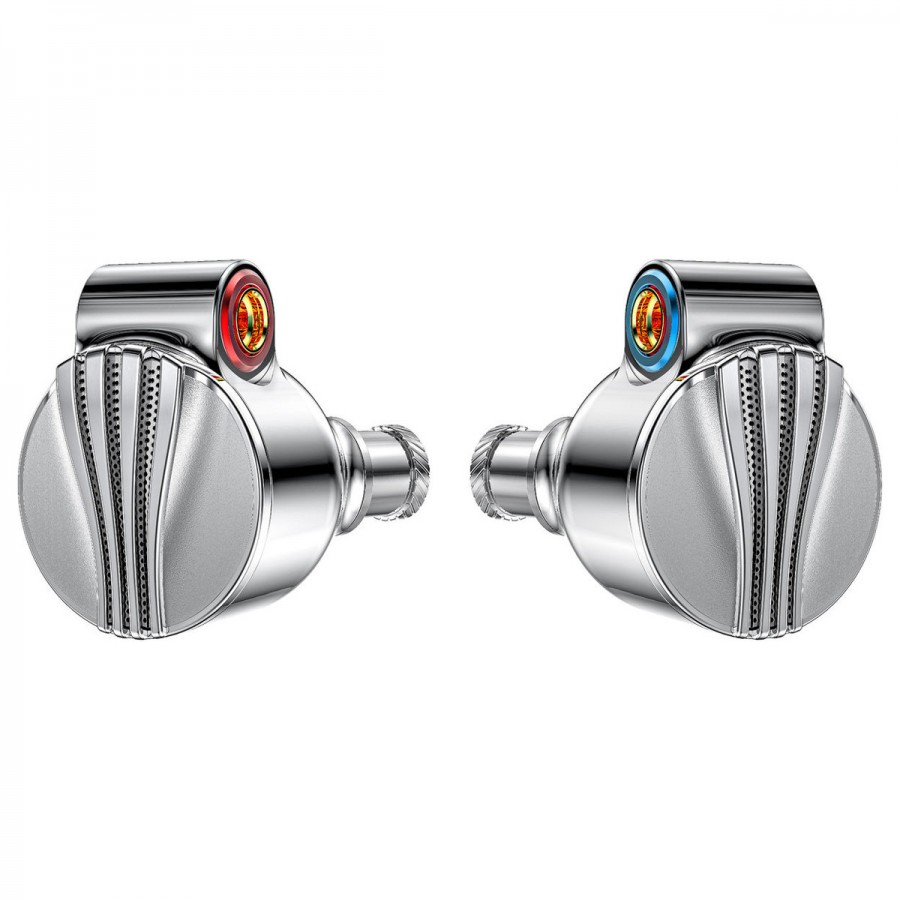

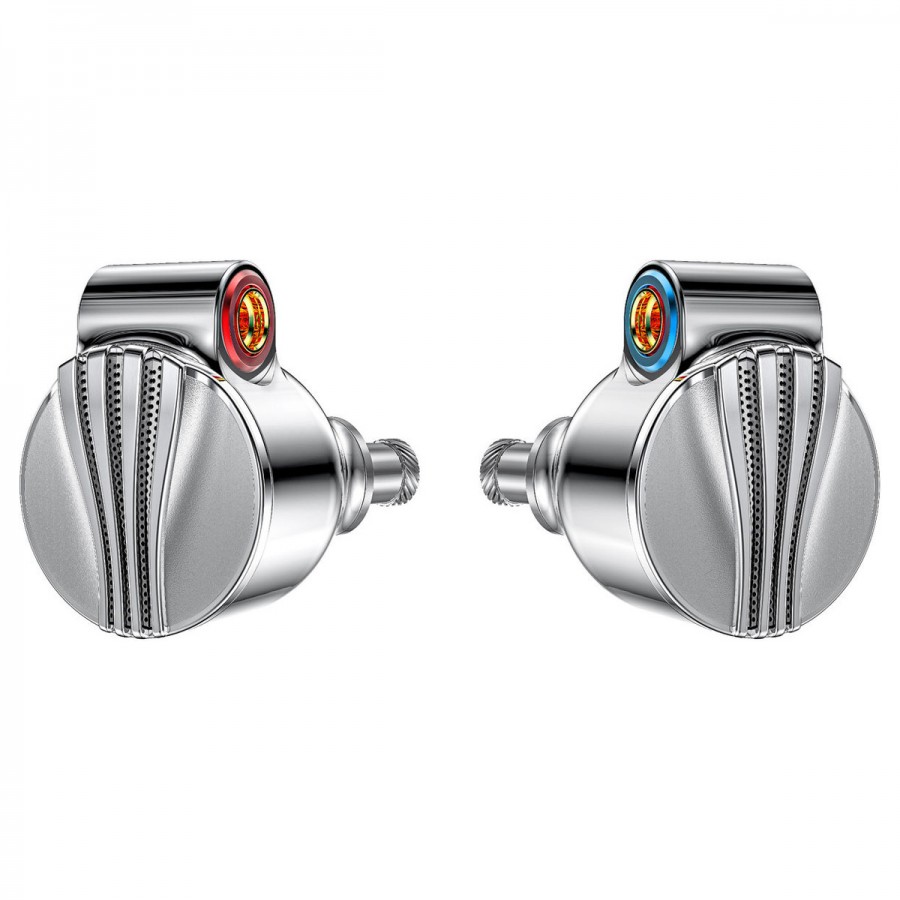

Moreover, in order to adapt to all morphologies, the FD5 are equipped with interchangeable acoustic tubes and delivered with numerous earpieces to guarantee an optimal comfort. FiiO, in order to eliminate the worries linked to the shift of the different sound waves, uses in its FD5 an acoustic prism structure inspired by high-end HiFi. Thus, a conical piece installed near the front of the transducer allows to keep a control on the way the waves are diffused and thus to eliminate the sound losses.

FiiO FD5 Écouteurs Intra-Auriculaires IEM Haut-Parleurs Dynamiques Membranes DLC Ø12mm 32 Ohm 10Hz-40kHz 109dB

Technical characteristics

Specifications
Product typeIn-Ear Monitor (IEM)
Transducer typeDynamic
Transducers diameterØ12mm
Diaphragm materialBeryllium coated DLC (Diamond Like Carbon) carbon
Magnetic circuitTwo ways N52
Material of the earpiecesStainless steel
Cable conductorsSilver plated single crystal copper (Litz wire)
Cable length120cm
Frequency responce10Hz - 40kHz
Impedance32Ω @ 1kHz
Sensitivity109dB @ 1mW
power handling100mW
General
Weight / earphone11g
PackageFiiO FD5
1x MMCX mounting clamp
3x Mini-jack connectors (2.5mm, 3.5mm, 4.4mm)
3x Pairs of bass tips (S, M, L)
3x Pairs of balanced tips (S, M, L)
3x Pairs of voice tips
4x Pairs of memory foam tips
1x Cleaning brush
1x Carrying pouch

Data sheet
ColorSilver
Impedance (Ω)32
Efficiency / Sensitivity (dB)109
Lowest frequency (Hz)10
Highest frequency (Hz)40000
