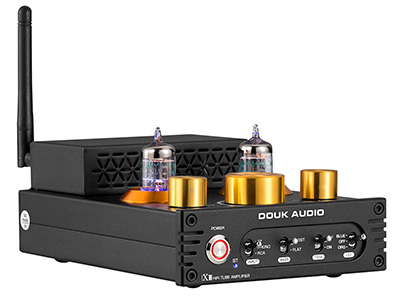

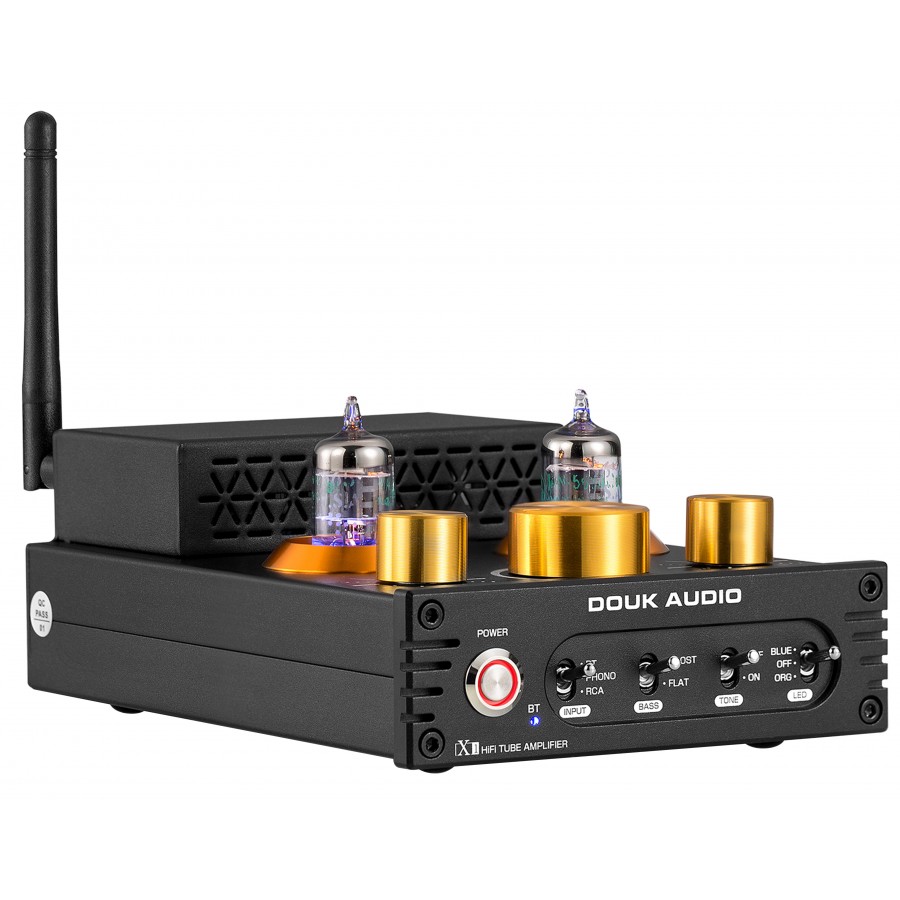

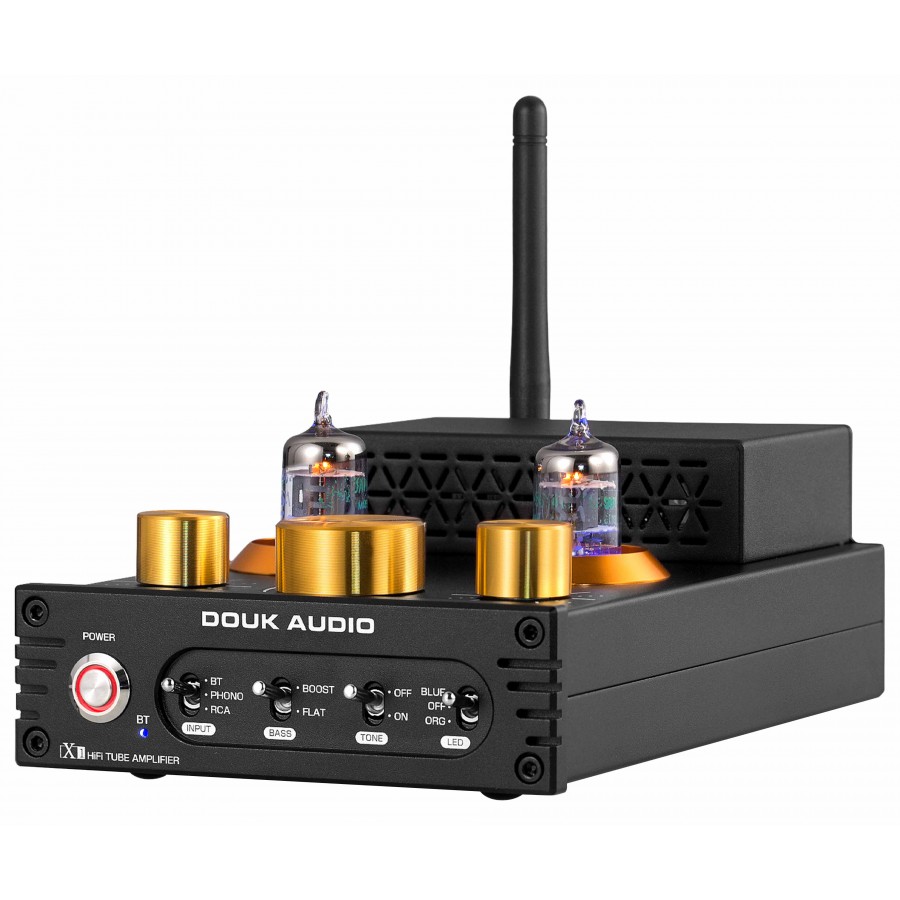

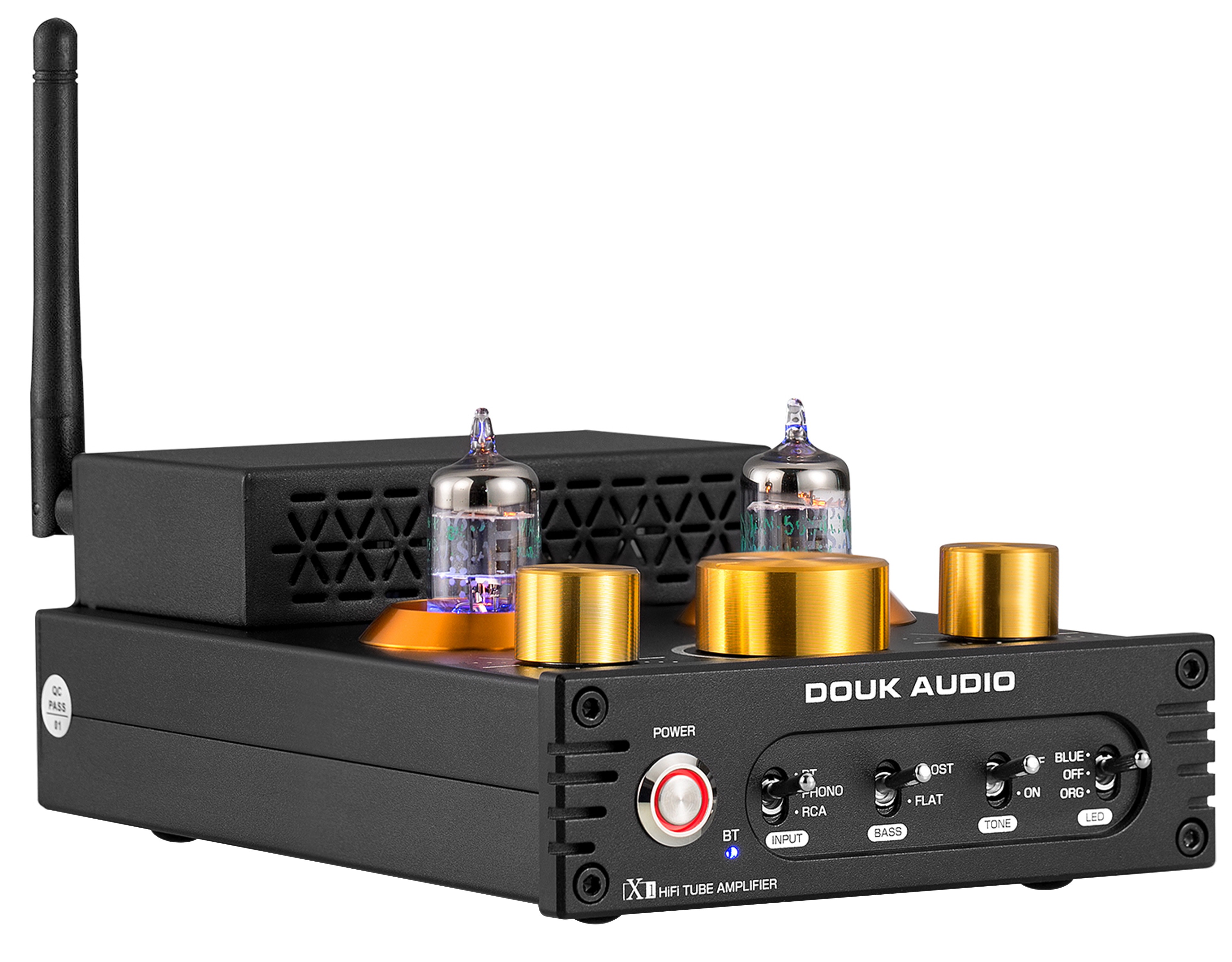

The DOUK Audio X1 is a versatile amplifier based on the use of two JAN 5725W tubes and a TDA 7498E chip. It is therefore capable of delivering up to 2x 160W @ 4 ohms of power under a 4-ohm load via its speaker terminals. In addition, it features a phono preamplifier stage with MM phono input and an output for active subwoofers, allowing you to easily enjoy a 2.1-channel audio system. You can also enjoy reliable and stable Bluetooth reception thanks to a Qualcomm QCC3034 supporting SBC, AAC, aptX, and aptX-HD codecs. Other features complete this small amplifier, such as volume and tone control for adjusting the sound output and the ability to change the tube lighting for the most aesthetic effect. Powerful and versatile, this small amplifier with a variety of features is ideal for sound systems in small to medium-sized spaces.

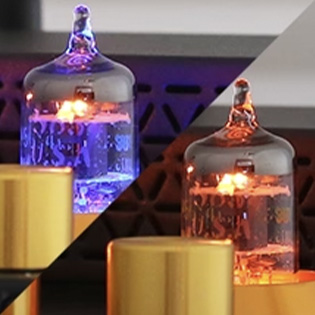

These tubes add roundness and warmth to the sound, which is appreciated by many music lovers.

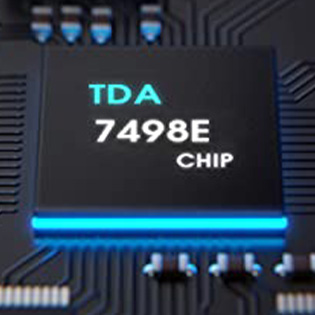

This amplifier chip delivers up to 2x 160W into 4 ohms for powerful amplification.
In addition to phono and RCA inputs, Bluetooth offers a reliable and stable alternative thanks to aptX and aptX-HD codecs.

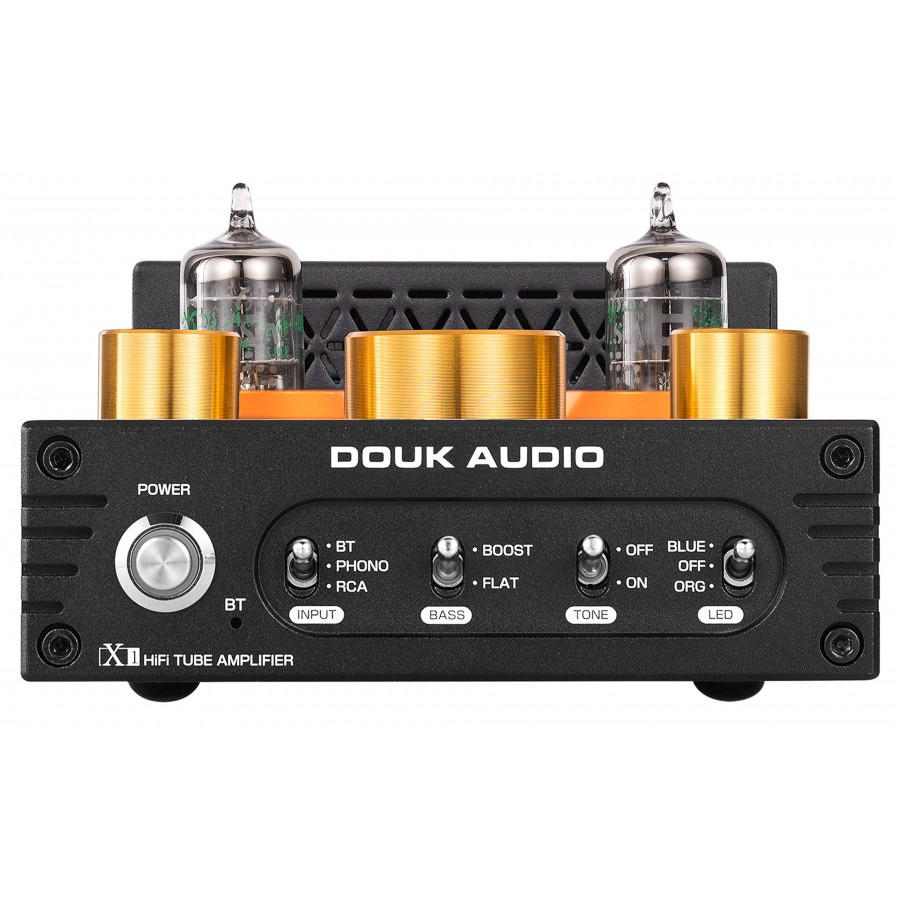

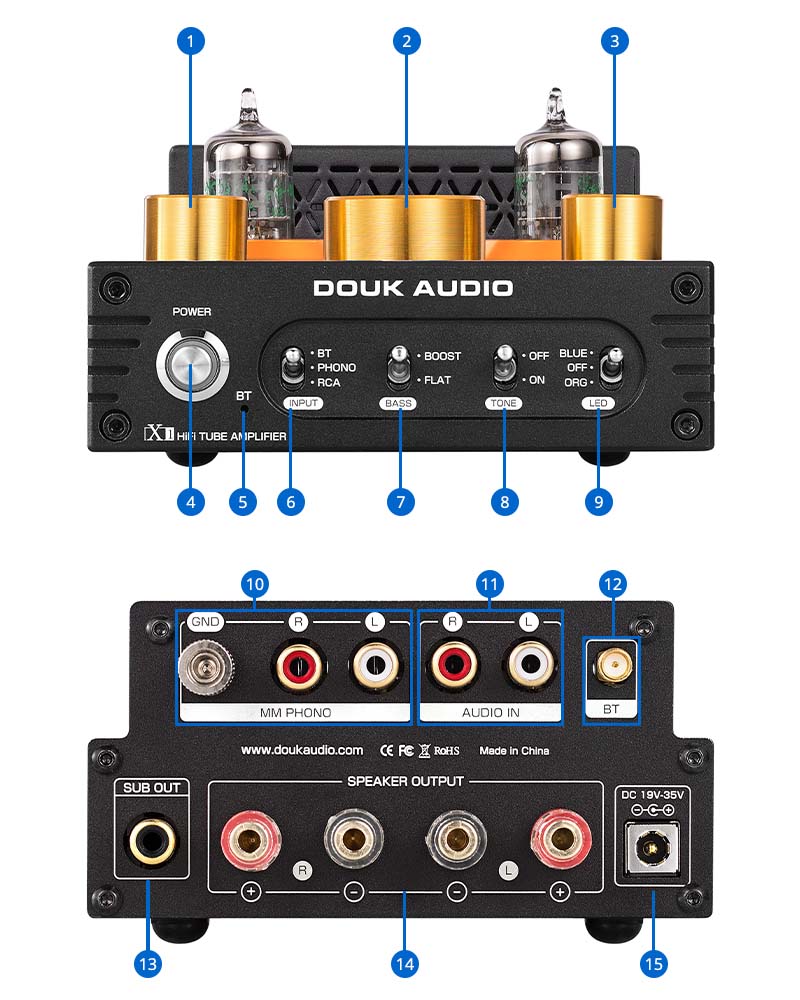

1 | Bass adjustment |
2 | Volume control |
3 | Treble adjustment |
4 | Power button |
5 | Bluetooth LED indicator |
6 | Input selector |
7 | Bass boost |
8 | Tone adjustment |
9 | Tube LED control switch |

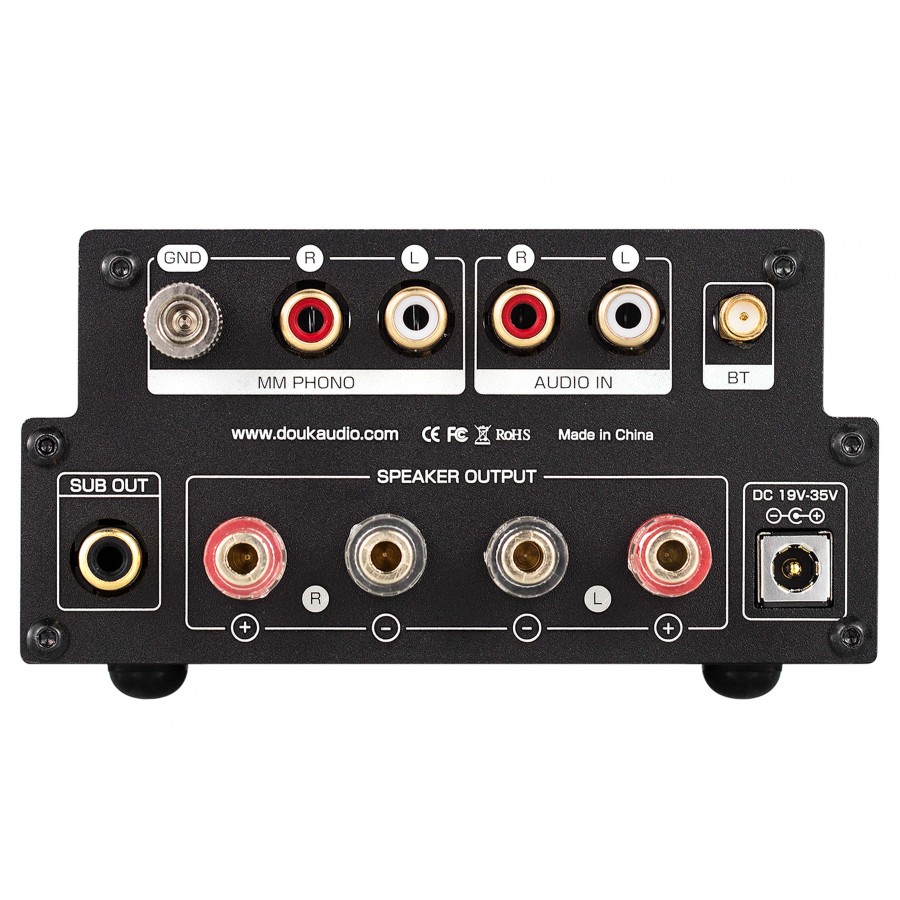

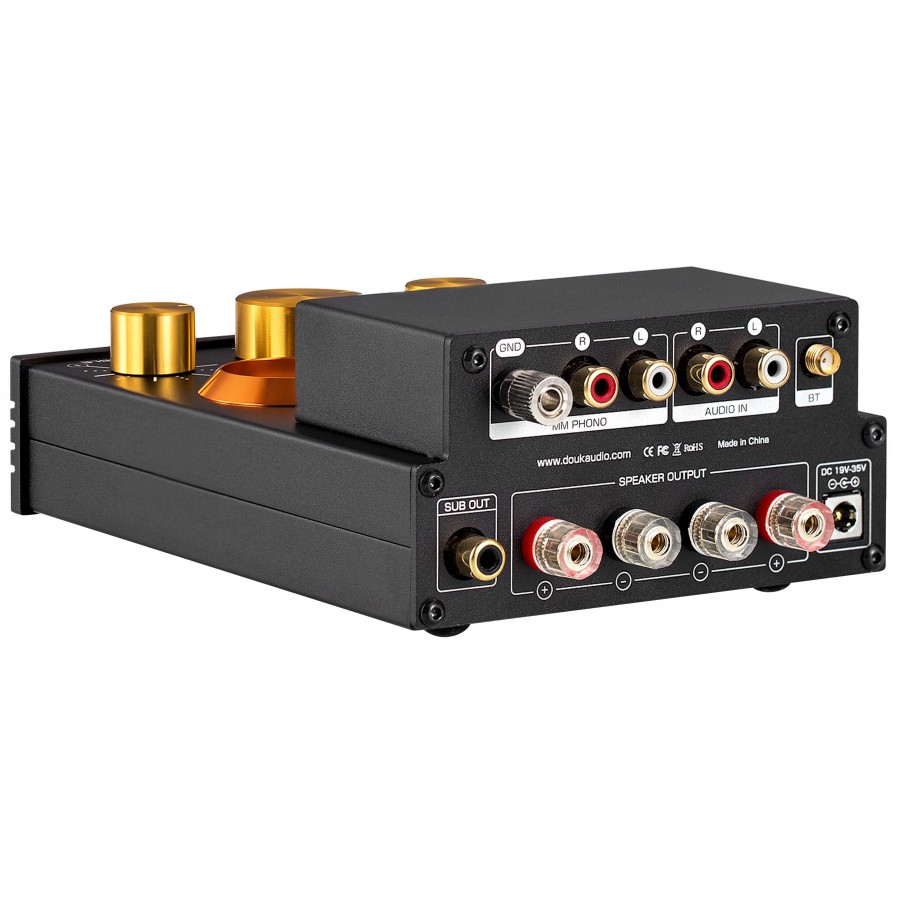

10 | MM phono input |
11 | RCA input |
12 | Bluetooth antenna |
13 | Subwoofer output |
14 | Speaker terminals |
15 | 19V-35V DC power supply via DC jack |
Technical characteristics
Specifications | |
---|---|
Product type | Tube amplifier |
Tubes | JAN 5725W |
Amplification type | TDA 7498E |
OPA | NE5532 |
Bluetooth chip | QCC3034 |
Inputs | 1x RCA input 1x MM phono input Bluetooth |
Outputs | 1x Speaker terminals 1x Output for active subwoofer |
Output power | 2x 160W @ 4 ohm |
THD | 0.5% (1kHz, 1W) |
SNR | ≥90dB |
Sensitivity | 0.775V |
Frequency response | 20Hz-20kHz(±6dB) |
Bass/treble adjustment | ±6dB |
Supported bluetooth codecs | SBC, AAC, aptX, aptX-HD |
Compatible replacement tubes | 6K4 / 6J1 / 6J4 / 6AK5 |
General | |
---|---|
Power supply | 19V-35V DC |
Dimensions | 270 x 300 x 75mm |
Weight | 1.66kg |

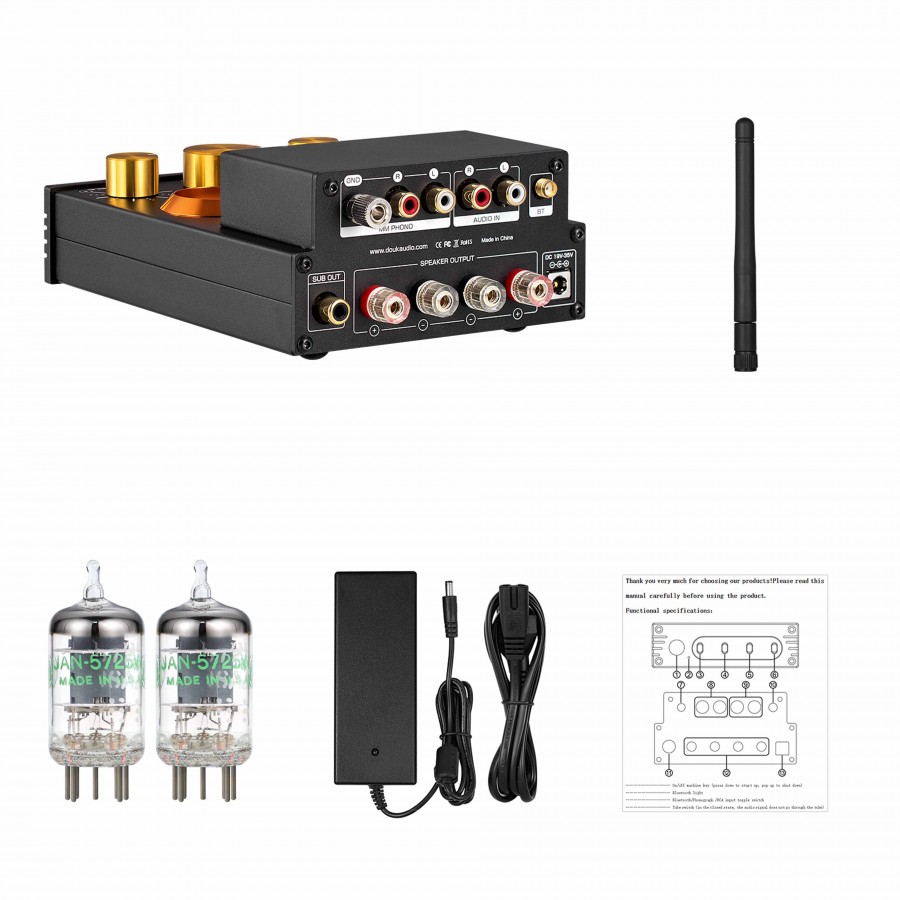

Package | 1x DOUK Audio X1 amplifier 2x JAN 5725W tubes 1x Bluetooth antenna 1x 32V 5A power adapter |
Input | Bluetooth |
Input | RCA |
Input | Phono |
Output | Speaker terminal |
Output | Subwoofer |
Color | Black |
Channel | 2 (Stereo) |
Channel | 2.1 |
Class | Tube amp |
Amplifier chip | TDA7498E |
Amplifier chip | Tube |
Power (W) | 160.0 |
Remote Control | No |
