SILKLINE VIMI I
Integrated Amplifier Class AB 2SC5198 / 2A1941 2x50W 4Ω
With its VIMI I, Silkline unveils a discrete integrated amplifier ideal for small to medium-sized rooms, being able to deliver 2x50W of power at 4Ω. This Class AB amplifier delivers a warm, delicate sound, and features a design incorporating Japanese Toshiba 2SC5198 and 2SA1941 transistors. Efficient and relatively compact, the VIMI I will fit perfectly into your HiFi installation.
Dual mono architecture
The VIMI I is designed to be totally balanced, with both channels independently powered to avoid crosstalk.
Discrete components and Toshiba 2SC5198 / 2SA1941 transitors
Thanks to its structure based on transistors and discrete components, the VIMI I allows the input signal to pass through in a fully balanced way. The transistors used operate without damaging the sound signal. This configuration avoids bias current upstream of the class AB power stage, which significantly limits distortion.
An impressive toroidal transformer & separate power supplies
VIMI I incorporates a high-power toroidal transformer. In addition, each channel has its own power supply incorporating 35V 4200 uF capacitors. This greatly limits interference. Finally, the power supply stage also features overvoltage and overcurrent protection.
Quality connectors
The RCA inputs are 24k gold-plated, making them corrosion-resistant. In addition, they are all switched with silver contact relays to ensure reliable signal input and low distortion. Regarding the outputs, speaker terminals are made of pure copper for maximum conductivity.
High-precision volume control
Silkline has equipped its VIMI I with a CS3310 volume controller allowing sound level adjustment in 0.5dB steps. Its distortion rate is also very low, giving the VIMI I a THD of less than or equal to 0.005% (@ 1W).
VFD display and simple housing design
Silkline's VIMI I features a bright, high-end VFD screen for clear information display. Its 10mm-thick aluminum alloy case is CNC machined.

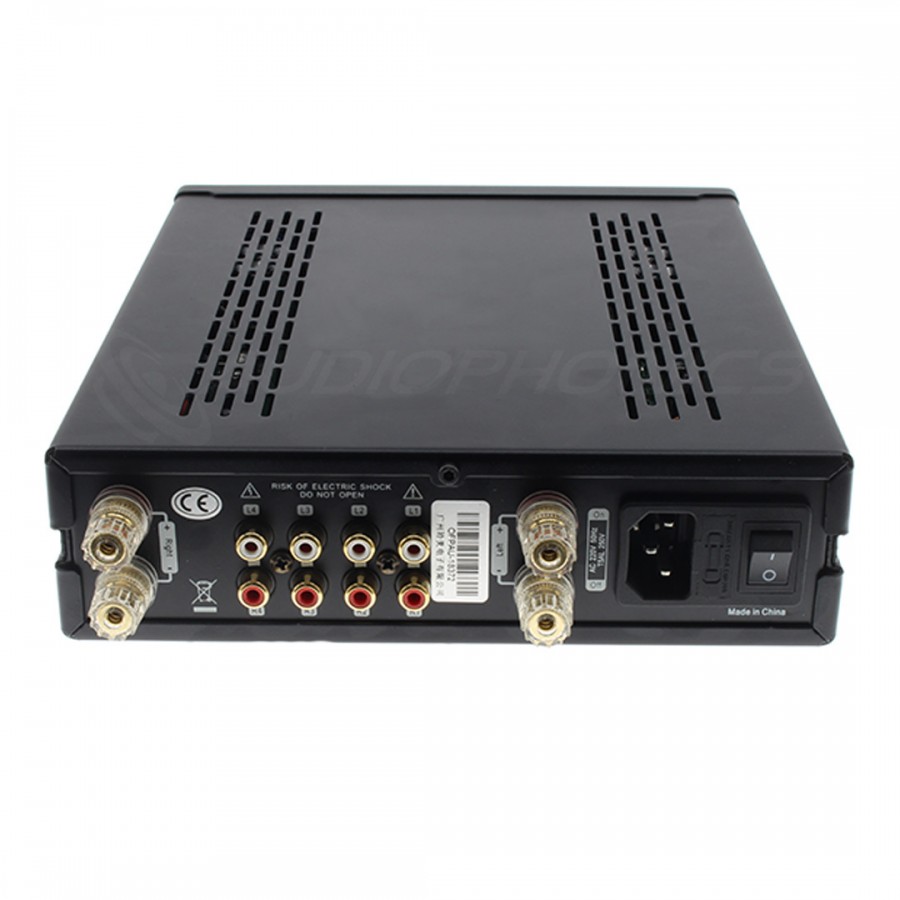

Silkline VIMI I rear panel
| 1 | Right channel speaker terminals |
| 2 | RCA inputs |
| 3 | Left channel speaker terminals |
| 4 | Power supply socket - ON/OFF switch |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Integrated amplifier |
| Inputs | 4* RCA stereo |
| Outputs | Speaker terminals |
| Input sensitivity | 200mV |
| Maximum input level | 3800mV |
| Output power | 2x 50W @ 4Ω (@ THD+N 1%) 2x 35W @ 8Ω (@ THD+N 1%) 2x 70W @ 4Ω (@ THD+N 10%) 2x 50W @ 8Ω (@ THD+N 10%) |
| Frequensy response | 10Hz-100KHz ±1dB |
| Total harmonic disorsion | ≤ 0.005% (@1W) |
| SNR | > 88dB |
| Channel separation | > 86dB |
| Wave distortion | < 0.001% (1kHz @ 1W) |
| Phase distorsion | < 0.01° (20hz-20Khz) |
| Volume control | CS3310 (0.5dB steps) |
| Remote control | |
| General | |
|---|---|
| Power supply | AC 220 50Hz |
| Standby power consumption | < 1W (EU CE standard) |
| Dimensions (W*H*D) | 210*60*240 mm |
| Color | Noir |
| Weight | 4kg |
| Package | 1* Silkline VIMI I 1* Remote control 1* Power cable |
| Input | RCA |
| Output | Speaker terminal |
| Color | Black |
| Channel | Dual Mono |
| Class | Class A / AB |
| Amplifier chip | Transistors |
| Power (W) | 50.0 |
| Remote Control | Yes |
