IAN CANADA HDMIpi Receiver HDMI to I2S / DSD / DoP

HDMIpi I2S/DSD/DoP to HDMI transmitter
This compact module allows you to retrieve a balancedLVDS signal flowing through an HDMI cable.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Reference : 13981
New product

32,90 €tax incl.

27,42 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 29-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

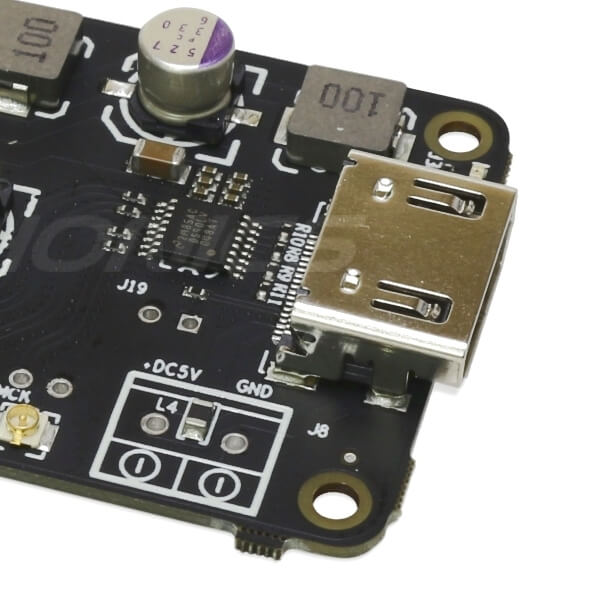

Ian Canada HDMIpi Receiver

I2s / DSD  receiver via HDMI





This compact module allows you to retrieve a balancedLVDS signal flowing through an HDMI cable. This signal is automatically converted to PCM / DSD / DoP digital data stream and may be operated in real time.

First conceived and designed for DIY, it works with a wide range of frequencies (up to 768kHz, DSD1024, DoP256).

The module gives the user the possibility to pick between several powering strategies and oscillator sync. It has Integration options that greatly help the makers getting the best audio restitution.


Power over HDMI


LVDS receiver module via HDMI is able to work with virtually any source sharing its pinout, it is however strongly recommended to use the LVDS transmitter via HDMI from the same manufacturer.

Indeed, when the transmitter and receiver modules are used together, the transmitter may directly power the receiver via the HDMI cable, which is a major plus for projects where the number of interconnections should be limited.

Removable power supply unit


Base, the module has its own power supply unit to obtain a clean current, stable voltage and lower power-supply-related noise..

This unit is mounted on a removable portion of the PCB. This means that the user can remove it and use the power supply of his choosing instead.

 It almost always is a HiFi grade regulated linear power supply in order to focus the sound transparency.


Easy integration



Because it has to work with many DAC / Clock configuration available on the market, the HDMIpI receiver module is equipped with two types of interconnection hardware. There are standard UFL  connectors that will work with most of the generic modules.

There is also a more 'professionnal' connector XH2.54mm male pine (delivered unmounted: it will be necessary to weld to use this connector). This second option will be particularly useful for custom development and professional projects.

Finally, the module has an optional control output. The latter allows the reception of logic instructions sent from the transmitter. This feature will delight advanced users who will find a very powerful lever to send metadata or instructions simultaneously to the audio stream.

pinout

Specifications
TypeHDMI receiving unit
supported frequenciesUp to 768kHz / DSD1024 / DoP DSD256
ProtocolLVDS (obtained by LVTTL Logic)
Power supplyDC 5V connector (supplied, requires welding, requires removing the L4 resistance)
via HDMI
Direct connection with 3.3V ultracapacitor / battery LiFePO4 (requires removing the breakable supply unit)
inputsHDMI (LVDS)
OutputsI2S / DSD via UFL
I2S / DSD via XH connectors 2.54
Dimensions65 x 39 mm
distances58 x 32 mm
Package Contents
Module HDMIpI receiverx1
DC Terminal 2 polesx1
XH connector bar 9 pin 2.54mmx1

Data sheet
InputI2S via HDMI
OutputI2S
Max sampling rateDSD1024
Max sampling rate768kHz
Interface chipNC
