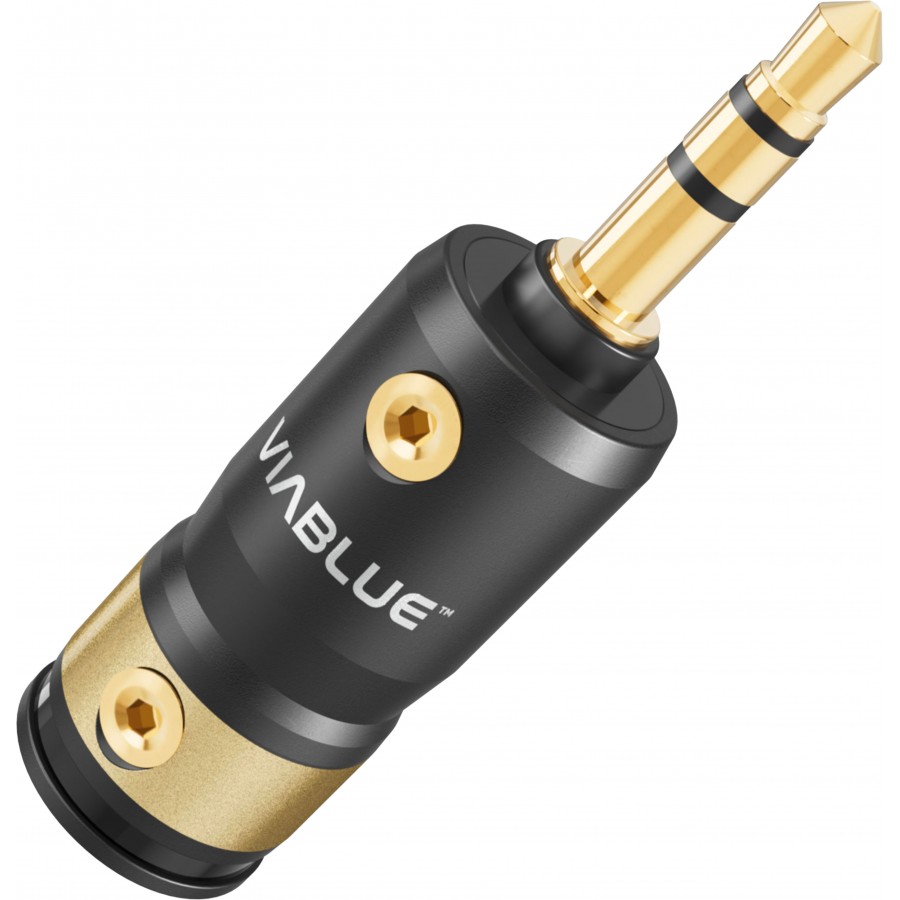

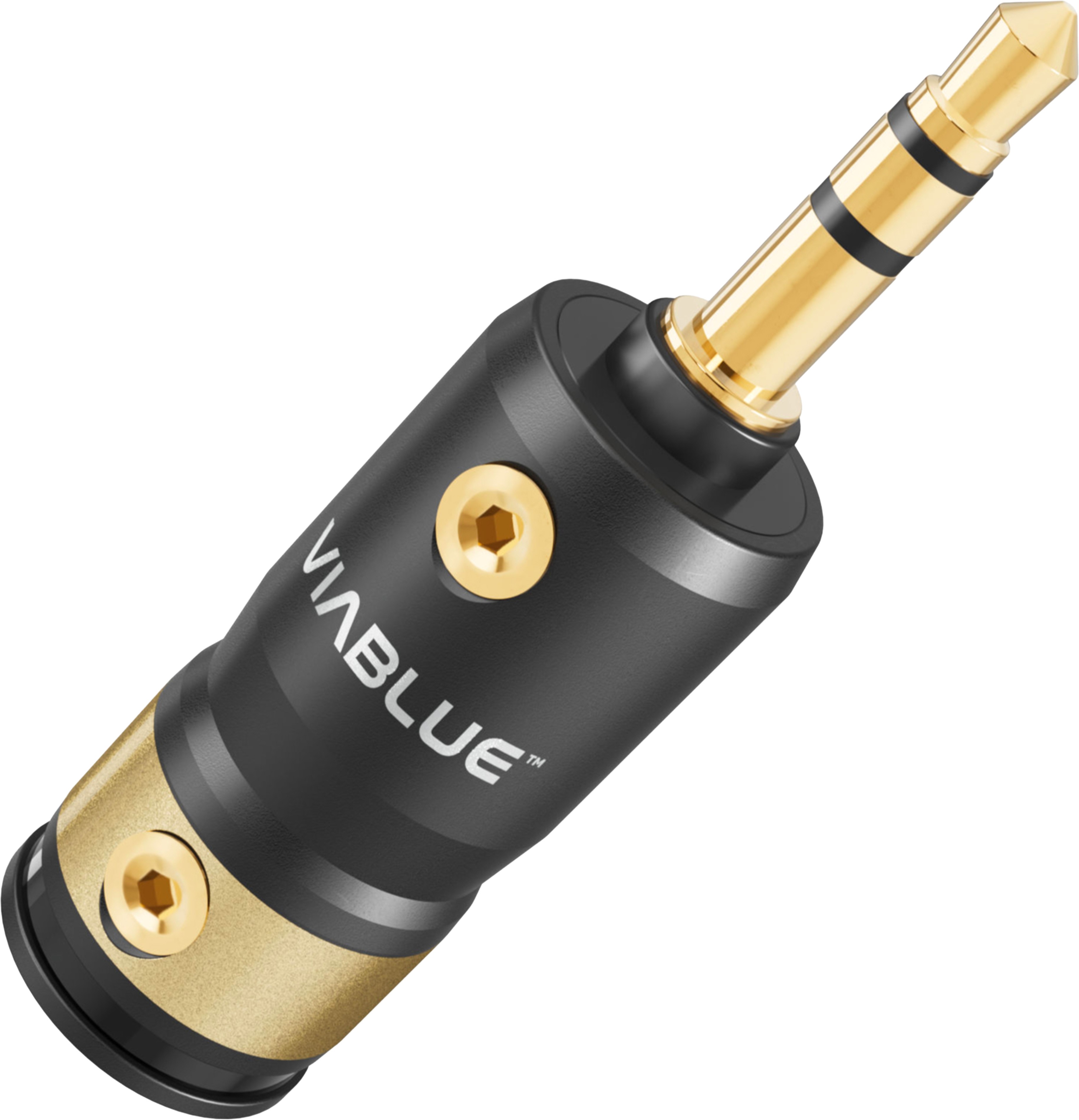

The 3.5mm jack connectors TRS T8 from Viablue integrate 24K gold-plated contacts, allowing stable conductivity to be maintained while limiting oxidation over time, while the black aluminum body ensures strong mechanical rigidity, protecting the connection points during use. The solder assembly is carried out on fully detachable contacts, facilitating assembly and ensuring a direct electrical connection, while an M4 hex socket screw (1.5mm) securely holds the cable within the connector. The clamping system accommodates cables from Ø4mm to Ø9.5mm, with two diameter reducers allowing thinner cables down to Ø3mm to be used, thus ensuring centered retention and clean integration.
Technical specifications
| Specifications | |
|---|---|
| Product type | 3.5mm TRS stereo jack connector |
| Contact plating | 24k gold |
| Assembly type | Solder |
| Body material | Aluminum |
| Min. cable diameter | Ø4mm |
| Max. cable diameter | Ø9.5mm |
| Body length | 30.5mm |
| Retention system | M4 hex socket screw (1.5mm) |
| Outer diameter | Ø12.5mm |
| General | |
|---|---|
| Color | Black |
| Packaging | Unit |
| Max cable diameter (mm) | 9.5 |
| Mounting type | To weld |
| Connectic | Male |
| Contacts number | 3 |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Gold |
