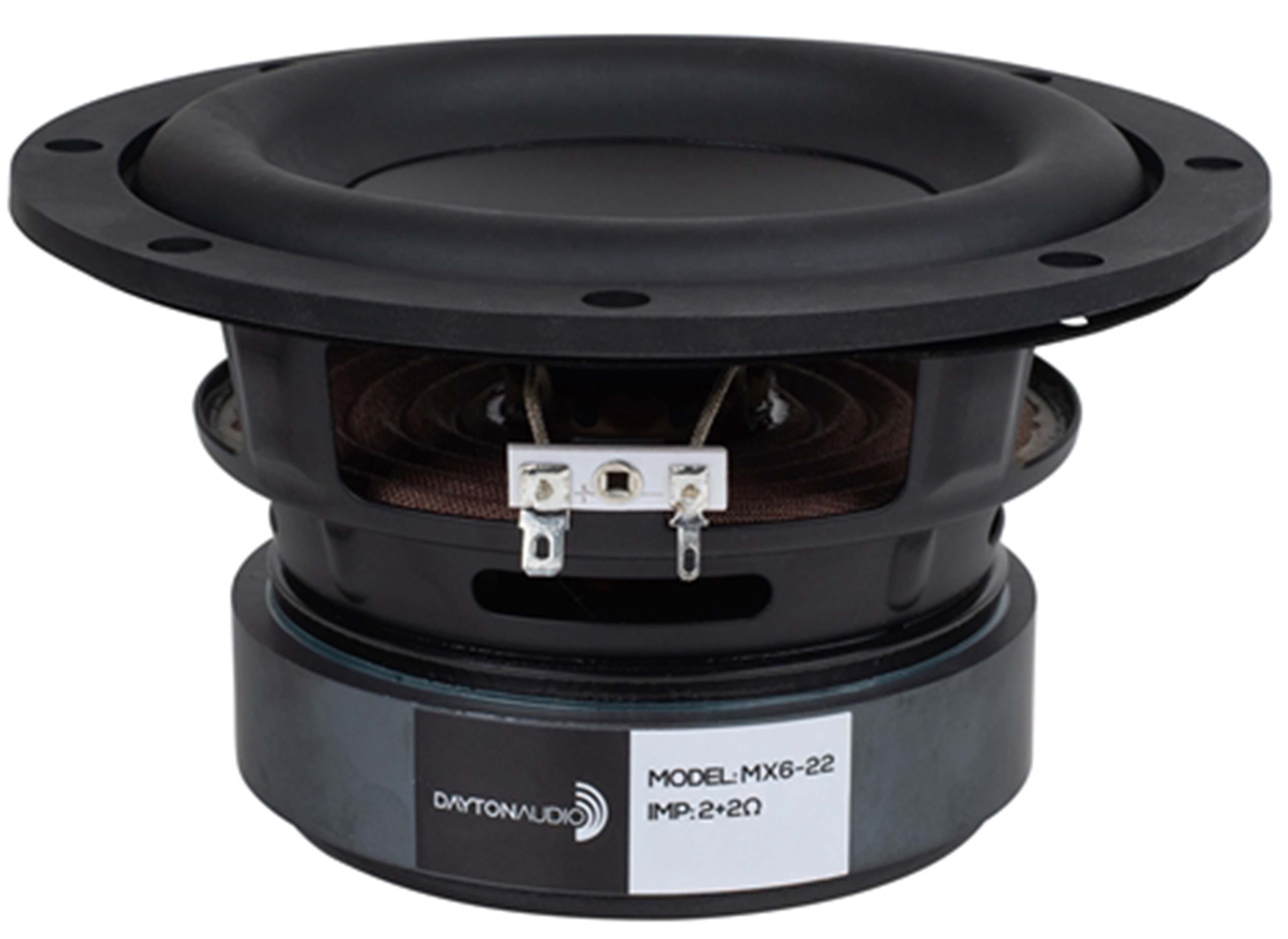

DAYTON AUDIO MX6-22 Speaker Driver DVC Subwoofer

The Dayton Audio MX6-22 is a 6.5-inch (16.5cm) subwoofer driver designed to deliver remarkable performance in compact enclosures, whether for home HiFi, car audio, or custom installations. Featuring a dual voice coil architecture rated at 2Ω + 2Ω, it offers great wiring flexibility to suit a wide range of amplifiers. Its long-excursion motor combined with a low 30Hz resonant frequency enables it to produce powerful, deep bass despite its compact size. Its paper cone is reinforced by a full-surface concave dust cap, while the high-excursion rubber surround ensures long-term reliability. The MX6-22 incorporates a 38mm four-layer copper voice coil wound on a vented aluminum former, a ferrite magnet motor, and an aluminum shorting sleeve designed to reduce inductance variations and distortion. Its precision-stamped steel frame features a fully vented architecture with a pole vent and gap vents to optimize cooling. With a power handling capability of 70W RMS (140W max), a sensitivity of 83dB (2.83V/1m), a maximum linear excursion (Xmax) of 12mm, and a frequency response extending from 20Hz to 1000Hz, the MX6-22 is an ideal solution for building compact high-performance subwoofer enclosures.
