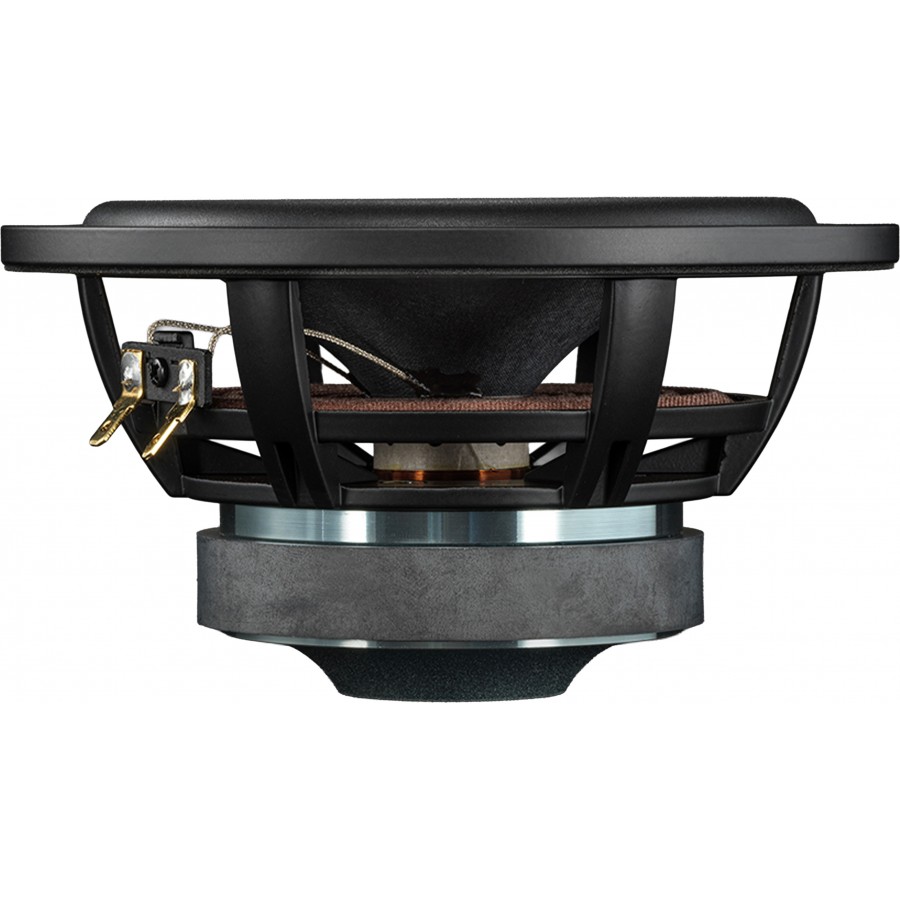

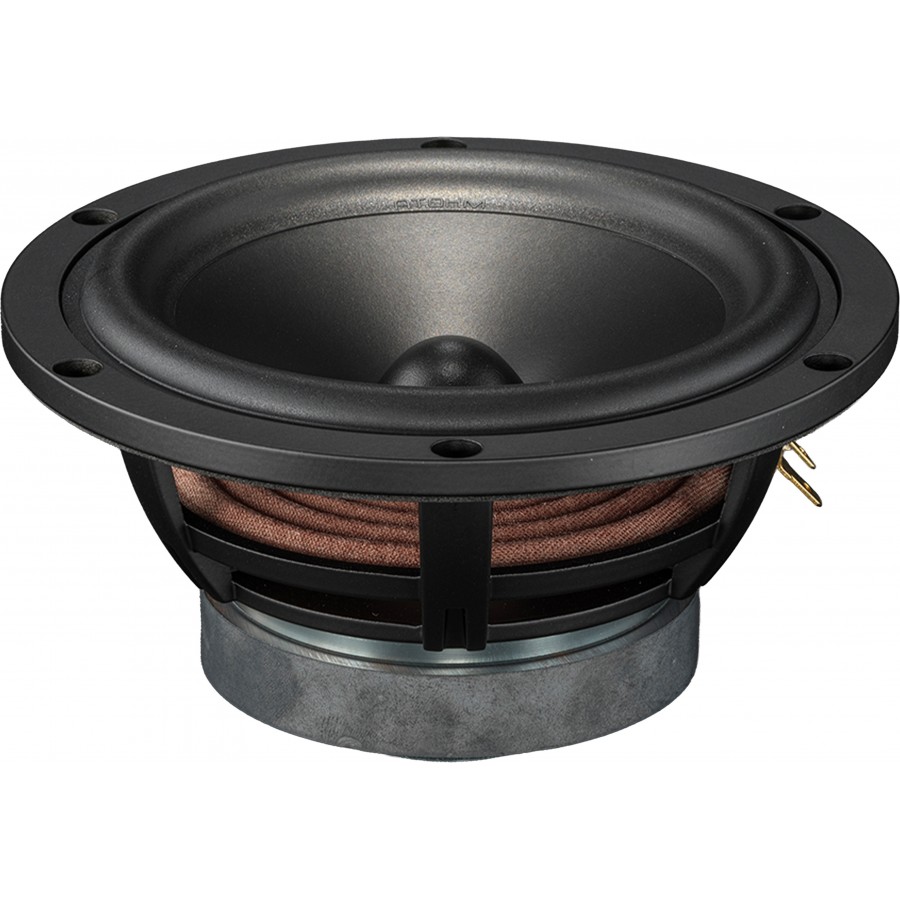

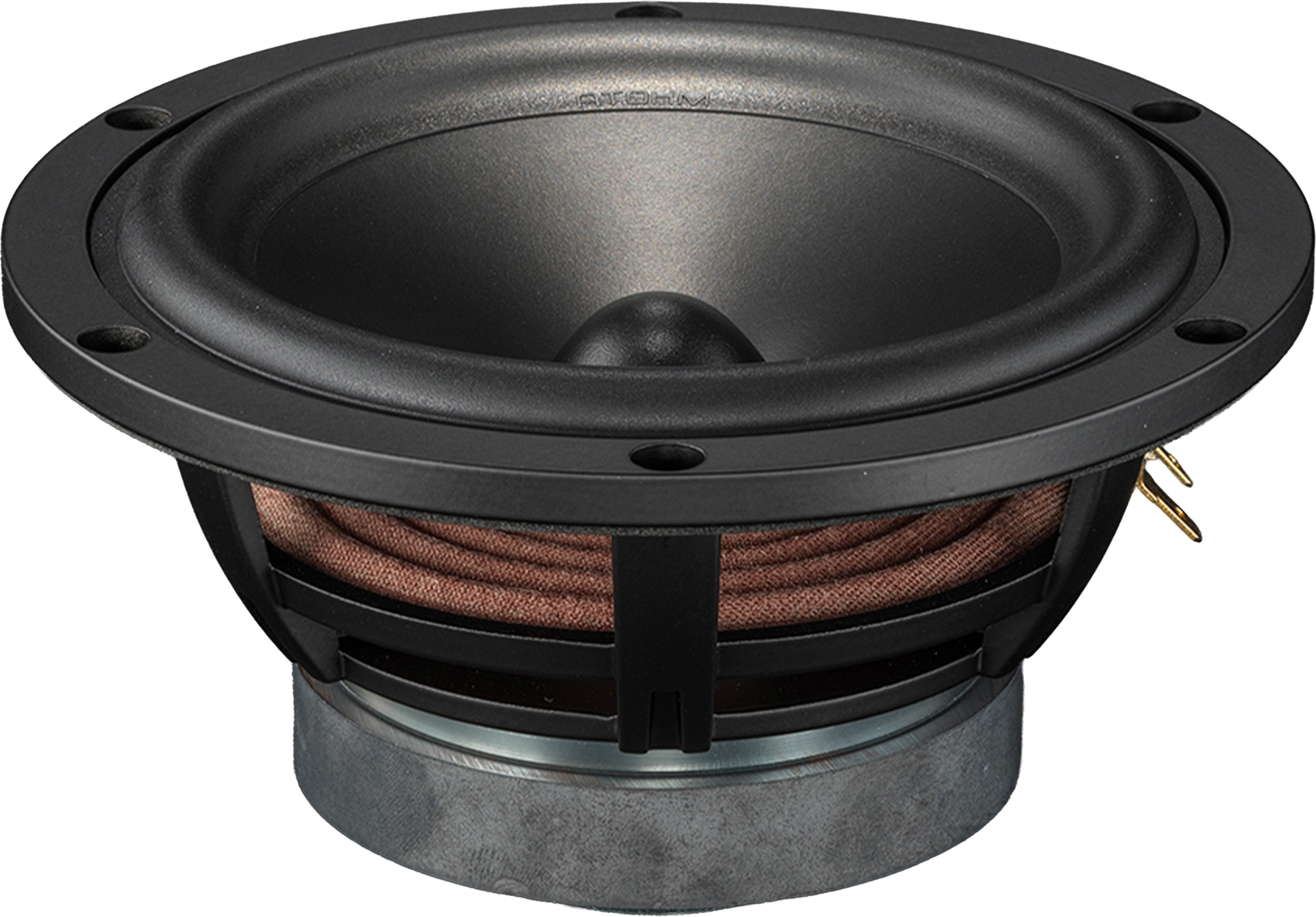

ATOHM C150 DCR 04 Speaker Driver Mid-Bass

Summary of the key benefits of the ATOHM C150 DCR:

• A lightweight, rigid paper diaphragm for wide bandwidth and high efficiency.
• Backend processing that ensures optimal high-frequency attenuation and facilitates filter tuning.
• A wide NBR rubber suspension featuring LDS™ technology, providing progressive damping for a linear response in the midrange.
• F.E.A. optimized motor with a high, symmetrical and linear force factor.
• TICR™ technology combines two copper rings positioned on the field plate to maximise the available magnetic flux and improve heat dissipation.
• Low, linear inductance across a wide excursion range, resulting in very low distortion levels.
• High-rigidity aluminium reel holder with forced ventilation.
• Spider M-GUARD™ technology, featuring progressive geometry and low-creep material, provides mechanical « soft-clipping » during the most extreme deflections, thereby ensuring outstanding dynamic performance and enhanced reliability.
• Reinforced die-cast aluminium salad bowl with a wide opening at the back.
