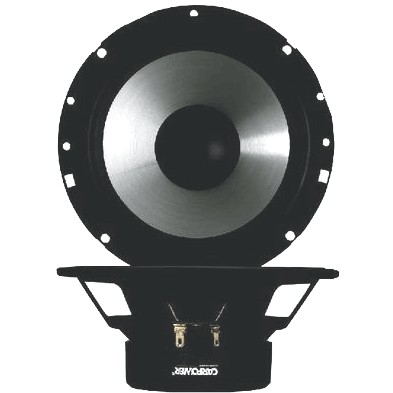

Bass speakers-medium CRB-165PS

Two-coil subwoofers combine a modern finish with optimized materials. Polypropylene membranes are equipped with a special structure, giving better stability to moisture-insensitive materials.

Hi-Fi Hi-Fi Bass-Surround, 4 Ω, 70 W _MAX

High-power bass and midrange, special polypropylene membrane with excellent impulse response, dust cover, lacquered salad bowl with gold-plated connections, 50-4500 Hz; combines ideally with CARPOWER's complementary high-performance speakers. Cutting 144 x 70 mm, external dimensions Ø 165 mm, type 165.

Specifications Speakers
	Impedance (Z)		4 Ω
	Resonance frequency (fs)		65 Hz
	Maximum bandwidth		f3-4500 Hz
	Maximum power		70 WMAX
	Nominal power (P)		35 WRMS
	Average sound pressure (1 W / 1 m)		89 dB
	Compliance susp. (Cms)		0.32 mm / N
	Movable mass (Mms)		14.5 g
	Mechanical overvoltage. (Qms)		4.54
	Electrical overvoltage (Qes)		1.25
	Fact. total overvoltage (Qts)		0.99
	Volume equ. (VAS)		11 l
	DC resistance. (Re)		3.6 Ω
	Force factor (BxL)		4.2
	Inductance coil (Le)		0.6 mH
	Coil diameter		25 mm
	Coil support		Alu
	Linear Excursion (X MAX)		± 3 mm
	Transmitting surface (Sd)		137 cm2
	Magnet weight		10 oz.
	Weight		950 g
