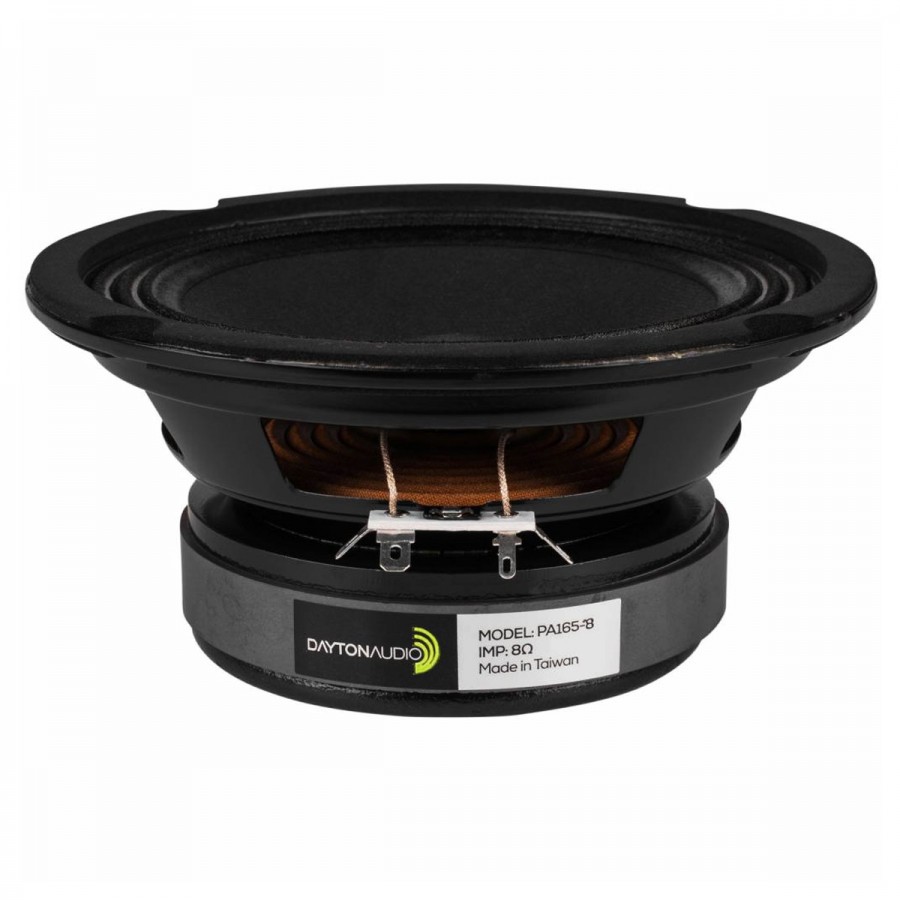

DAYTON AUDIO PA165-8 Speaker Driver Woofer / Midbass 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm

DAYTON AUDIO PA165-8 Speaker Driver Woofer / Midbass 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm
This Dayton Audio PA165-8 has been designed to support a high output level for a speaker of this size. It is a perfect model for designing HiFi speakers as a woofer / midbass loudspeaker or for creating small stage speakers.

Average votes for this product
5.0 / 5
  Based on 2 customers reviews.

By buying this product you get 3 loyalty points


Yes, notify me when available !
Reference : 13705
New product

37,90 €tax incl.

31,58 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Add to wishlist
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Dayton Audio PA165-8

Speaker Driver Woofer / Midbass 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm

Dayton Audio PA165-8 Haut-Parleur de Grave / Bas Médium 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm

This Dayton Audio PA165-8 has been designed to support a high output level for a speaker of this size. It is a perfect model for designing HiFi speakers as a woofer / midbass loudspeaker or for creating small stage speakers. The loudspeaker has a paper membrane, a steel bowl, a fabric suspension and a 3.81cm coil capable of withstanding high power.

Dayton Audio PA165-8 Haut-Parleur de Grave / Bas Médium 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm

Technical characteristics

Specifications
Speaker driver typeWoofer / Midbass
Nominal diameterØ15.2cm (6")
PowerRMS : 75W
Max : 150W
Impedance8 Ohm
Frequency response80Hz - 5kHz
Sensitivity92.9dB 2.83V/1m
Voice coil diameterØ35mm
Thiele-Small Parameters
Resonant frequency (Fs)80.8Hz
DC Resistance (Re)5.15 Ohm
Voice coil inductance (Le)0.54mH @ 1kHz
Mechanical quality coefficient (Qms)2.19
Electromagnetic quality coefficient (Qes)0.6
Total quality coefficient (Qts)0.47
Compliance equivalent volume (Vas)9.2L
Mechanical compliance of suspension (Cms)0.42mm/N
Force factor (BL)6.33Tm
Diaphragm mass inc. airload (Mms)9.2g
Surface area of cone (Sd)120.8cm²
Materials
Cone materialPaper
Surround materialCloth
Voice coil wire materialCopper
Voice coil formerAluminium
Frame materialSteel
Magnet materialFerrit
Mounting informations
Overall outside diameter165mm
Baffle cutout diameter144.6mm
Depth75.2mm
Number of mounting holes4
Optimum cabinet size (measured with BassBox 6 Pro)
Sealed volume0.17ft³
Sealed F3139Hz
Vented volume0.5ft³
Vented F368Hz

Data sheet
Speaker Power (W RMS)75.0
Speaker TypeWoofer
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)152.0
Diaphragm typePaper
Efficiency / Sensitivity (dB)93.0
Lowest frequency (Hz)80
Highest frequency (Hz)5000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Excellent médium
Très bon médium avec un bon rendement pour une 3 voies, peut aussi fonctionner en bass-reflex accordé vers 75Hz pour une enceinte de bibliothèque, puissance admissible importante (bobine ventilée).
Courbe régulière jusqu'à plus de 2kHz.
Et le prix...imbattable
 (0)
 (0)
This review has been posted for DAYTON AUDIO PA165-8 Speaker Driver Woofer / Midbass 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm
Note :
 5/5
Date :
OK
Fais ce pourquoi je l'ai acquis, bon prix et livraison rapide.
 (0)
 (1)
This review has been posted for DAYTON AUDIO PA165-8 Speaker Driver Woofer / Midbass 75W 8 Ohm 92.9dB 80Hz - 5kHz Ø15.2cm
