FOUNTEK FW222 Speaker Driver Midwoofer Aluminium 75W 8 Ohm 87dB 50Hz - 3kHz Ø20.3cm

FOUNTEK FW222 Speaker Driver Midrange Aluminium 75W 8 Ohm 87dB 50Hz - 3kHz Ø20.3cm

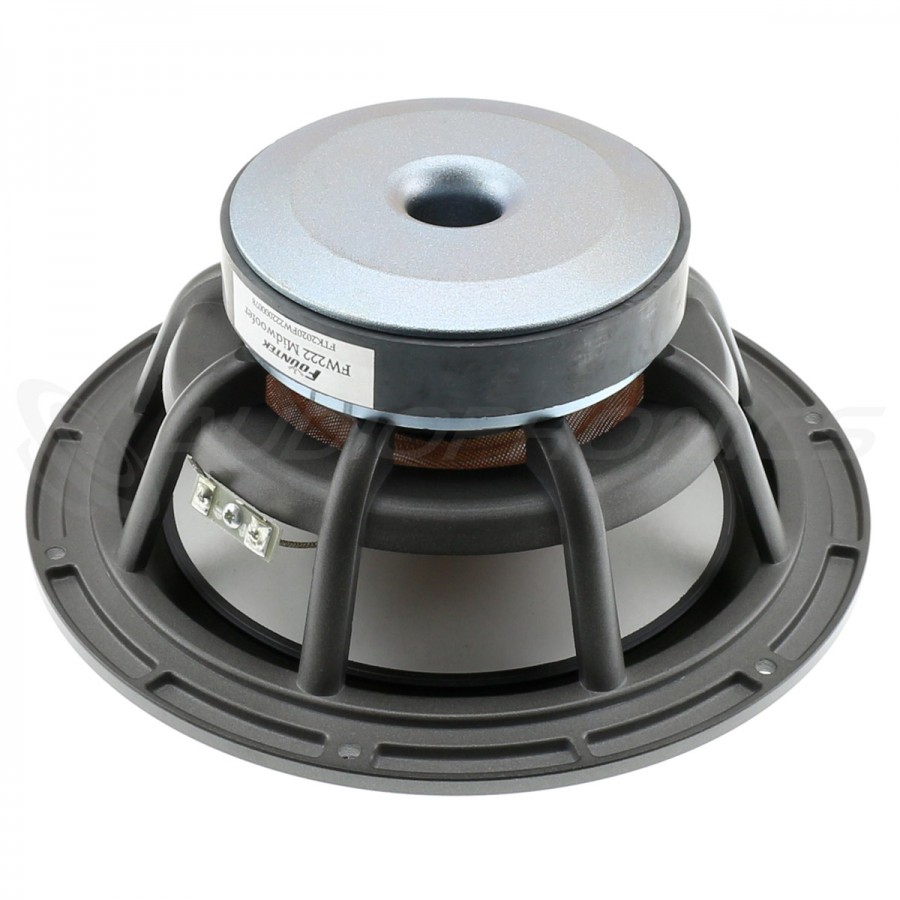

The Fountek FW222 is a Ø20.3 "cm (8") midwoofer driver incorporating an anodised aluminium cone with an inverted dome and integral grille. The bowl is fully open under the spider for minimal compression at high output levels.

No customer reviews yet, login to write a review.

By buying this product you get 9 loyalty points


Reference : 14726
New product

95,00 €tax incl.

79,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 29-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Fountek FW222

Speaker Driver Midwoofer Aluminium 75W 8 Ohm 87dB 50Hz - 3kHz Ø20.3cm

Fountek FW222 Haut-Parleur Bas Médium Aluminium 75W 8Ω 87dB 50Hz - 3kHz Ø20.3cm

The Fountek FW222 is a Ø20.3 "cm (8") midwoofer driver incorporating an anodised aluminium cone with an inverted dome and integral grille. The bowl is fully open under the spider for minimal compression at high output levels. Featuring a large maximum linear excursion, this driver supports high power handling and provides low distortion and good transient response.

Fountek FW222 Haut-Parleur Bas Médium Aluminium 75W 8Ω 87dB 50Hz - 3kHz Ø20.3cm Fountek FW222 Haut-Parleur Bas Médium Aluminium 75W 8Ω 87dB 50Hz - 3kHz Ø20.3cm

Technical characteristics

Specifications
Speaker driver typeMidwoofer
Nominal diameterØ30.5cm (12")
Power handlingRMS : 75W
Max : 150W
Impedance8Ω
Frequency response50Hz - 3kHz
Senstivity87dB 1W/1m
Voice coil diameterØ50mm
Voice coil height20mm
Thiele-Small Parameters
Resonant frequency (Fs)34.6Hz
DC Resistance (Re)6.8Ω
Mechanical quality coefficient (Qms)2.61
Electromagnetic quality coefficient (Qes)0.609
Total quality coefficient (Qts)0.493
Compliance equivalent volume (Vas)47.7L
Mechanical compliance of suspension (Cms)0.7mm/N
Force factor (BL)8.7Tm
Diaphragm mass inc. airload (Mms)30.246g
Diaphragm + Voice coil mass (Mmd)28.382g
Max linear excursion (Xmax)±7mmmm
Surface area of cone (Sd)219cm²
Magnetic flux density (B)1.0T
Material
ConeAluminum
Voice coil wireCopper
Voice coil formerAluminum
Voice coil layers2
MagnetFerrite

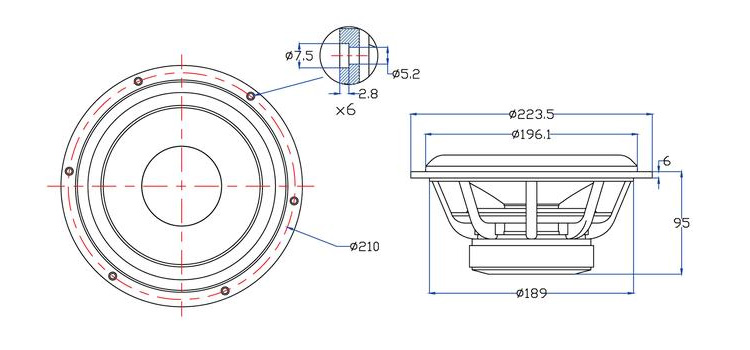

Mounting informations
Total external diameterØ223.5mm
Depth95mm
Cutout diameterØ189mm
Number of fixation holes6

Data sheet
Speaker Power (W RMS)75.0
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)203.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)87.0
Max Linear Excursion (Xmax) (mm)7.0
Lowest frequency (Hz)50
Highest frequency (Hz)3000
