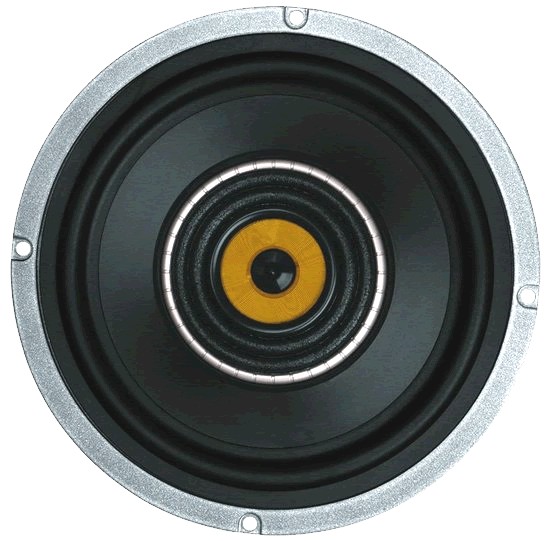

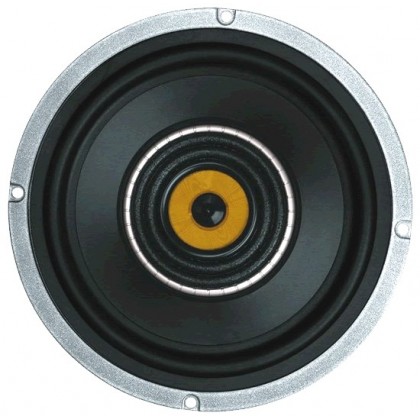

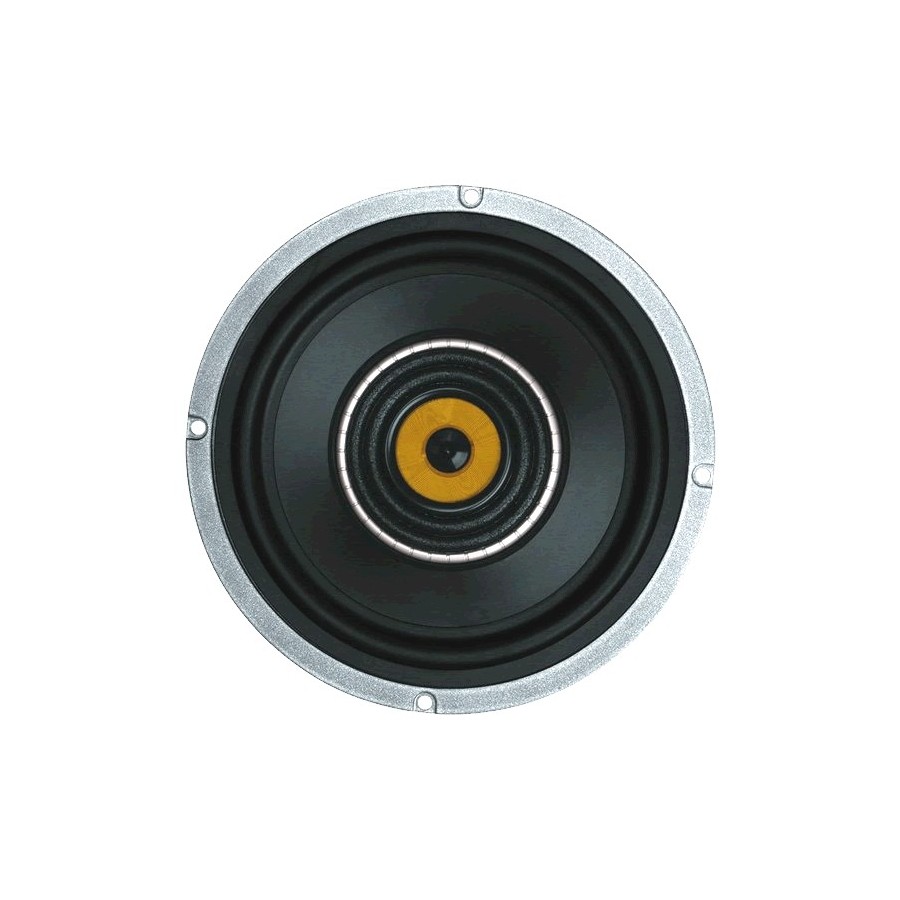

HiVi TRINITY6 Triaxial Broadband Speaker 6 "

No customer reviews yet, login to write a review.

By buying this product you get 17 loyalty points


Reference : 5319
New product

173,00 €tax incl.

144,17 € tax excl.
Including 0,30 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

here is theTRINITY 6ofHiVi, a high-end 3-way coaxial woofer that will turn your DIY speaker into an impeccable HiFi system.

Features:/ Strong>

  • 3-way coaxial speaker
  • Tweeter with circular ribbon
  • Medium double concentric ring
  • Cone woofer Polypropylene
  • Scattering surface studied
  • Covers a range from 55Hz to 40kHz

Midrange

General Data
Nominal Power Handling (Pnom) (W)10
Max Power Handling (Pmax) (W)25
Sensitivity (2.83v / 1m) (dB)88
Electrical Data
Nominal Impedance (Z) (Ω) 6
DC (Re) (Ω) 5.1
Voice Coil and Magnet Parameters
VC Diameter (mm)55.1
VC Length (H) (mm)7.5
VC FormerCCAW
VC FrameAL
Mygnet SystemShielded
Magnet FormerNeodymium
TS Parameters
Resonance Frequency (Fs) (Hz)65

woofer

General Data
Nominal Power Handling (Pnom) (W)40
Max Power Handling (Pmax) (W)80
Sensitivity (2.83v / 1m) (dB)85
Weight (M) (Kg)1.49
Electrical Data
Nominal Impedance (Z) (Ω) 4
DC (Re) (Ω) 3.2
Voice Coil and Magnet Parameters
VC Diameter (mm)76
VC Length (H) (mm)11.4
VC FormerCCAW
VC FrameAL
Magnet SystemShielded
Neodymium
Force Factor (BL) (N / A)8.9
Gap Height (He) (mm)6
Linear Excursion (Xmax) (mm)3
TS Parameters
Suspension Compliance (Cms) (uM / N)447
Mechanical Q (Qms)4.32
Electrical Q (Qes)0.44
Total Q (Qts)0.36
Moving Mass (Mms) (g)22.9
Effective Piston Area (Sd) (m2)0.0121
Equivalent Air Volume (Vas) (L)13.5
Resonance Frequency (Fs) (Hz)45


Data sheet
Speaker TypeFull range
