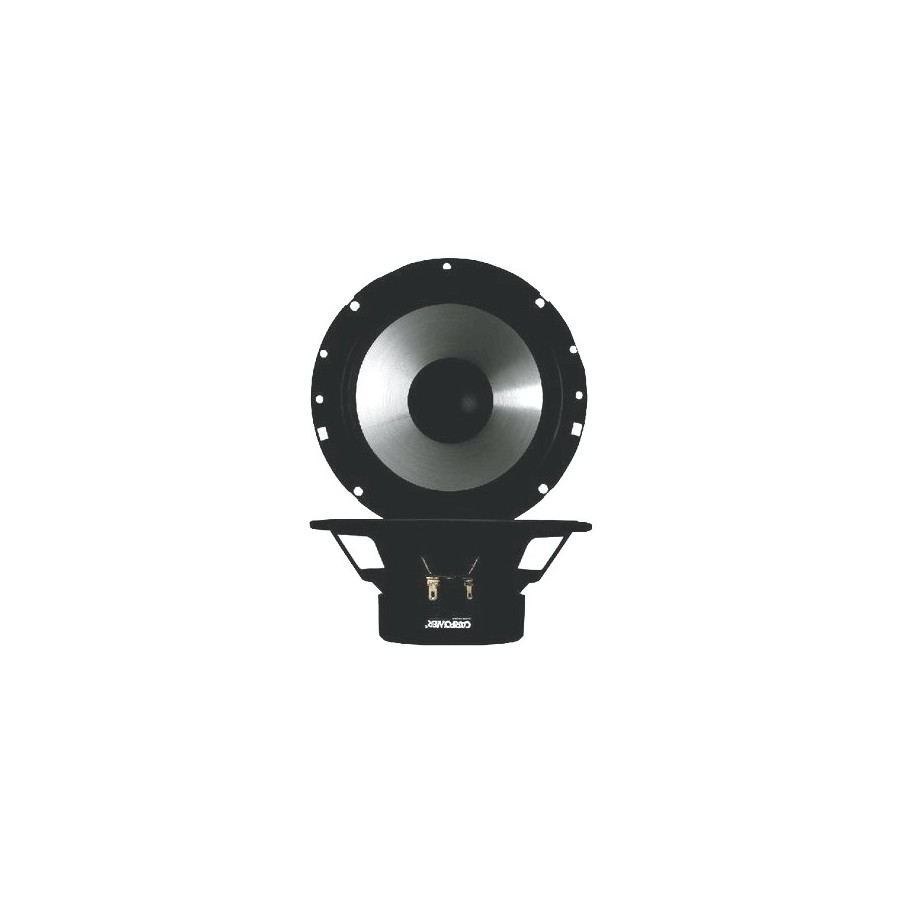

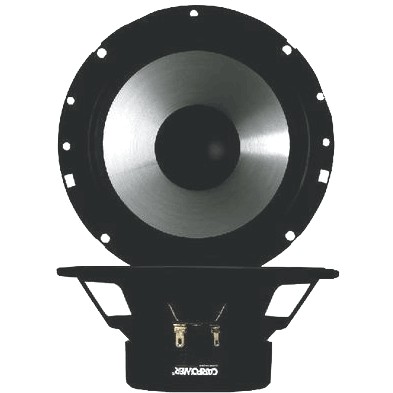

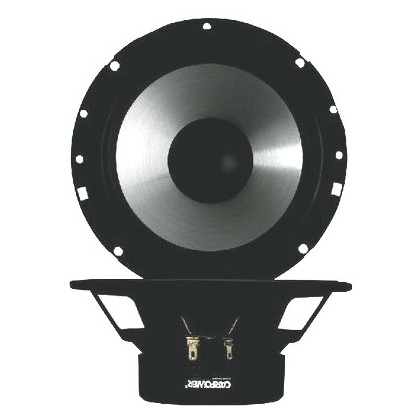

Loudspeaker-medium CRB-130PS

Two-coil subwoofers combine a modern finish with optimized materials. Polypropylene membranes are equipped with a special structure, giving better stability to moisture-insensitive materials.

Hi-Fi Built-in Hi-Fi Bass Speakers, 4 Ω, 60 W _MAX

Grave-medium and powerful bass, special polypropylene membrane with excellent impulse response, lacquered salad bowl with gold-plated connections, 60-5000 Hz; combines ideally with CARPOWER's complementary high-performance speakers. Mounting dimensions 113 x 58 mm, external dimensions 130 x 130 mm, type 130.

Specifications Speakers
	Impedance (Z)		4 Ω
	Resonance frequency (fs)		75 Hz
	Maximum bandwidth		f3-5000 Hz
	Maximum power		60 WMAX
	Nominal power (P)		30 WRMS
	Average sound pressure (1 W / 1 m)		88 dB
	Compliance susp. (Cms)		0.30 mm / N
	Movable mass (Mms)		10 g
	Mechanical overvoltage. (Qms)		4.26
	Electrical overvoltage (Qes)		1.28
	Fact. total overvoltage (Qts)		0.98
	Volume equ. (VAS)		5.5 l
	DC resistance. (Re)		3.6 Ω
	Force factor (BxL)		4.0
	Inductance coil (Le)		0.6 mH
	Coil diameter		25 mm
	Coil support		Alu
	Linear Excursion (X MAX)		+ -2.5 mm
	Transmitting surface (Sd)		92 cm 2
	Magnet weight		8 oz.
	Weight		750 g
