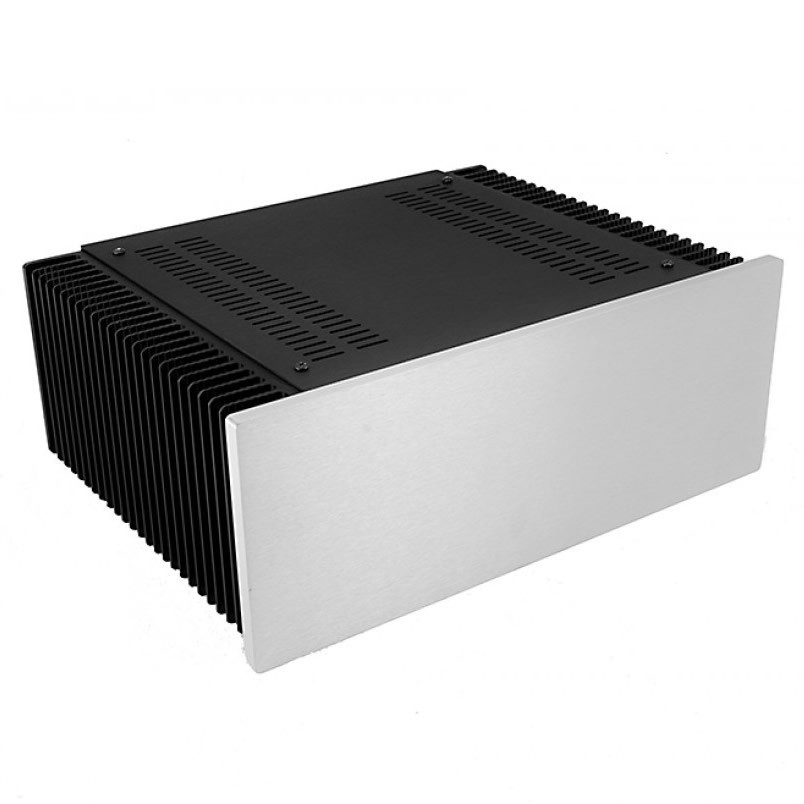

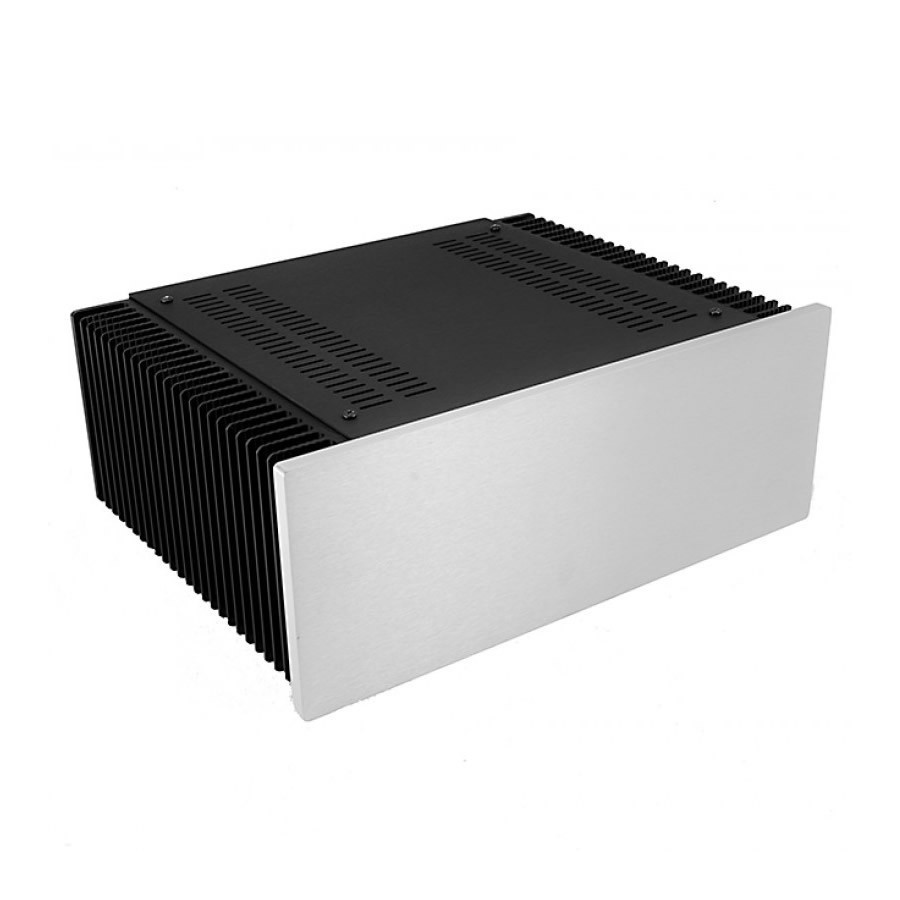

HIFI 2000 with Heatsink

Housing 250 x 250 x 120 front face 10 mm Silver

1MNPDA03/33/250B Housing HiFi2000

HIFI 2000 Housing with dissipators are ideal to build HiFi amplifiers or any kind of high-power device. The massive aluminum / steel frame is very sturdy and long-lasting. The HIFI 2000 dissipators series offer different sizes regarding electronic casing. While being versatile enough to be used in a variety of projects, it remains easy to mount and to use.

In addition to large dissipators with vertical wings (40mm), this housing has many opening on its top-plate in order to maximise heat circulation. The materials used in the building process are also very efficient at lowering termal stress.


Mounting guide


Internal dimensions

Spécifications
DimensionsHeightWidthDepth
Internal120250250
External124330263
Specifications
TypeMounting housing
Front coverAluminum
10mm thick
Back coverAnti-scratch Steel
1mm thick
Side covers2 dissipators 40 x 250mm Anodized aluminum
Top & bottom coversAnti-scratch Steel
1mm thick
Weight5.2 kg

Data sheet
ColorBlack
MaterialAluminium
StructureMetal
Internal width250
Internal depth250
Internal height120
