Portable Headphone Amplifier DAC CS43198 32bit 384kHz DSD256
1Mii unveils with the DS100 a powerful and affordable headphone amplifier and portable DAC combo to provide you with a quality sound reproduction, whether for listening on the road or at home. Its digital to analog conversion stage uses a CS43198 DAC chip with an optimized clock system, offering precise and transparent sound reproduction, as well as very good measured performances: THD+N of only 0.0003% and SNR higher than 115dB. Moreover, this DAC allows it to support high sampling rates, up to PCM 32bit 384kHz and DSD256.
On its side, its amplification stage allows it to develop a power of 156mW under 16Ω or 87.5mW under 32Ω, with a dynamic range of 118dB, a noise level under 2µV and an output amplitude of 1.7Vrms. A power that it develops with efficiency and musicality, favoring a coherent restitution on the whole frequency range.

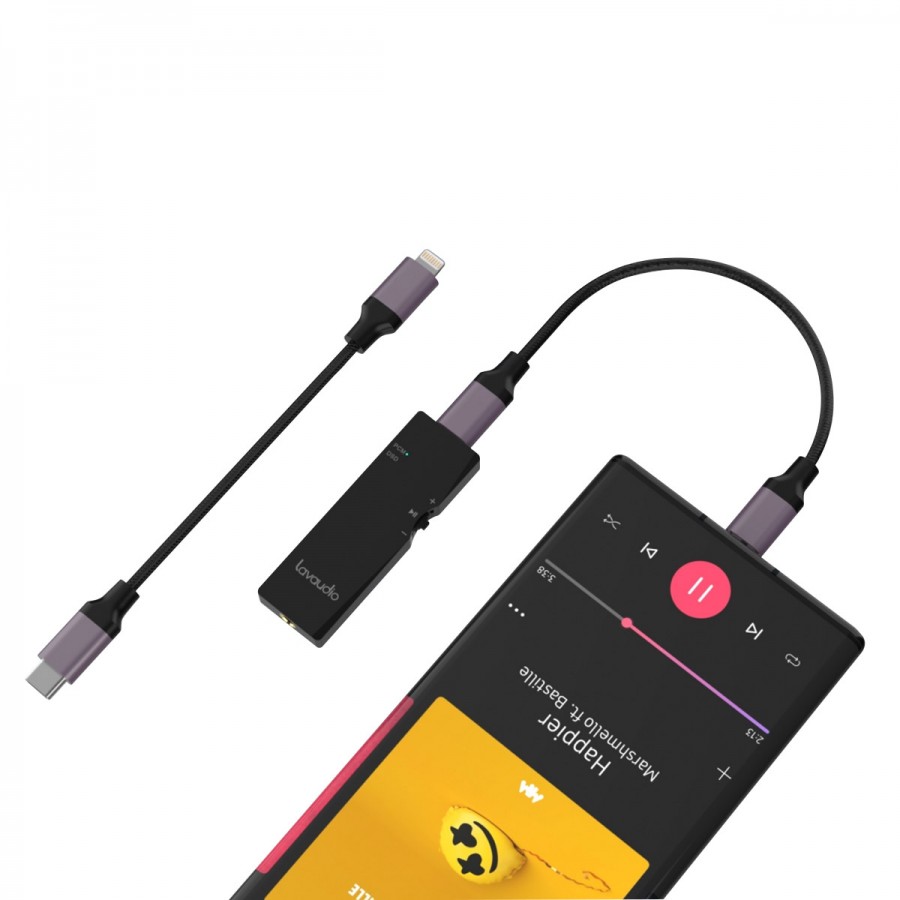

The DS100 is also compatible with Android and iOS devices but can also be used as a computer DAC.
Specifications | |
---|---|
Product type | Portable headphone amplifier and DAC |
Input | 1x USB-C |
Output | 1x Jack 3.5mm |
DAC Chip | CS43198 |
USB Interface | CT7601 |
Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 |
THD+N | 0.0003% |
SNR | 121dB |
Output power | 156mW @ 16Ω 87.5mW @ 32Ω |
Dynamic range | 118dB |
Noise level | < 2µV |
Output amplitude | 2Vrms |
Output impedance | 0.15Ω |
General | |
---|---|
Supply voltage | 5VDC |
Dimensions | 58 x 19 x 6.5mm |
Color | Black |
Input | USB |
Output | Jack 3.5mm |
DAC / ADC Chip | CS43198 |
Max sampling rate | DSD256 |
Max sampling rate | 384kHz |
Color | Black |
Class | Class D / T |
Networking | No |
Remote Control | No |
