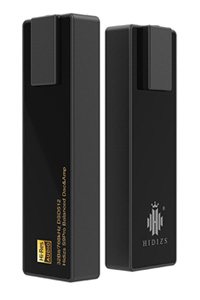

Portable Headphone Amplifier DAC ES9038Q2M Balanced 32bit 768kHz DSD512
Hidizs offers with its S9 Pro a revised version of the already excellent S9. The DAC and portable headphone amplifier combo is now based on the use of a high quality ES9038Q2M conversion chip, for a more than convincing sound restitution, thanks to an incredible precision. In addition, the device supports high sampling rates and has a dual balanced and unbalanced output to suit all uses.
S9 Pro
S9
S8
DAC
ES9038Q2M
AK4493EQ
CS43131
Outputs
Jack 3.5mm + Jack 2.5mm
Jack 3.5mm + Jack 2.5mm
Jack 3.5mm
Light indicator
Yes
Yes
No
Max PCM sampling rate
32bit 768kHz
32bit 768kHz
32bit 384kHz
Max DSD sampling rate
DSD512
DSD512
DSD256
SNR
Jack 3.5mm : 120dB @ 32Ω
Jack 2.5mm : 119dB @ 32Ω
Jack 3.5mm : 119dB @ 32Ω
Jack 2.5mm : 117dB @ 32Ω
120dB
Channel separation
Jack 3.5mm : 80dB @ 32Ω
Jack 2.5mm : 118dB @ 32Ω
Jack 3.5mm : 79dB @ 32Ω
Jack 2.5mm : 114dB @ 32Ω
78dB @ 32Ω
THD+N
Jack 3.5mm : 0.0006% @ 32Ω
Jack 2.5mm : 0.0012% @ 32Ω
Jack 3.5mm : 0.0018% @ 32Ω
Jack 2.5mm : 0.006% @ 32Ω
0.002% @ 1kHz
Output power
Jack 3.5mm : 100mW @ 32Ω
Jack 2.5mm : 200mW @ 32Ω
Jack 3.5mm : 90mW @ 32Ω
Jack 2.5mm : 120mW @ 32Ω
-
Comparison Hidizs S9 Pro, S9 and S8
Hi-Res certified, the S9 Pro supports high sampling rates. It can read PCM files up to 32bit 768kHz.
In the same way, the S9 Pro also supports Native DSD. It will allow you to enjoy your files up to DSD512.
The S9 Pro is equipped with a double headphone output. There is a 3.5mm unbalanced jack and a 2.5mm balanced jack. Therefore, whatever the headphones used, the S9 Pro will be able to accompany your listening sessions with ease.
The body of the S9 Pro is dressed with an LED indicator, hidden under the logo of the brand. It changes color to indicate the sampling rate of the file being played.
The Hidizs S9 Pro benefits from an output stage allowing it to develop a comfortable power to feed many headphones of the market. Thus, its unbalanced output on Jack 3.5mm allows to take advantage of a power of 100mW, where its balanced output Jack 2.5mm develops 200mW.
All the components of the S9 Pro are integrated in a beautiful CNC machined aluminum case, both robust and design.
Specifications | |
---|---|
Product type | Portable headphone amplifier and DAC |
DAC Chip | ESS ES9038Q2M |
Supported sampling rates | PCM up to 32bit 768kHz Native DSD up to DSD512 |
Input | 1x USB-C |
Outputs | 1x Single-ended Jack 3.5mm 1x Balanced Jack 2.5mm |
Compatible OS | Windows, Mac OS, iPad OS, Android, iOS (avec câble Lightning OTG) |
Recommanded headphone impedance | 8-300Ω |
Single-ended headphone output | |
---|---|
Output power | 100mW @ 32Ω |
Frequency response | 20Hz - 50kHz |
SNR | 120dB @ 32Ω |
Channel separation | 80dB @ 32Ω |
THD+N | 0.0012% @ 32Ω |
Balanced headphone output | |
---|---|
Output power | 200mW @ 32Ω |
Frequency response | 20Hz - 50kHz |
SNR | 119dB @ 32Ω |
Channel separation | 118dB @ 32Ω |
THD+N | 0.0006% @ 32Ω |
General | |
---|---|
Body material | CNC machined aluminum |
Dimensions | 59 x 18 x 8mm |
Weight | 11g |
Package | 1x Hidizs S9 Pro 1x USB-C Cable 1x USB-C to USB-A adapter 1x Rear clip |
Input | USB |
Output | Jack 3.5mm |
Output | Jack 2.5mm |
DAC / ADC Chip | ES9038Q2M |
Max sampling rate | DSD512 |
Max sampling rate | 768kHz |
Color | Black |
Class | Class D / T |
Networking | No |
Remote Control | No |
