TOPPING G5 Portable Headphone Amplifier NFCA DAC ES9068AS Bluetooth aptX HD LDAC Silver

TOPPING G5 Portable Headphone Amplifier NFCA DAC ES9068AS Bluetooth aptX HD LDAC Silver
Topping presents with the G5 a compact and powerful portable headphone amplifier and DAC. This one integrates a powerful NFCA amplifier stage, a powerful DAC chip ES9068AS and allows a wireless connection via Bluetooth.

Average votes for this product
4.0 / 5

By buying this product you get 29 loyalty points


Reference : 16742
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 30-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Topping G5

Portable Headphone Amplifier NFCA DAC ES9068AS Bluetooth aptX HD LDAC Silver

Topping G5 Amplificateur Casque NFCA DAC ES9068AS Portable Bluetooth aptX HD LDAC Argent

Topping presents with the G5 a compact and powerful portable headphone amplifier and DAC. This one integrates a powerful NFCA amplifier stage, a powerful DAC chip ES9068AS and allows a wireless connection via Bluetooth.

Topping G5 Amplificateur Casque NFCA DAC ES9068AS Portable Bluetooth aptX HD LDAC Argent
Topping G5 Amplificateur Casque NFCA DAC ES9068AS Portable Bluetooth aptX HD LDAC Argent

NFCA Amplifier & Gain setting

The G5 uses an NFCA headphone amplifier module, specifically modified to fit the portable size of the device. This module is capable of developing high power while maintaining low distortion and long battery life.

In addition, the Topping G5 provides a three-step gain control, allowing it to accompany both highly sensitive in-ear monitors and high-impedance headphones.

ES9068AS DAC

The Topping G5 integrates its own digital to analog conversion stage, based on an ESS ES9068AS DAC chip offering excellent performance. It also allows the decoding of high resolution audio streams, up to PCM 32bit 768kHz, DSD512 and DoP256.

Topping G5 Amplificateur Casque NFCA DAC ES9068AS Portable Bluetooth aptX HD LDAC Argent

A consequent autonomy

Perfectly optimized and embodying a 4000mAh battery, the G5 offers an important autonomy, thus allowing a listening throughout the day. This autonomy amounts to no less than 25h via the AUX input or 10h via the USB-C DAC input.

Bluetooth reception

Particularly convenient for freeing up cables between the source and the amplifier, the G5 offers Bluetooth reception capability thanks to its Qualcomm QCC5125 chip, making it possible to pair the G5 with a smartphone or DAP for example. In addition, the chip used supports the high-resolution Bluetooth transmission codecs aptX, aptX HD, aptX Adaptive and LDAC, enabling excellent wireless sound quality to be achieved.

Topping G5 Amplificateur Casque NFCA DAC ES9068AS Portable Bluetooth aptX HD LDAC Argent
1Jack 4.4m headphone output
2Jack 3.5mm headphone output
3Jack 3.5mm line in/out
4ON/OFF and volume button
5USB-C charging port
6Gain selector
7Input selector
8USB-C input

Technical characteristics

Specifications
Product typePortable headphone amplifier and DAC
InputsBluetooth
1x Jack 3.5mm line in
1x USB-C
Outputs1x Jack 4.4mm headphone output
1x Jack 3.5mm headphone output
1x Jack 3.5mm line out
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256
Supported Bluetooth codecsAAC, SBC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC

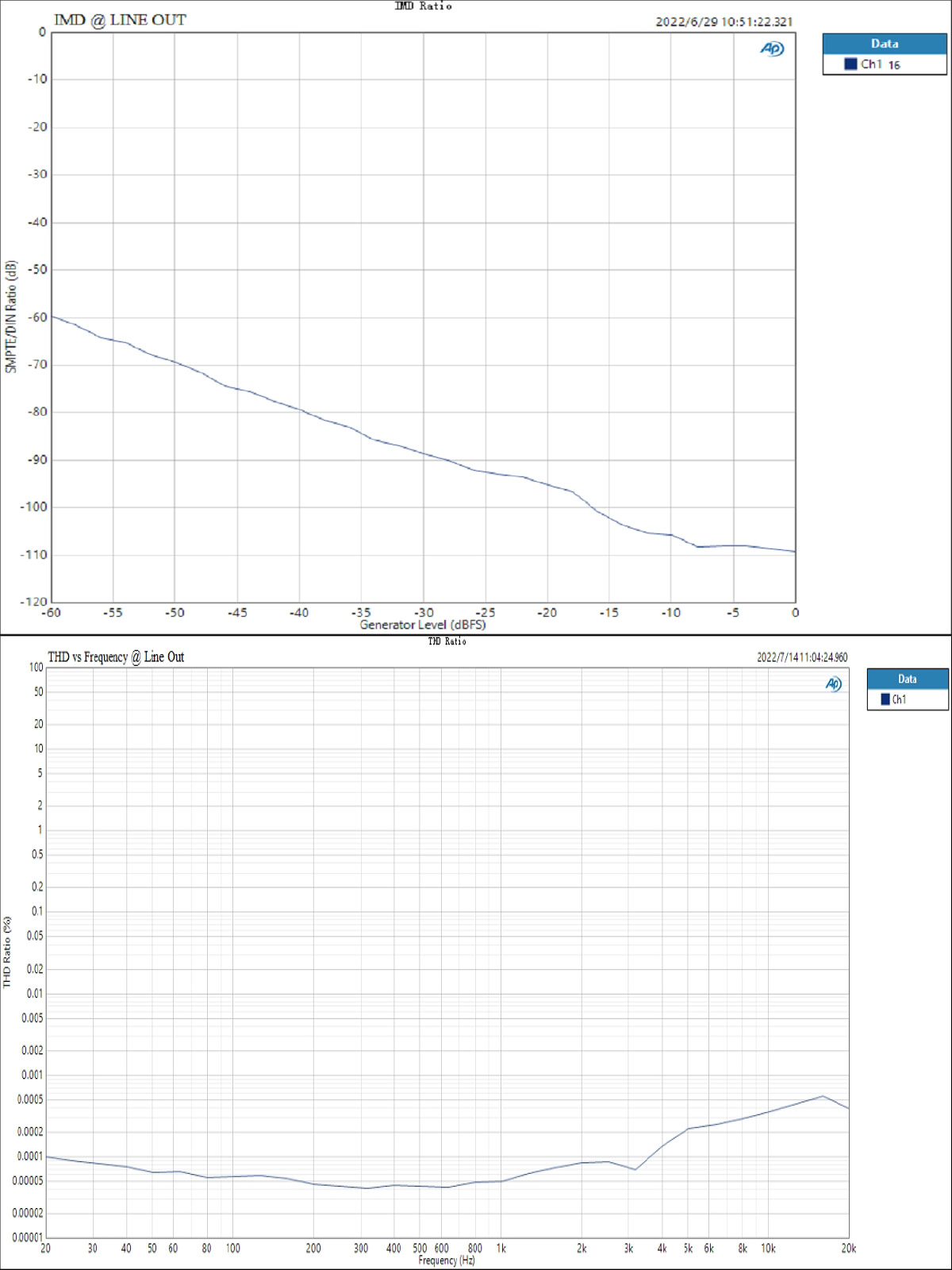

DAC Parameters (Line out/USB In @ 96kHz)
THD+N @ 1kHz (A-Weighting)< 0.00009%
THD @ 20Hz-20kHz 90kBw< 0.0002%
SNR @ 1kHz (A-Weighting)124dB
Dynamic range @ 1kHz (A-Weighting)124dB
Frequency response20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.8dB)
Output level2.1Vrms @ 0dBFS
Noise (A-Weighting)< 0.3µVrms
Crosstalk-104dB @ 1kHz
Channel balance0.3dB
Output impedance50Ω
Headphone amplifier parameters (USB In @ 96kHz)
Jack 3.5mm headphone outputJack 4.4mm headphone output
THD+N @ 1kHz (A-Weighting)< 0.0001% @ 145mW, 32Ω
< 0.00009% @ 15mW, 300Ω
< 0.0001% @ 145mW, 32Ω
< 0.00009% @ 15mW, 300Ω
THD @ 20Hz-20kHz (90kBW)< 0.0008% @ 145mW, 32Ω
< 0.0006% @ 15mW, 300Ω
< 0.0008% @ 145mW, 32Ω
< 0.0006% @ 15mW, 300Ω
SNR @ Max Out, 1kHz (A-Weighting)124dB124dB
Dynamic range @ 1kHz (A-Weighting)124dB124dB
Frequency response20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.4dB)
20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.4dB)
Output level1.1Vpp @ G=L
6Vpp @ G=M
21Vpp @ G=H
1.1Vpp @ G=L
6Vpp @ G=M
21Vpp @ G=H
Noise (A-Weighting)< 1µVrms @ G=L
< 1.5µVrms @ G=M
<5µVrms @ G=H
< 1µVrms @ G=L
< 1.5µVrms @ G=M
<5µVrms @ G=H
Crosstalk-114dB @ 1kHz-114dB @ 1kHz
Gain-8dB(Vrms/FS) G=L
6.4dB(Vrms/FS) G=M
18.2dB(Vrms/FS) G=H
-8dB(Vrms/FS) G=L
6.4dB(Vrms/FS) G=M
18.2dB(Vrms/FS) G=H
Channel balance0.3dB0.3dB
Output impedance< 0.1Ω< 0.1Ω
Output power2x 1000mW @ 16Ω, THD+N < 0.1%
2x 1200mW @ 32Ω, THD+N < 0.1%
2x 720mW @ 64Ω, THD+N < 0.1%
2x 175mW @ 300Ω, THD+N < 0.1%
2x 90mW @ 600Ω, THD+N < 0.1%
Load impedance> 8Ω
General
Dimensions140 x 70 x 18mm
ColorSilver
Package1x Topping G5
1x Jack 3.5mm cable
1x USB-A to USB-C charging cable
1x USB-C cable
1x Angled USB-C cable
Rubber bands
Rubber pad

Data sheet
InputJack 3.5mm
InputUSB
InputBluetooth
OutputJack 3.5mm
OutputJack 4.4mm
DAC / ADC ChipES9068AS
Max sampling rateDSD512
Max sampling rate768kHz
ColorSilver
ClassClass D / T
NetworkingNo
Remote ControlNo
