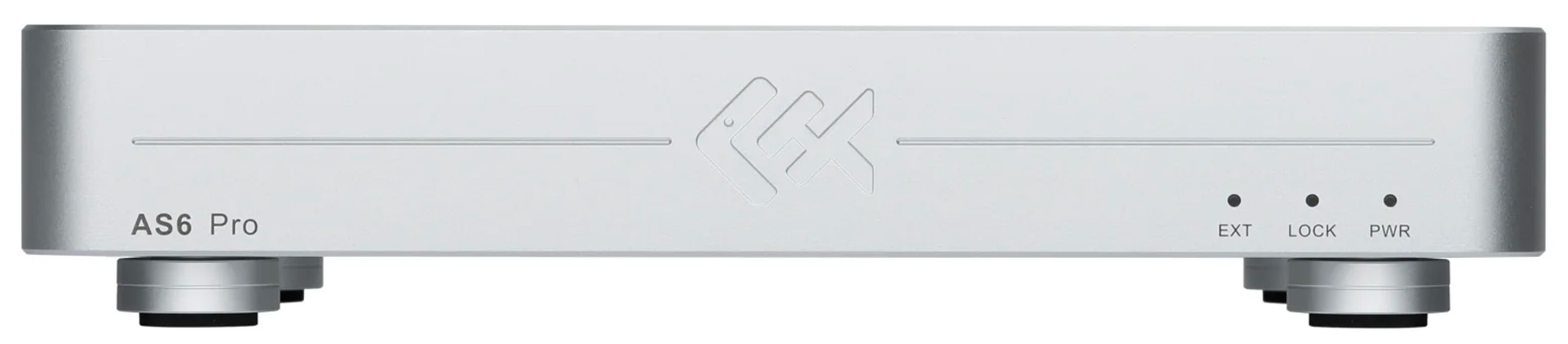

LHY AUDIO AS6 PRO Network Switch

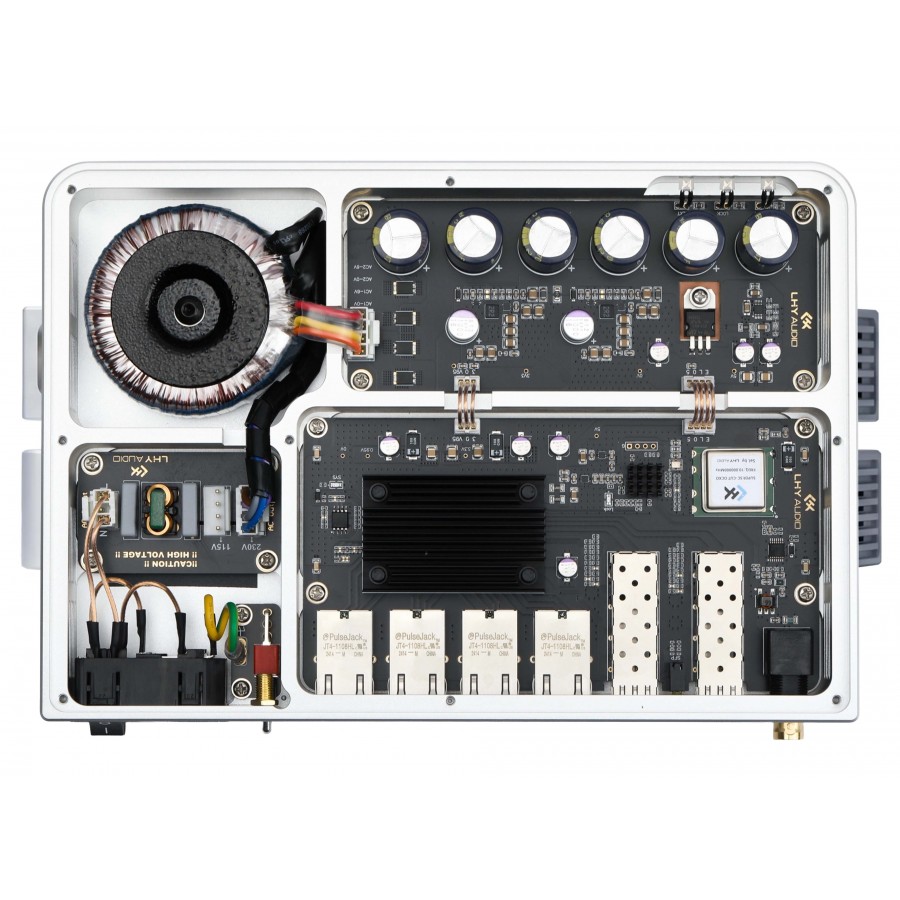

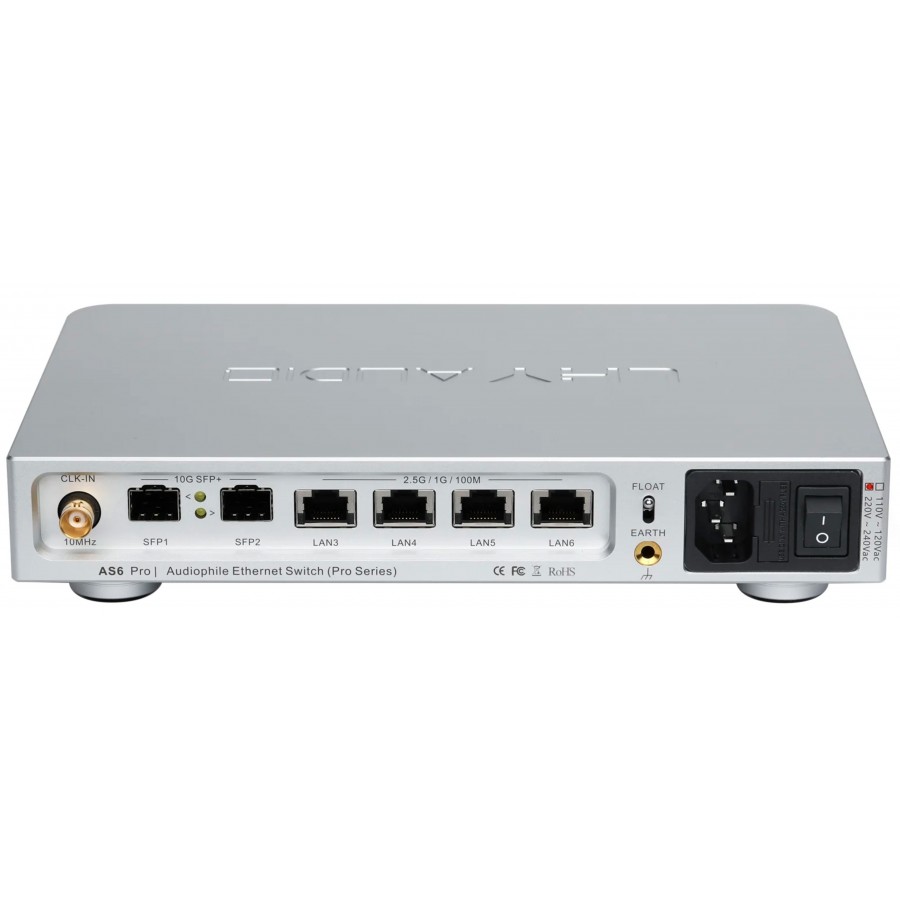

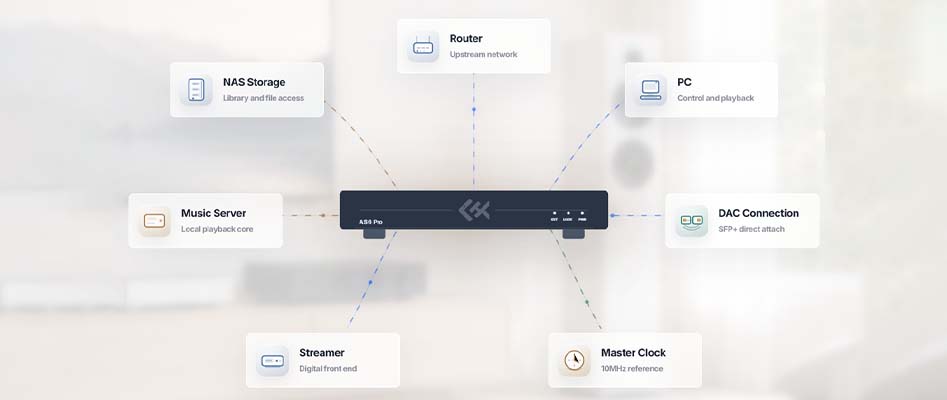

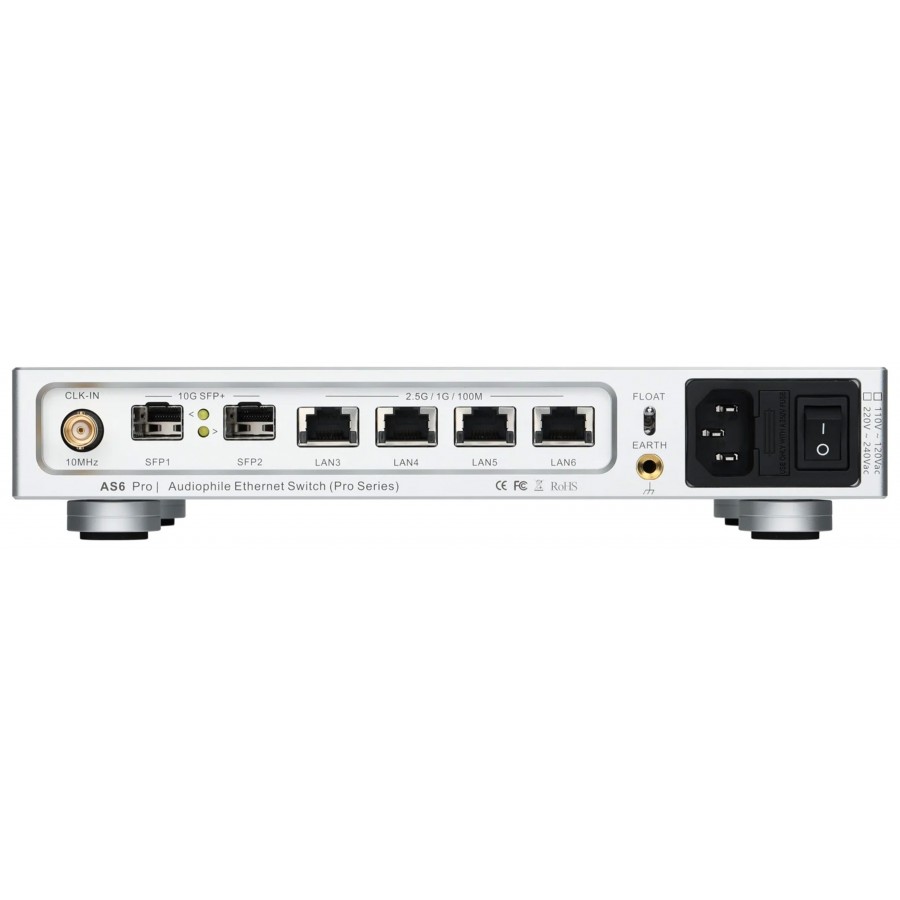

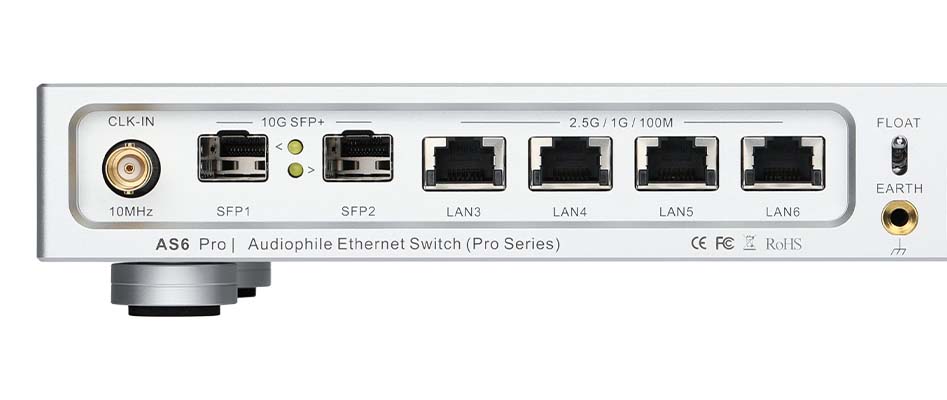

The LHY AUDIO AS6 PRO is an audiophile network switch designed for demanding Hi-Fi systems requiring high bandwidth and advanced isolation between internal circuits. Building on the AS6's OCXO clock architecture while introducing significant improvements, it features four 2.5GbE RJ45 Ethernet ports and two 10GbE SFP+ optical ports, providing high-performance connectivity for music servers, streamers, and modern network infrastructures. Its four-zone internal architecture enhances isolation between the various circuit stages to minimize interference. It also includes a 10MHz external clock input on a 50Ω BNC connector, compatible with both sine wave and square wave signals (7-14dBm / 0.5-1Vrms), as well as a high-precision OCXO oscillator offering a typical phase noise of -100dBc at 1Hz offset, frequency stability of < ±5ppb, and frequency accuracy of < ±0.05ppm. The switch supports IEEE 802.3 / 802.3u / 802.3ab, IEEE 802.3bz / 802.3cb (2.5GbE), IEEE 802.3ae (10GbE), IEEE 802.3az (EEE), IEEE 802.1p (QoS/CoS), as well as IEEE 802.1BA / 802.1AS AVB protocols for synchronized audio/video streams. It supports Jumbo Frames up to 12,288 bytes (12KB) and features an independent grounding terminal with a Float / Grounded selector, allowing the chassis grounding behavior to be adapted to the installation. Its 256 × 175 × 50mm, 3.3kg chassis benefits from an optimized thermal dissipation system. The power supply is available in either 220-240VAC or 110-120VAC versions depending on the factory configuration, with a power consumption of 5W in standby and 16W under full load. Included accessories comprise an SFP module, an RJ45 Ethernet cable, and a power cord.
