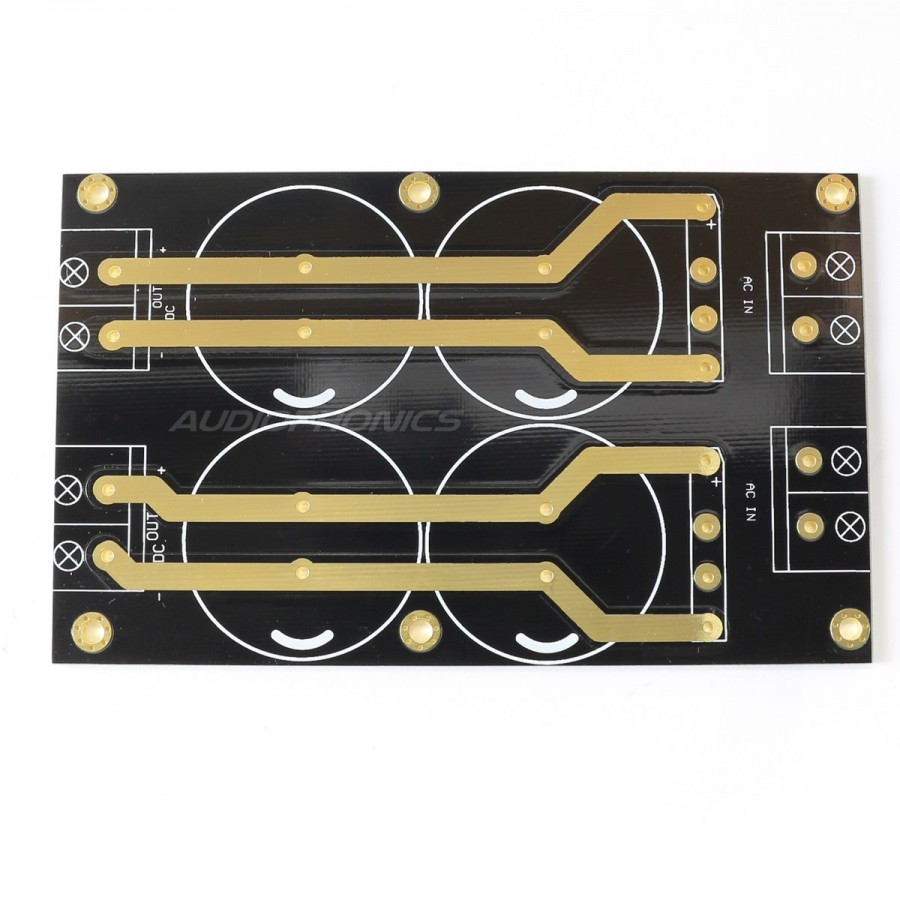

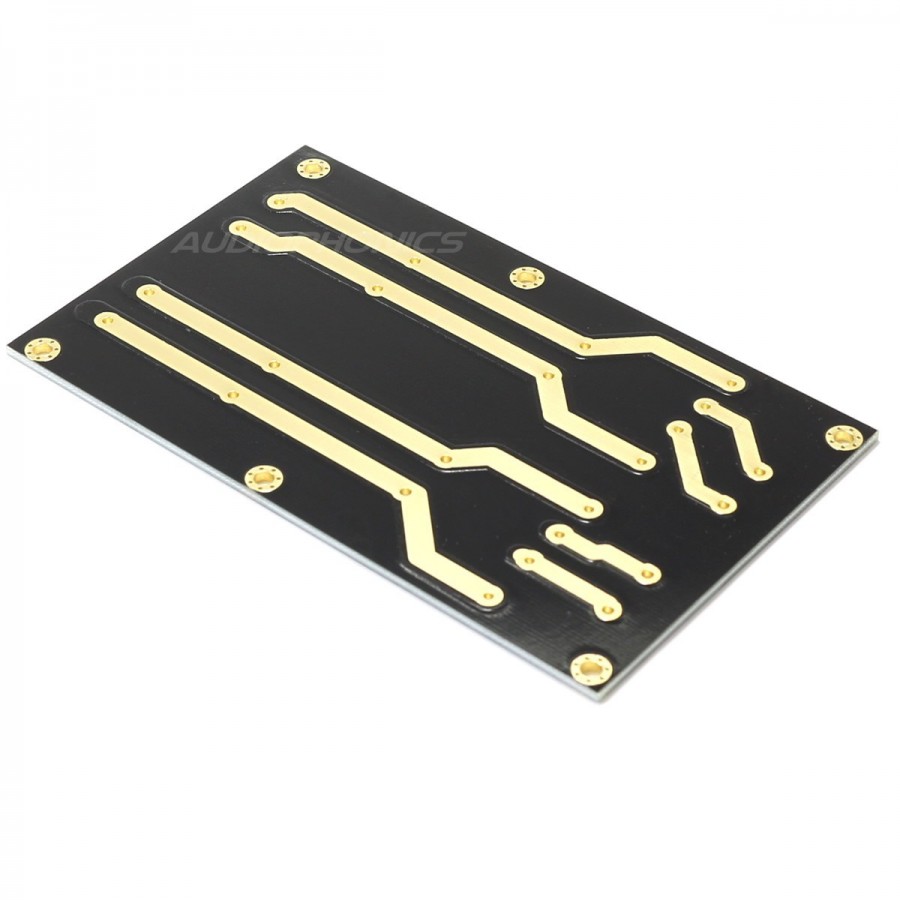

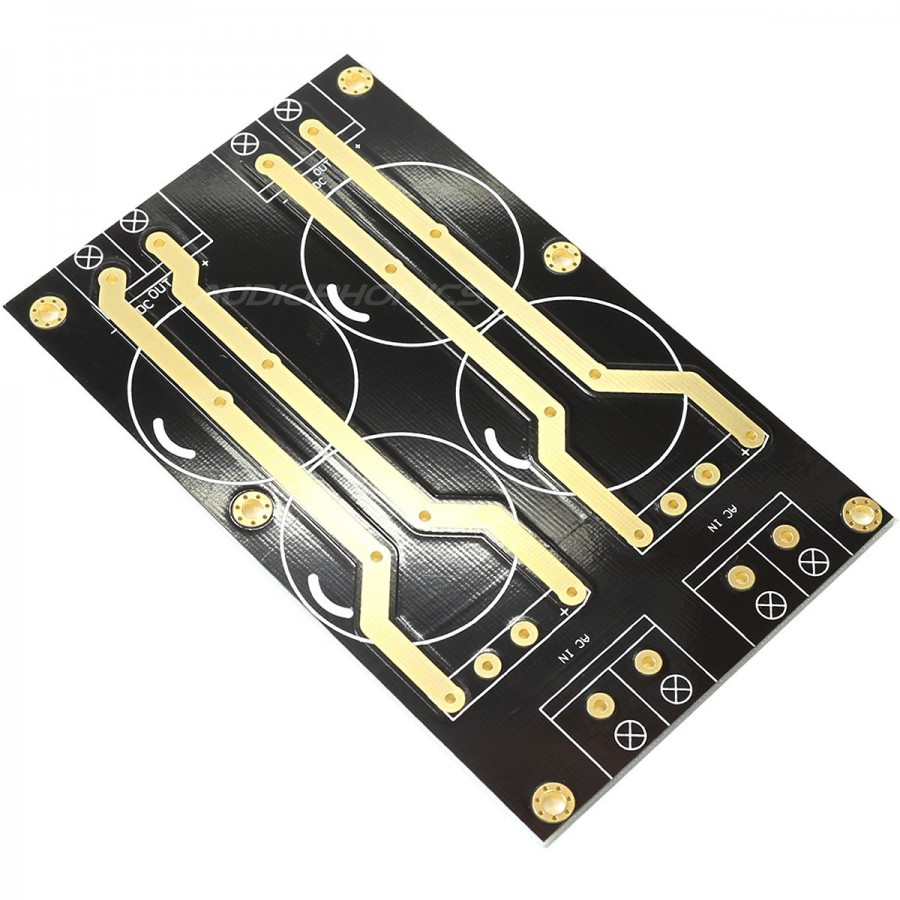

Linear Power Supply circuit board 4 35mm Snap in gold plated

Linear Power Supply circuit board 4 35mm Snap in gold plated
This dedicated linear power supply circuit is ideal for designing stereo DIY amplifiers. It allows you to integrate 4 35 mm Snap-In capacitors of your choice (10 mm pin-capacitor spacing). The package contains the PCB, 2 diode bridges RBV5006 and 4 screw terminals.

Average votes for this product
5.0 / 5

No loyalty points for this product.


Yes, notify me when available !
Reference : 11519
New product

8,90 €tax incl.

7,42 € tax excl.

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

Power Supply Module

Linear, 4 Snap in 35mm slots, Gold plated

Module Circuit d'Alimentationm

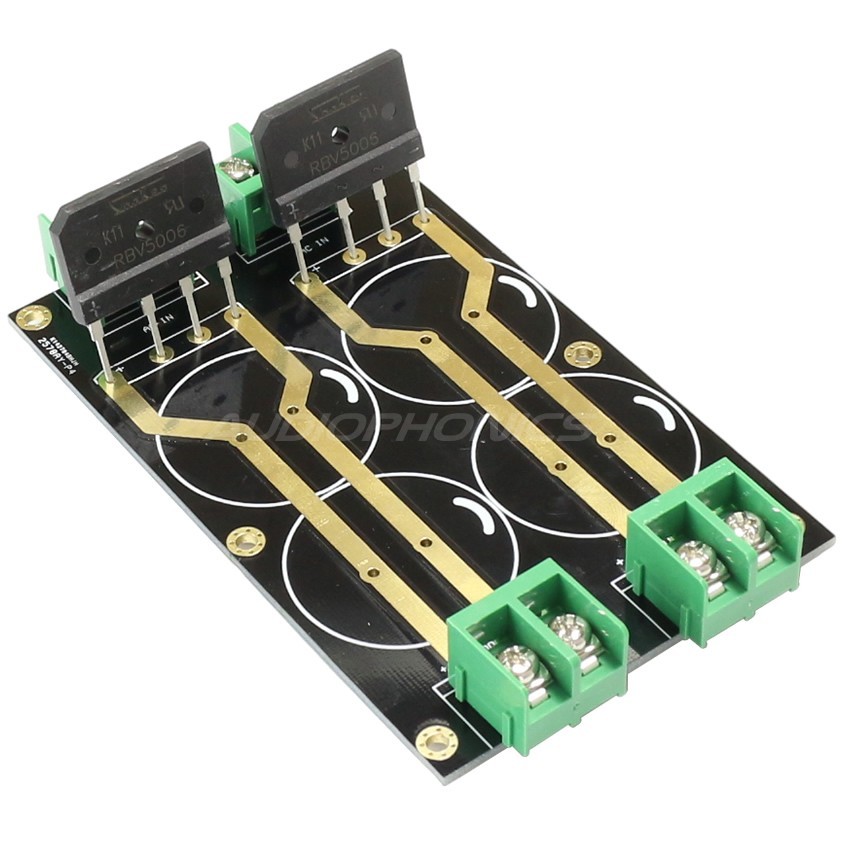

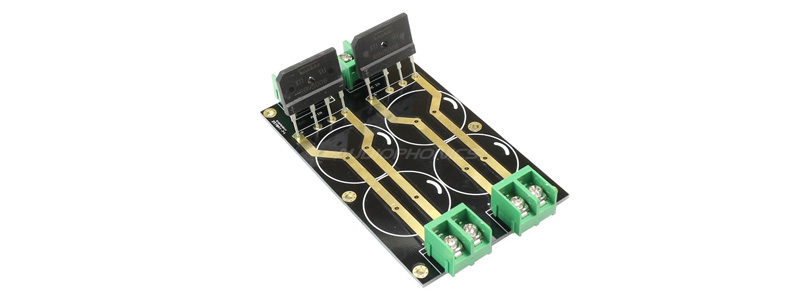

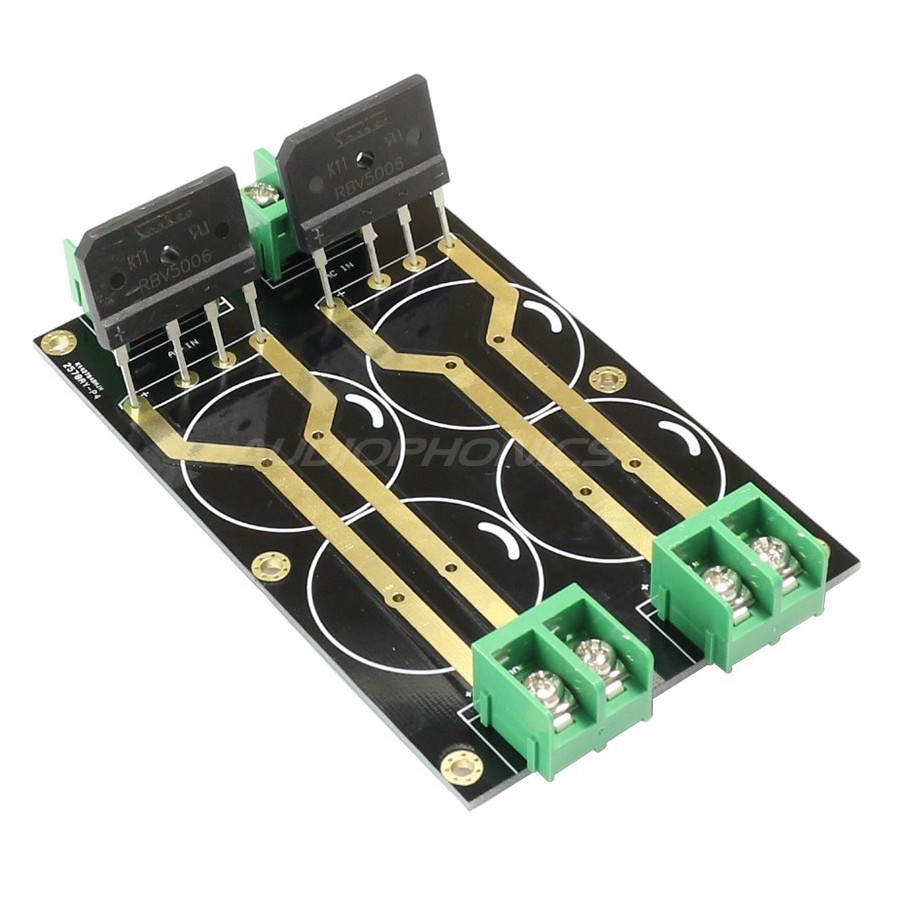

This dedicated linear power supply circuit is ideal for designing stereo DIY amplifiers. It allows you to integrate 4 35 mm Snap-In capacitors of your choice (10 mm pin-capacitor spacing). The package contains the PCB, 2 diode bridges RBV5006 and 4 screw terminals.

It is of course all possible to use other rectifier bridges with SIL box or other terminal blocks.

Technical characteristics

Specifications
Product typePower supply bard
Available slots4x snap-in Ø 35mm capacitor (not included)
2x bridge rectifier
4x screw terminal block

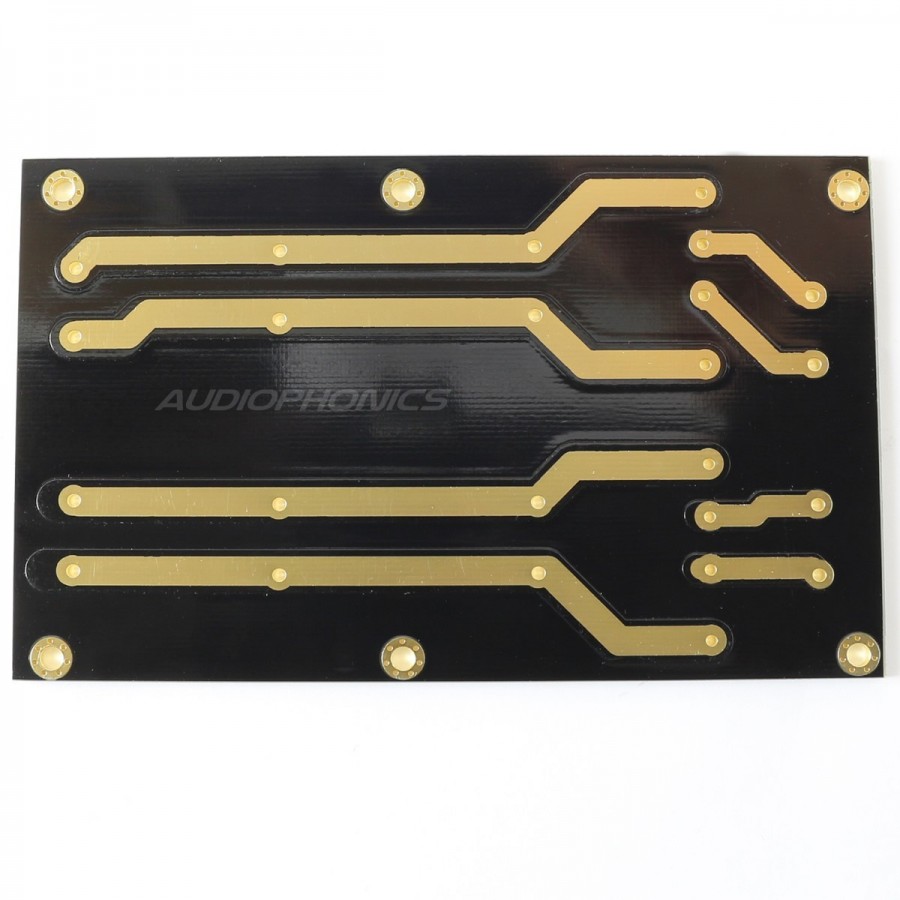

PCB tracksWide tracks, Gold plated
Dimensions124 x 75 x 2.1mm
Fixation holes spacing115 x 67mm
Capacitors pins spacing10mm
Weight40g

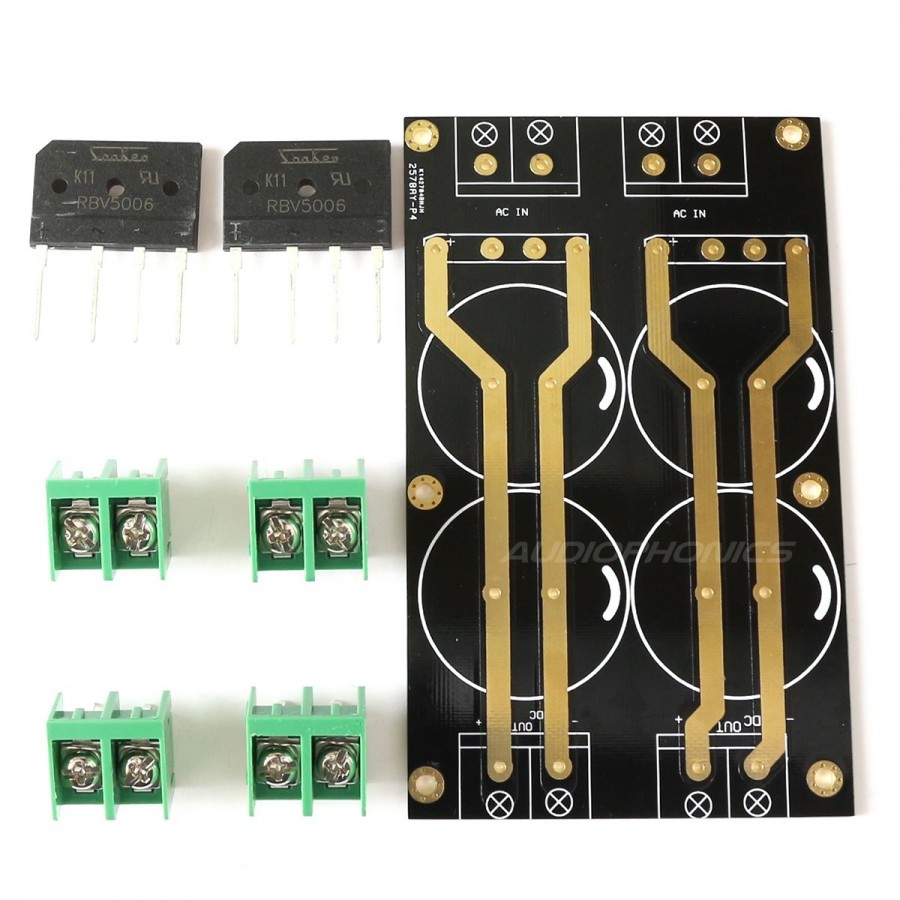

Package1x Power supply PCB
2x Rectifier Diode RBV5006 (SIL type)
4x Screw terminal blocks

Data sheet
InputScrew terminals
OutputScrew terminals
Output voltage (V)NC
Output current (A)NC
Input voltage (V)N/A
Power SupplyLinear
