AUDIOPHONICS NL8802AN Dual OPA DIP8 (Unit)
The Audiophonics NL8802 is a high-quality MUSES dual OPA offering a wide operating voltage range, very low noise and distortion, excellent bandwidth and high slew rate. It is ideal for preamplifier or active filter designs.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 20964
New product
Viewed products
Audiophonics NL8802AN Dual OPA DIP8 (Unit)
The Audiophonics NL8802 is a high-quality MUSES dual OPA offering a wide operating voltage range, very low noise and distortion, excellent bandwidth and high slew rate. It is ideal for preamplifier or active filter designs.

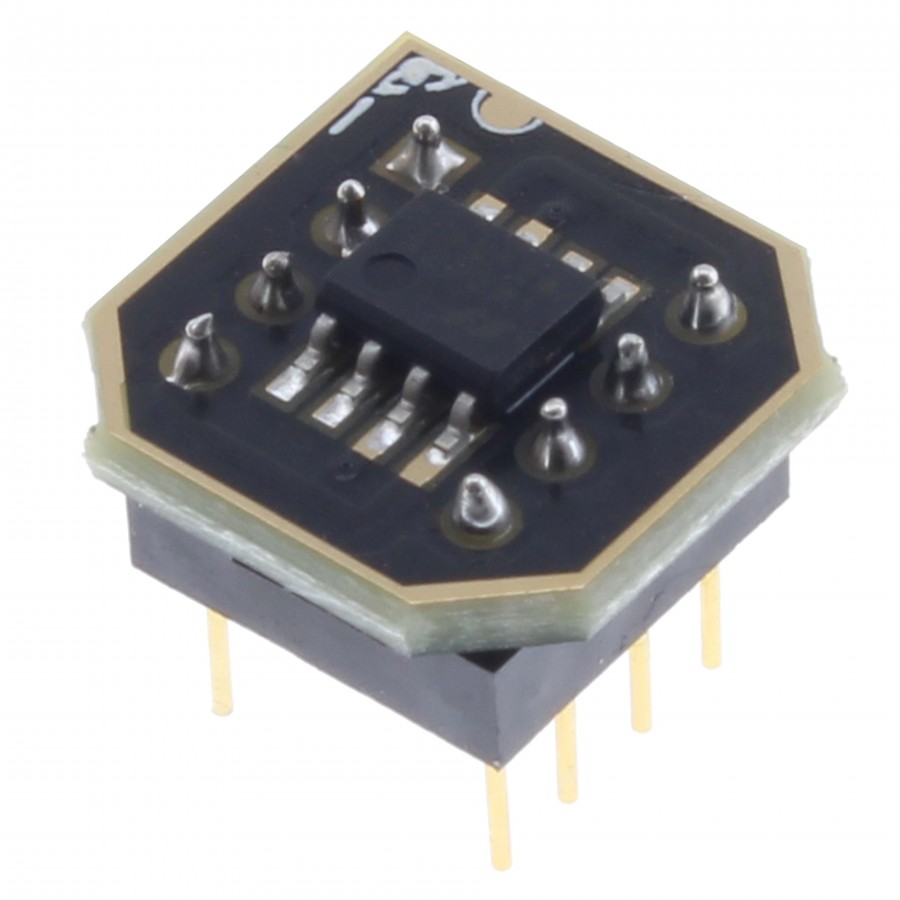

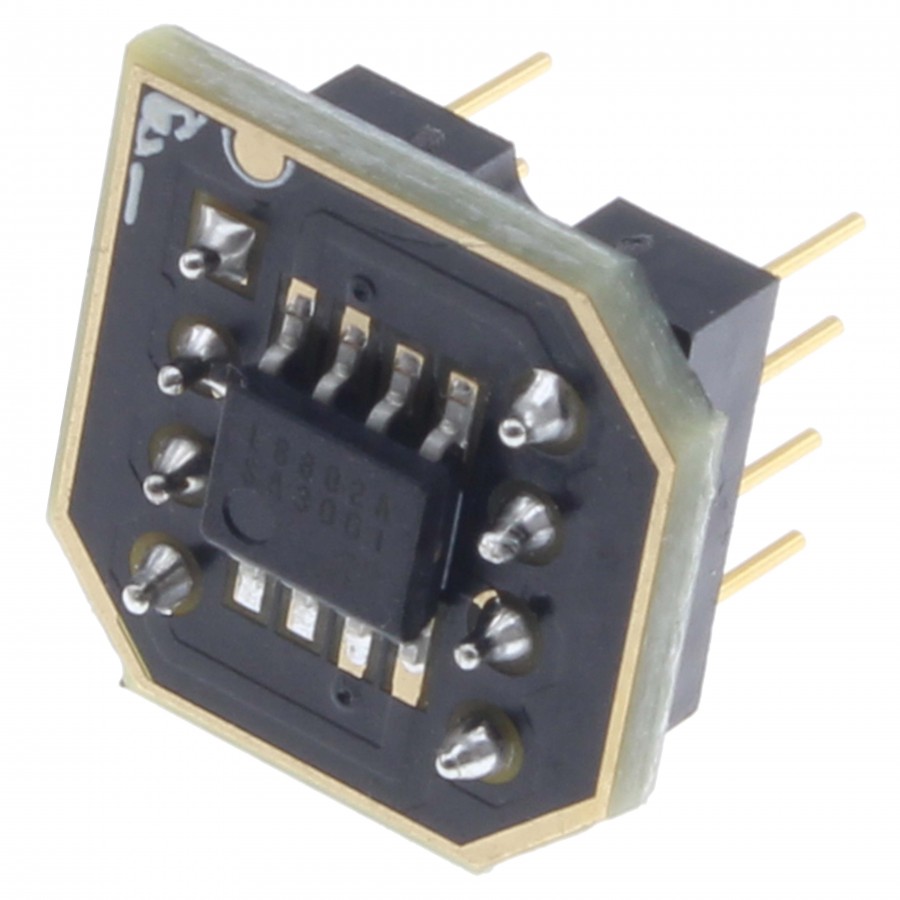

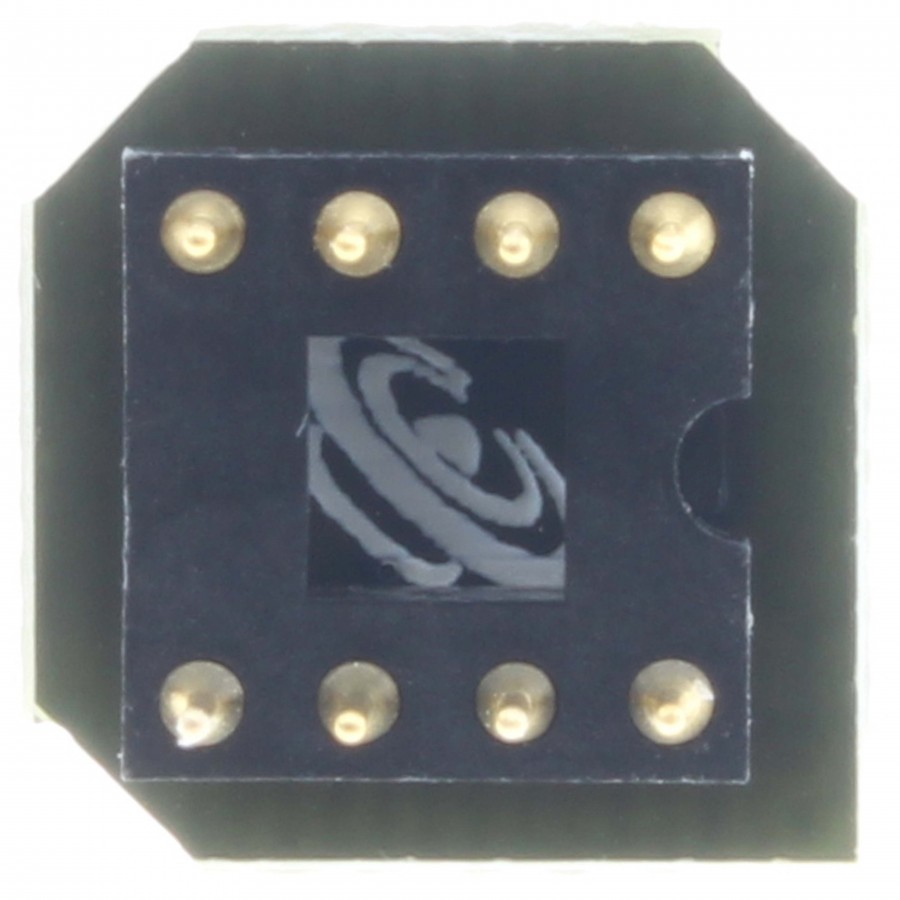

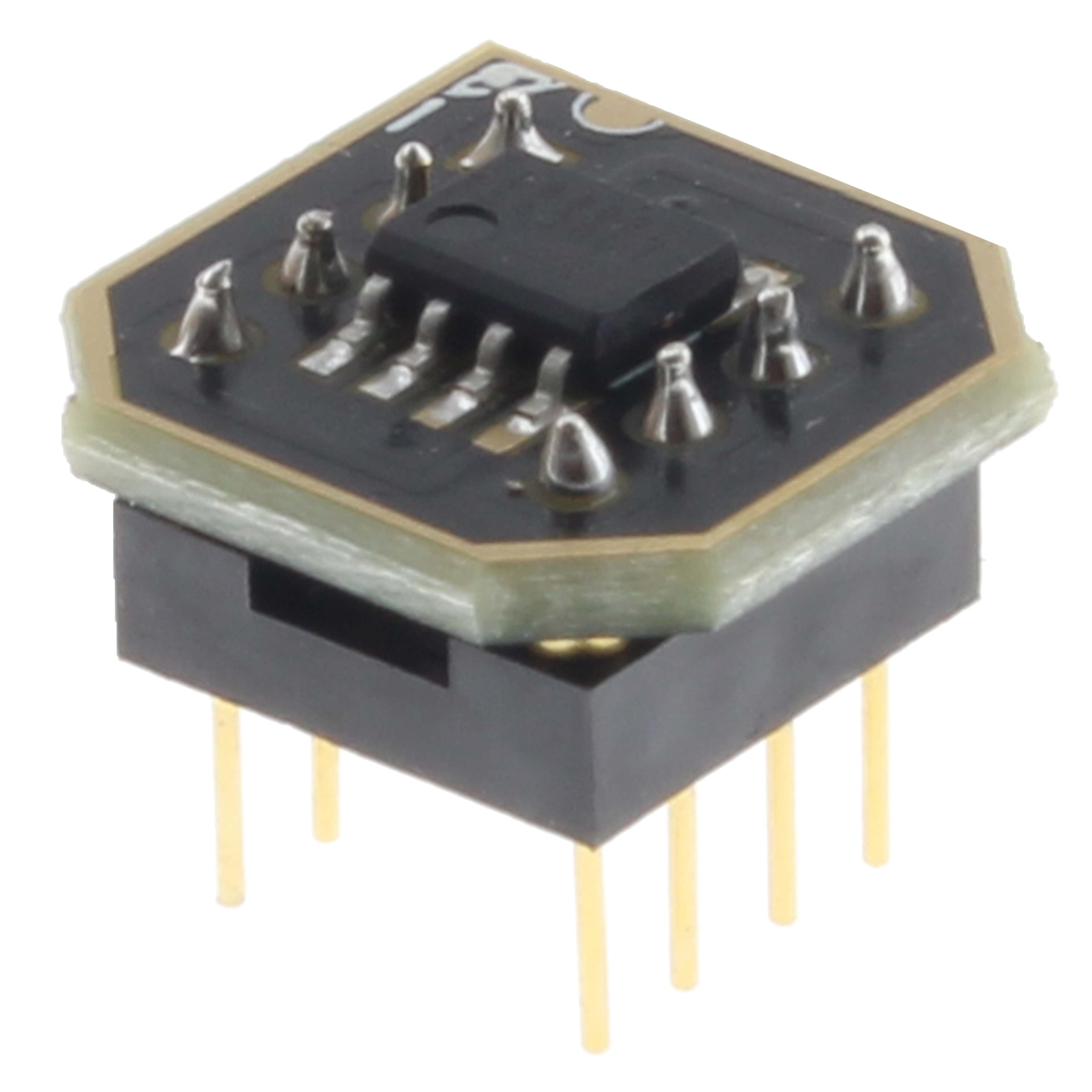

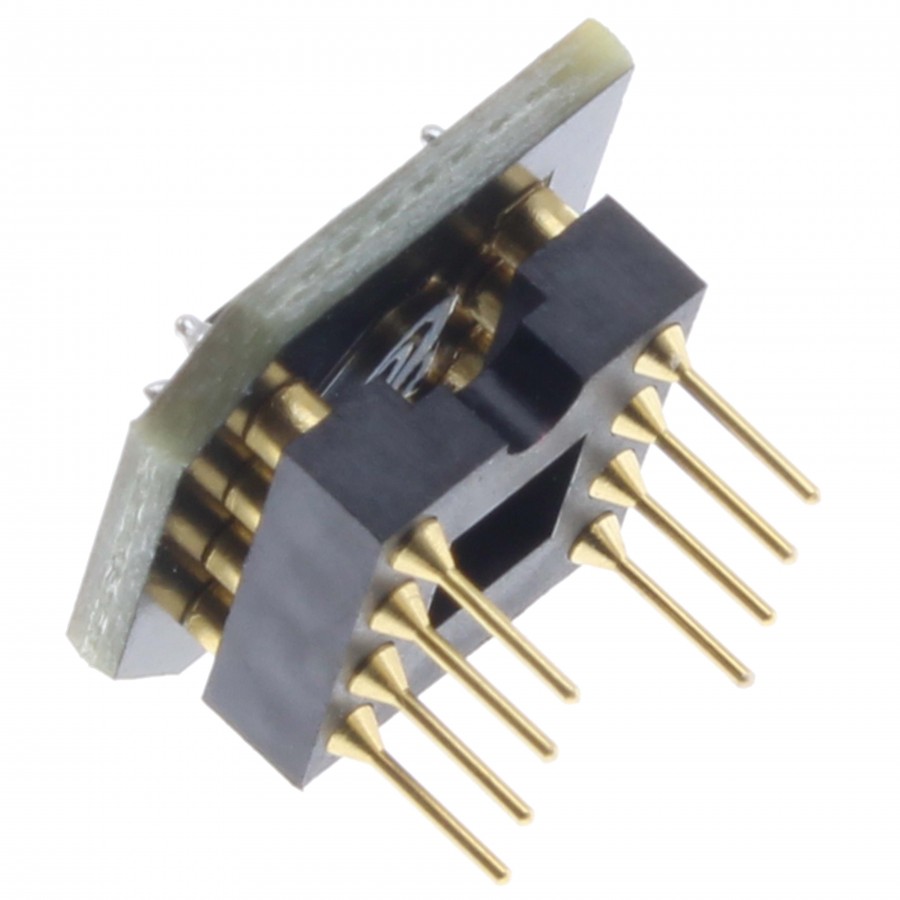

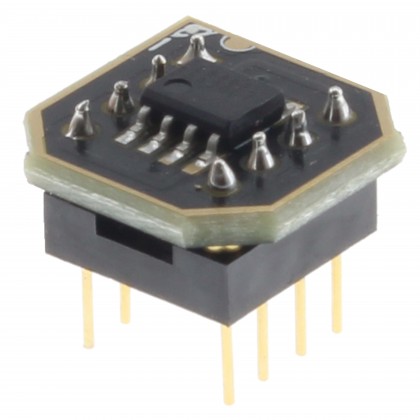

Here, the AOP is hand-welded, in our workshops in France, onto a specially-designed DIP8 bracket, making assembly quick and easy.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Double OPA |
| Format | DIP8 |
| Minimum supply voltage | ±3V |
| Maximum supply voltage | ±22V |
| Input offset voltage | 5mV |
| Input offset current | 300nA |
| Input bias current | 1.8nA |
| Power supply current | 8mA |
| Gain Bandwidth | 45MHz |
| Slew rate | 11V/μs |
| Noise | 5.5nV @ 1kHz |
| Total harmonique distortion (THD) | 0.00005% |
| General | |
|---|---|
| Package | Sold by unit |
