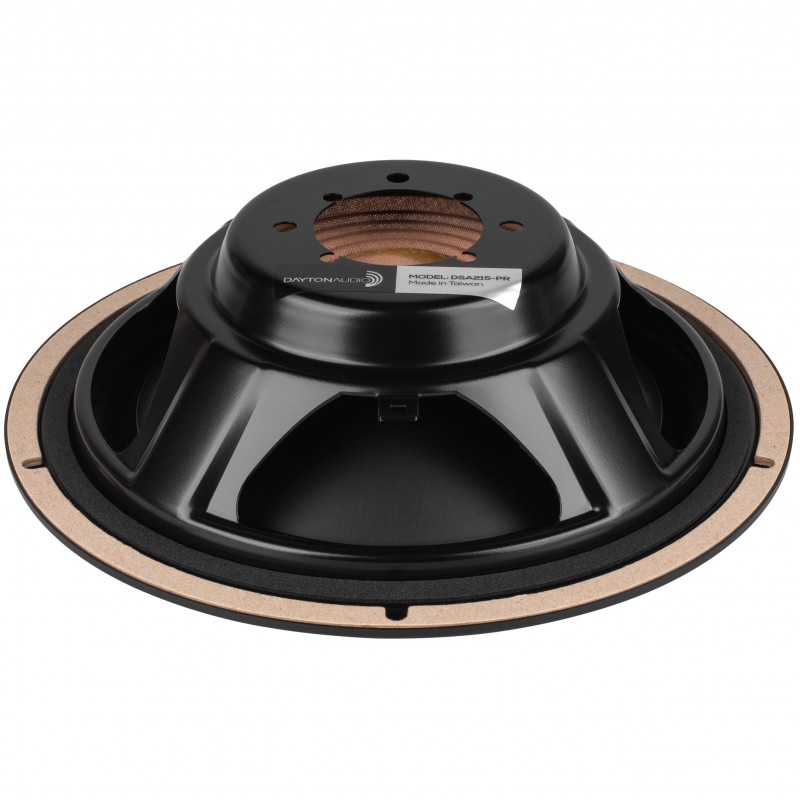

DAYTON AUDIO DSA215-PR Passive Radiator 25.6Hz Ø20cm

DAYTON AUDIO DSA215-PR Passive Radiator 25.6Hz Ø 20cm

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points

Yes, notify me when available !
Reference : 13319
New product

27,42 €tax excl.

Including 0,01 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans
More info

DSA215-PR 8 "

Passive Radiator Aluminum ⌀20cm


A passive radiator aluminum membrane of good quality, designed to fit most of the modernization projects / repair speaker 20cm format.

It has a 11mm tour, allowing to emphasize the low end without distorting the dynamics of sound. It may therefore be integrated easily into evocative and ambitious projects pregnant.

Its design as much as its specifications make it a very suitable radiator with the DESIGNER series in Dayton Audio. This did however not stop to offer excellent performance with other models.

To facilitate integration of the radiator and quickly achieve the best sound, the DSA207-PR comes with M5 screws, which will add weight to the radiator. This configuration lowers the resonant frequency in order to promote the natural balance of bass.

Technical characteristics
Typepassive radiator
Nominal diameter20cm
Resonant Frequency (Fs)25.6 Hzfs
Mechanical Q (Qms)7.66qms
total moving mass air + Load67gmms
Compliance of the suspension0.58 mm / Ncms
emitting surface of the membrane211.2 cm²sd
Volume displaced air232.4 cm³Vd
compliance equivalent volume of air36.7 litersVas
maximum excursion11 mmXmax
mechanical loss1.4 kg / srms
Membrane / diaphragmaluminum Cone
bowl materialSteel
overall external diameter215.9 mm
overall depth58.42 mm
drilling diameter178.05 mm
Number of mounting holes5
belt diameter205.99 mm
Data sheet
Speaker TypePassive Radiator
Impedance (Ω)NC
Loudspeaker diameter (mm)200.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)N/A
Max Linear Excursion (Xmax) (mm)11.0
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A
