IFI AUDIO HIP DAC 3 Portable DAC Headphone Amplifier

IFI AUDIO HIP DAC 3 Portable Balanced DAC Headphone Amplifier Burr Brown XMOS 32bit 384kHz DSD256 MQA New
iFi Audio's Hip DAC returns in an improved version, the Hip DAC 3. A practical and efficient DAC and headphone amplifier combo, this new version offers improved design and sound performance. The Hip DAC 3 is equipped with a Burr Brown DAC chip, a 16-core XMOS USB interface and an amplifier stage capable of developing comfortable power.

No customer reviews yet, login to write a review.

By buying this product you get 19 loyalty points


Yes, notify me when available !
Reference : 19214
New product

199,00 €tax incl.

165,83 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

iFi Audio Hip DAC 3 DAC Portable Balanced DAC Headphone Amplifier Burr Brown XMOS 32bit 384kHz DSD256 MQA

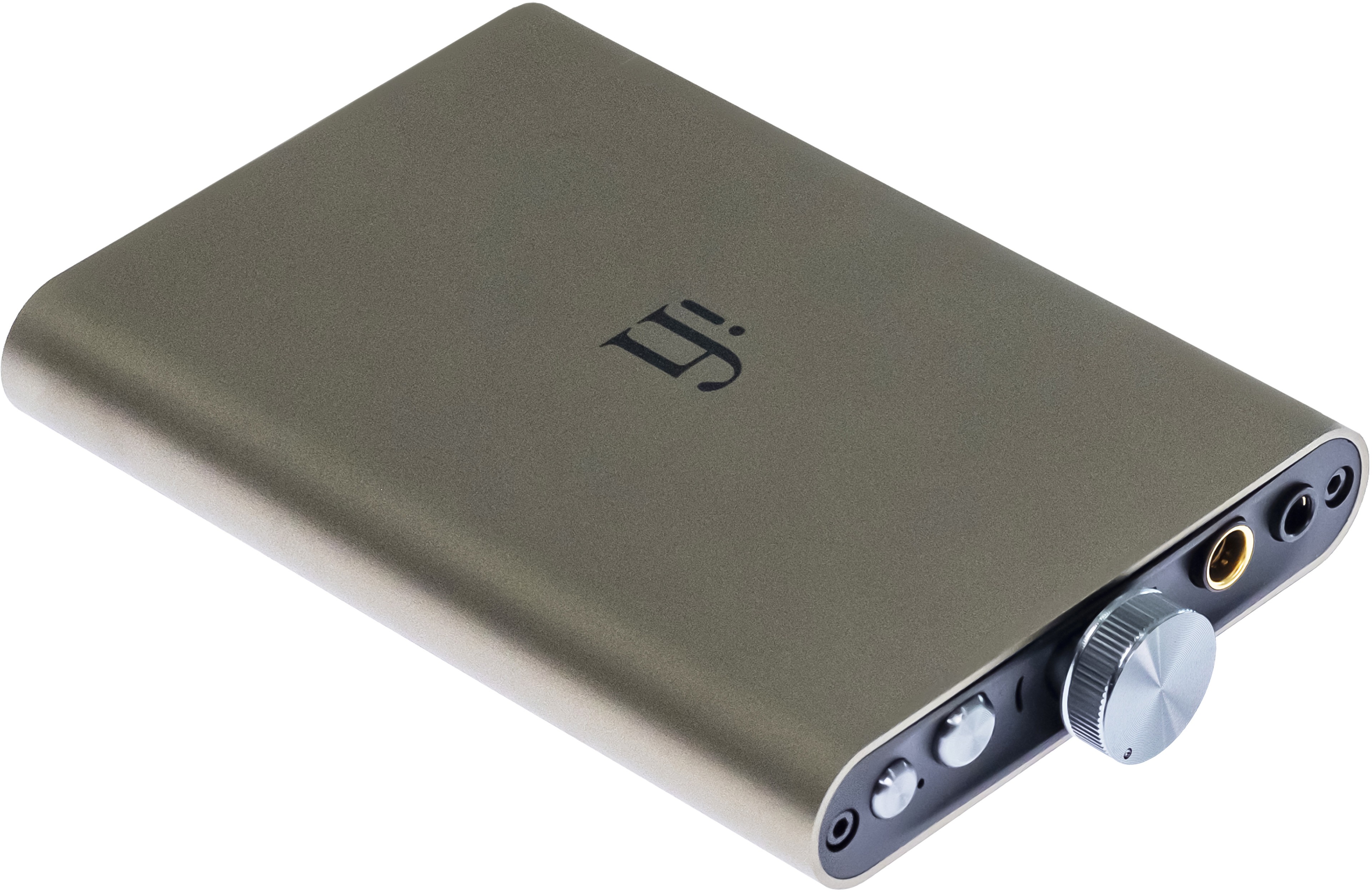

iFi Audio Hip DAC 3: 3/4 view

iFi Audio's Hip DAC returns in an improved version, the Hip DAC 3. A practical and efficient DAC and headphone amplifier combo, this new version offers improved design and sound performance. The Hip DAC 3 is equipped with a Burr Brown DAC chip, a 16-core XMOS USB interface and an amplifier stage capable of developing comfortable power.

Two USB-C ports now simplify cable management: one for audio signal transmission, the other for charging. In addition, a switch on the underside activates the brand's iEMatch technology, optimizing use with high-sensitivity headphones and earphones.

On the component side, the circuit features new metal-film capacitors for improved frequency response, as well as an updated version of the GMT circuit, coupled with a new crystal oscillator, further reducing phase noise for pure sound.

iFi Audio Hip DAC 3: Top view

iFi Audio Hip DAC 3: Compact & Elegant

With its sturdy, elegant and compact aluminum case, the Hip DAC 3 slips discreetly into a pocket or bag. It replaces the DAC and amplifier of smartphones, tablets and computers. Simply connect it via USB-C, plug in your favorite headphones and enjoy rich, dynamic sound.

Burr Brown and XMOS logos

iFi Audio Hip DAC V3: Burr Brown DAC and XMOS USB interface

The Hip DAC 3 integrates a digital/analog conversion stage equipped with a Burr Brown chip, for which iFi Audio now benefits from extensive expertise to ensure optimum performance. This is accompanied by a 16-core XMOS USB interface, programmed by iFi Audio to optimize sound quality.

iFi Audio Hip DAC 3: Optimized circuitry, powerful headphone amp

The Hip DAC 3 features a fully balanced circuit that minimizes signal distortion for purer sound. It incorporates high-end components such as an iFi OV custom OPA, a Texas Instruments low-noise power supply IC and a high-quality analog volume potentiometer.

The Hip DAC 3's amplifier stage is capable of delivering 400mW of power at 32Ω (balanced output), making it compatible with a wide range of headphones. What's more, it efficiently powers high-impedance headphones with an output voltage of 6.3V at 600Ω (balanced output).

iFi Audio Hip DAC 3: Use with a smartphone

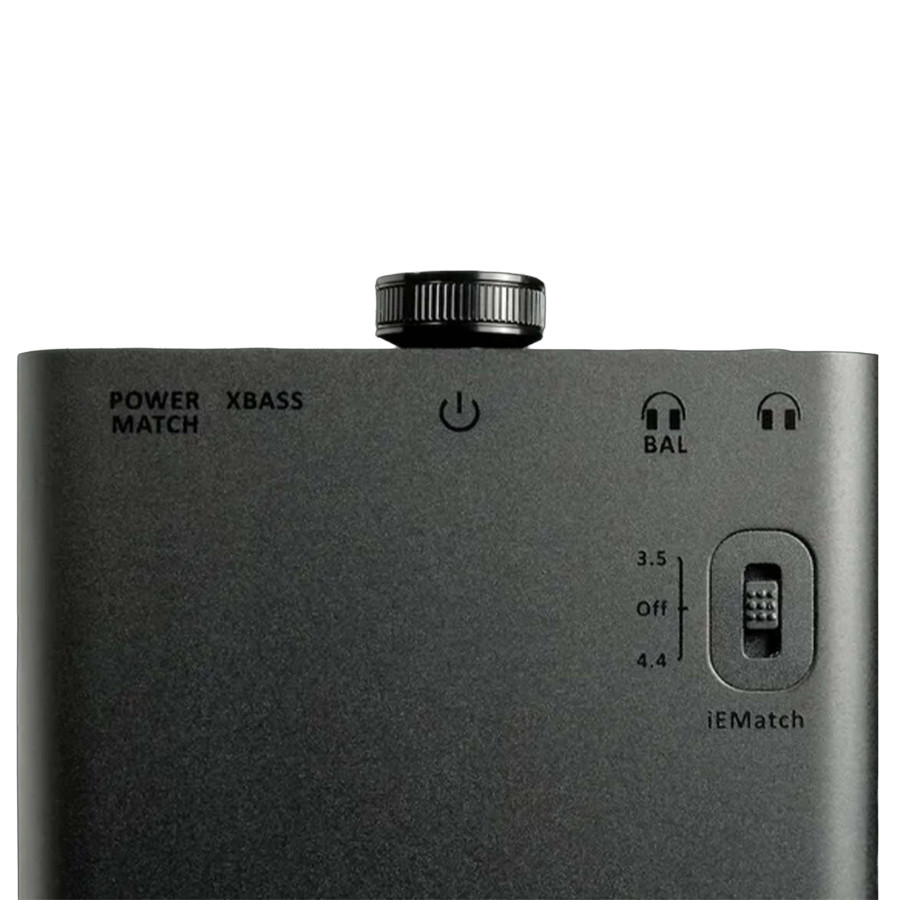

iFi Audio Hip DAC 3: Bottom view

iFi Audio Hip DAC V3: Particularly efficient technologies

The amplification stage is equipped with a switchable gain, called PowerMatch, to ensure optimum power regardless of the headphones used.

A switch on the underside of the unit activates iEMatch technology, optimizing output for high-sensitivity headphones and earphones. This reduces hiss, improves detail and dynamic range, and also extends the volume control range.

The XBass function, which can be activated or deactivated, enhances bass without altering the midrange, particularly useful for use with open earphones or headphones. It works in analog mode, avoiding DSP alterations.

MQA logo

iFi Audio Hip DAC V3 : High resolution files & MQA

The Hip DAC 3 supports PCM and DXD audio streams up to 32bit 384kHz, as well as DSD up to DSD256. Full MQA decoding is also supported, enabling you to take advantage of this type of file, aimed at providing sound reproduction as close as possible to studio recording. On either side of the volume knob, a pair of LEDs change color according to the file format currently being played.

iFi Audio Hip DAC V3: Perfect versatility

The asynchronous design of the USB interface guarantees jitter-free data transfer. A separate USB-C charging port enables use while charging, preserving a path for the pure audio signal.

The iFi Audio Hip DAC3 provides two outputs, in unbalanced 3.5mm jack and balanced 4.4mm jack formats. The 3.5mm jack output uses the brand's S-Balanced circuitry, minimizing crosstalk and distortion.

The Hip DAC 3's 2200mAh battery provides up to 12h of autonomy, depending on volume and headphone power requirements. A USB-C OTG and USB-A to USB cable are included.

iFi Audio Hip DAC 3: Connection diagram for headphones
iFi Audio Hip DAC 3: Button and connector diagram
1Audio USB-C input
2USB-C 5V charging port
3PowerMatch switch
4XBass switch
5Volume / ON-OFF button
6Balanced Jack 4.4mm headphone output
7Single-ended Jack 3.5mm headphone output

Technical characteristics

Specifications
Product typePortable DAC and headphone amplifier
Input1x USB-C
Outputs1x Balanced Jack 4.4mm headphone output
1x Single-ended Jack 3.5mm headphone output
DAC chipBurr Brown
USB interfaceXMOS
Supported sampling ratesPCM up to 32bit 384kHz
DSD up to DSD256
MQA
Output powerBalanced output: 400mW @ 32Ω / 6.3V @ 600Ω
Single-ended output: 280mW @ 32Ω / 3.2V @ 600Ω
Output impedance≤ 1Ω
≤ 4.5Ω with iEMatch enabled
Signal/Noise ratio (SNR)Balanced output: < 109dB(A) @ 0dBFS
Single-ended output: < 103dB(A) @ 0dBFS
Dynamic range (DNR)Balanced output: < 109dB(A)
Single-ended output: < 103dB(A)
THD+NBalanced output: < 0.006% (360mW / 2.0V @ 600Ω)
Single-ended output: < 0.01% (100mW / 1.27V @ 16Ω)
Frequency response20Hz - 45kHz (-3dB)
BatteryLiPo 2200mAh
Battery lifetime~ 8h
General
Consumption< 2W idle
4W max
Power systemCharge via USB-C, BC V1.2 support up to 1000mA
Dimensions102 x 70 x 14mm
Weight135g
Package1x iFi Audio Hip DAC V3
1x USB-C cable
1x USB-C to USB-A cable

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipBurr Brown
Max sampling rate384kHz
Max sampling rateMQA
Max sampling rateDSD256
ColorBrown
NetworkingNo
Remote ControlNo
