SHANLING UA1 DAC USB-C ES9218P 384Khz DSD256

SHANLING UA1 DAC USB-C ES9218P 384Khz DSD256 New

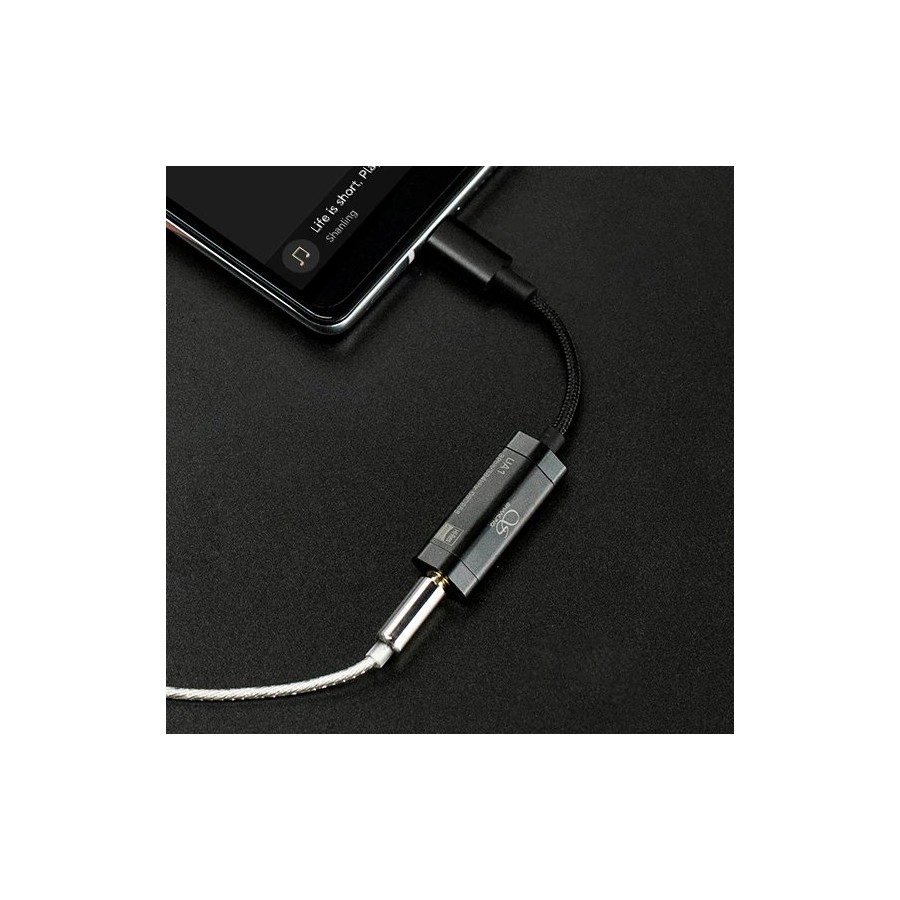

Whether you are using a latest generation smartphone that lacks an analog audio output (compatible directly with your headphones / headphones) or you simply want to improve the very average audio output of a standard consumer phone, the Shanling UA1 is a transportable and affordable solution for playing your high resolution audio files anywhere without carrying  more than necessary.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 14870
New product

41,58 €tax excl.

Including 0,04 € for green tax

- +

Available on order

Produit garantie 2 ans

More info

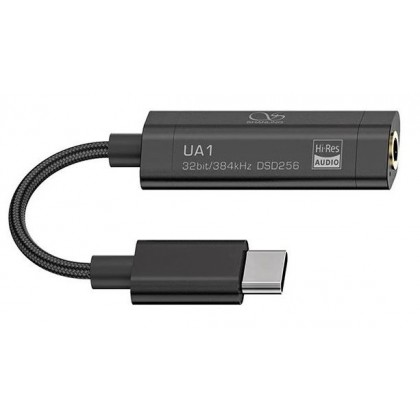

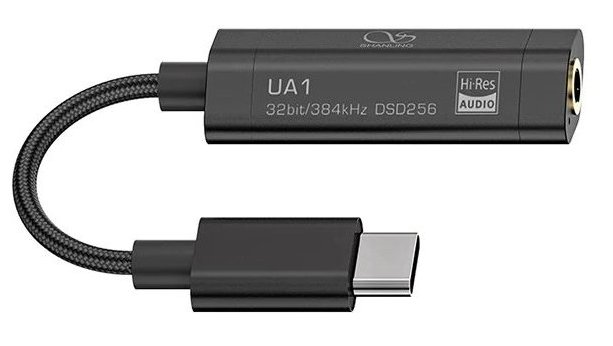

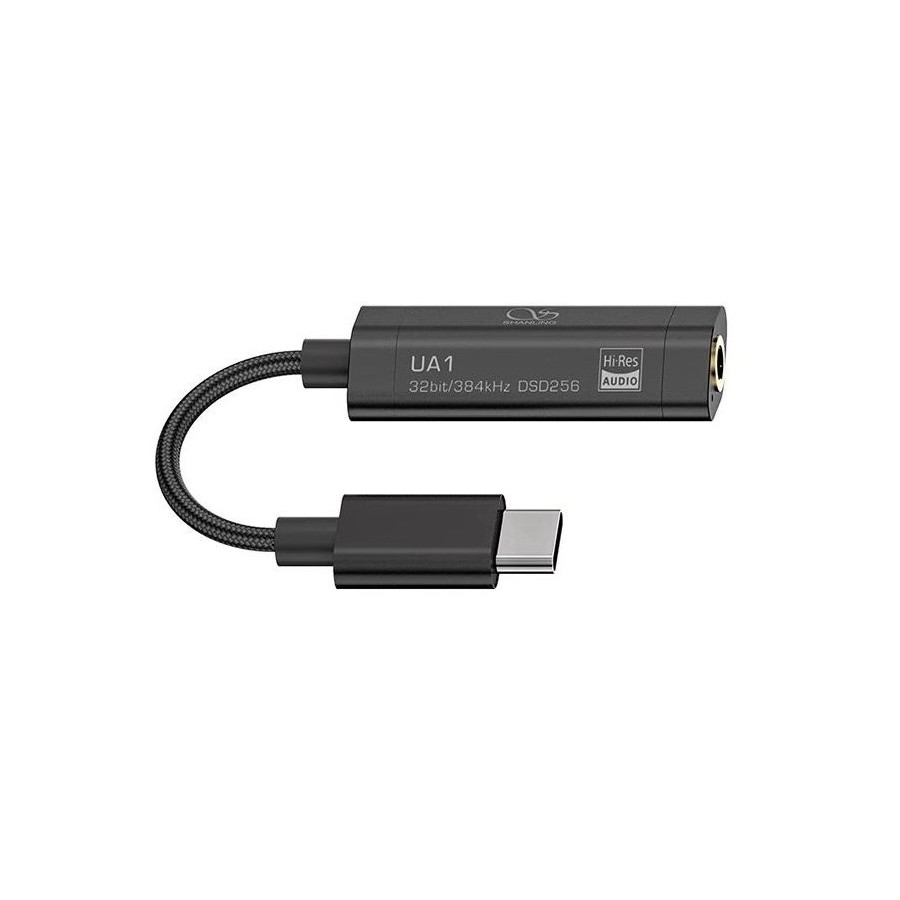

Shanling UA 1

Portable DAC USB-C ES9218P 384kHz DSD256




Whether you are using a latest generation smartphone that lacks an analog audio output (compatible directly with your headphones / headphones) or you simply want to improve the very average audio output of a standard consumer phone, the Shanling UA1 is a transportable and affordable solution for playing your high resolution audio files anywhere without carrying  more than necessary.

DAC ES9218P

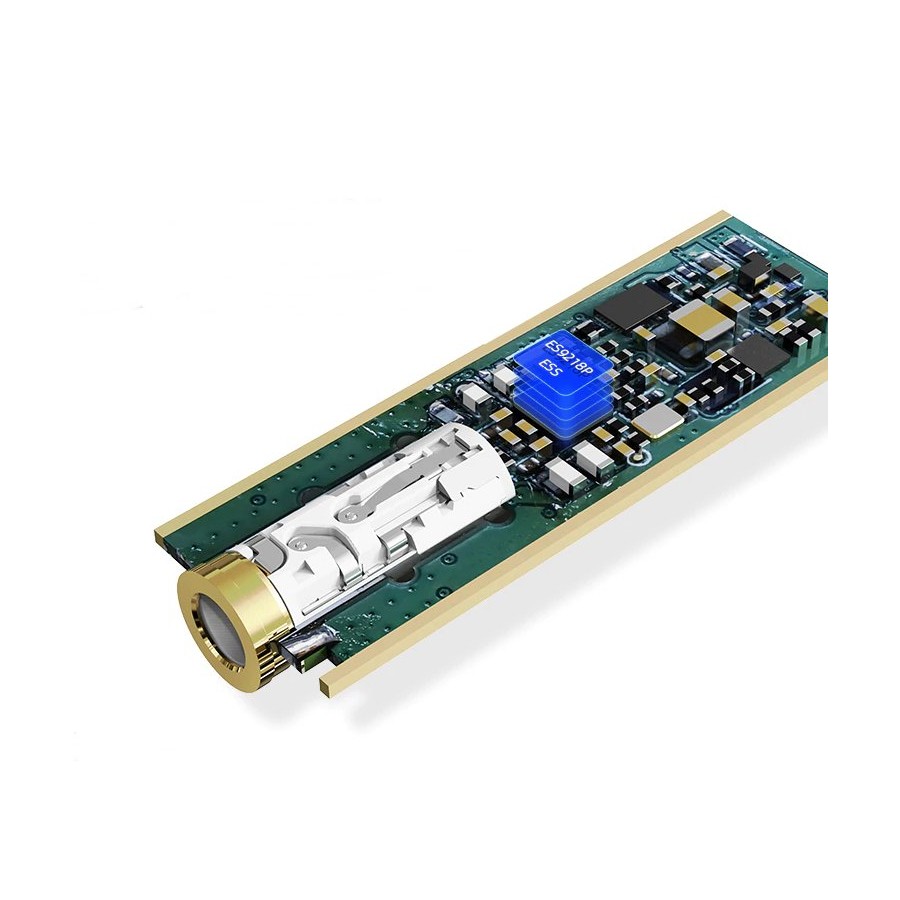

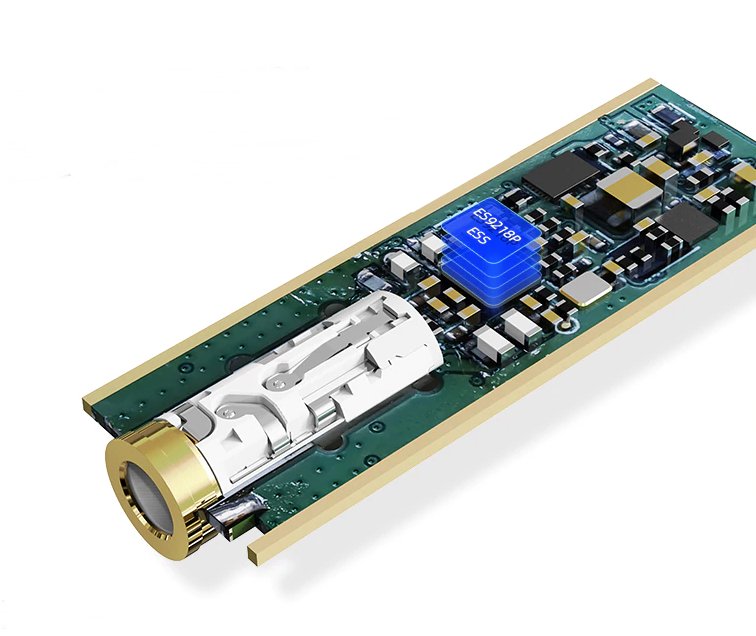

Although very compact, the Shanling UA 1 embeds a nice circuit built around an ESS ES9218P chip, a reference component for High Fidelity applications incorporating both digital to analog conversion capabilities as well as headphone amplification capabilities.

On the DAC side, the UA1 is capable of playing high resolution audio files up to 384kHz / 32bit and even DSD files up to DSD256. The output stage is for its part capable of developing up to 80mW of power at 32 Ohm with a minimal noise level, which represents an incomparable performance gain in comparison with the traditional audio outputs of general public portable multimedia devices.

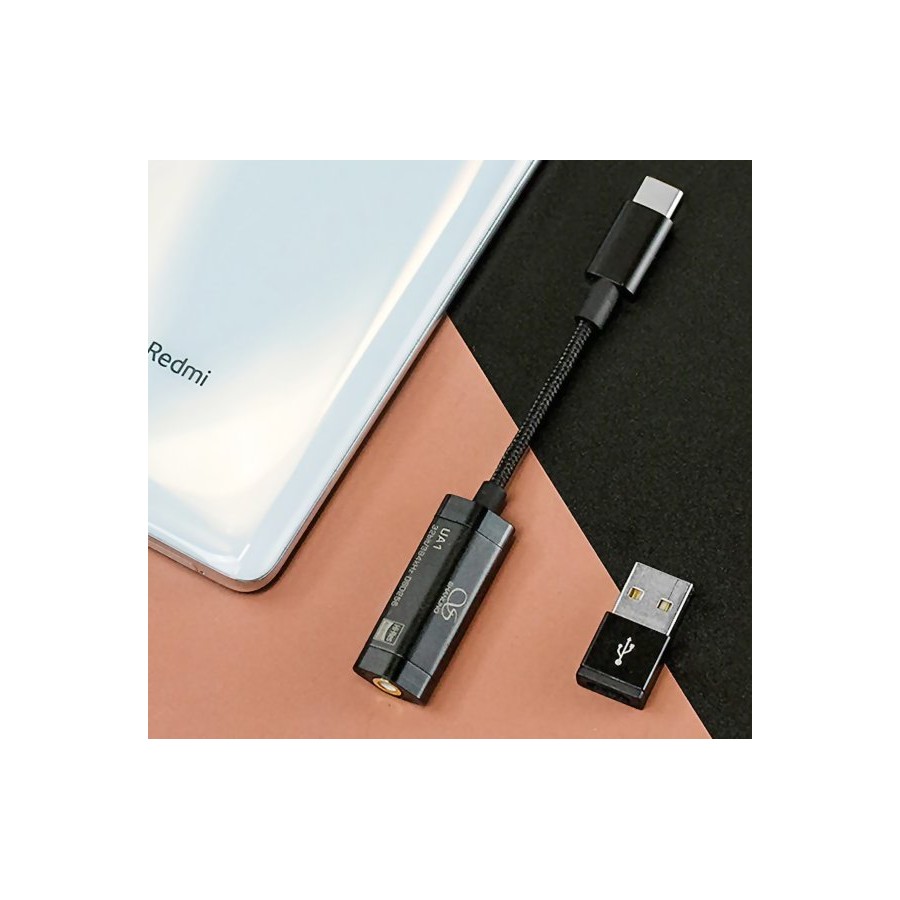

USB-A adapter


The UA1 portable headphone converter and headphone amplifier from Shanling comes with a USB-C female to USB-A male adapter. The latter will be particularly useful for using  all the qualities and audio capabilities of the UA 1 with a laptop or even a PC tower without a satisfactory sound card (relying only on the limited audio capabilities of the motherboard).

Completely optimized for mobile use, the circuit is designed to maximize the power available for the amplified output while limiting the load on the battery of the source device. This is a suitable solution for extended listening sessions, even on devices with limited battery.

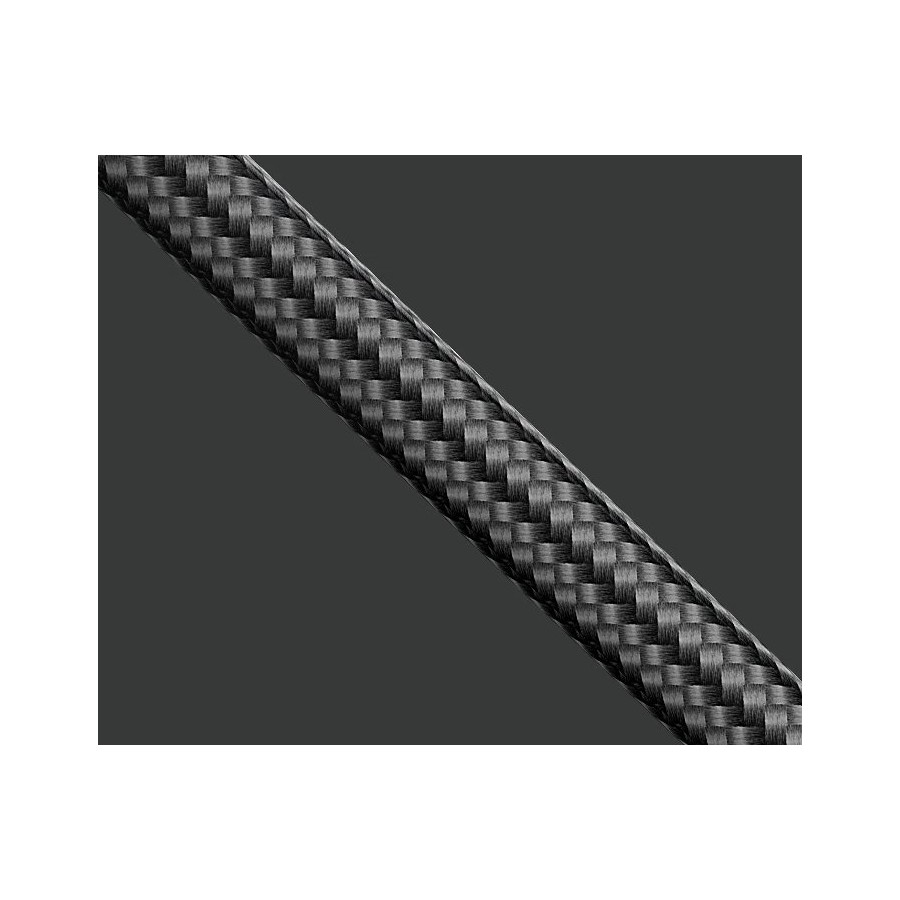

Shielded cable


The integrated cable has high purity & high section copper conductors ensuring excellent conductivity for your audio streams. It is securely protected by a robust sheath and has cotton / silver shield specially designed to limit the capture of high-frequency waves, such as those specifically present near a smartphone.

Specifications
TypePortable DAc
Inputs1x USB-C
Outputs1x Jack Stereo 3.5mm single ended
Output power80mW @ 32Ω (1.6V)
Frequency response20Hz - 50kHz (-0.5dB)
THD+N0.001% @32Ω (A)
Dynamics119 dB @32Ω (A)
SNR119dB @32Ω (A)
Crosstalk77dB @32Ω
Output mpedance≤0.5Ω

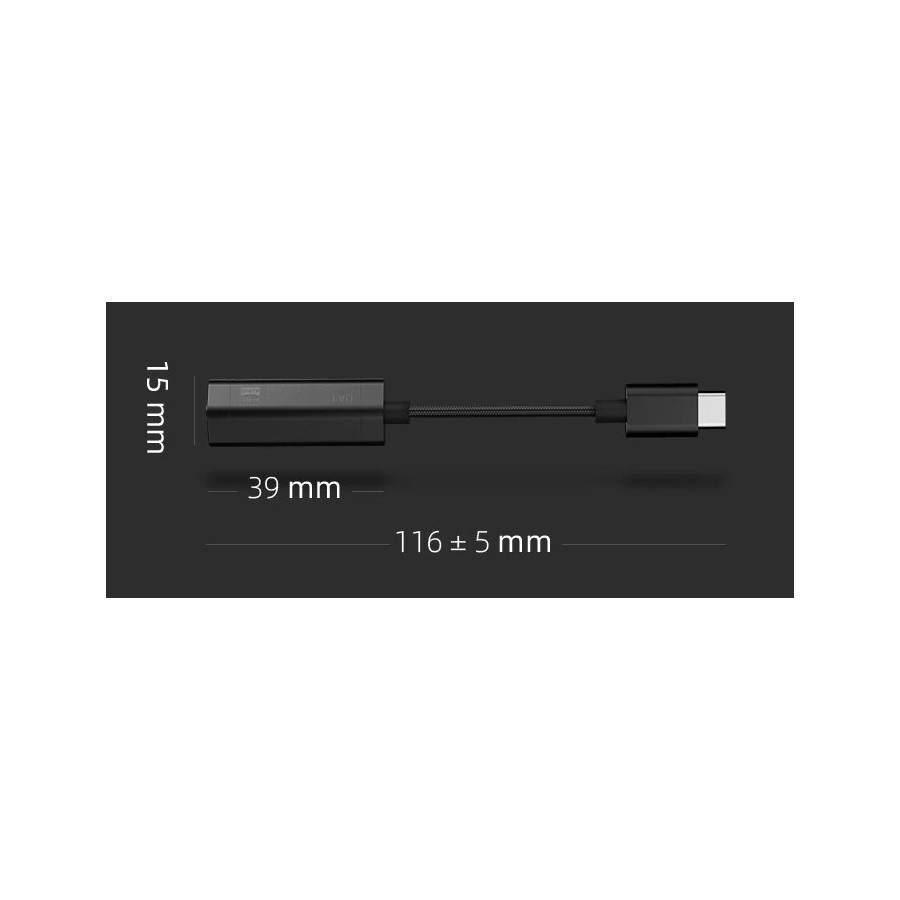

Dimensions39x15x9 mm (corps)
77mm (câble)
Weight8.3g
Contenu du paquet
UA1x1
USB-C Female to USB-A mâle adapterx1
Manualx1

Data sheet
InputUSB-C
OutputJack 3.5mm
DAC ChipES9218P
Max sampling rateDSD256
Max sampling rate384kHz
ColorBlack
NetworkingNo
Remote ControlNo
