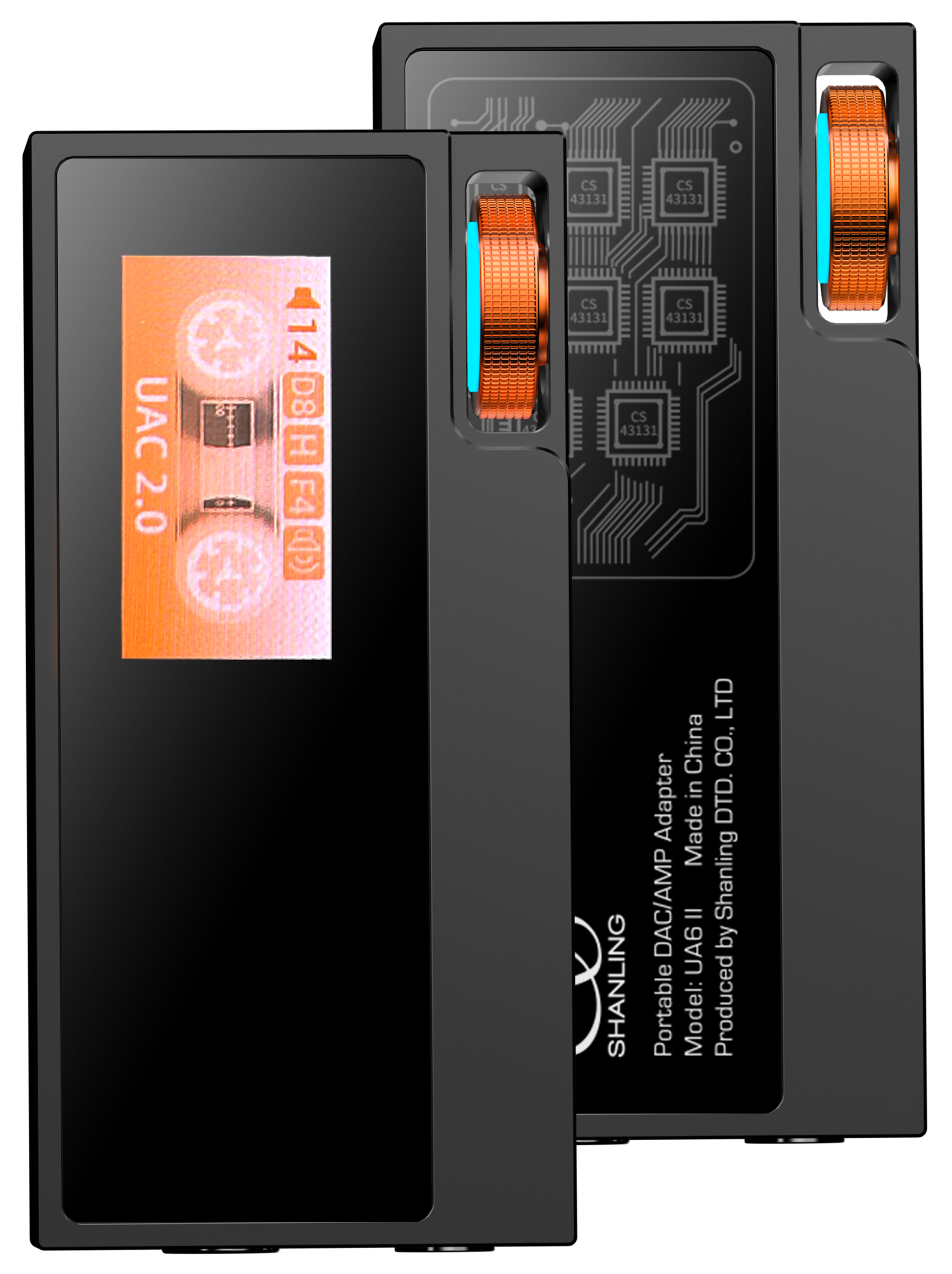

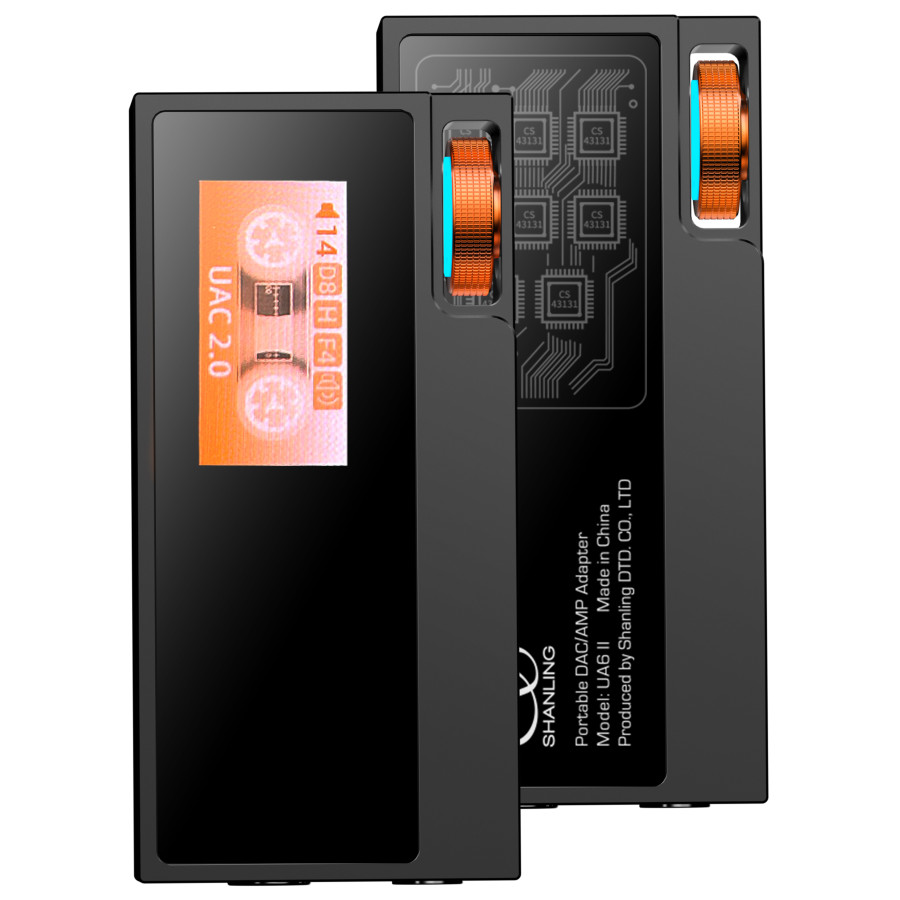

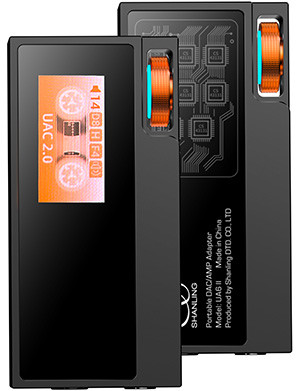

SHANLING UA6 II Portable Balanced DAC 8xCS43131 32bit 768kHz DSD512 Black
The Shanling UA6 II is a portable DAC and headphone amplifier equipped with eight Cirrus Logic CS43131 chips. It supports PCM streams up to 32bit / 768kHz and DSD512, while its signal-to-noise ratio of 133dB supports a conversion suited to high-resolution audio sources.
Thanks to its 3.5mm jack and balanced 4.4mm jack outputs, it integrates with different types of portable earphones and headphones. Its output power reaching up to 365mW into 32Ω in balanced mode, combined with UAC 1.0 compatibility, also allows it to be used with game consoles and various digital sources.
Shanling UA6 II: Eight CS43131 DAC chips
The Shanling UA6 II integrates eight Cirrus Logic CS43131 chips, an architecture that allows it to reach a signal-to-noise ratio of 133dB. It supports PCM streams up to 32bit / 768kHz as well as DSD512, ensuring a conversion suited to high-resolution audio sources.
Shanling UA6 II: Outputs and power
The UA6 II combines a 3.5mm jack output with a balanced 4.4mm jack output, the latter delivering up to 365mW into 32Ω. This power reserve allows it to drive most portable earphones and headphones, while offering connectivity suited to configurations using a balanced connection.

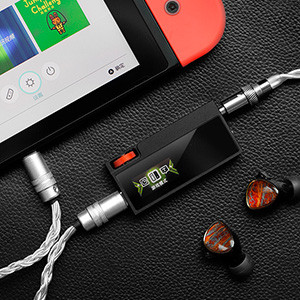

Shanling UA6 II: UAC 1.0
To ensure broad compatibility, including with game consoles, the UA6 offers the ability to enable a UAC 1.0 mode, allowing you to enjoy it in every possible situation.
Technical specifications
| Specifications | |
|---|---|
| Product type | Portable DAC Portable headphone amplifier |
| Inputs | 1x USB-C |
| Outputs | 1x Jack 3.5mm single-ended 1x Jack 4.4mm balanced |
| DAC chips | 8x CS43131 |
| Supported sampling rates | PCM up to 32bit 768kHz Native DSD up to DSD512 |
| Output power | Jack 3.5mm: 1.85V @32Ω (107mW @32Ω) Jack 4.4mm: 3.418V @32Ω (365mW @32Ω) |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| Total harmonic distortion more noise (THD+N) | Jack 3.5mm: 0.0002% @32Ω Jack 4.4mm: 0.0006% @32Ω |
| Dynamic range | Jack 3.5mm: 128dB @32Ω Jack 4.4mm: 133dB @32Ω |
| Channel separation | Jack 3.5mm: 76dB @32Ω Jack 4.4mm: 108dB @32Ω |
| Signal-to-noise ratio (SNR) | Jack 3.5mm: 128dB @32Ω Jack 4.4mm: 133dB @32Ω |
| Noise | Jack 3.5mm: 122dB @32Ω Jack 4.4mm: 121dB @32Ω |
| Output impedance | 0.5Ω |
| General | |
|---|---|
| Dimensions | 62 x 30 x 13.5mm |
| Weight | 30.8g |
| Color | Black |
| Package | 1x Shanling UA6 II 1x USB-C cable 1x USB-C to USB-A adapter |
| Input | USB |
| Output | Jack 3.5mm |
| Output | Jack 4.4mm |
| DAC / ADC Chip | CS43131 |
| Max sampling rate | DSD512 |
| Max sampling rate | 768kHz |
| Color | Black |
| Class | Class D / T |
| Networking | No |
| Remote Control | Control app |
