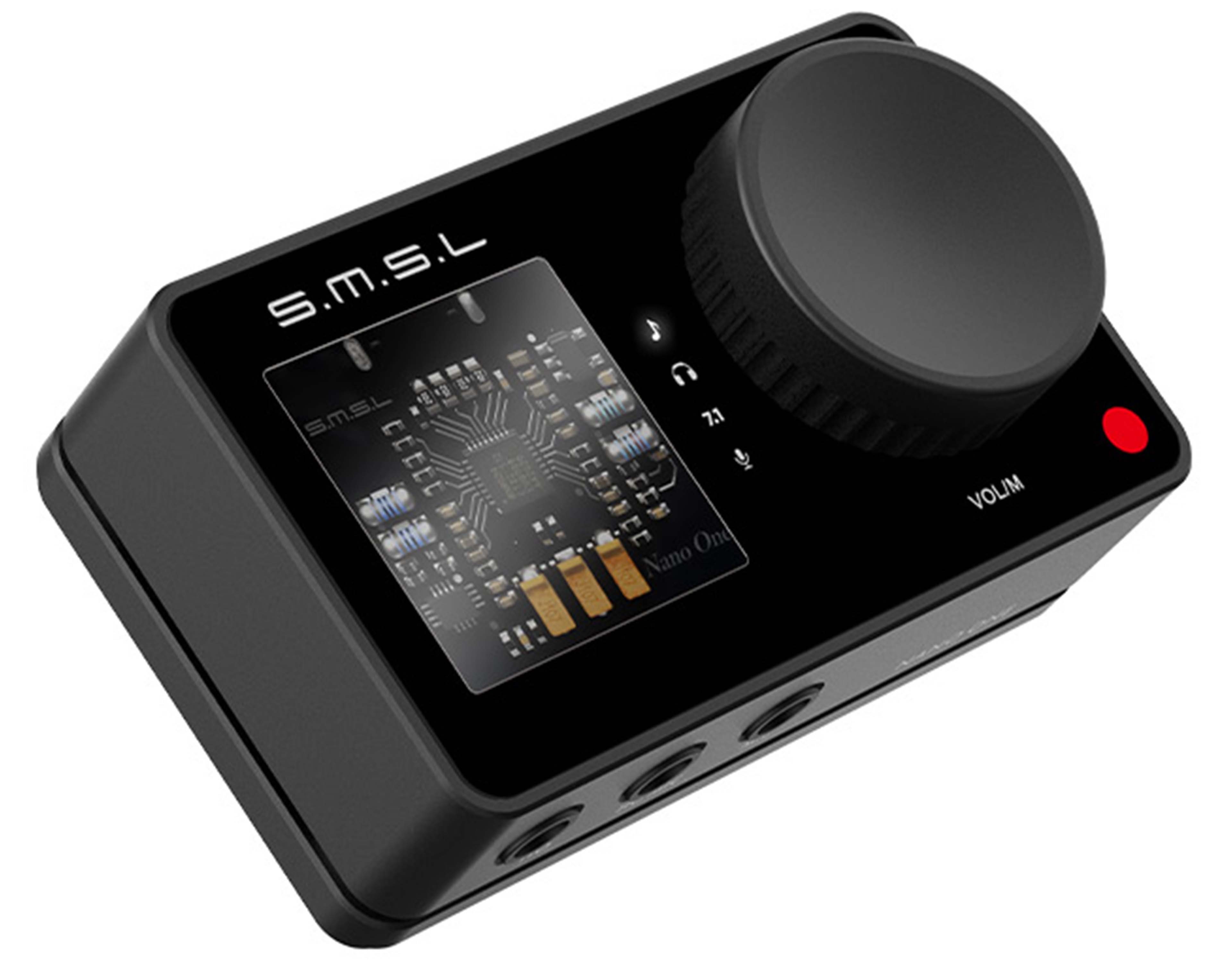

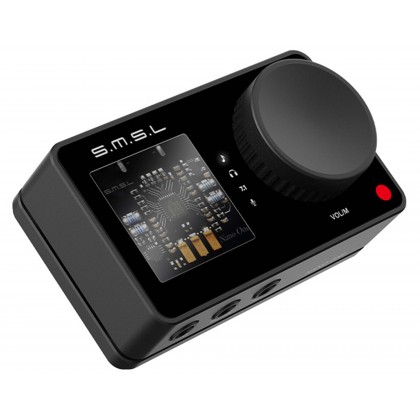

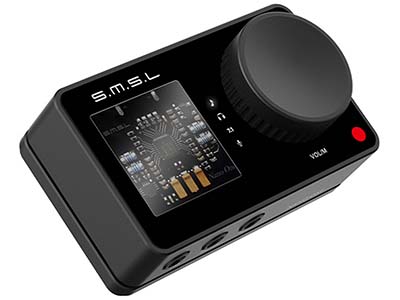

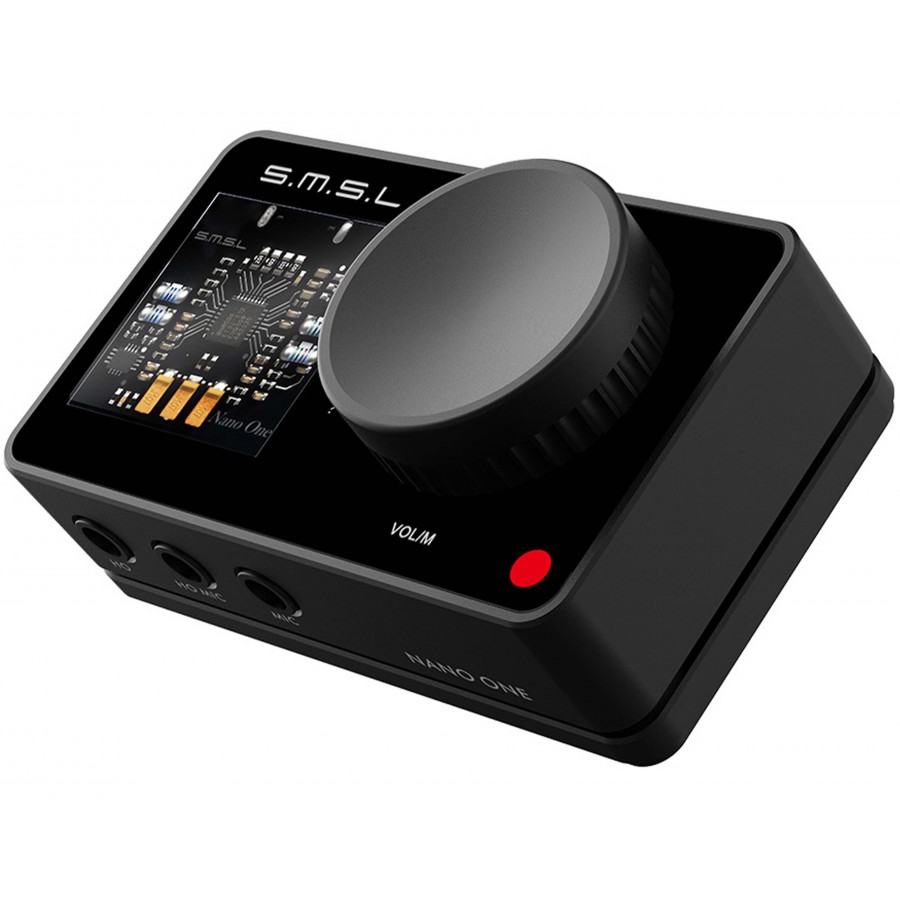

The SMSL Nano One is a portable DAC specifically designed for desktop setups or gaming use. It is based on a 16bit 48kHz DSP, allowing it to simulate 7.1 surround sound for a highly immersive listening experience. In terms of connectivity, it features a USB-C input, a 3.5mm headphone output, a 3.5mm headset output (headphones with microphone), and a 3.5mm microphone input. This makes it adaptable to many different configurations. The SMSL Nano One also offers several notable advantages such as an attractive acrylic window showcasing the internal components, a magnetic system allowing it to attach to other devices, and an AI-powered noise cancellation system for the microphone.

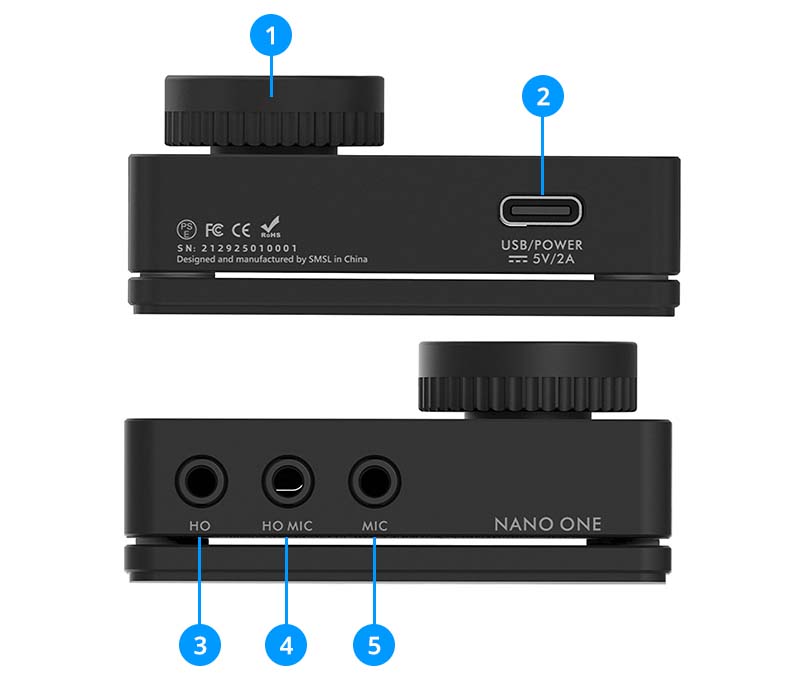

| 1 | Volume knob |

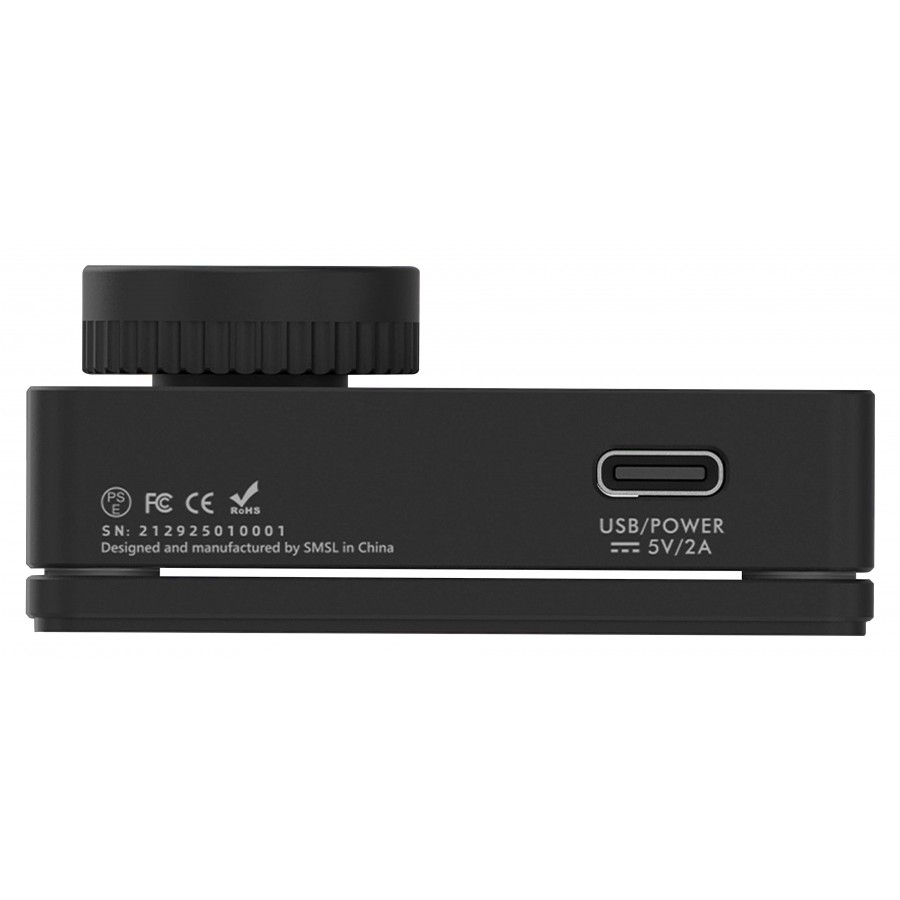

| 2 | USB-C input |

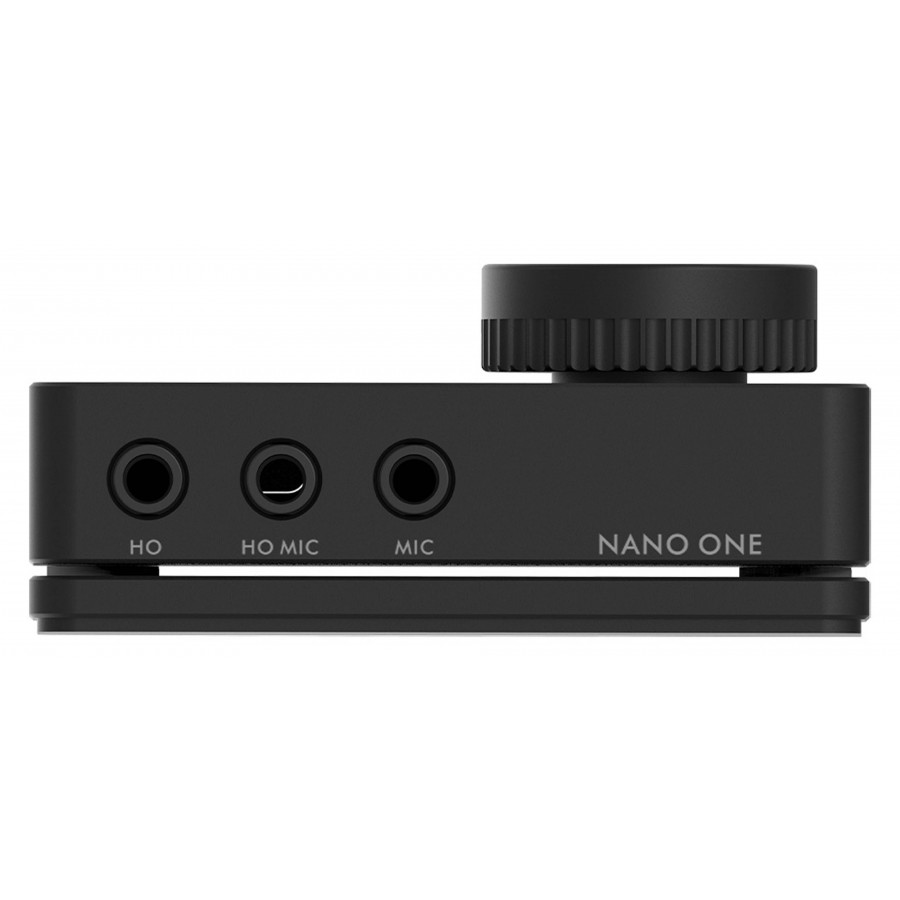

| 3 | 3.5mm headphone output |
| 4 | 3.5mm headset output (with microphone) |
| 5 | 3.5mm microphone input |
"Although SMSL now offers high-end products in its catalog, the Chinese manufacturer hasn’t given up on very affordable models. Priced at less than 60 euros, its Nano One external sound card has plenty to offer. Serving also as a DAC/headphone amplifier with a sleek and, above all, very compact design, the device also features a microphone input and even 7.1 surround sound processing."
Technical Specifications
| Specifications | |
|---|---|
| Product Type | Portable DAC |
| Chip | DSP |
| Inputs | 1x USB-C 1x 3.5mm microphone jack |
| Outputs | 1x 3.5mm headphone jack 1x 3.5mm headphone jack (headphones with microphone) |
| DSP chip sampling rate | PCM 16bit 48kHz |
| THD+N | 0.0125% (-78dB) |
| Output Power | 20mW (600Ω) |
| Dynamic Range | 91dB |
| SNR | 92dB |
| Recommended Headphone Impedance | 32 ohms |
| General | |
|---|---|
| Power Consumption | < 0.35W |
| Dimensions | 60 x 25.9 x 35mm (W x H x D) |
| Weight | 70g / 0.154lbs |
| Color | Black |
| Package Contents | 1x SMSL Nano One 1x USB-A/C to USB-C cable |
| Input | Jack 3.5mm |
| Input | USB |
| Output | Jack 3.5mm |
| DAC / ADC Chip | NC |
| Max sampling rate | 48kHz |
| Color | Black |
| Networking | No |
| Remote Control | No |
