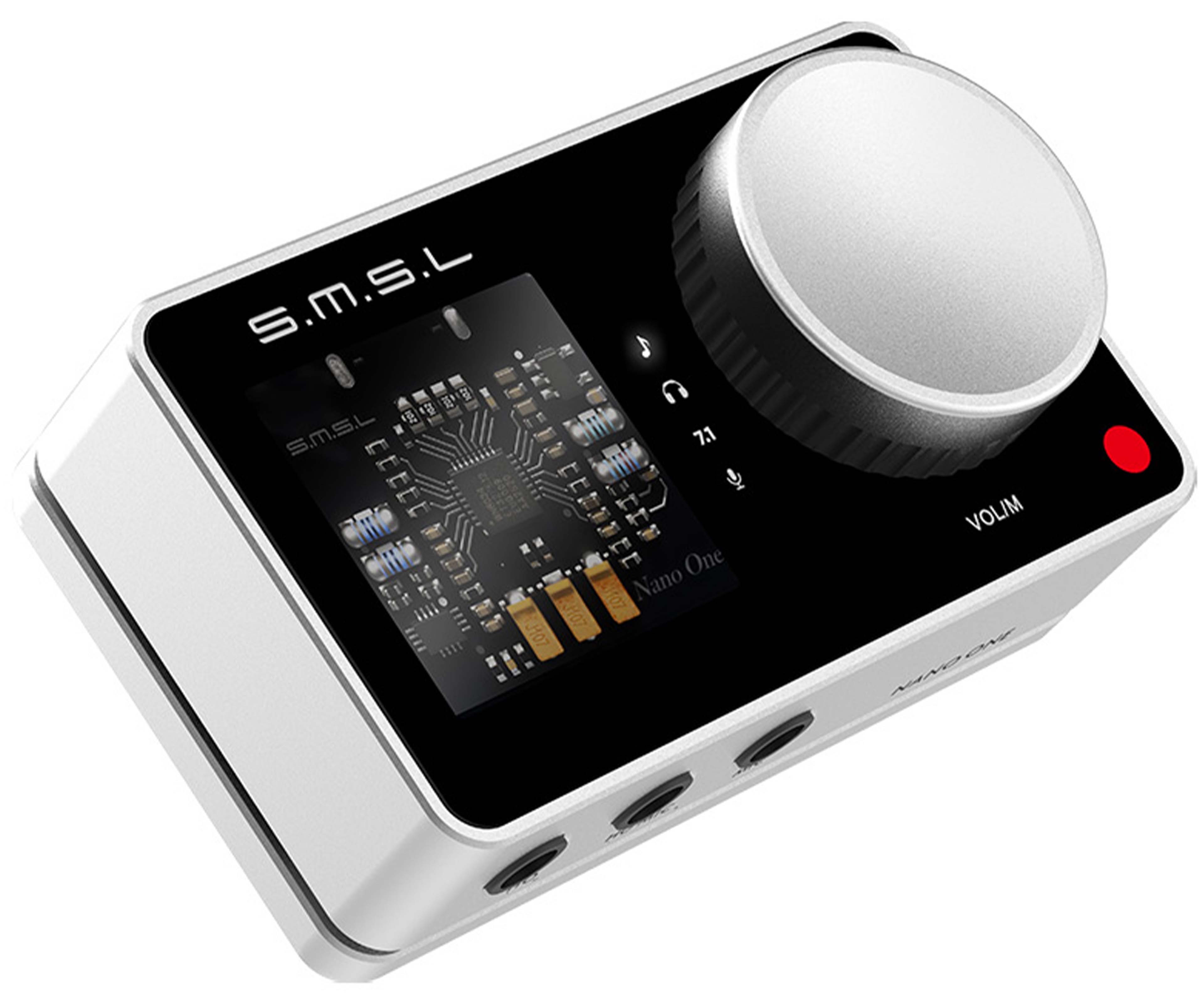

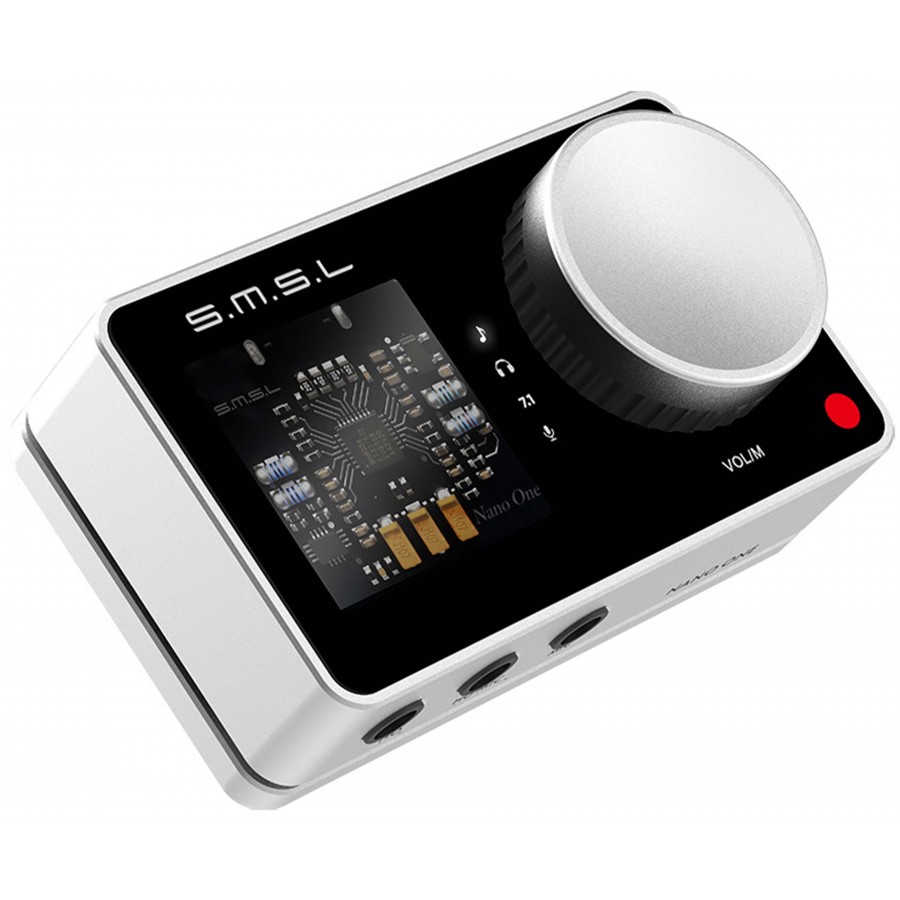

The SMSL Nano One is a portable DAC specifically designed for desktop setups or gaming use. It is based on a 16bit 48kHz DSP, allowing it to simulate 7.1 surround sound for a highly immersive listening experience. In terms of connectivity, it features a USB-C input, a 3.5mm headphone output, a 3.5mm headset output (headphones with microphone), and a 3.5mm microphone input. This makes it adaptable to many different configurations. The SMSL Nano One also offers several notable advantages such as an attractive acrylic window showcasing the internal components, a magnetic system allowing it to attach to other devices, and an AI-powered noise cancellation system for the microphone.

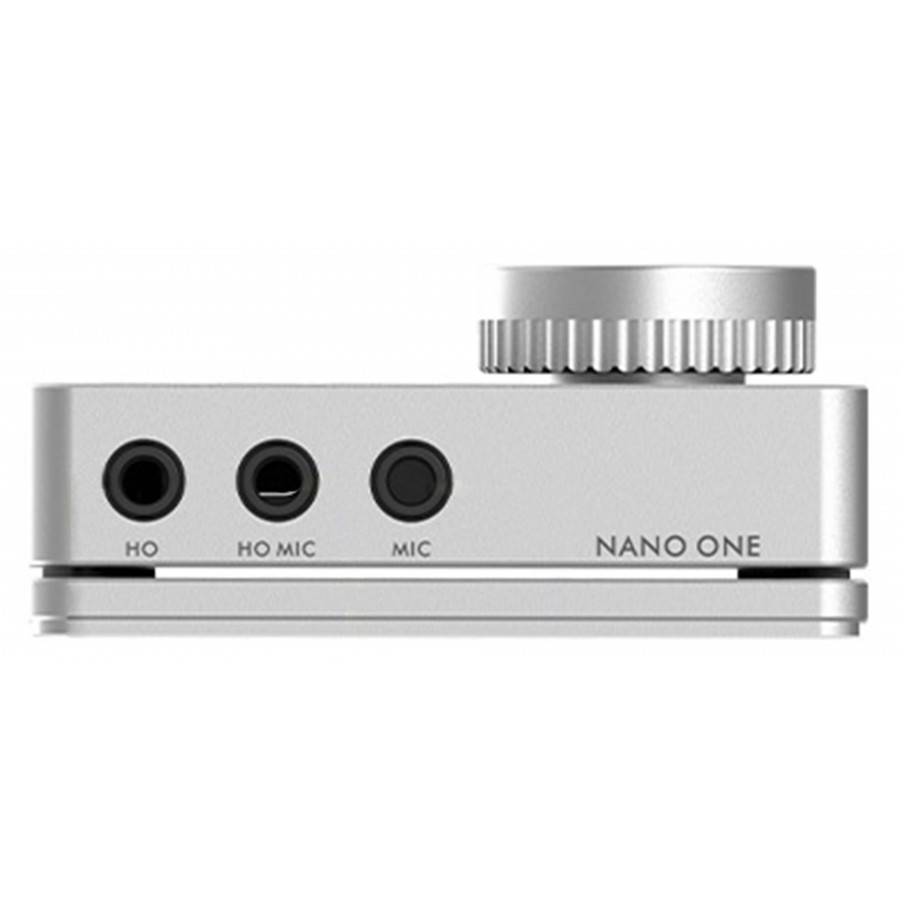

| 1 | Volume knob |

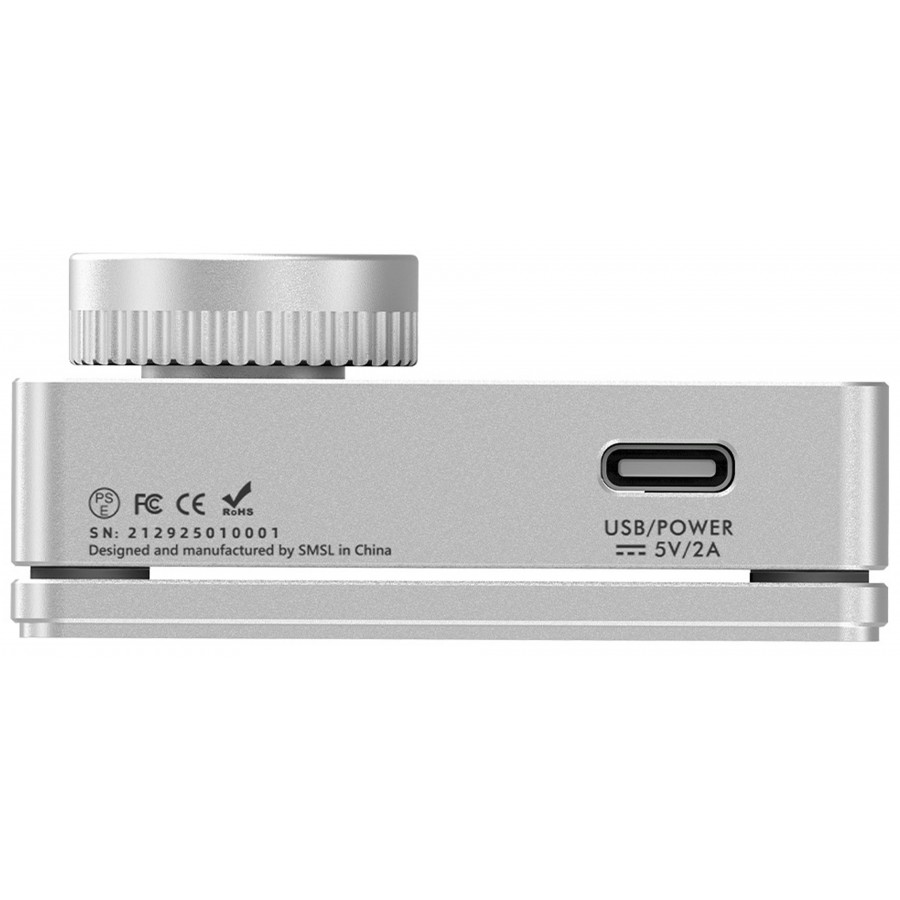

| 2 | USB-C input |
| 3 | 3.5mm headphone output |
| 4 | 3.5mm headset output (with microphone) |
| 5 | 3.5mm microphone input |
Technical Specifications
| Specifications | |
|---|---|
| Product Type | Portable DAC |
| Chip | DSP |
| Inputs | 1x USB-C 1x 3.5mm microphone jack |
| Outputs | 1x 3.5mm headphone jack 1x 3.5mm headphone jack (headphones with microphone) |
| Supported Sampling Rate | PCM 16bit 48kHz |
| THD+N | 0.0125% (-78dB) |
| Output Power | 20mW (600Ω) |
| Dynamic Range | 91dB |
| SNR | 92dB |
| Recommended Headphone Impedance | 32 ohms |
| General | |
|---|---|
| Power Consumption | < 0.35W |
| Dimensions | 60 x 25.9 x 35mm (W x H x D) |
| Weight | 70g / 0.154lbs |
| Color | Silver |
| Package Contents | 1x SMSL Nano One 1x USB-A/C to USB-C cable |
| Input | USB |
| Input | Jack 3.5mm |
| Output | Jack 3.5mm |
| DAC / ADC Chip | NC |
| Max sampling rate | 48kHz |
| Color | Silver |
| Networking | No |
| Remote Control | No |
