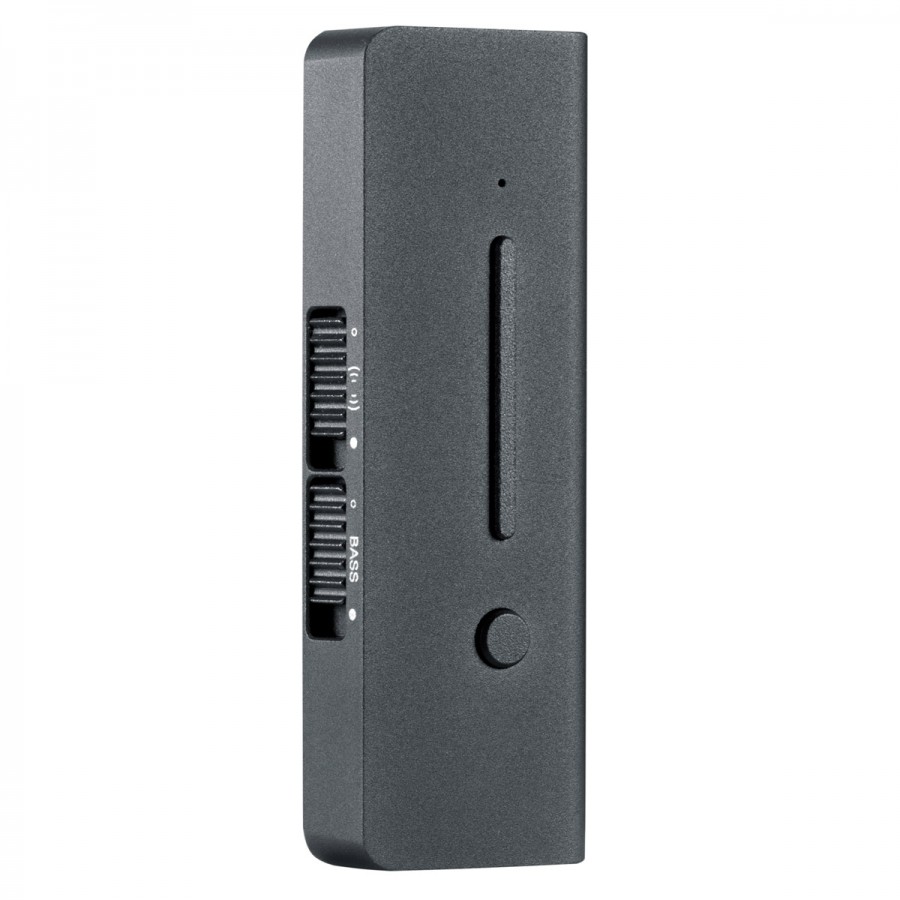

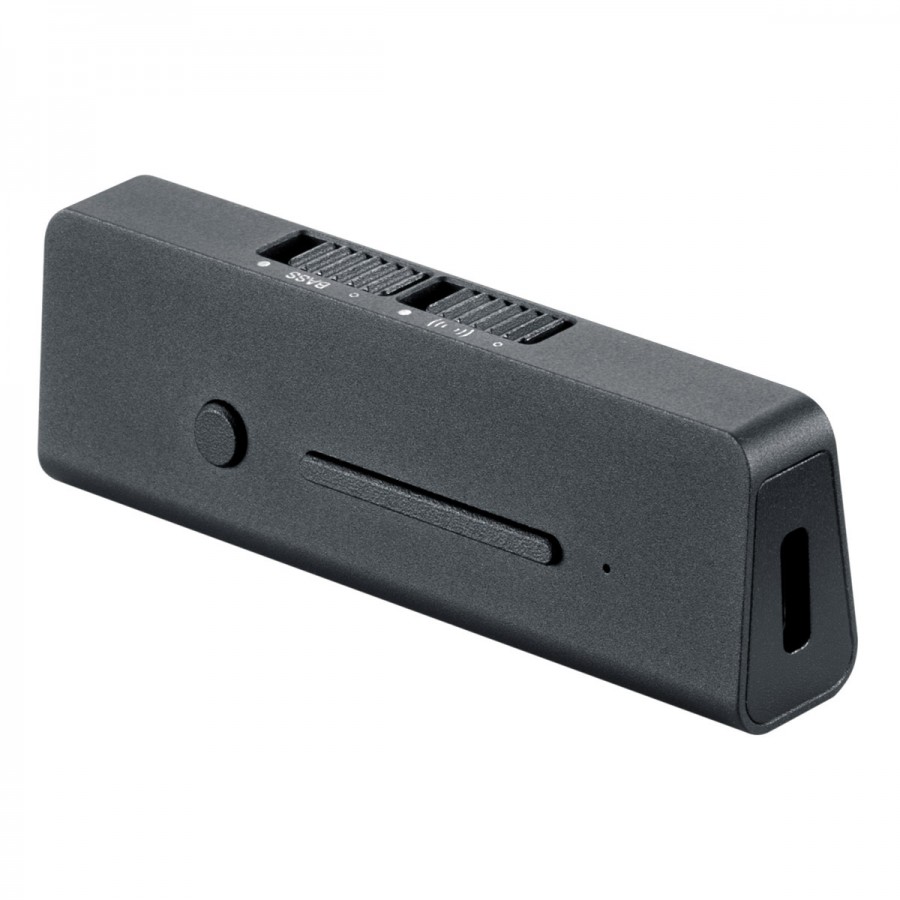

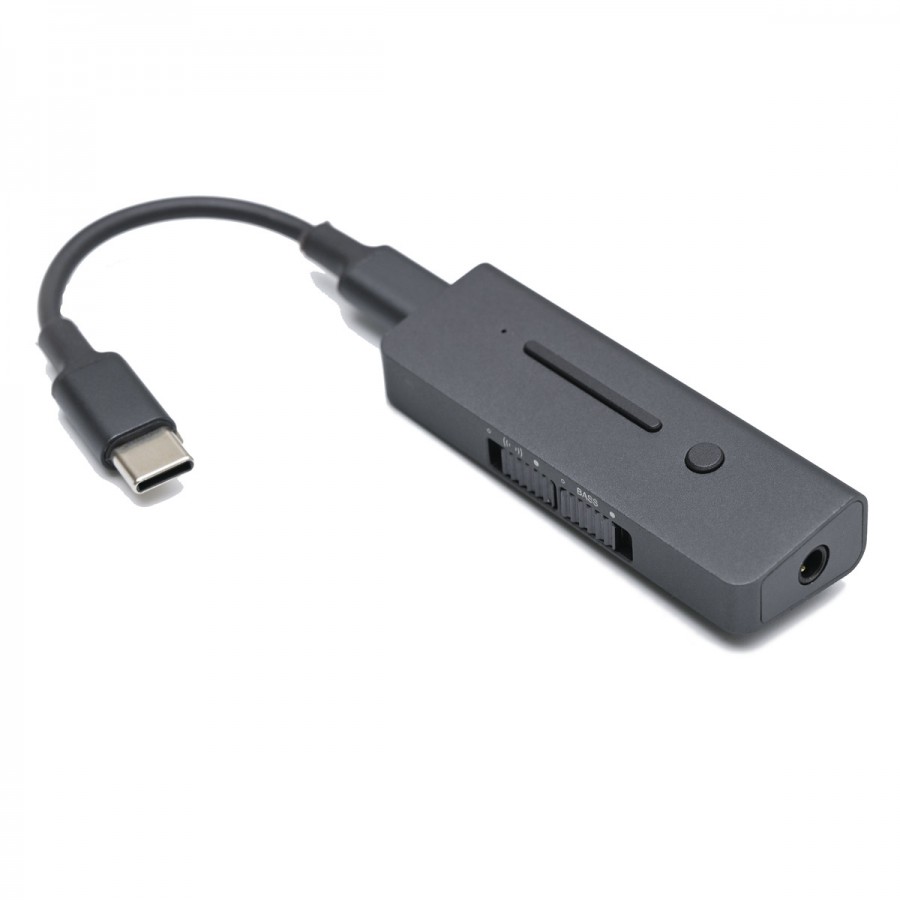

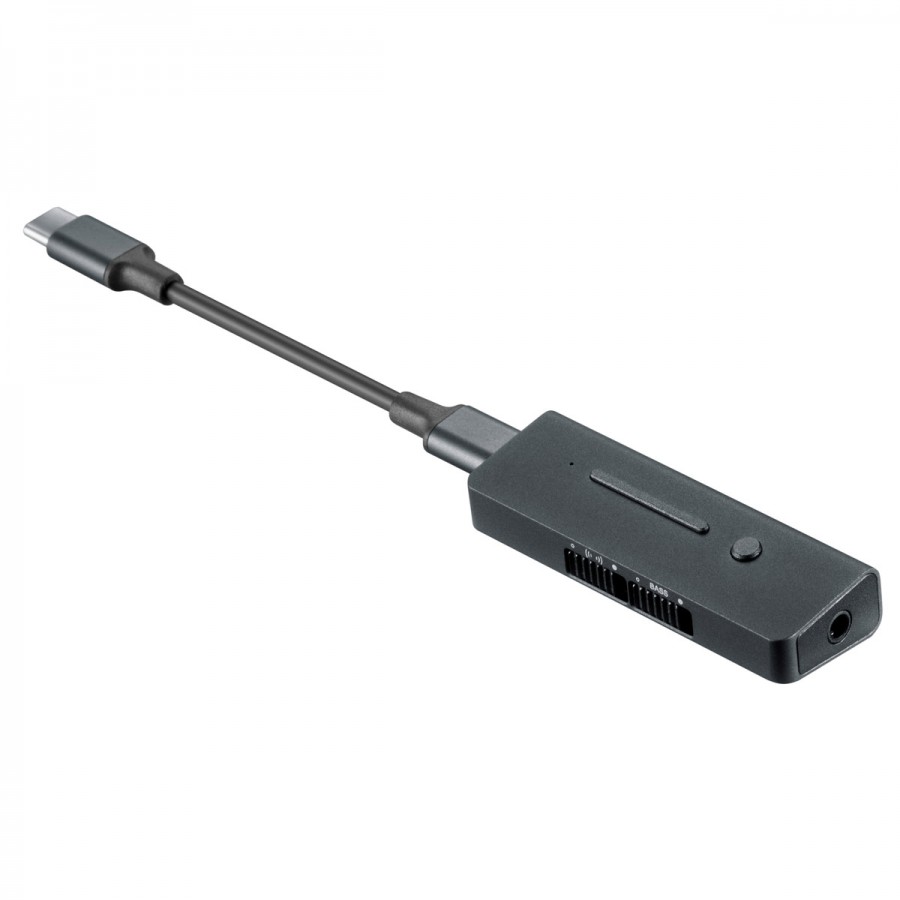

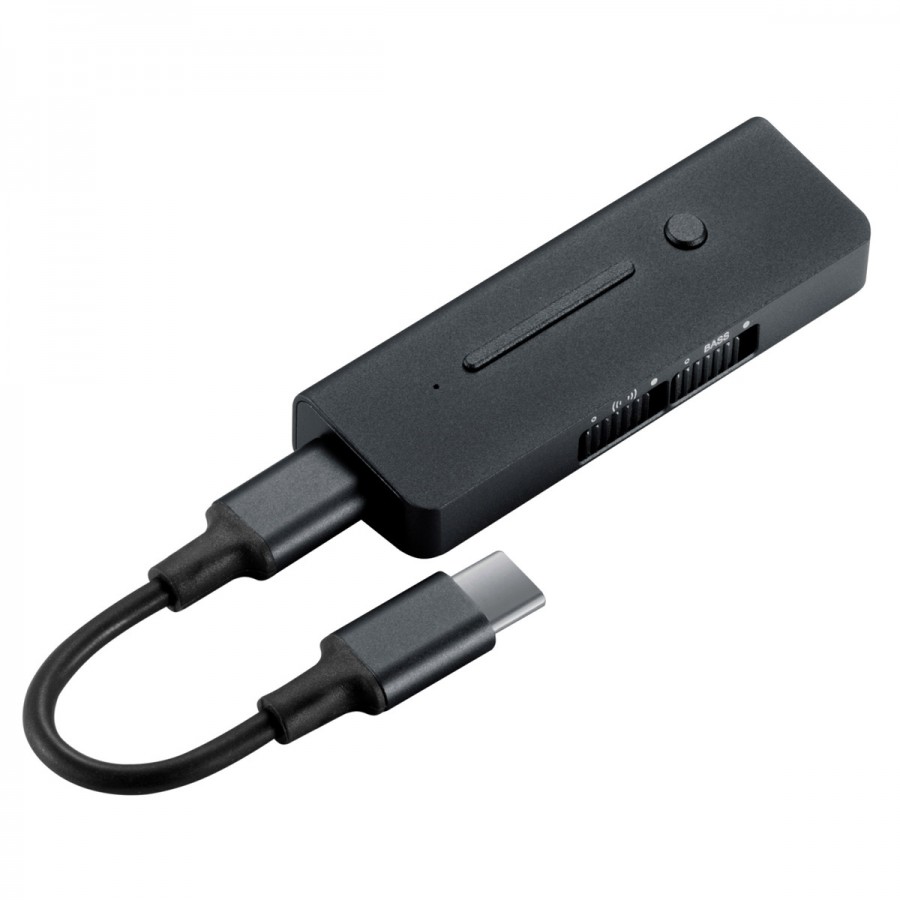

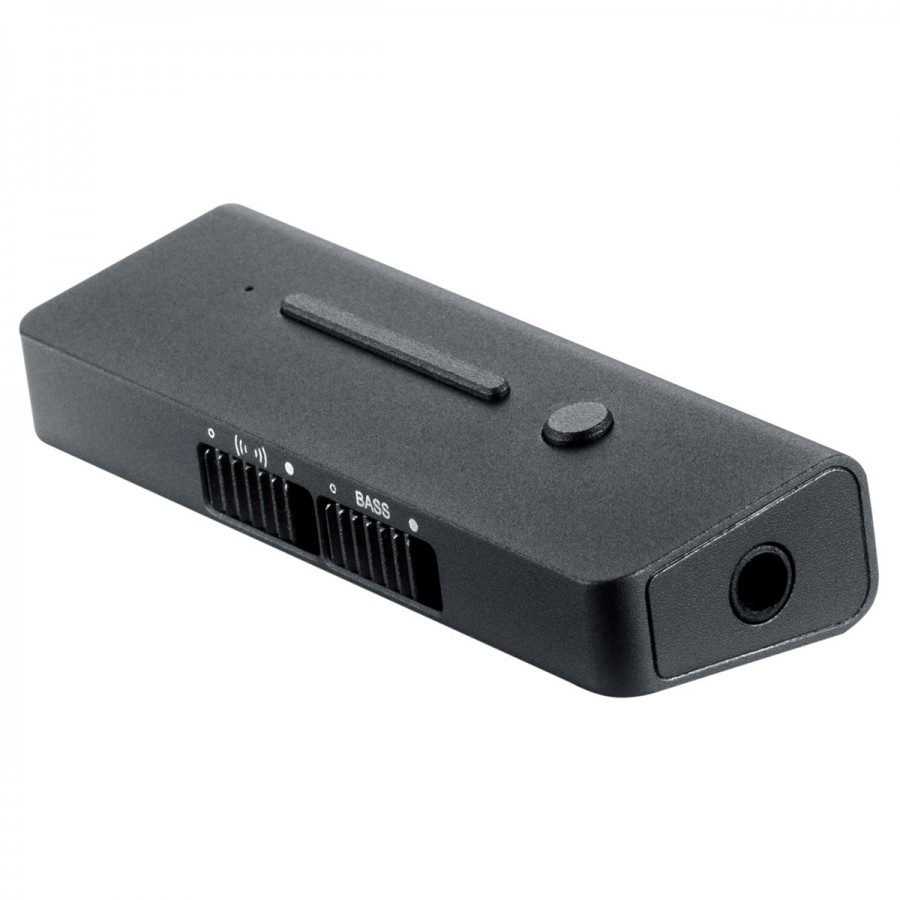

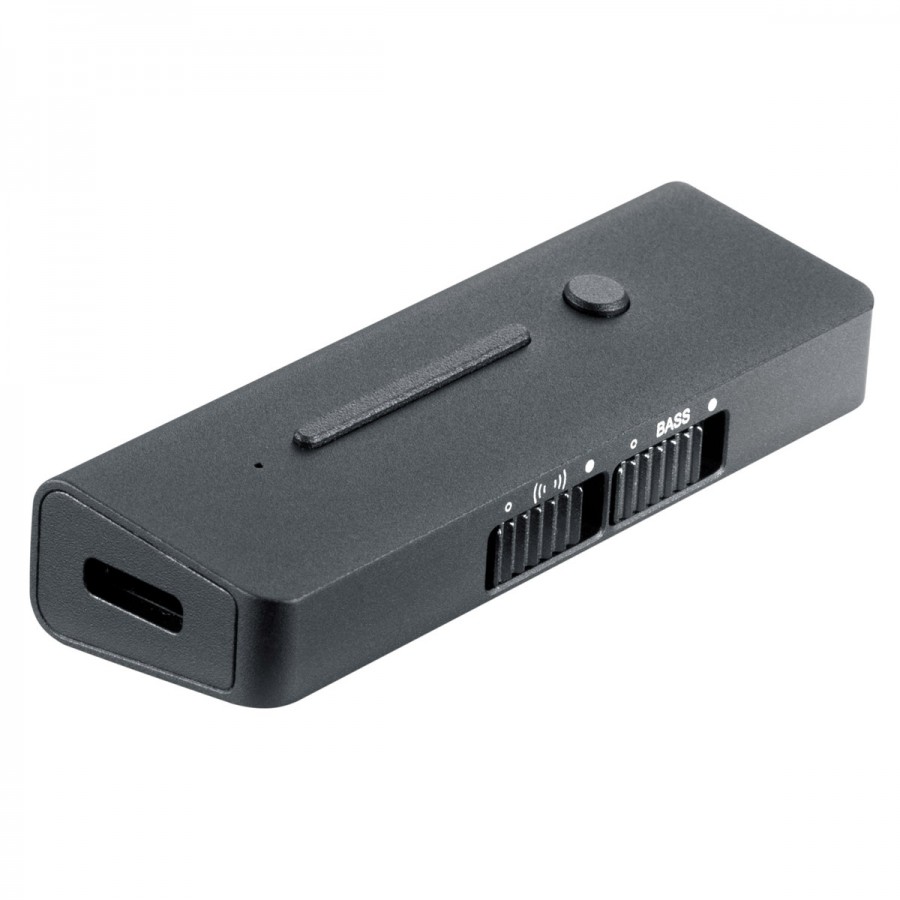

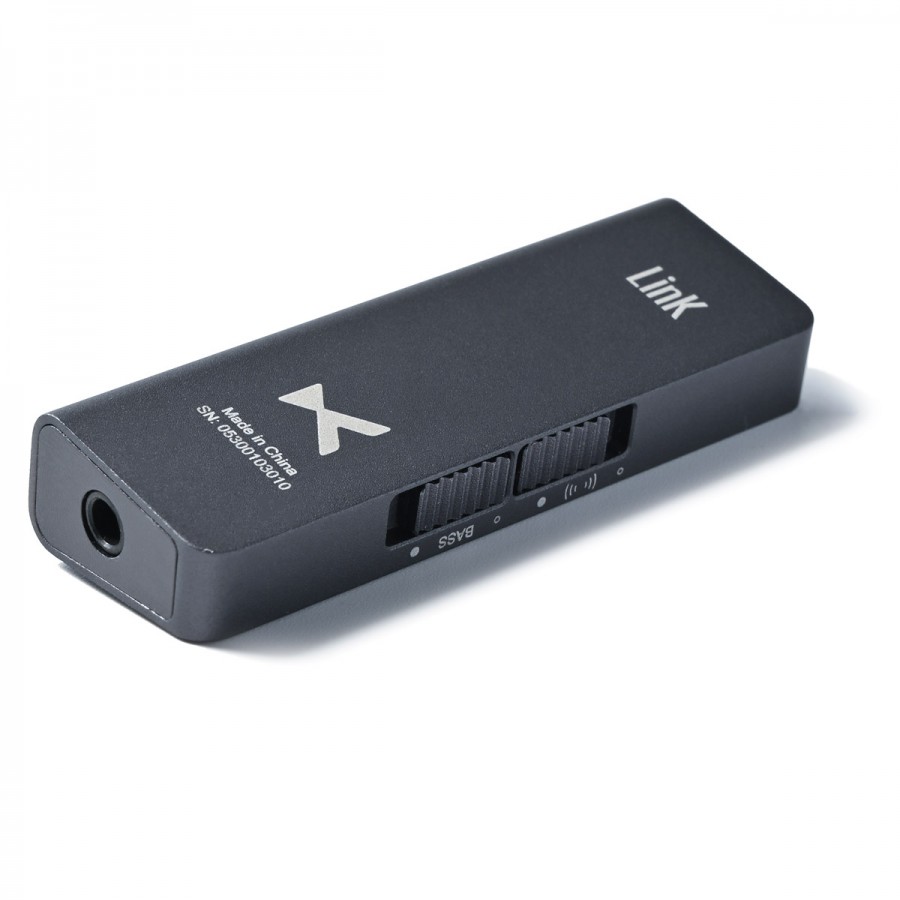

XDUOO LINK2 DAC Adapter USB-C ES9118EC 32bit 384kHz DSD256 150mW 32 Ohm Gray
xDuoo Link2
DAC Adapter USB-C ES9118EC 32bit 384kHz DSD256 150mW 32 Ohm
xDuoo offers with its Link2 a DAC combo and headphone amplifier ultra portable and powerful. With USB-C connectivity, it is particularly useful to accompany a smartphone, which often only have USB-C connectivity and no DAC on board.
The Link2 is based on an ESS ES9118EC chip supporting sample rates up to 32bit 384kHz PCM and DSD256. The chip also delivers 150mW of power at 32Ω. It is therefore suitable for use with most in-ear headphones, as well as most consumer headphones.
Performance & Shielding
The Link2 has good performance, including a 110dB SNR and good noise reduction capability. The components are integrated in a robust aluminum chassis, which acts as a shield to reduce interference and induced noise.

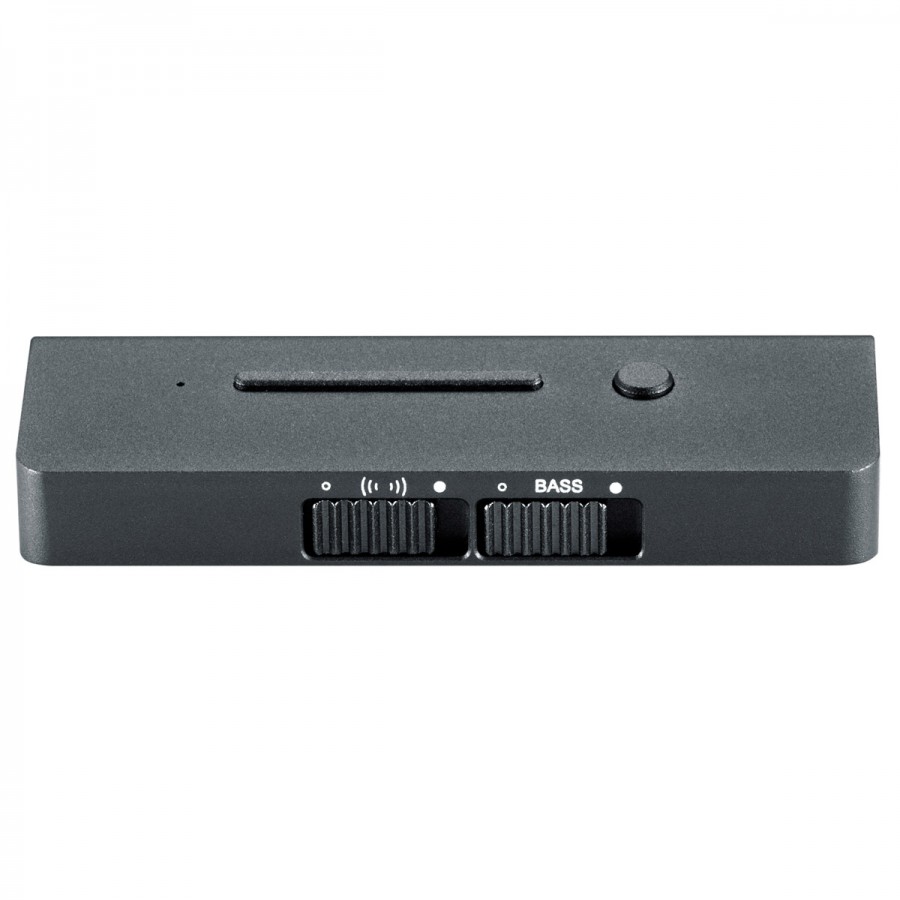

Bass Boost & Sound Stage
The hardware Bass Boost feature allows you to increase the gain of low frequencies for deeper, more punchy bass. Sound Stage provides a wider, more immersive sound stage. Since these settings are completely hardware-based, they do not involve additional distortion.
Physical Controls & Compatibility
The Link2 features physical buttons that make it easy to control the essential functions of your playback. You can adjust the volume level, pause playback or answer a call with a simple gesture.
The DAC is furthermore compatible with computers running Mac OS and Windows and can therefore be used in USB DAC mode as a sound card.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Adaptateur DAC |
| Input | 1x USB-C |
| Output | 1x Jack 3.5mm |
| DAC Chip | ESS ES9118EC |
| Supported sampling rates | PCM up to 32bit 384kHe DSD up to DSD256 |
| Output power | 150mW @ 32Ω |
| Frequency response | 20Hz - 20kHz (±0.5dB) |
| SNR | 110dB |
| Crosstalk | ≥ 75dB |
| Bass boost | +6dB |
| Recommended headphone impedance | 16-300Ω |
| General | |
|---|---|
| Dimensions | 62.9 x 21 x 12mm |
| Weight | 21g |
| Color | Gray |
| Package | 1x xDuoo Link2 1x USB-C cable 1x USB-C to Lightning cable 1x USB-C to USB-A cable Adhesive pad |
| Input | USB |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9118C |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Silver |
| Networking | No |
| Remote Control | No |
