Kit Cable DIY ELECAUDIO PCG9 CS-331B + RI-24GB / RS-24GB 5m

Kit Câble DIY ELECAUDIO PCG9 CS-331B + PI-34GC/PS-34GC 5.0m

No customer reviews yet, login to write a review.

By buying this product you get 11 loyalty points


Reference : 4909
New product

119,00 €tax incl.

99,17 € tax excl.
Instead of 129,20 €
Including 0,01 € for green tax
Available

- +

Produit garantie 2 ans

Pack content


More info

Audiophonics markets kit cables for ease of use.

All necessary components are supplied to build a complete high end power cable

This kit includes:

  • 5 m ELECAUDIO CS-331B Cable Triple Shielding 3x3.5mm²
  • 1 x ELECAUDIO RI-24GB Plug Socket IEC Fiber Glass Plated Gold
  • 1 x ELECAUDIO RS-24GB Plug Socket Schuko Gold Plated
  • 1 x ELECAUDIO EC-4G Copper OCC Plated Gold Plated 4mm²

ELECAUDIO CS-331B Cable Triple Shielding 3x3.50mm²

ELECAUDIO RI-24GB Plug Socket IEC Fiber Glass Gold Plated ELECAUDIO RS-24GB Plug Socket Schuko Gold Plated

5m

ELECAUDIO IEC

x1

ELECAUDIO Schuko
x1

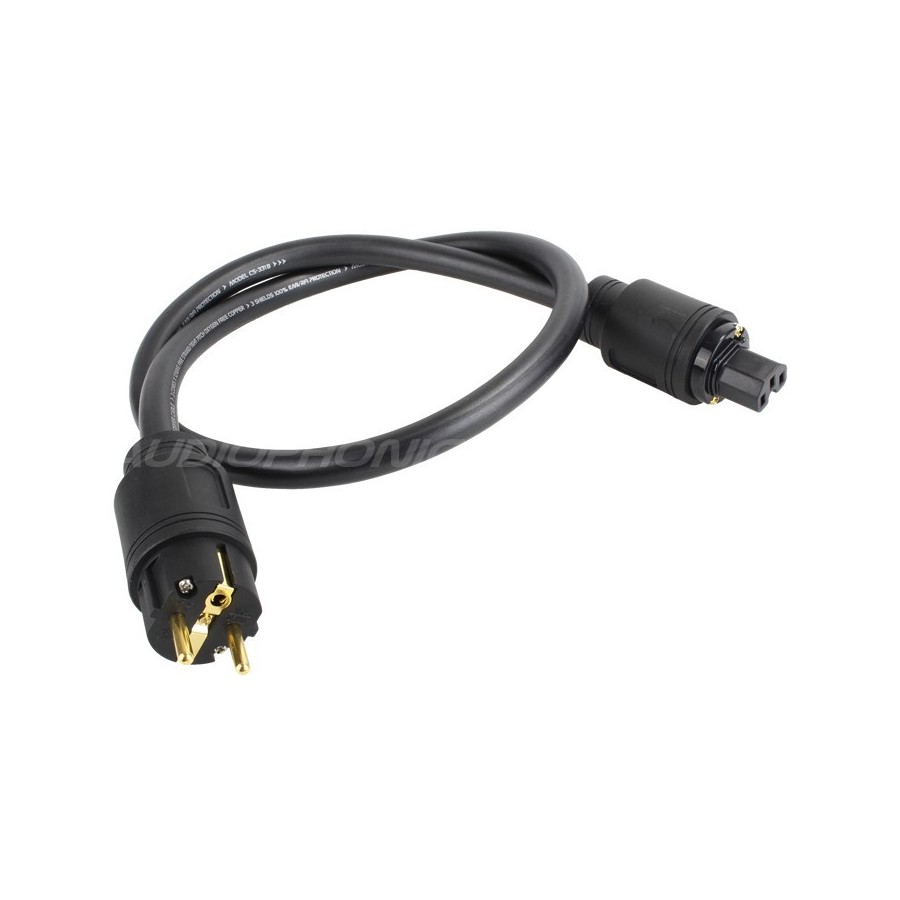

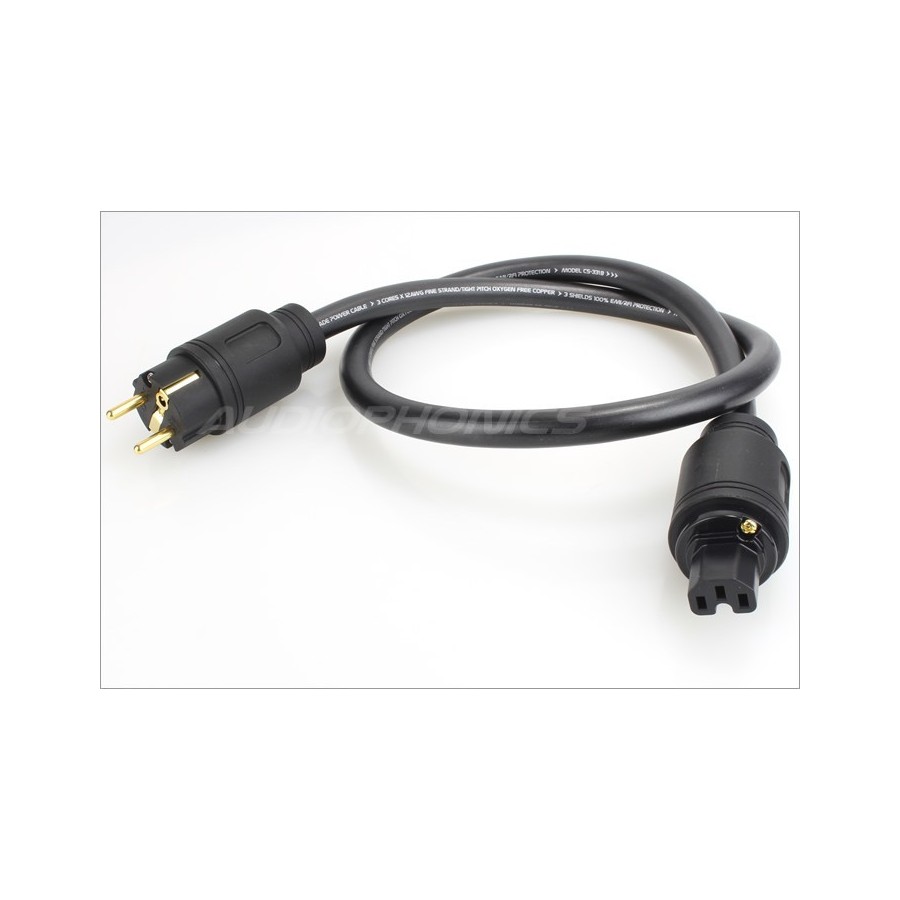

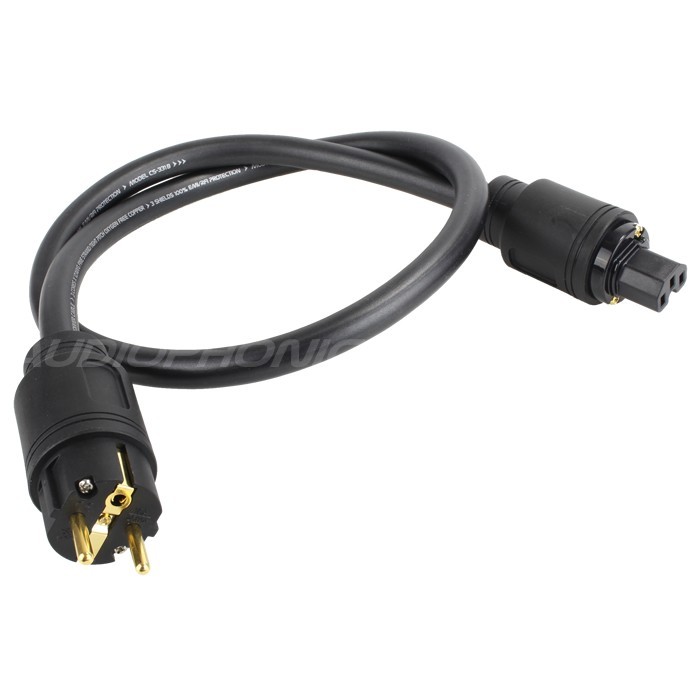

Result when mounted:



If you want this cable mounted, we offer a mounting package.

Please go tothe following cardto take advantage of our offer:

https://www.audiophonics.fr/images2/5188/5188_CABLE_ASSEMBLY_5.jpg


Cable Features:

  • 3 OFC Copper Conductorsof each one3.5mm² of Section
  • Triple Shielding and Protection:Aluminum Sheath, Copper Sheathed Braided, Copper Drain OFC
  • Strong PVC Exterior Sheath Thickness (3.5mm) Resistant to wear and shock
  • Trim inCotton
  • High-End FinishColors Black Glitter

Specifications:

  • Individual Driver Composition:7 x 10 0.25mm OFC Copper Wire of Diameter
  • Composition of the Shielding Sheath:24 x 9 Copper Wires 0.12mm Diameter Braid
  • Diameter of Conductors + Single PVC Sheath:4.30mm
  • Total Cable Diameter: 15 mm
  • colorBlack Glitter

https://www.audiophonics.fr/images2/4715_ELECAUDIO_CS331B_1.jpg

https://www.audiophonics.fr/images2/4715_ELECAUDIO_CS331B_5.jpg
Cable also sold by meter

ELECAUDIO RI-23GB Connector IEC Fiber Glass Gold plated

IEC socket for making a mains cable or for a replacement

  • Body: 30% Glass Fiber and 66% Nylon
  • 16A 250V
  • Accept conductors up to 15mm² (Ø 4.5mm)
  • Screw-in contacts
  • All contacts are gold plated
  • Body Length: 95mm
  • Max Connector Diameter: 42mm
  • Acceptable cable diameter: from 13.5 to 16.5mm
  • Weight: 76g

ELECAUDIO IEC

IEC connector also sold individually

  • ELECAUDIO RS-24GB SCHUKO Fiber Glass Plated Silver / Gold

    SCHUKO plug for making a mains cable or for a replacement

    • Body: 30% Glass Fiber and 66% Nylon
    • 16A 250V
    • Accept conductors up to 15mm²
    • Screw-in contacts
    • All contacts are silver / gold plated
    • Body Length: 103.7mm
    • Max Connector Diameter: 42mm
    • Acceptable cable diameter: from 13.5 to 16.5mm
    • Weight:92g

ELECAUDIO Schuko

Schuko connector also sold individually


https://www.audiophonics.fr/images2/SCHEMA_PHASE.jpg
Cable schematics

https://www.audiophonics.fr/images2/DIY_CS-331B_THUMB.gif

Cable Mounting Tutorial

ELECAUDIO CS-331B


Data sheet
Length max.5m
Numéro de Conducteur3
Matériaux IsolationPVC
BlindageOui
