DENAFRIPS HADES 15TH Preamplifier Silver
By buying this product you get 167 loyalty points
Denafrips Hades 15Th Discrete Balanced Preamplifier Pure Class A Silver
Elevate your audio experience with the Denafrips Hades 15Th preamplifier, a masterpiece born from an uncompromising dedication to audio perfection. Designed for discerning audiophiles, the Hades is the pinnacle of technical precision and sonic sophistication.
Developed and manufactured with precision and care, the Hades features a fully discrete, fully balanced pure Class A line stage.
Its 60-step attenuator, controlled by a microprocessor and equipped with precision-matched resistors, ensures perfect channel balance and extremely low distortion, measured at just 0.00023%. The result is sound of incredible purity, clarity, and precision.
All of the Hades' components are housed in a sturdy, modern aluminum chassis. It also features a front panel display to show the selected volume level.
Key Features:
- Pure Class A. High-quality line stage, completely discrete and fully balanced.
- Microprocessor-controlled 60-step relay volume attenuator.
- High-precision resistors and components throughout with perfect channel balance and low distortion.

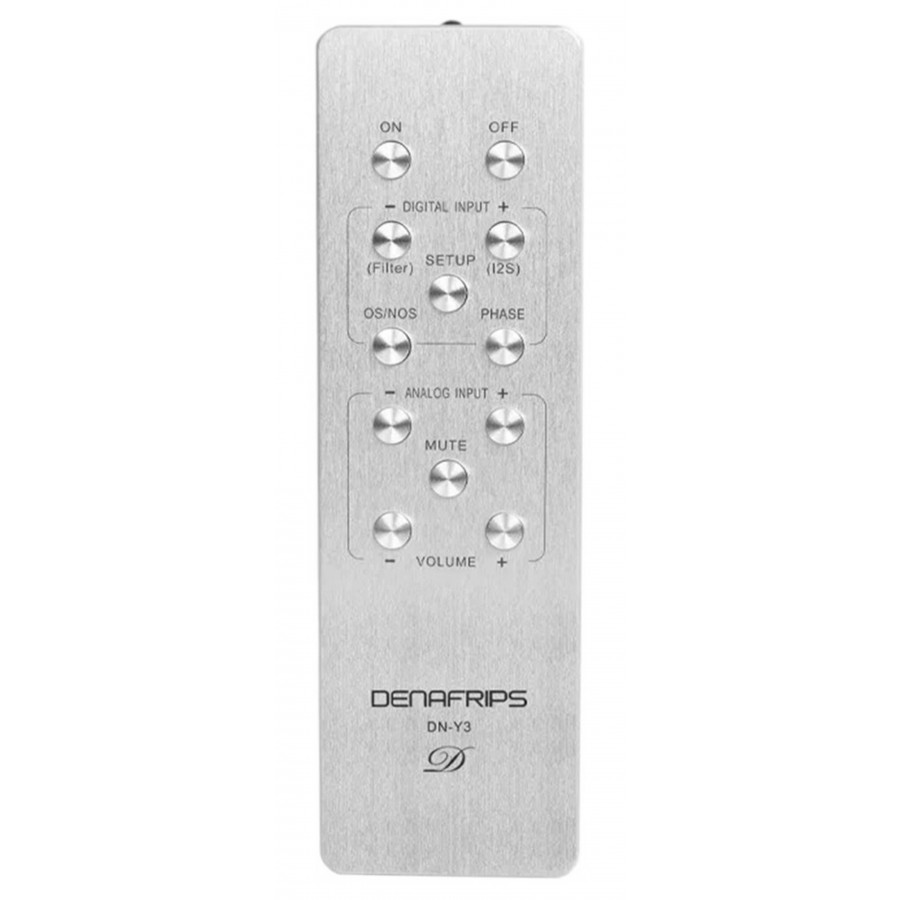

- Remote control.

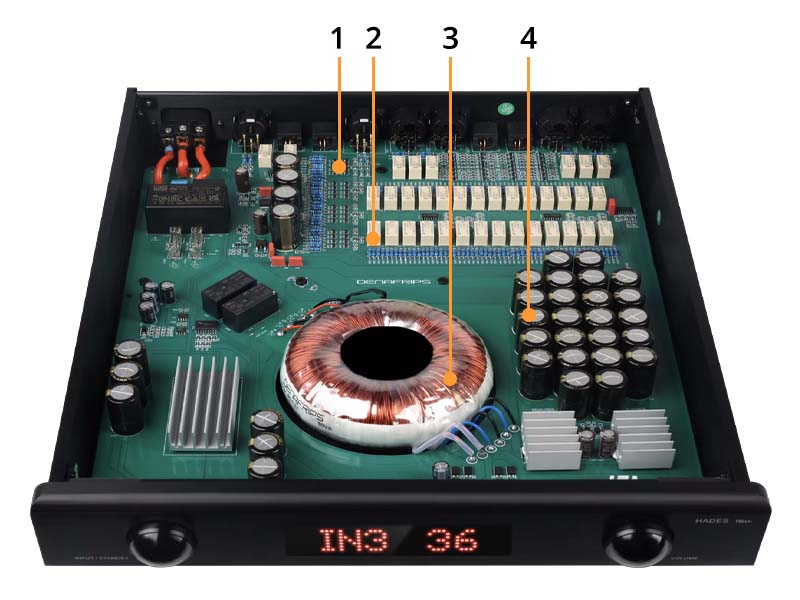

Structure of the Denafrips Hades 15TH
#1 Discrete Class A gain
The gain is achieved using a network of resistors and balanced transistors.
#2 Attenuator
Relay with 60 steps controlled by microcontroller (CPU).
#3 Proprietary Type-O Transformer
This is not a universal transformer, but one specially designed for the Class A architecture and high-precision components of this preamplifier. This design prevents performance losses caused by “excessive or insufficient power supply,” ensuring that every unit of electrical energy is used precisely for signal amplification.
#4 Low-noise linear power supply capacitors
A set of custom-made low-noise linear capacitors suppresses ripple interference from the power supply source; combined with a linear power supply architecture, it reduces power supply noise to an extremely low level.

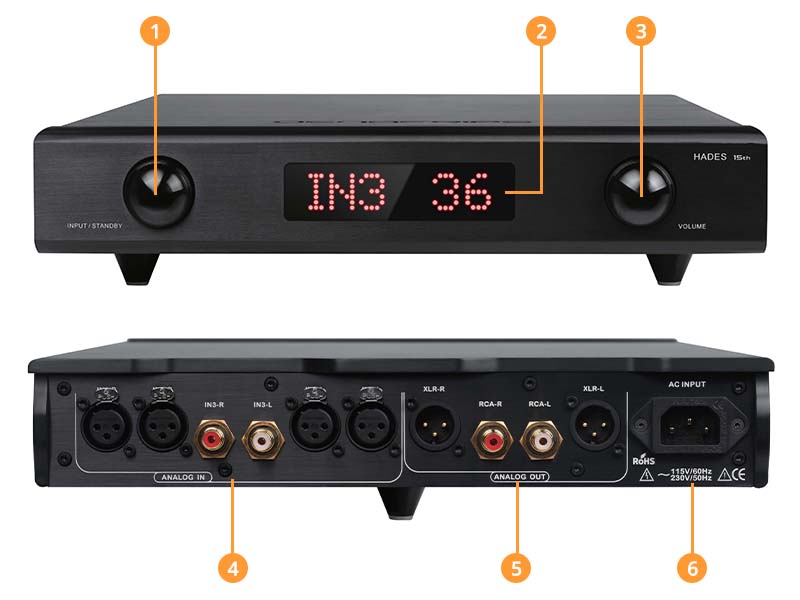

Denafrips Hades 15TH overview
| 1 | Input selection / ON-OFF button |
| 2 | Screen |
| 3 | Volume control |
| 4 | Analog inputs: 1x RCA / 2x XLR |
| 5 | Analog outputs: 1x RCA / 1x XLR |
| 6 | 115V/230V AC power port |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Discrete balanced preamplifier |
| Architecture | Pure class A |
| Attenuator | Microprocessor-controlled 60-step relay attenuator |
| Inputs | 2x Balanced stereo XLR 1x Single-ended stereo RCA |
| Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR |
| Input impedance | Single-ended: 12.2kΩ Balanced: 60kΩ |
| Output level | RCA: 2Vrms XLR: 4Vrms |
| Output impedance | Single-ended: 200Ω Balanced: 400Ω |
| Gain | Unit gain, 0dB |
| Frequency response | 10Hz - 85kHz (-0.3dB) |
| THD+N | 0.00045% |
| SNR | 122dB |
| Dynamic range | > 121dB |
| Crosstalk | -110dB |
| General | |
|---|---|
| Supply voltage | 100-240VAC 50/60Hz |
| Consumption | 25W |
| Color | Silver |
| Dimensions | 322 x 392 x 74mm |
| Weight | 9kg |
| Package | 1x Denafrips Hades 15TH 1x Remote control |
