The Fosi Audio ZP3 is a balanced preamplifier based on NE5532 AOPs. It offers interference-free sound reproduction over a wide dynamic range, minimizing ground loop effects. The ZP3 is ideally suited to audiophile and professional use, given its performance and connectivity, including TRS/XLR combo jack inputs and a balanced XLR output. In addition, there are controls for low and high tones and channel balance, for tailor-made rendering. Three additional features are also available. These include a subwoofer output (20Hz-200Hz) for installation of a 2.1-channel system, as well as an XLR/RCA frequency crossover switch (20Hz-20kHz / 80Hz-20kHz / 120Hz-20kHz) and a bypass mode switch. All in all, the ZP3's performance and functionality make it the preamplifier of choice.

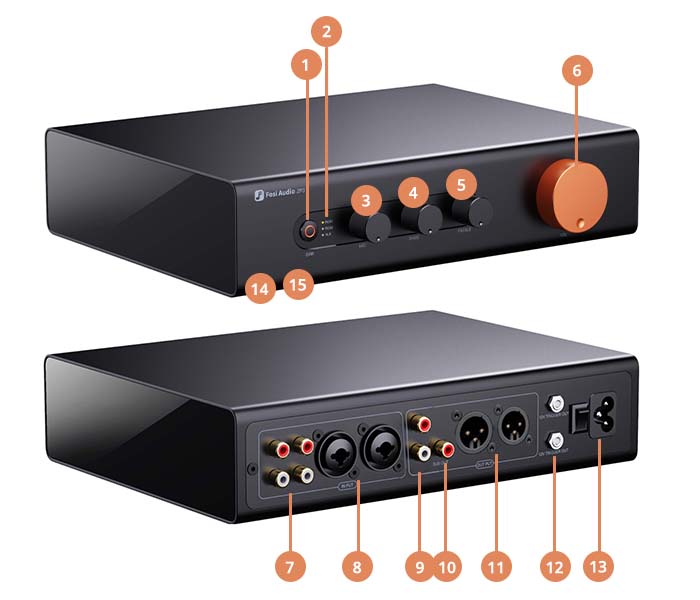

1 | Power / Input selection |
2 | Input indicator |
3 | Channel balance adjustment |
4 | Bass control |
5 | Treble adjustment |
6 | Volume control |
7 | 2x RCA input |
8 | Balanced TRS/XLR combo jack input |
9 | RCA output |
10 | SUB output |
11 | XLR output |
12 | Trigger IN/OUT |
13 | Switching on / IEC power supply |
14 | Bypass switch |

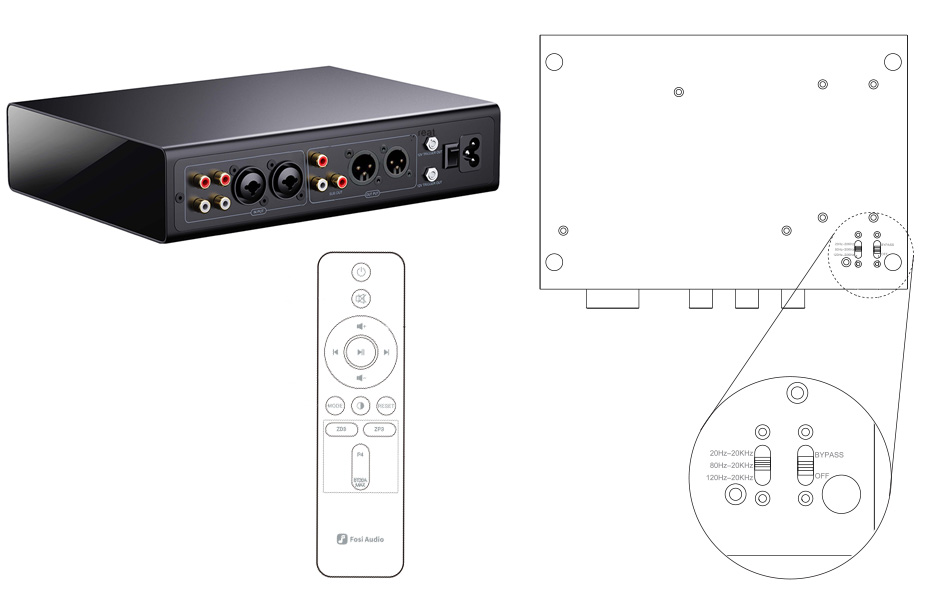

15 | RCA/XLR frequency cut-off switch |
Technical characteristics
Specifications | |
---|---|
Product type | Preamplifier |
AOP | NE5532 |
Inputs | 2x Single-ended stereo RCA 1x Balanced Jack TRS/XLR combo |
Outputs | 1x Single-ended stereo RCA (20Hz-20kHz / 80Hz-20kHz / 120Hz-20kHz) 1x Balanced stereo XLR (20Hz-20kHz / 80Hz-20kHz / 120Hz-20kHz) 1x Subwoofer output (RCA) (20Hz-200Hz) |
XLR balanced output specifications | |
---|---|
SNR | ≥ 112dB |
Dynamic range | ≥ 112dB |
THD+N | ≤ 0.0007% |
Noise floor | ≤ 6uV |
RCA output specifications | |
---|---|
SNR | ≥ 115dB |
Dynamic range | ≥ 115dB |
THD+N | ≤ 0.0008% |
Noise floor | ≤ 4uV |
General | |
---|---|
Power supply | AC 100-240V |
Package | 1x Fosi Audio ZP3 preamplifier 1x IR remote control 1x 12V trigger cable 1x Mains power cable |
Input | RCA |
Input | XLR |
Input | Jack 6.35mm |
Output | XLR |
Output | RCA |
Output | Subwoofer |
Color | Black |
Class | N/A |
Remote Control | Yes |
