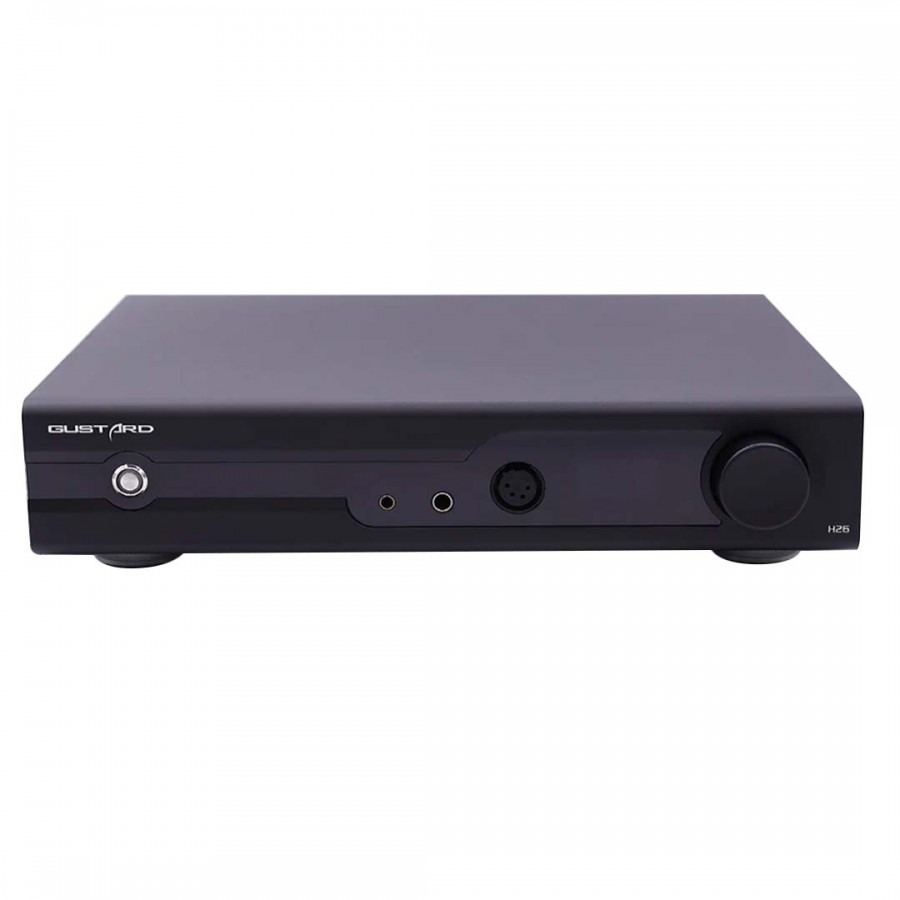

GUSTARD H26 Preamplifier Headphone Amplifier Black

Main picture of GUSTARD H26 Black
With its H26, Gustard unveils a class-A balanced audiophile preamplifier/headphone amplifier featuring discrete components. It features 8 pairs of power transistors, two dual LME49720 AOPs, two toroidal transformers, a relay volume control matrix and a balanced architecture.

No customer reviews yet, login to write a review.

By buying this product you get 114 loyalty points


Reference : 18645
New product

1 149,00 €tax incl.

957,50 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 01-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Gustard H26 Discrete Balanced Class A Preamplifier Headphone Amplifier Black

Gustard H26 picture

With its H26, Gustard unveils a class-A balanced audiophile preamplifier/headphone amplifier featuring discrete components. It features 8 pairs of power transistors, two dual LME49720 AOPs, two toroidal transformers, a relay volume control matrix and a balanced architecture. In terms of aesthetics, this device features beautiful curves and solid materials.

Gustard H26 : OPA LM49720

The Gustard H26 benefits from two LM49720 ultra-low distortion, ultra-low noise dual OPAs for its preamplifier stage. These OPAs are specially designed for audiophile and professional applications. The preamplifier outputs can be switched off to quickly change the use of the H26 between headphones and loudspeakers.

Gustard H26 OPA LM49720 picture

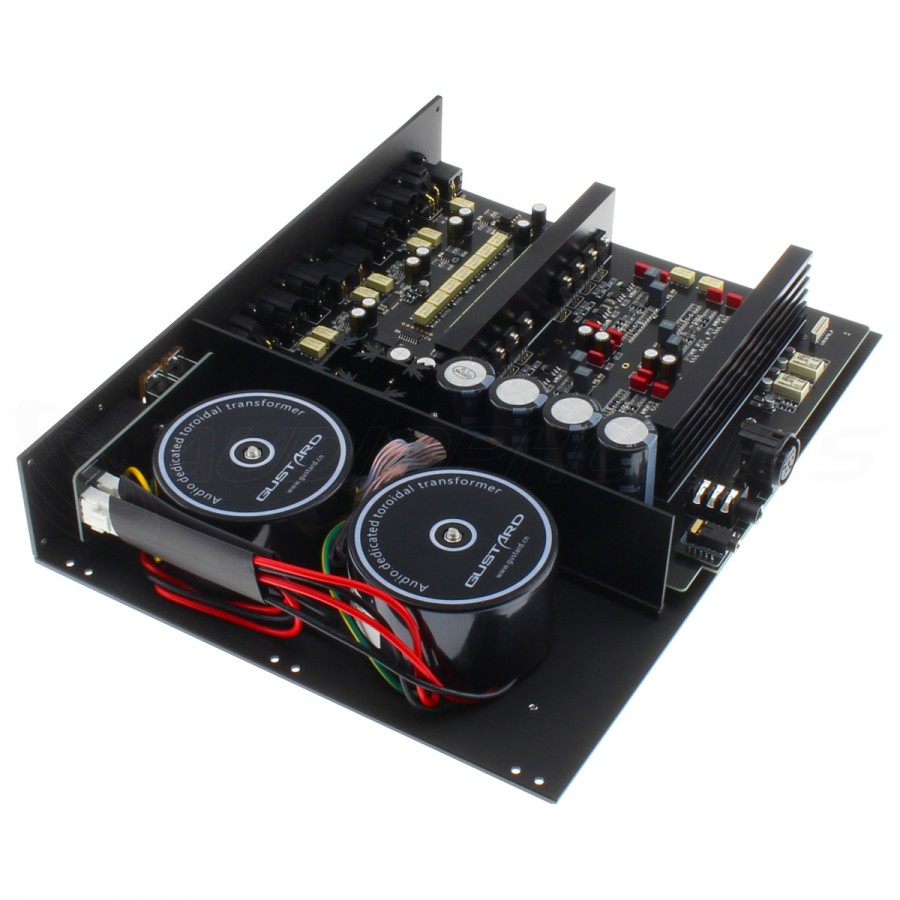

Photo of Gustard H26 toroidal transformers

Gustard H26: a power supply with two 50W toroidal transformers

The Gustard H26 preamplifier/headphone amplifier uses no less than two 50W toroidal transformers. Each transformer is dedicated to one channel. These provide a clean, stable power supply for the H26, with the help of several low-noise voltage regulators and Nikon Nichicon capacitors. Note that the power supply to the headphone amplifier section can be switched off, allowing the H26 to operate as a pure preamplifier.

Gustard H26: a powerful headphone amplifier

With its 3 headphone outputs, the Gustard H26 lets you enjoy most headphones on the market. Its powerful headphone output makes it compatible with even the most difficult to drive headphones, with impedances up to 600 ohms.

Photo of Gustard H26 headphone measurements

Gustard H26 overview

Diagram of Gustard H26 connectors
1Start button
2Balanced 4.4mm headphone output
36.35mm headphone output
4XLR 4-pin output
5IR receiver for remote control
6Display
7Volume control
8XLR balanced stereo input
9XLR balanced stereo input
10Stereo RCA input
11Balanced XLR output
12Stereo RCA output
13Voltage selector 110-220V AC
14IEC power supply / Fuse slot / Power switch

Technical characteristics

Specifications
Product typePreamplifier
Headphone amplifier
OPALME49720
Inputs1x RCA stereo
2x XLR balanced
Outputs1x Stereo RCA output
1x XLR stereo balanced output
1x 6.35mm headphone output
1x Balanced headphone output 4.4mm jack
1x XLR 4-pin balanced headphone output
Input sensitivityRCA : 2-3Vrms
XLR : 4-6Vrms, max. 12Vrms
Input impedanceRCA : 4 KΩ
XLR : 8 KΩ
PREAMPLIFIER SECTION MEASUREMENTS
Output impedanceRCA : 100Ω
XLR : 100Ω
Frequency response20-80kHz / -0.1dB
SNR> 123dB
Crosstalk< -123db 1khz
THD+N< 0.0002%
IMD< 0.0003%
HEADPHONE AMPLIFIER SECTION MEASUREMENTS
Output impedance6.35mm jack: 0.05Ω
Balanced outputs (jack 4.4 and XLR 4 pins): 0.1Ω
Frequency response20-80kHz / -0.1dB
SNR20-80kHz / -0.1dB
Crosstalk< -120db 1khz
THD+N< 0.0005% @ 9700mW 32Ω load
IMD< 0.0005% @ 9700mW 32Ω load
Max. undistorted output power6000mW @32ohm load
Max. output power12000mW @32ohm load (THD=1%)
Load power (per channel)64Ω 7350mW
150Ω 3125mW
300Ω 1576mW
600Ω 788mW
General
Power supply100-240V AC (Selector on rear panel)
Power consumption< 30W
Dimensions330x 260 x 65mm
ColorBlack
Gross weight7Kg
Package1x Gustard H26 preamplifier/headphone amplifier
1x Power supply cable
1x Remote control
Gustard H26 measurements

Data sheet
InputRCA
InputXLR
OutputXLR
OutputRCA
ColorBlack
ClassClass A / AB
Remote ControlYes
