SILKLINE ZUKI I Balanced preamplifier / DAC 32bit / 192kHz USB XMOS

SILKLINE ZUKI I Préamplificateur symétrique / DAC 32bit / 192kHz USB XMOS
Silkline's Zuki I combines the functions of preamplifier and DAC. The preamplifier function has a balanced and unbalanced output and a voltage gain of 12dB. High-performance ADI AD1955 conversion chip decodes up to 32-bit / 192Khz PCM.

No customer reviews yet, login to write a review.

By buying this product you get 38 loyalty points


Reference : 17844
New product

389,00 €tax incl.

324,17 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 05-12-2023.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

SILKLINE ZUKI I

Balanced Preamplifier / DAC AD1955 32bit / 192kHz USB XMOS

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS

Silkline Zuki I combines the functions of preamplifier and DAC. The preamplifier function has a balanced and unbalanced output and a voltage gain of 12dB. High-performance ADI AD1955 conversion chip decodes up to 32-bit / 192Khz PCM. Moreover, it is equipped with an XMOS XU208 USB interface, an 8-core processor working with FGPA, and a CS8416 SPDIF receiver. On the input side, the Zuki I offers a full range of connectors, while outputs include RCA and balanced XLR.

Overall, the Zuki I delivers excellent performance and transparent sound. Its simple, elegant appearance makes it easy to integrate into any Hi-Fi audio system.

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS

Quality components

Silkline chose to integrate top-quality, market-renowned components to position the Zuki I as a high-resolution audio preamplifier / DAC.

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS

Balanced preamplifier with source selection

With a gain of 12dB, this SilkLine preamplifier lets you balance an analog input signal on an RCA input, thanks to its balanced XLR output. On the front panel, 6 buttons allow you to select the input source, whether digital (USB-B / AES/EBU / Toslink / Coaxial) or analogue (4x RCA). The Zuki I also features an IR remote control for distant audio control.

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS
SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS

A high-performance volume controller and OPA

Silkline has equipped the Zuki I with a CS3310 volume controller featuring a precision level of 0.5dB and an ultra-low distortion level of 0.001%.

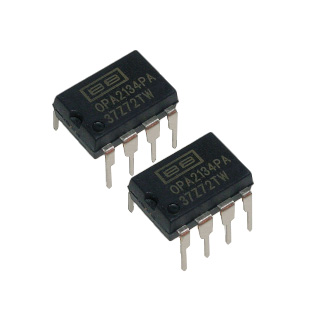

Two Burr Brown OPA 2134PA amplify the signal. They combine the precision and low noise of bipolar transistors with the speed and sound quality of JFETs. This results in very good THD, low noise and low power consumption. Integrated in DIP8 format, they are easily replaceable.

XMOS XU208 USB interface

The Zuki I is equipped with a USB-B input and a second-generation USB XMOS interface that supports 32bit/192Khz PCM and is USB Hi-RES Audio 2.0 certified. This 8-core USB interface provides fast signal processing of up to 1000Mps.

In addition, the USB interface supports the Foobar ASIO driver, making it compatible with a wide range of devices.

Please note: the Silkline USB interface requires a driver to be installed on your source device. (SilkLine or Foobar ASIO driver)

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS
SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS

An oversampling, SA-CD-compatible D/A conversion chip

SilkLine chose to integrate a high-performance, stereo ADI AD1955 DAC chip. This DAC chip features an up to eight times oversampling function, considerably reducing the noise generated by D/A conversion. It also supports the SA-CD (Super Audio CD) format, a high-end CD format whose standard is DSD64.

A professional SPDIF receiver

The ZUKI I features a CS8416 SPDIF audio receiver. This receiver automatically adapts to different sampling rates and supports up to 24bit / 192Khz. This receiver features extremely low jitter of less than 200ps and is connected to three different types of input: an AES/EBU input, two Toslink optical inputs and two coaxial inputs.

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS

A complete range of connectors

SILKLINE ZUKI I Préamplificateur symétrique / DAC AD1955 32bit / 192kHz USB XMOS
1USB-B input
2AES/EBU input
32x Toslink optical input
42x SPDIF Coaxiale input
54x RCA analog input
6Stereo RCA output
7Balanced XLR output
8IEC power supply / Power switch ON/OFF

Technical characteristics

Specifications
Product typeBalanced preamplifier
DAC
Inputs1x USB-B
1x AES/EBU
2x Optical Toslink
2x Coaxial
4x RCA
Outputs1x RCA
1x Balanced XLR
DAC chipADI AD1955
USB interfaceXMOS XU208
OPAOPA 2134PA
Supported sample ratesUSB : 32bit / 192Khz
Coaxial : 24bit / 192kHz
Optique : 24bit / 192kHz
AES/EBU : 24bit / 192kHz
Frequency response10Hz - 100kHz ± 1db
Input sensibility500mV
Output level2V
Preamplifier gain12dB
SNR> 88dB
Distorsion< 0.05%
Remote control
Display screen
General
Power supplyAC 220V 50hz (Fuse specification : T500mAL 250V)
Standby power consumption< 1W (CE standard)
Dimensions430 x 48 x 280 mm
Weight4kg
ColorBlack
Package1x SilkLine ZUKI I
1x IR remote control
1x Power cable

Data sheet
InputOptical
InputUSB
InputSPDIF
InputAES/EBU
InputRCA
OutputRCA
OutputXLR
DAC / ADC ChipAD1955
Max sampling rate192kHz
ColorBlack
ClassN/A
NetworkingNo
Remote ControlYes
