le bp est indique comme 2NO 2NC je pensais qu'il possédait donc deux circuits indépendants , hors après de multiples test il n'y a qu'un seul contact NO qui est repris sur les fils connectés et sur les cosses a souder, mais c'est le même contact. les deux autres fils servent a la led 12v.
This review has been posted for Aluminium Push Button and Pre-Welded Connector with Blue Light Circle Ø19mm Black
New Customer?
Create your account 0
0 item(s) - 0,00 € No products
To be determined Shipping
0,00 € Tax
0,00 € Total
Quantity
Total
Product successfully added to your shopping cart
There are 0 items in your cart. There are 0 items in your cart.
Total

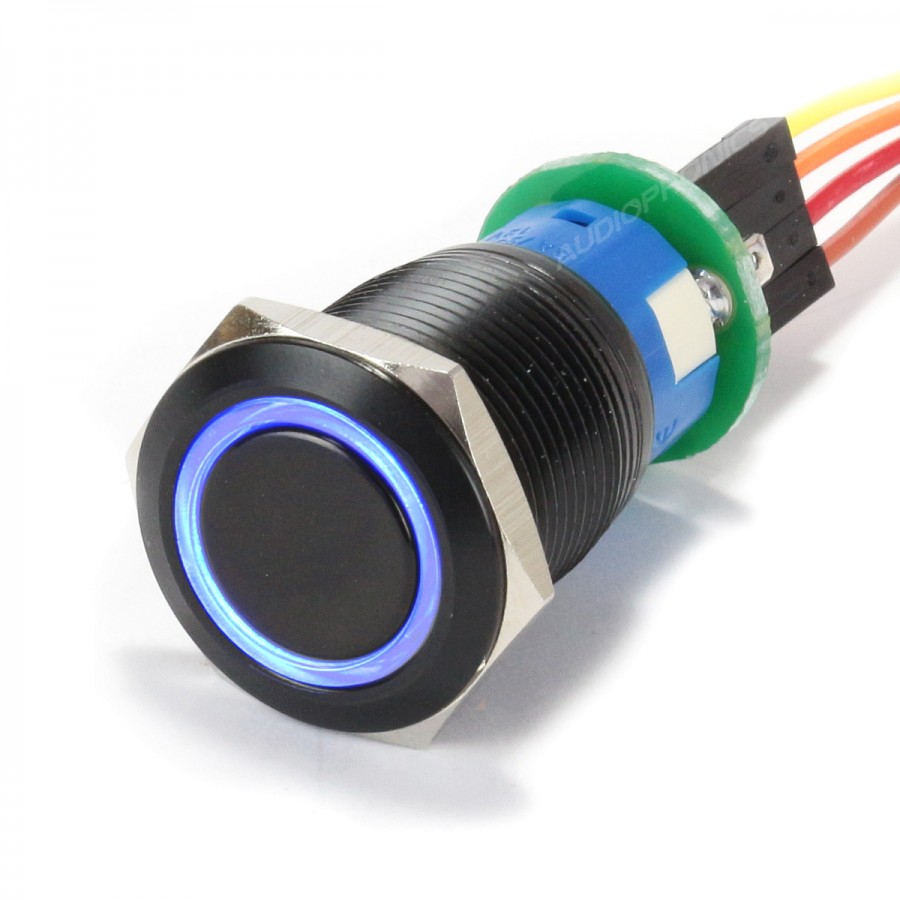

Aluminium Push Button and Pre-Welded Connector with Blue Light Circle Ø19mm Black
No loyalty points for this product.
Reference : 11061
New product
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Here is a switch / button monostable (1 position only), with its connection son already fixed on PCB welded and ready to be connected. Just connect the connectors directly to the PIN of your PCB or other. When a voltage is applied to the cables corresponding to the LED, a blue luminous circle appears.
Perfectly suited for the I-Sabre V3 DAC or the ATX power control for Raspberry Pi.
Technical characteristics
| Specifications | |
|---|---|
| Button material | Aluminium |
| Color | Black |
| Wires length | 17mm |
| Dimensions | 40x22mm |
| Drilling diameter | 19mm |
| Maximum panel thickness | 14mm |
| Protection degree | IP67, IK10 |
| Durée de vie | Environ 50 000 cycles |
| Light circle | Blue |
| Contact | 1NO1NC/2NO2NC |
| Color | Black |
| Diameter (mm) | 19.0 |
| Material | Metal |
| Structure | Aluminium |
| LED Color | Blue |
| Light symbol | No |
| Cylindrical head | No |
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Only registered users can post a review. Log in or create an account .
Average votes 4.0 / 5 3 reviews | Why write products reviews ? You can share your feelings about products and help other people by sharing your experience |
Note :
2/5
Date :
2020-07-26
philippe L.
Note :
5/5
Date :
2018-10-14
Marc P.
