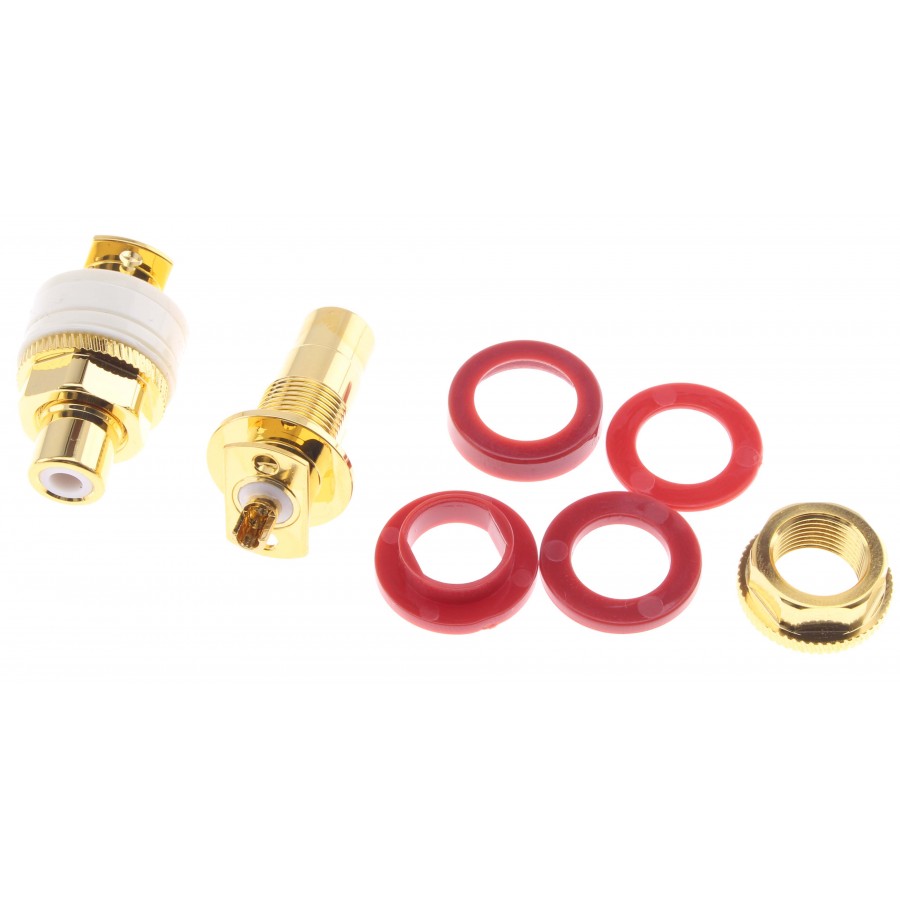

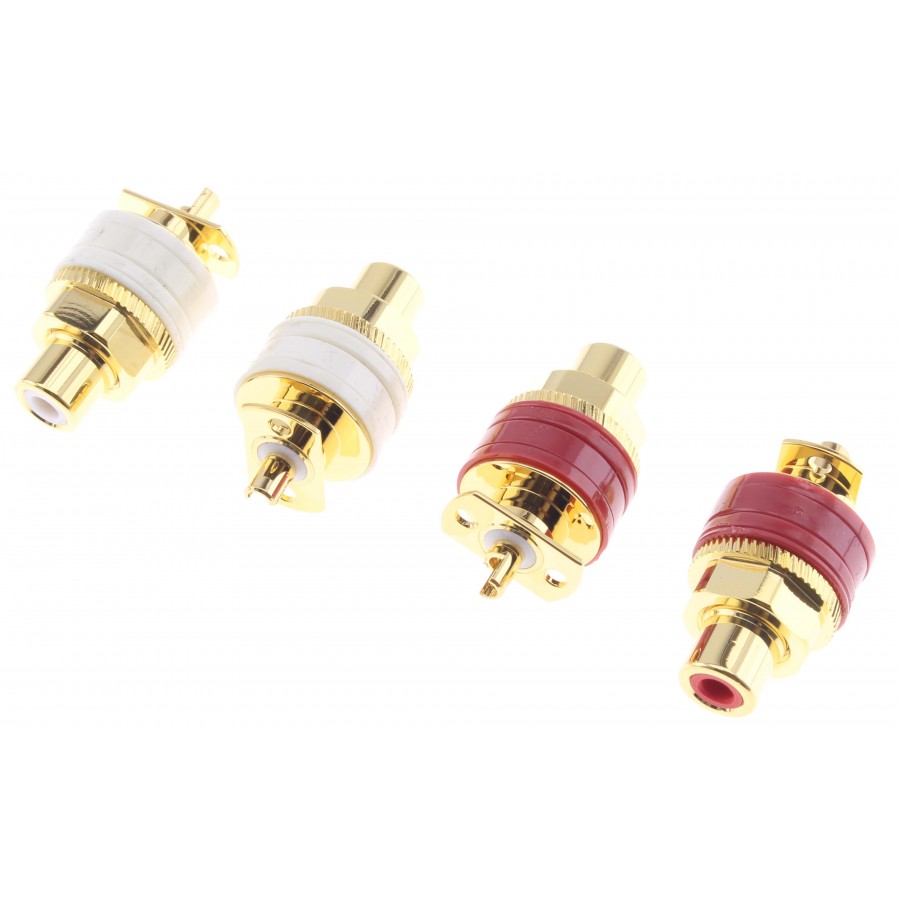

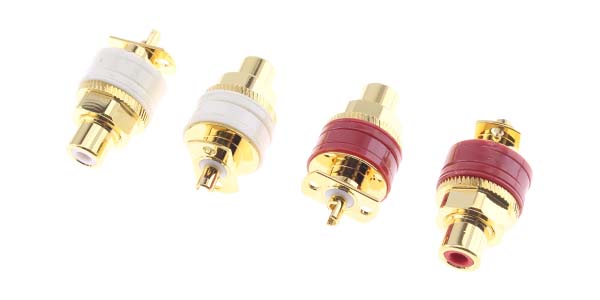

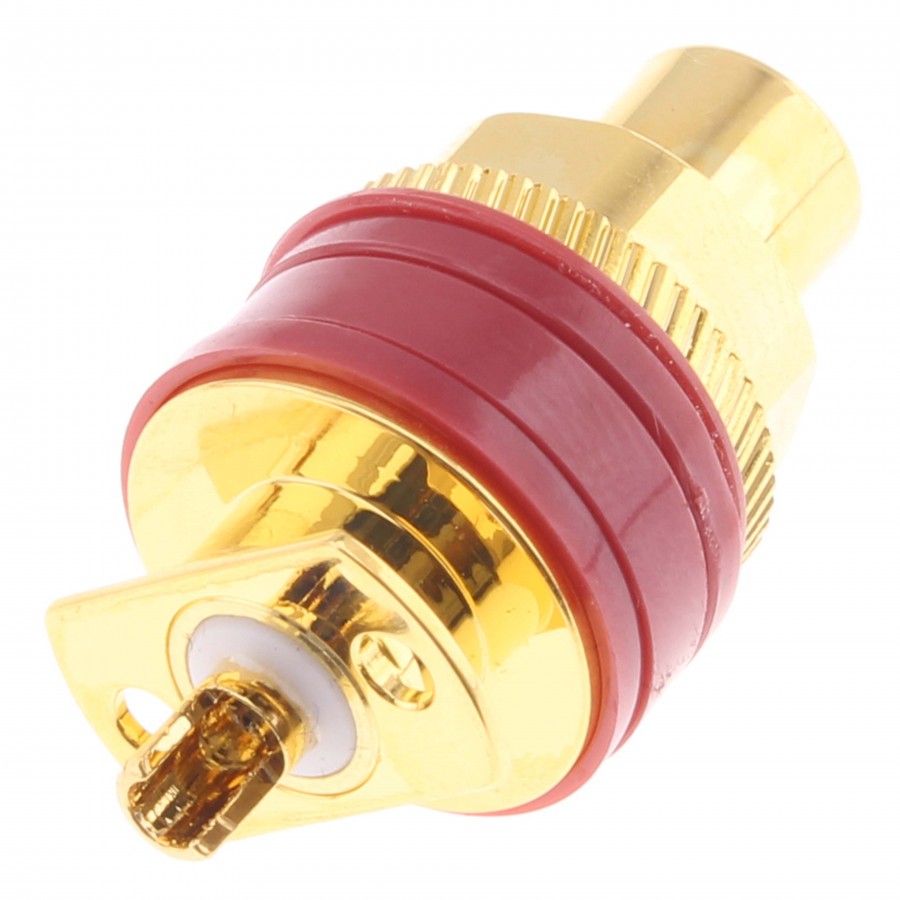

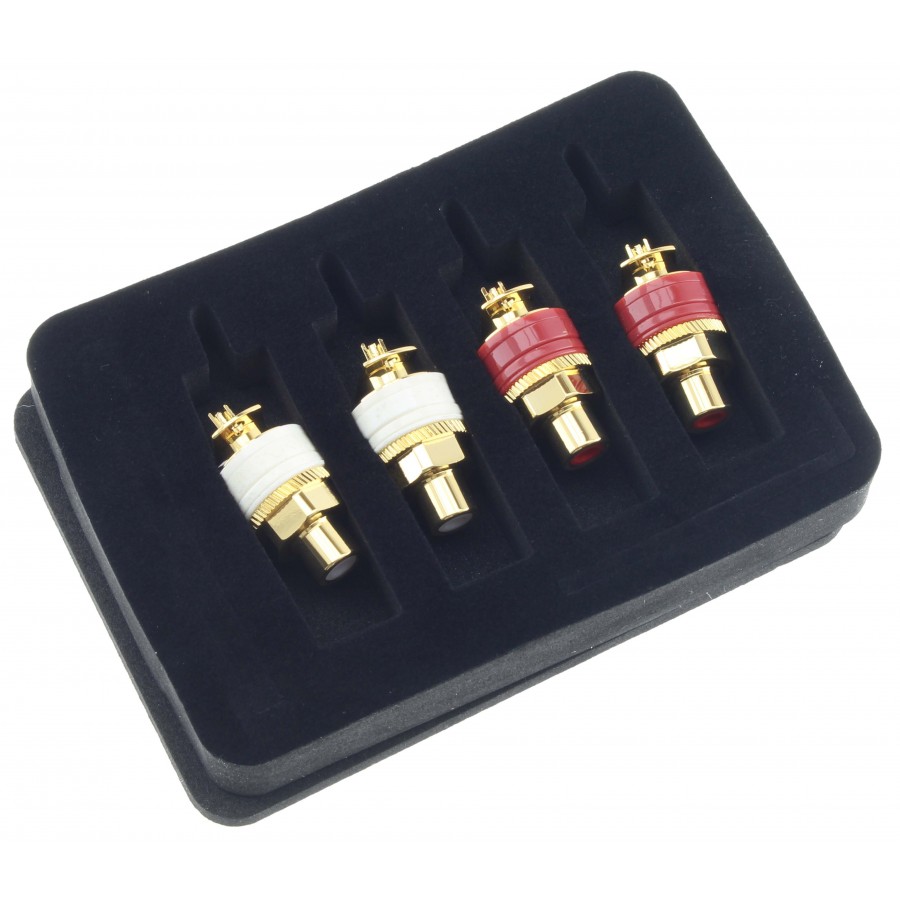

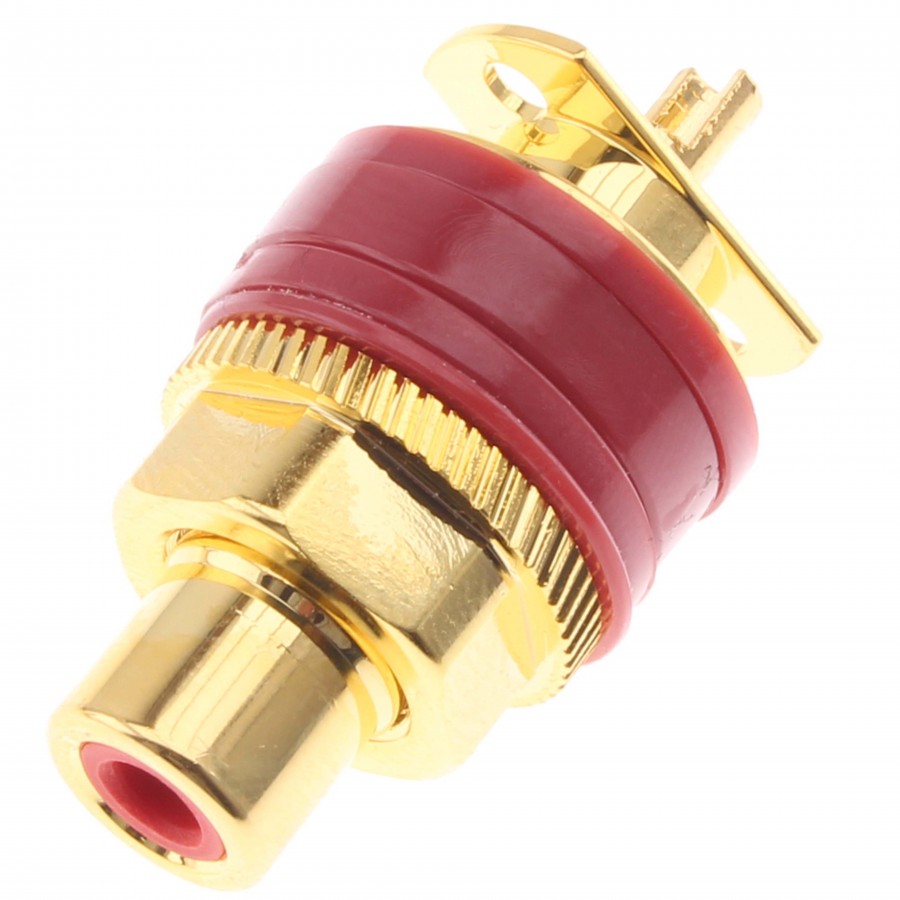

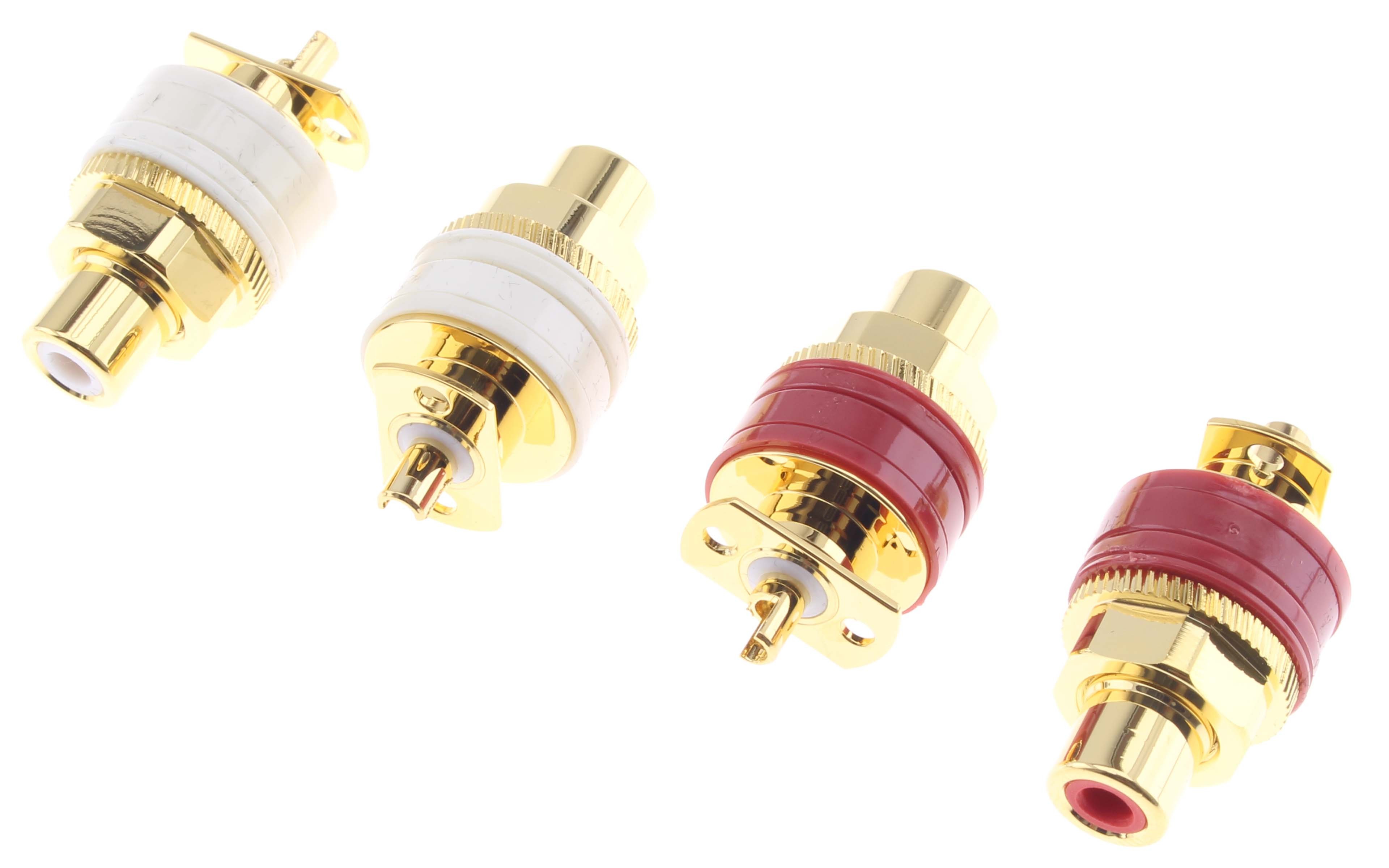

RCA Plugs Silver / Gold Plated Pure Copper (Set x4)
The RC-101G from Viborg are excellent RCA subbases, ideal for very high quality DIY assemblies. These incorporate a pure copper conductor to provide optimum signal conductivity. In the same perspective of maximizing the signal quality but also protecting the connector from oxidation, the contacts of the connectors have a triple plating Copper OFC, Silver and Gold. In addition, the connector has Nylon and Teflon insulation to protect the signal from potential interference.
Specifications | |
---|---|
Conductor material | Pure copper |
3 Layered plating | 1. OFC Copper 2. Silver 3. Gold 24K 5µ |
Body material | Brass nut & Chrome plated cap |
Insulation | Nylon Teflon |
Connection type | To solder |

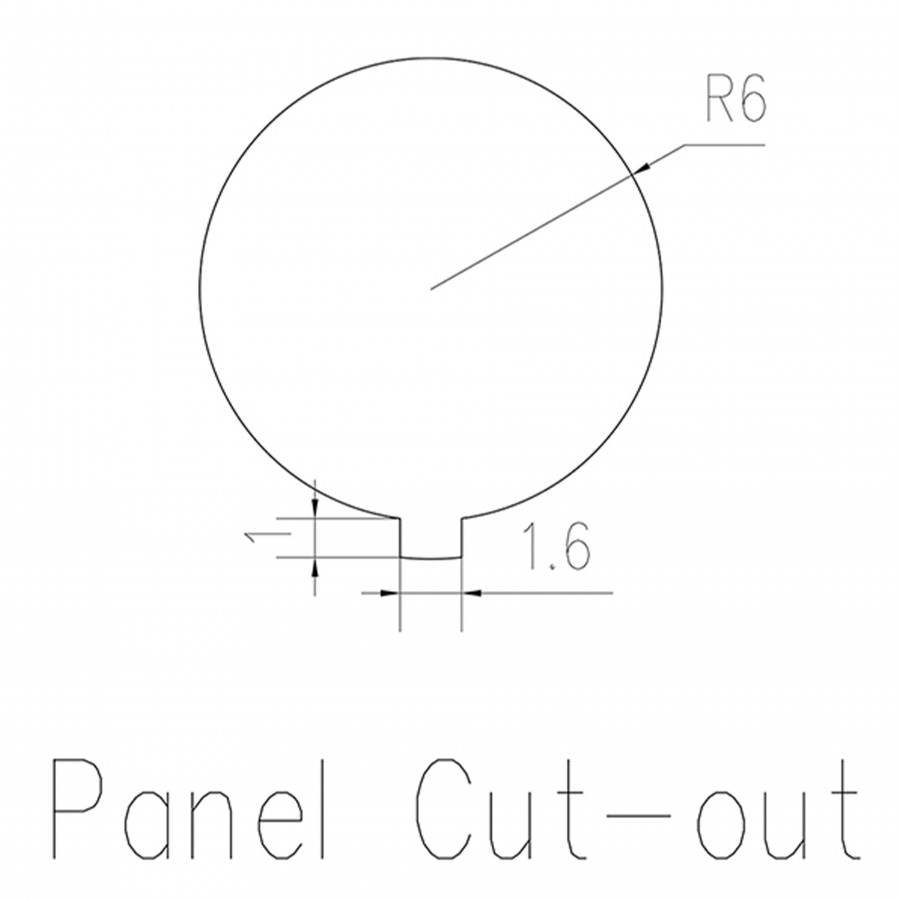

Drilling diameter | 12mm |
Body dimensions | Ø17mm |
Total length | 30mm approx. |
Mounting type | To weld |
Max panel thickness (mm) | 5.5 |
Contacts Material (Connector) | Copper |
Contacts Plating (Connector) | Gold |
Contacts Plating (Connector) | Silver |
