[GRADE S] RAMM AUDIO AMADEUS 5 MK2 Speaker Cable OCC Copper 6x1.5mm² Ø16mm 90cm

RAMM AUDIO AMADEUS 5 MK2 Speaker cable OCC Copper 11AWG Ø16mm
Refurbished product - Grade S

Designed according to extremely strict specifications, the Amadeus 5 Mk2 cable is dedicated to wiring (& bi-wiring) loudspeakers and to power cables.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 17462
Refurbished

49,41 €tax incl.

41,18 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade S

Cable drop of 90cm.

Ramm Amadeus 5 Mk2

ramm-audio-amadeus-5-mk2-cable-hp-cuivre

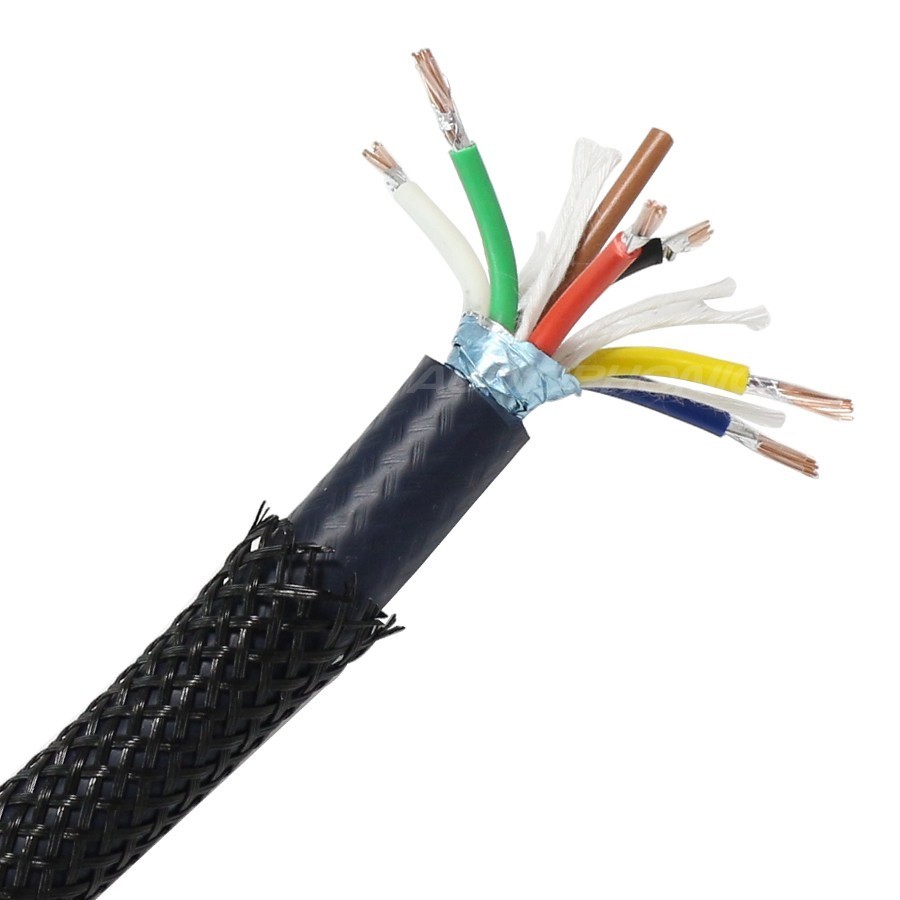

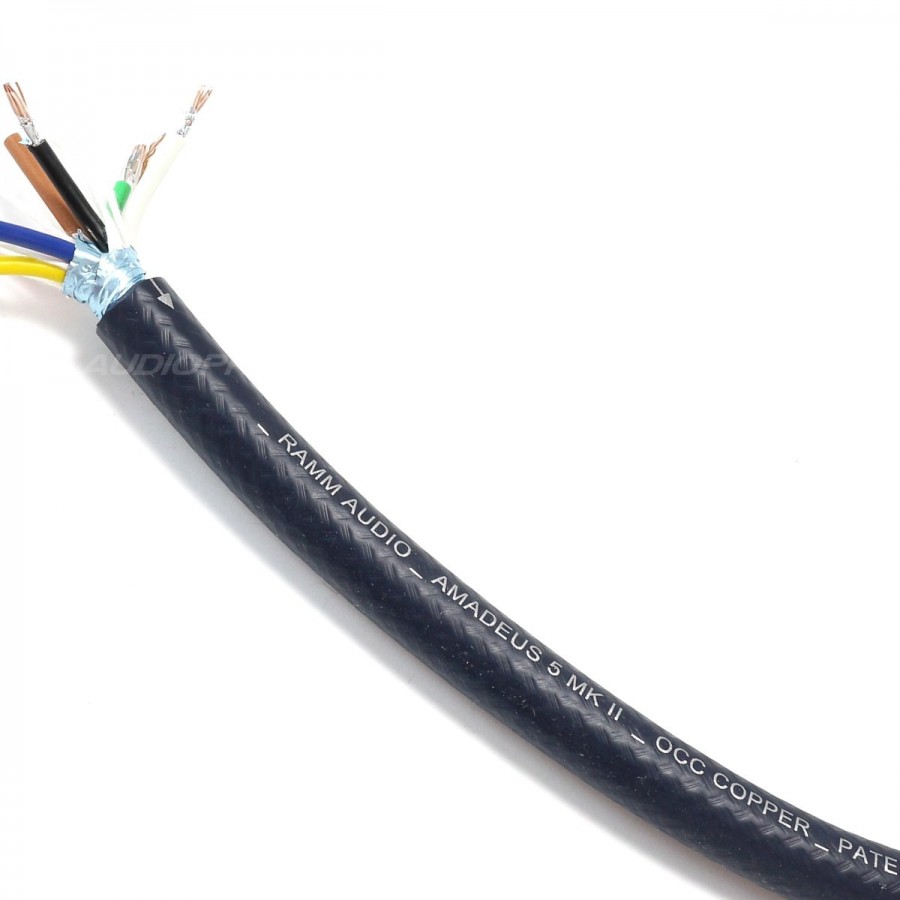

Designed according to extremely strict specifications, the Amadeus 5 Mk2 cable is dedicated to wiring (& bi-wiring) loudspeakers and to power cables. This speaker cable / power offers superior performance thanks to the use of materials and manufacturing methods that are rare in this price range. The conductors are six core pure copper OCC and its insulating structure (Air Geometry Design) uses air with a pattern designed by the mark itself.

Structure%20c%C3%A2ble%20AMADEUS%205%20M


The connectors are arranged so that the wiring of your devices according can be "tuned" according to their strengths and their weaknesses. One can dedicate 2x2 conductors to the positive and 2x1 conductor to the negative to obtain a rich and balanced sound stage in a bi-wiring context. Conversely, less symmetrical arrangements may also be made for filter / crossover.

In addition to the six main strands of 16AWG there is a seventhdriver designed to connect the mass and thus avoid most noise.


Definitely audiophile, Amadeus cable 5 Mk2 offers pure performance through high quality multiple conductors and a protective screen shield Aluminum / PP / PVC.

All conditions are met for optimal resistance to interference with minimal distortion.

Bi-wiring amplifier

Amadeus 5 wiring diagram

Wiring for AC outlet

Amadeus 5 wiring diagram sector
Specifications
TypeCable sold by the meter
ConductorsPure copper OCC 11AWG (4.17mm²)
Cores6 cores made from 6x7 conductors
InsulatingDesigned by Ramm / air geometrical structure and polypropylene
Diameter per conductorApprox. 2mm
Total Diamtètre16mm
Common useSpeaker câble / Double speaker cables / power cable
PVC bodyBraided Nylon & PVC Body Blue

Data sheet
Diameter (mm)16.0
Length (m)0.9
Insulation materialPE
ShieldingYes
Conductors material (Cable)Copper
Refurbished GradeGrade S
