Refurbished product - Grade B
Scratches on the top of the device.
DAC ES9039MSPro XMOS XU316 11x OPA1612 Bluetooth 5.0 aptX HD LDAC 32bit 768kHz DSD512 MQA
With its D400ES DAC, SMSL is back on the scene by adopting the latest high-end DAC chip ES9039MSPro from ESS. Associated with very high quality audio circuits and components, the D400ES offers first class performances.
A DAC that is also versatile, providing a complete connectivity and Bluetooth 5.0 reception, covering the vast majority of uses.
D400ES
D400EX
Architecture
SDAA
SDAA
MQA Decoder
Yes (via USB, Optical, Coaxial)
Yes (via USB, Optical, Coaxial)
DAC Chip
1* ES9039MSPro
1* AK4191 + 2* AK4499EX
OPA
11* OPA1612A
5* OPA1612A + 4* LME49720
THD+N
-124dB @ 4Vrms
-125dB @ 5.2Vrms
-123dB @ 4Vrms
-123.5dB @ 4.7Vrms
Max output level
4.7Vrms
5.2Vrms
The SMSL D400ES is equipped with the latest generation of ESS digital/analog converter with the 32bit 8 channel ES9039MSPro chip, a new reference in the world of high-end DACs. It uses ESS' patented Hyperstream® IV technology. Thanks to the QUAD modulator architecture, it offers unprecedented sound quality and audio specifications, including excellent dynamic range and THD+N. It also now incorporates an MQA decoder.
The USB input of the D400ES embeds a XMOS XU316 USB interface. This particularly powerful microcontroller allows a fast and efficient processing of audio streams via USB. It also guarantees the support of PCM signals up to 32bit 768kHz and DSD up to DSD512.
With its ES9039MSPro chip, the D400ES becomes capable of decoding and playing the MQA (Master Quality Authenticated) format. This type of file offers a high sound quality, as close as possible to the original studio recording. Each track is also authenticated by the artist, producer or copyright holder. This type of format is notably used on the Tidal streaming platform. In addition, MQA-CD is also supported, allowing this type of file to be played from a CD player.
In addition to its already complete connectivity, the D400ES integrates a Bluetooth 5.0 receiver from Qualcomm. This one offers the possibility of broadcasting and controlling simply its music in wireless, from a smartphone or a tablet for example. The receiver chip used supports the high-resolution transmission codecs aptX HD and LDAC for a quality sound reproduction in Bluetooth.
The whole D400ES benefits from a quality design, using only components specially selected for their performance. It features an eight-channel parallel circuit with no less than 11 OPA1612 operational amplifiers, the brand's CK-03 clock system for greatly reduced jitter, and a low-noise regulated power supply stage.

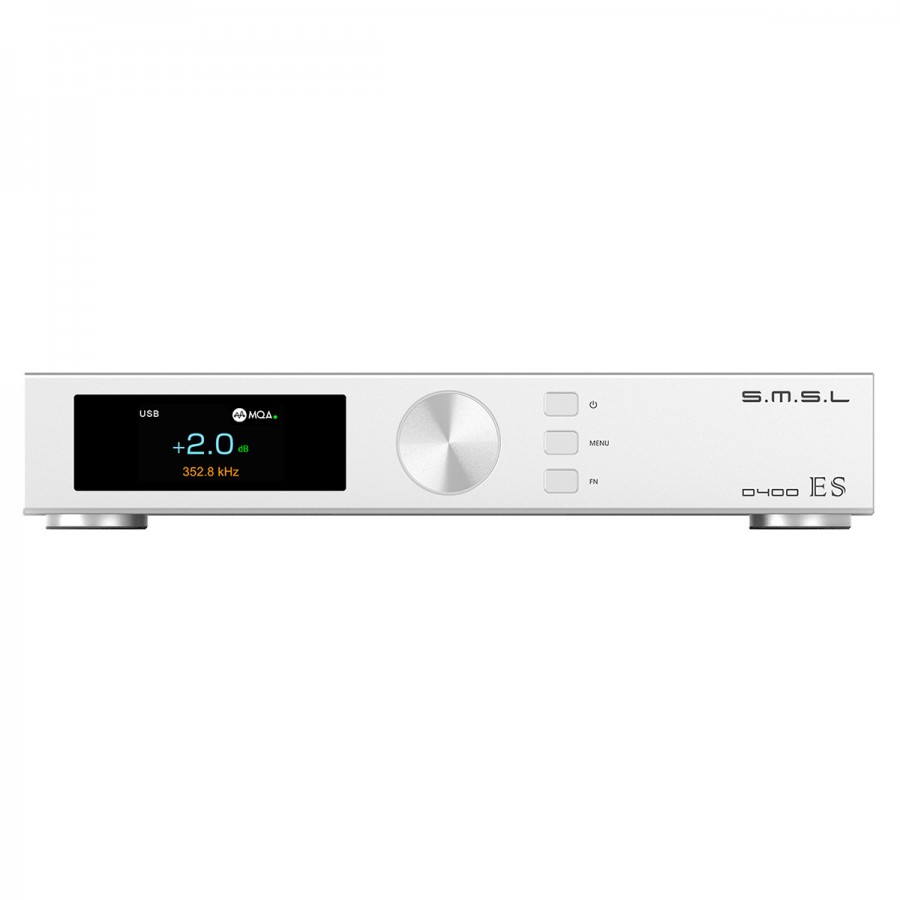

1 | Screen |
2 | Multi-function button |
3 | FN button |
4 | Menu button |
5 | ON/OFF button |

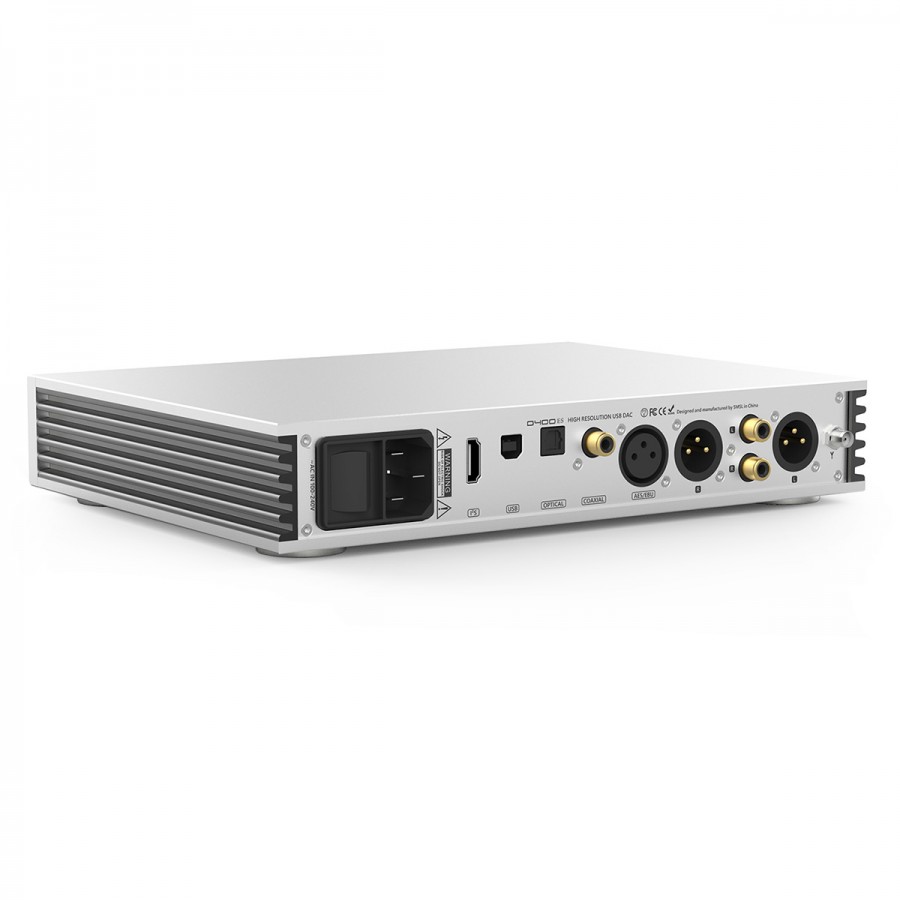

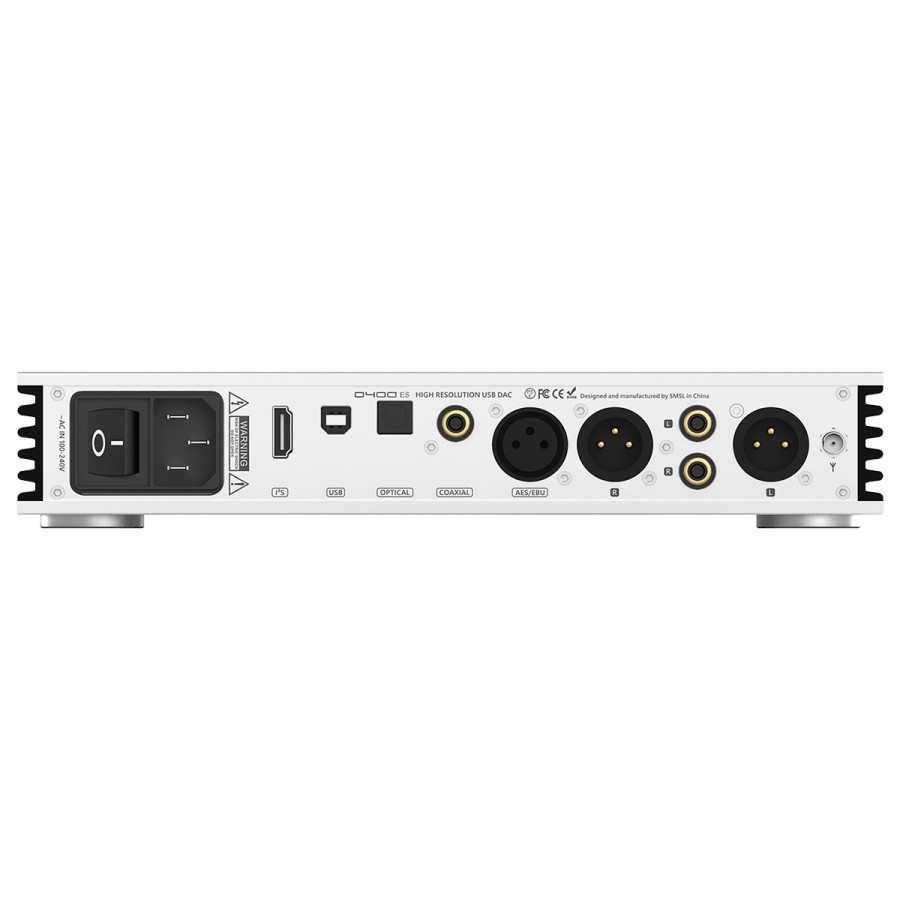

6 | Single-ended RCA output |
7 | Power input and button |
8 | I2S input |
9 | USB-B input |
10 | Optical Toslink input |
11 | Coaxial input |
12 | AES/EBU input |
13 | Balanced XLR output |

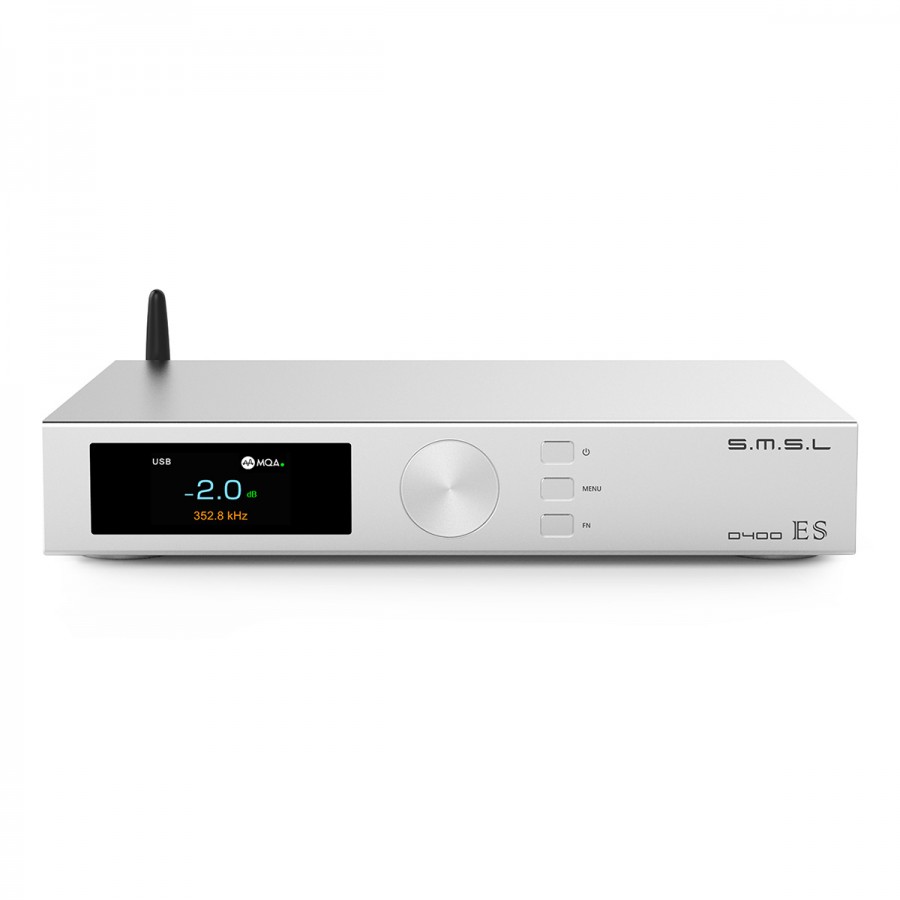

14 | Bluetooth antenna connector |
Specifications | |
---|---|
Product type | DAC |
Inputs | Bluetooth 5.0 1* USB-B 1* I2S via HDMI 1* Optical Toslink 1* Coaxial 1* AES/EBU |
Outputs | 1* Single-eneded stereo RCA 1* Balanced stereo XLR |
DAC chip | ESS ES9039MSPro |
USB interface | XMOS XU316 |
OPA | 11*OPA1612 |
Line out amplitude | XLR : 5.2Vrms RCA : 2.5Vrms |
THD+N | 0.00005% (-125dB)(Un-Weighted) |
Dynamic range | XLR : 133dB RCA : 128dB |
SNR | XLR : 133dB RCA : 127dB |
USB transmission mode | Asynchronous |
USB compatibility | Windows 7 / 8 / 8.1 / 10 Mac OSX 10.6 or later Linux |
MQA decoder | USB Optical Coaxial AES |
MQA-CD decoder | Optical Coaxial AES |
Supported sampligf rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256 Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
Supported Bluetooth codecs | AAC, SBC, aptX, aptX-HD, LDAC |
General | |
---|---|
Supply voltage | 100-240VAC |
Consumption | < 10W |
Standby consumption | < 0.5W |
Dimensions (L*P*H) | 240*188*43mm |
Weight | 1.8kg |
Color | Silver |
Input | Bluetooth |
Input | AES/EBU |
Input | USB |
Input | Optical |
Input | I2S via HDMI |
Input | SPDIF |
Output | XLR |
Output | RCA |
DAC / ADC Chip | ES9039MPro / ES9039MSPro |
Max sampling rate | MQA |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Color | Silver |
Networking | No |
Remote Control | Yes |
Refurbished Grade | Grade B |
