[GRADE S] TOPPING DX3 PRO+ DAC ES9038Q2M NFCA Headphone Amplifier TPA6120A2 Bluetooth 5.0 XMOS 32bit 768kHz DSD512 Black

TOPPING DX3PRO+ DAC ES9038Q2M NFCA Headphone Amplifier Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512 Black
-6%
Refurbished product - Grade S

Topping unveils its DX3Pro+, a direct evolution of the excellent DX3Pro, an excellent compact DAC also offering headphone amplification and preamplification functions. Embarking in particular an ES9038Q2M conversion chip and a XMOS XU208 USB interface, it ensures a particularly precise and lively sound reproduction. It also benefits from a Bluetooth receiver, practical for broadcasting music remotely, from a smartphone for example.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 16404
Refurbished
Limited special offer

165,84 €

-6%

155,84 €tax excl.

Including 0,04 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade S

Product reconditioned by the manufacturer, in perfect condition.

Topping DX3Pro+

DAC ES9038Q2M NFCA Headphone Amplifier Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512 Black

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

Topping unveils its DX3Pro+, a direct evolution of the excellent DX3Pro, an excellent compact DAC also offering headphone amplification and preamplification functions. Embarking in particular an ES9038Q2M conversion chip and a XMOS XU208 USB interface, it ensures a particularly precise and lively sound reproduction. It also benefits from a Bluetooth receiver, practical for broadcasting music remotely, from a smartphone for example.

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

ESS ES9038Q2M DAC

The digital/analog conversion stage of the DX3Pro+ is based on a DAC ES9038Q2M chip from ESS. This one offers excellent performances and benefits from an advanced optimization, made by the brand for an increased efficiency. The DAC is thus able to advance a THD+N of 0.00015%.

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512
Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

USB XMOS XU208 USB Interface

In addition to this ES9038Q2M DAC chip, there is a second generation XMOS XU208 8-core USB interface, in charge of processing the data transmitted via the USB input. This one allows notably the support of high resolution audio streams, with PCM up to 32bit 768kHz and DSD up to DSD512. This chip also offers excellent compatibility with the majority of systems, whether the device is running Windows 10, Mac OS, Linux, iOS or Android.

QCC5125 & Bluetooth 5.0

The DX3Pro+'s Bluetooth 5.0 reception is provided by a QCC5125 chip designed by Qualcomm. This allows the DX3Pro+ to benefit from Hi-Res Wireless certification, thanks to the support of high-quality transmission codecs such as aptX, aptX LL, aptX HD and LDAC.

To achieve even better performance, this Bluetooth input is directly linked to the ES9038Q2M DAC for decoding the audio stream.

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512
Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

NFCA Circuit

The DX3Pro+ benefits from Topping's new NFCA circuitry, specially optimized for this model. This allows for ultra-low noise and distortion. This technology also allows the DX3Pro+ to be used with both high-sensitivity headphones and high-impedance headphones.

Adjustable gain

To ensure compatibility with the widest range of headphones on the market, the DX3Pro+ features a two-level gain control: a low gain level at +6dB and a high gain level at +19dB.

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

Preamplifier Function & Output Modes

The DX3Pro+ offers a preamplifier function and no less than four output modes to suit different uses:

  • Headphone amplifier output
  • Headphone amplifier output + line output
  • DAC
  • Preamplifier
Output channelIndicatorJack 3.5mm headphone outpoutRCA outputAdjustable volume
Headphone amplifierHeadphone indicator ON
Headphone amplifier + Line outputHeadphone indicator ON
DAC indicator ON
Line outputDACIndicateur DAC allumé
Taux d'échantillonnage affiché
PreamplifierDAC indicator ON
Volume displayed

DX3Pro+ vs DX3Pro

DX3Pro+

DX3Pro

Bluetooth

QCC5125

CSR8675

THD+N (DAC)

0.00015%

0.0004%

THD+N (Headphone amplifier)

0.00015% @ 1500mW, 32 Ohm

0.001% @ 77mW, 32 Ohm

Output power

2x1800mW @ 32 Ohm
2x 250mW @ 300 Ohm

2x700mW @ 32 Ohm
2x 125mW @ 300 Ohm

Output impedance

< 0.1 Ohm

< 10 Ohm

Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
Preamplifier

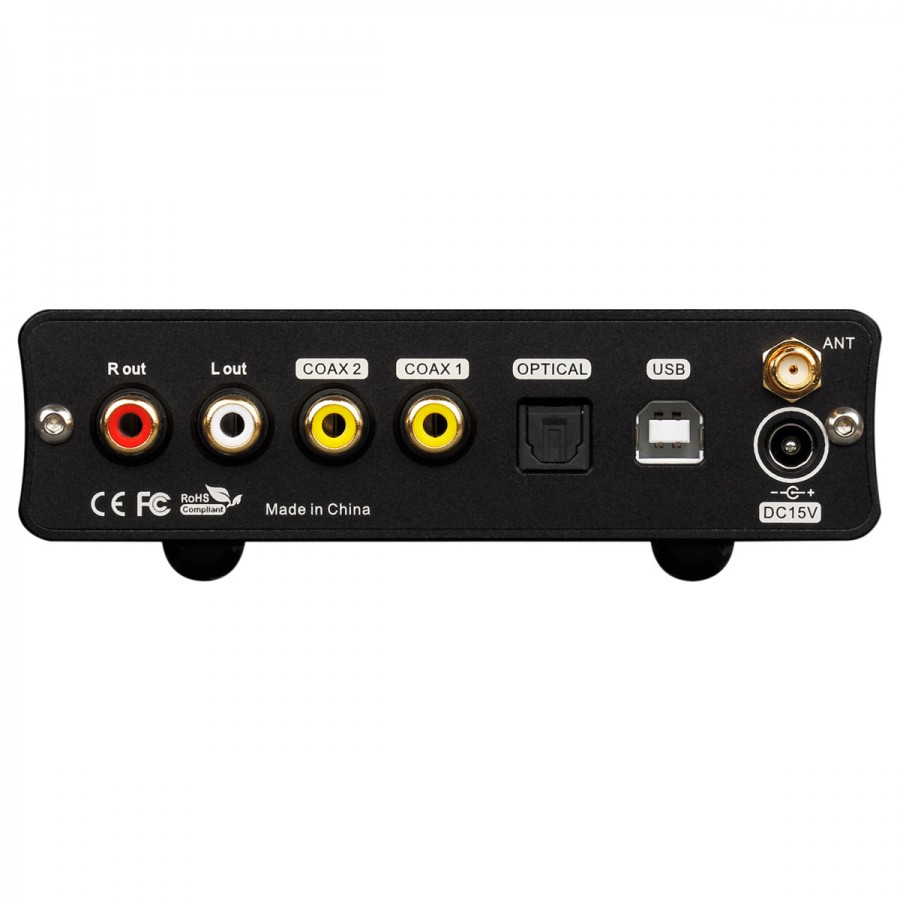

Inputs1x USB-B
1x Optical Toslink
2x Coaxial
Bluetooth 5.0
Outputs1x Stereo RCA
1x Jack 3.5mm headphone output
Amplification chipTPA 6120A2
DAC chipESS ES9038Q2M
Bluetooth chipQCC5125
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256
Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Supported Bluetooth codecsAAC, SBC, aptX, aptX LL, aptX HD, LDAC
DAC Measurements (@ USB, 96kHz)
THD+N @ 1kHz, A-Weighting< 0.00015%
THD @ 20Hz-20kHz, 90kBW< 0.0002%
SNR @ 1kHz, A-Weighting122dB
Dynamic range @ 1kHz, A-Weighting122dB
Frequency response20Hz-20kHz (±0.3dB)
20Hz-40kHz (±0.7dB)
Output level2.1Vrms @ 0dBFS
Noise @ A-Weighting< 1.8µVrms
Crosstalk @ 1kHz-137dB
Channel balance0.3dB
Output impedance20Ω
Headphone amplifier measurements
THD+N @ 1kHz, A-Weighting< 0.00015% @ Output=1500mW, 32Ω
< 0.00013% @ Output=160mW, 300Ω
THD @ 20Hz-20kHz, 90kBW< 0.0005% @ Output=1500mW, 32Ω
< 0.0005% @ Output=160mW, 300Ω
SNR @ Max output level, A-Weighting120dB
Dynamic range @ 1kHz, A-Weighting120dB
Frequency response20Hz-20kHz (±0.3dB)
20Hz-40kHz (±0.7dB)
Output level5.5Vpp @ G=L
21.5Vpp @ G=H
Noise @ A-Weighting< 2.1µVrms @ G=L
< 7µVrms @ G=H
Crosstalk @ 1kHz-90dB
Gain6dB (Vrms/FS) @ G=L
19dB (Vrms/FS) @ G=H
Output impedance< 0.1Ω
Output power2x 1800mW @ 32Ω, THD+N < 0.1%
2x 900mW @ 64Ω, THD+N < 0.1%
2x 250mW @ 300Ω, THD+N < 0.1%
Adapter impedance> 8Ω
General
Dimensions120 x 165 x 40mm
Housing materialAluminum
ColorBlack
Package1x Topping DX3Pro+
1x Power supply
1x Remote control
1x USB Cable
1x Bluetooth antenna
Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512 Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512 Topping DX3pro+ DAC ES9038Q2M Amplificateur Casque NFCA Bluetooth 5.0 aptX HD LDAC XMOS XU208 32bit 768kHz DSD512

Data sheet
InputSPDIF
InputBluetooth
InputUSB
InputOptical
OutputJack 3.5mm
OutputRCA
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
ClassClass D / T
Amplifier chipN/A
NetworkingNo
Remote ControlYes
Refurbished GradeGrade S
